Body dimensions for restoring the body geometry of Daihatsu Move Canbus (LA850 LA860) 2022-2028 are used to verify the body geometry and facilitate the subsequent repair of damaged parts. These measurements are specifically applicable to the right-hand drive versions of Daihatsu Move Canbus for the Japanese market.

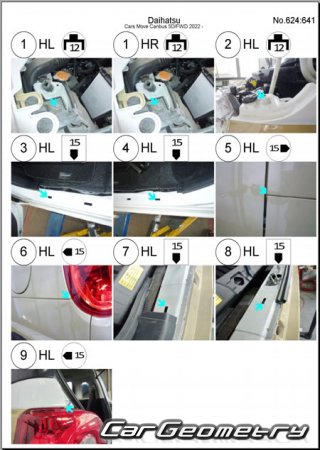

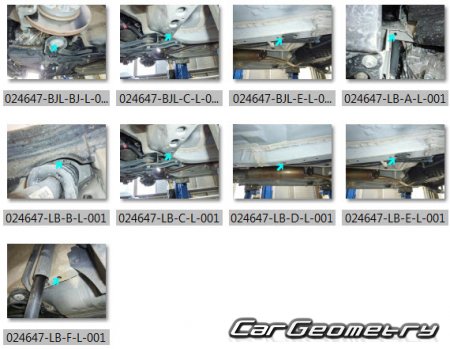

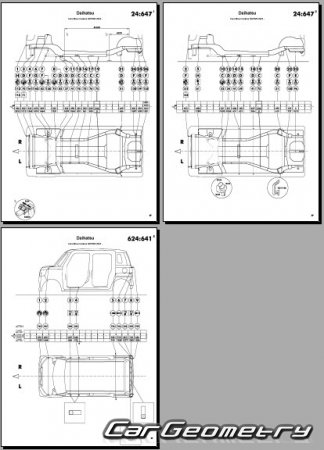

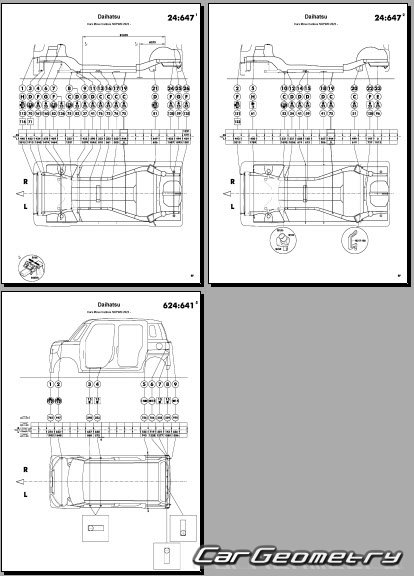

A selection of information is available from the factory documentation in Japanese for the Daihatsu Move Canbus 2022-2028 with right-hand drive, including body dimensions and control points (chassis diagrams, upper body datasheet, underbody datasheet).

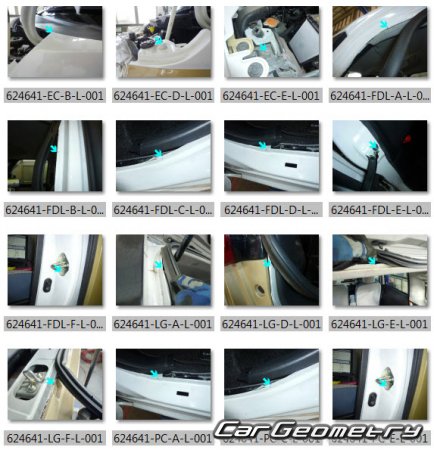

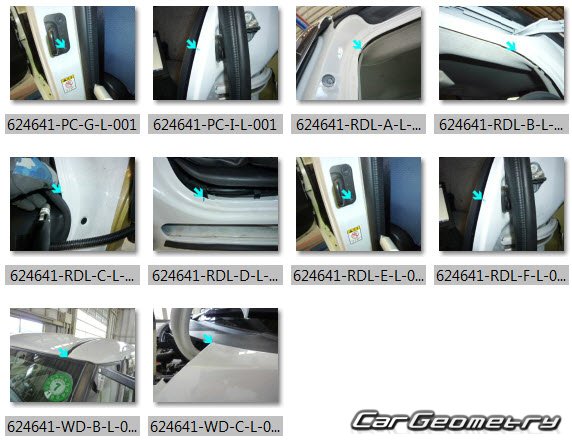

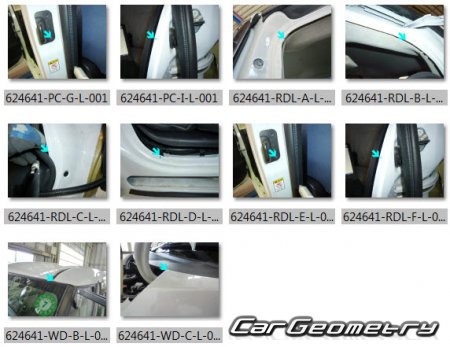

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions
Daihatsu Move Canbus (LA850 LA860) 2022-2028 (RH Japanese market)

Price: $40
