Mazda Roadster (ND) 2015–2022 (RH Japanese market) Body dimensions

Mazda Roadster (ND) 2015–2022 Body dimensions

Body dimensions for restoring the body geometry of Mazda Roadster (ND) 2015–2022 are used to verify the body geometry and facilitate the subsequent repair of damaged parts. These measurements are specifically applicable to the right-hand drive versions of Mazda Roadster for the Japanese market.

A selection of information is available from the factory documentation in Japanese and various body measurement bases for the Mazda Roadster 2015–2022 with right-hand drive, including body dimensions and control points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

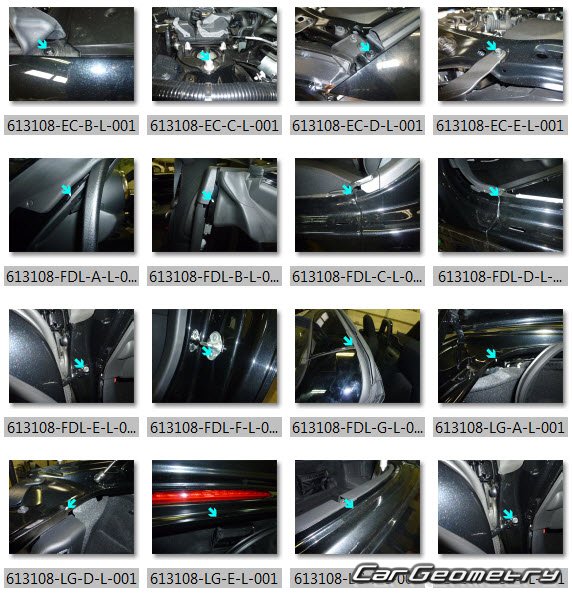

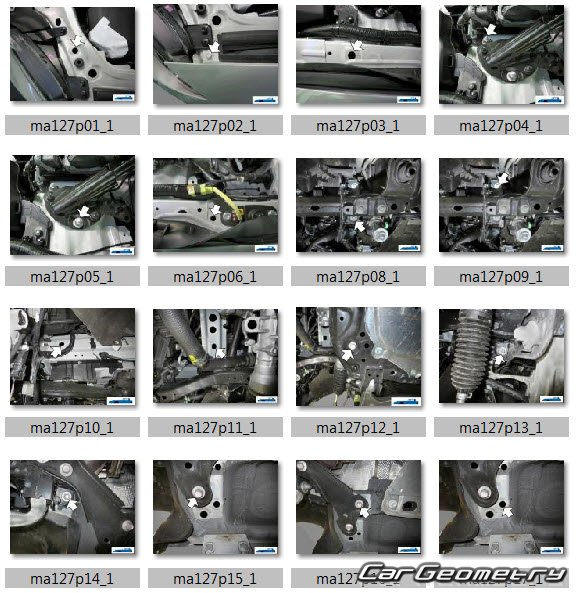

Data sample from the archive

Download vehicle dimensions
Mazda Roadster (ND) 2015–2022 (RH Japanese market)

Price: $30
