Mitsubishi ASX (GA3W) 2010-2019 Body dimensions
Body dimensions for restoring the body geometry of Mitsubishi ASX (GA3W) 2010-2019 vehicles. These data are used for checking the body geometry and subsequent straightening of damaged parts of Mitsubishi ASX cars. The manual can also be used for the body restoration of Mitsubishi Outlander Sport 2011-2020 vehicles in North America.

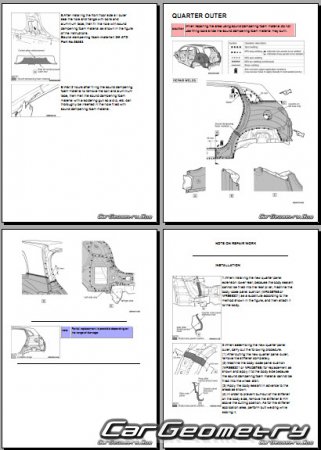

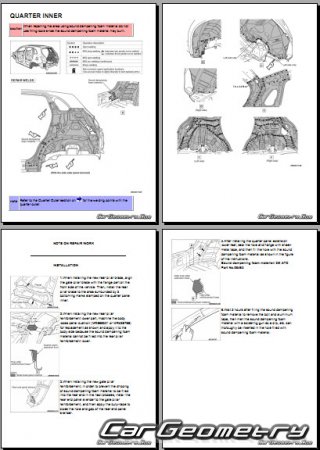

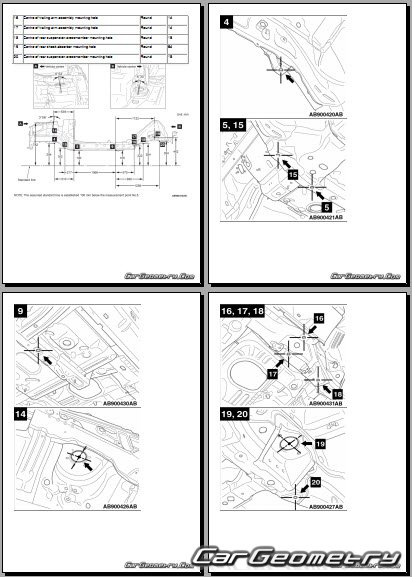

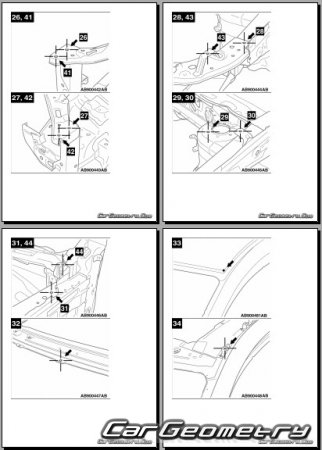

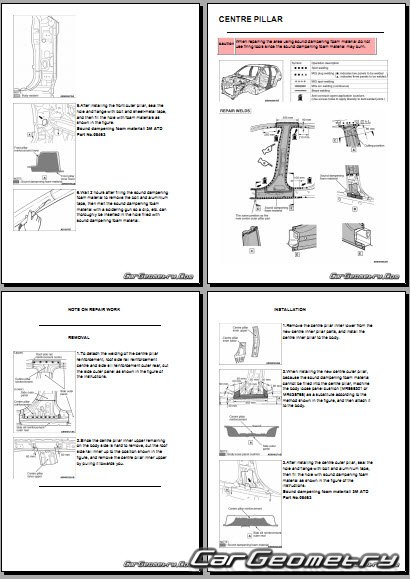

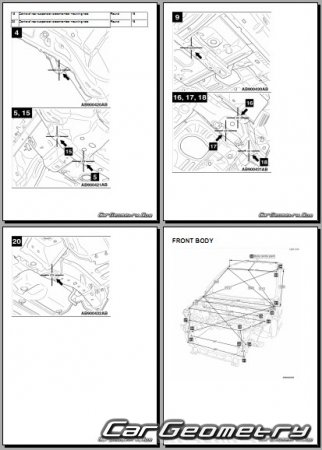

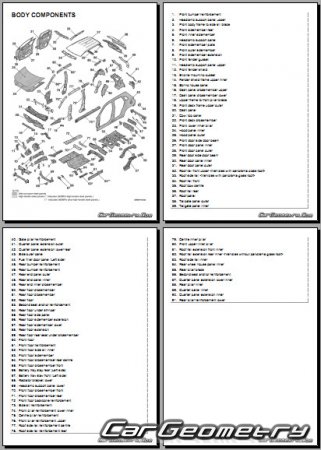

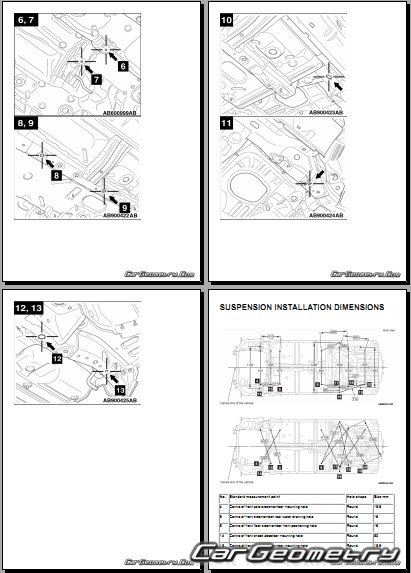

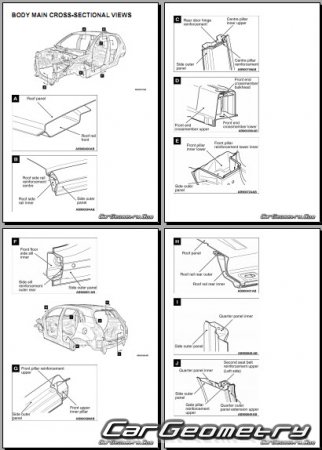

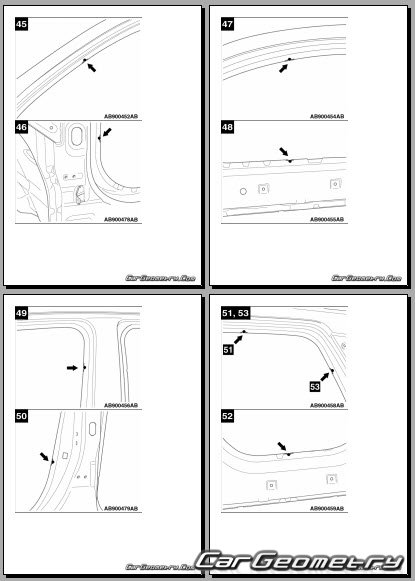

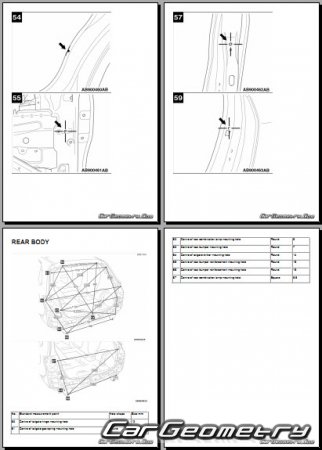

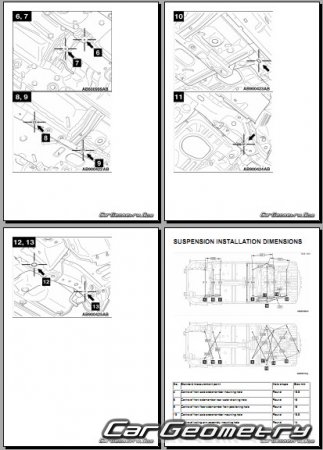

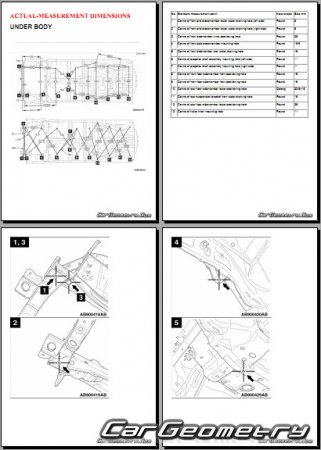

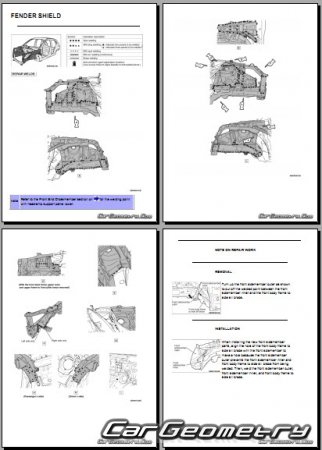

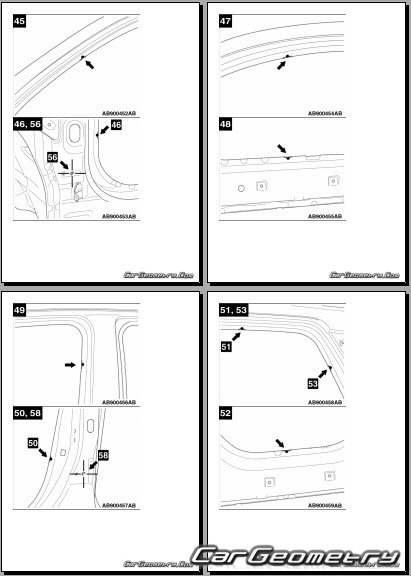

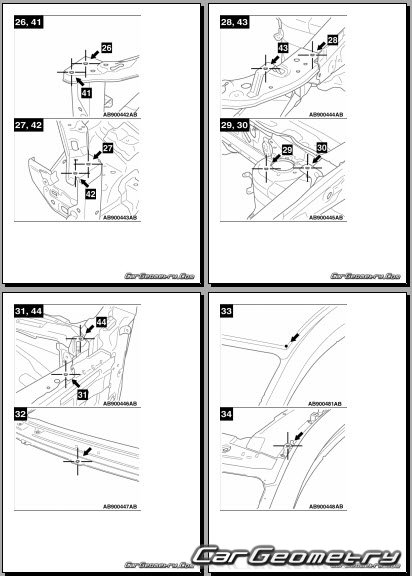

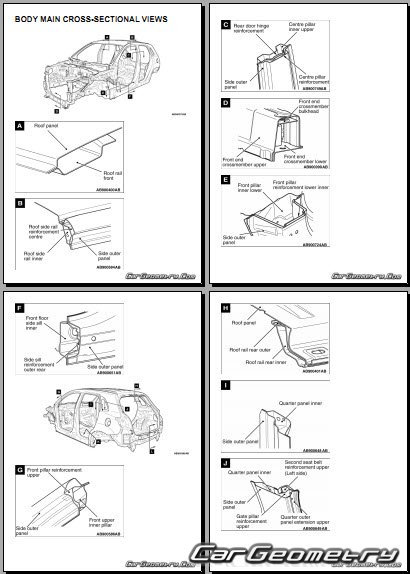

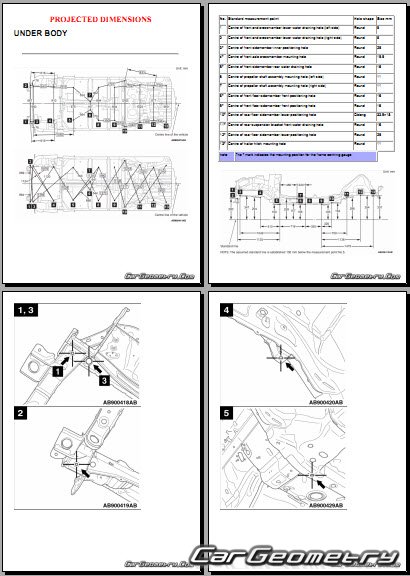

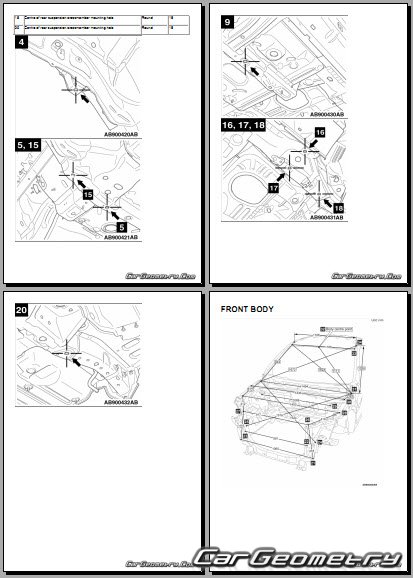

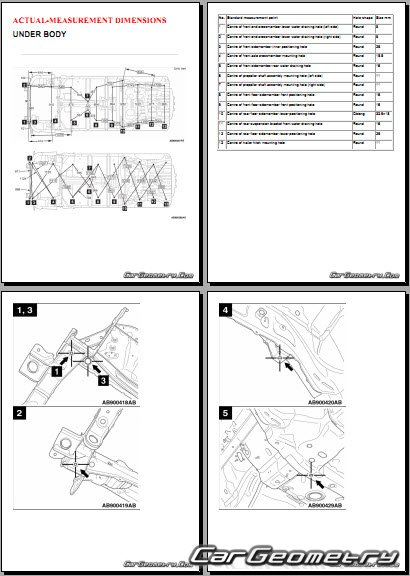

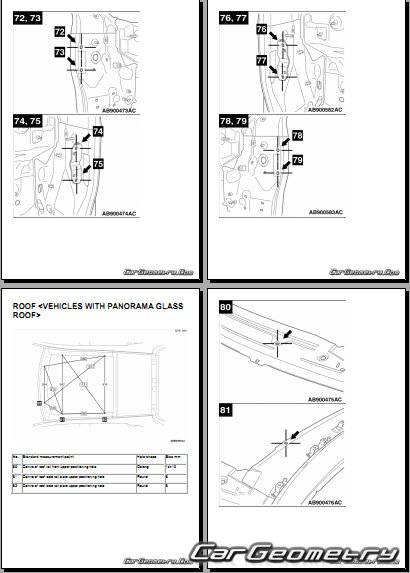

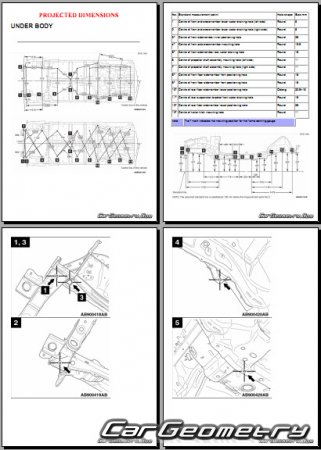

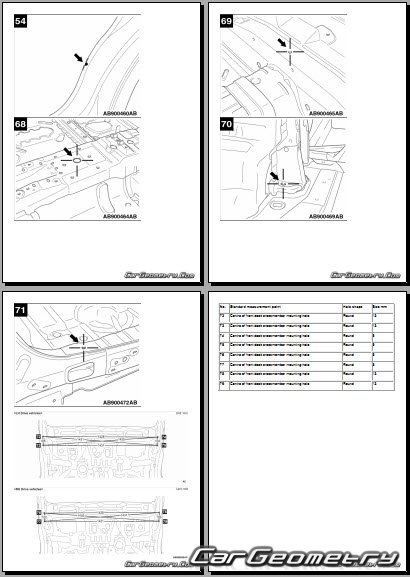

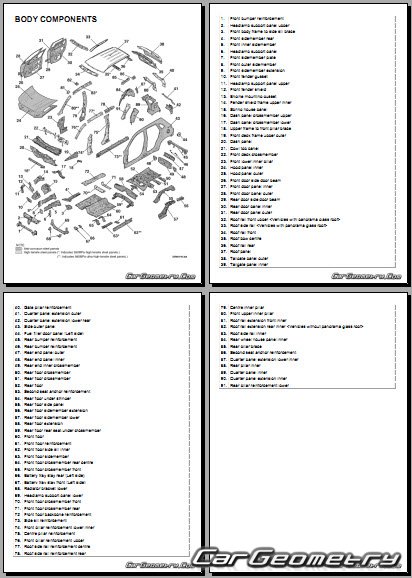

Selection from factory documentation and vehicle measurement database for Mitsubishi ASX 2010-2019: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).
Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

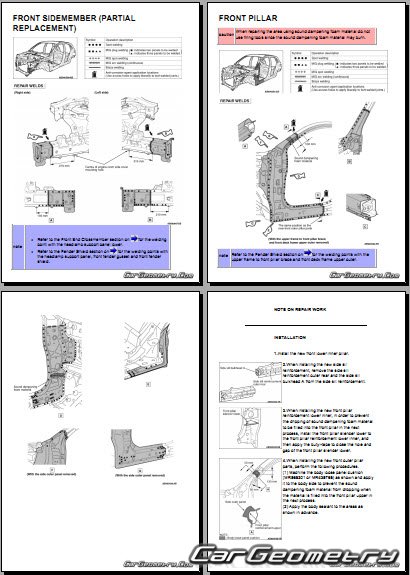

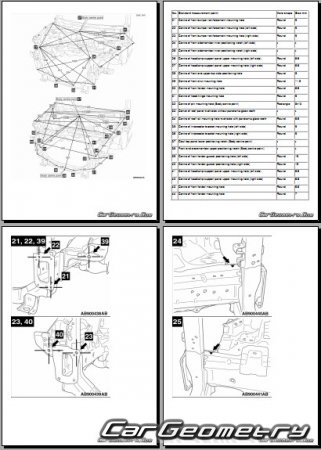

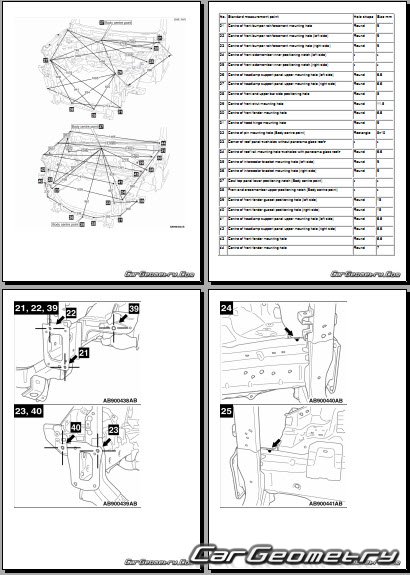

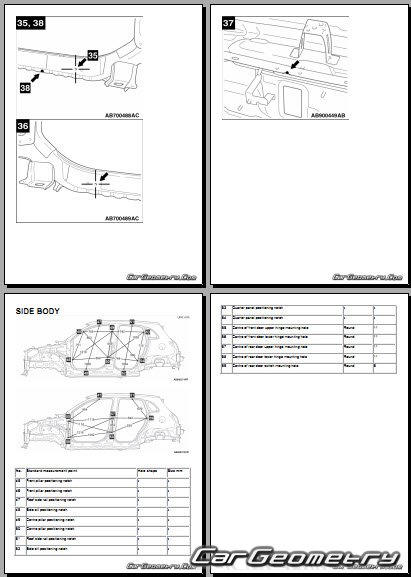

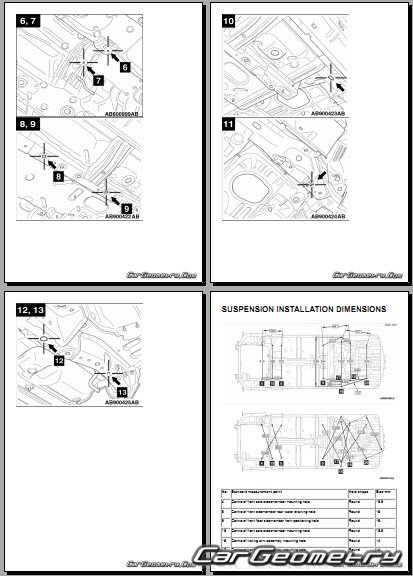

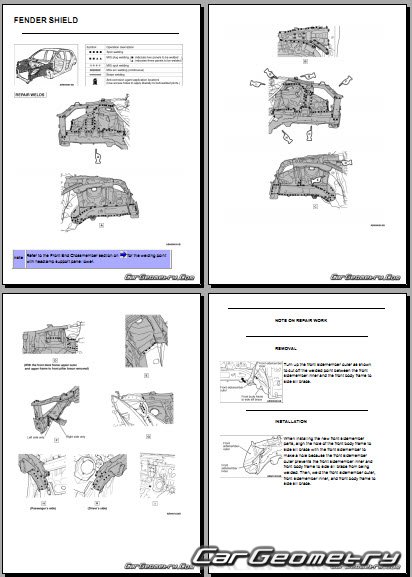

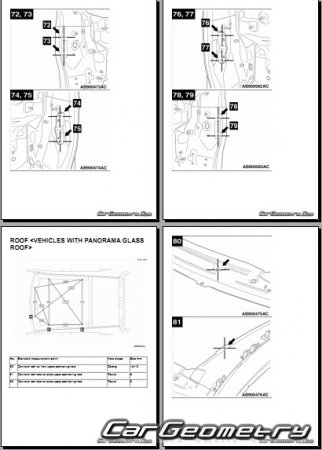

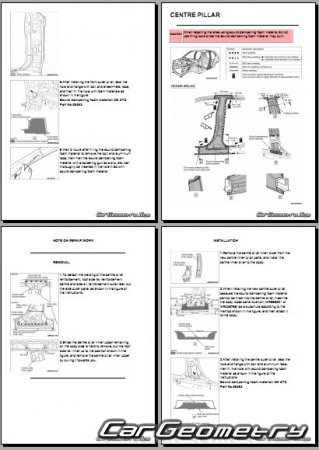

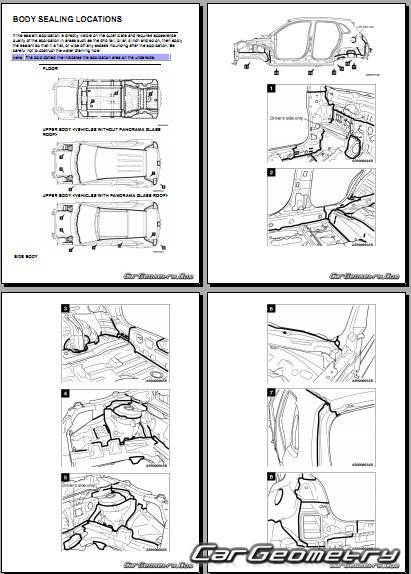

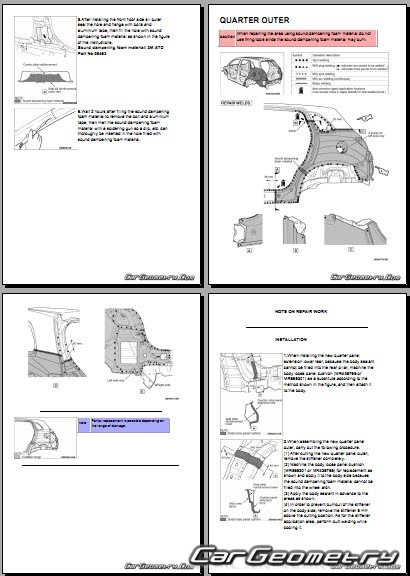

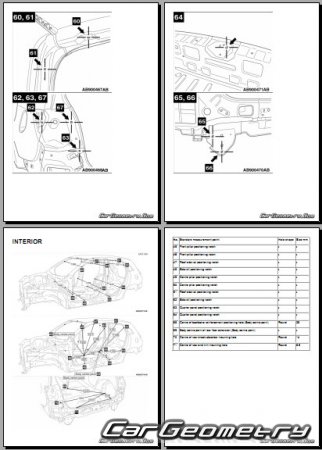

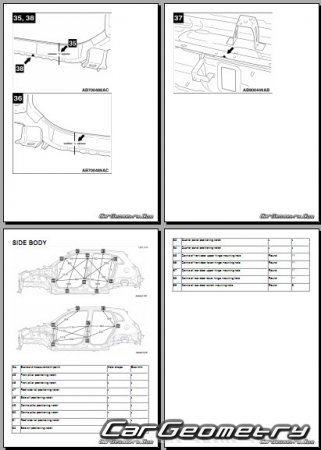

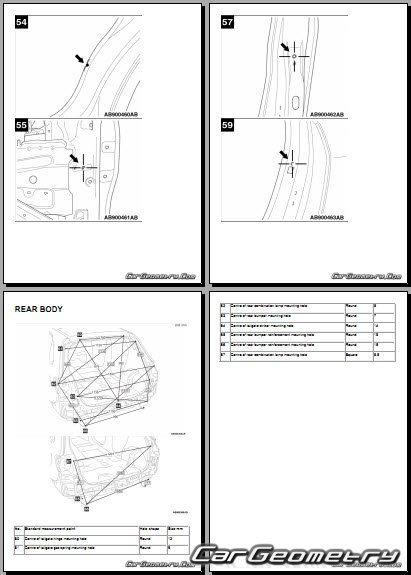

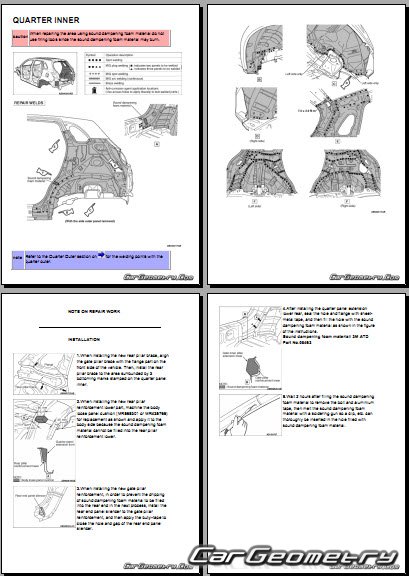

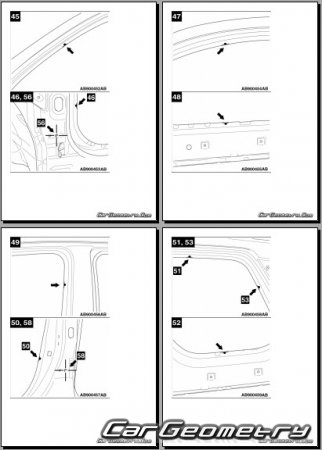

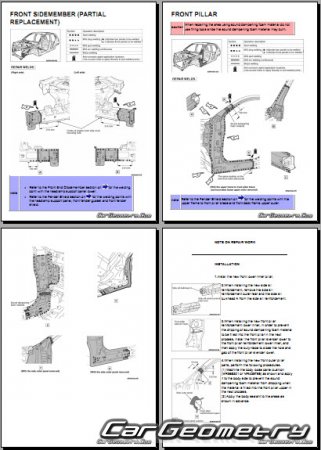

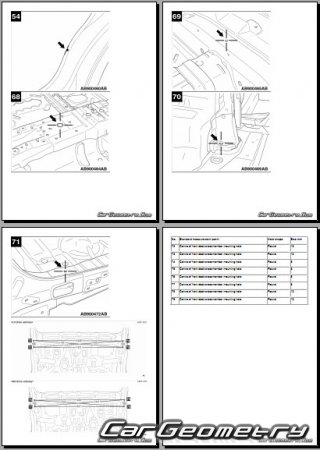

Data sample from the archive
Download vehicle dimensions Mitsubishi ASX (GA3W) 2010-2019
