Opel Ampera & Chevrolet Volt 2011–2018 Body dimensions

Opel Ampera 2011–2018 Body dimensions

Body dimensions for restoring the body geometry of Opel Ampera 2011–2018. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. The manual can be used for body repair of Chevrolet Volt 2010-2018.

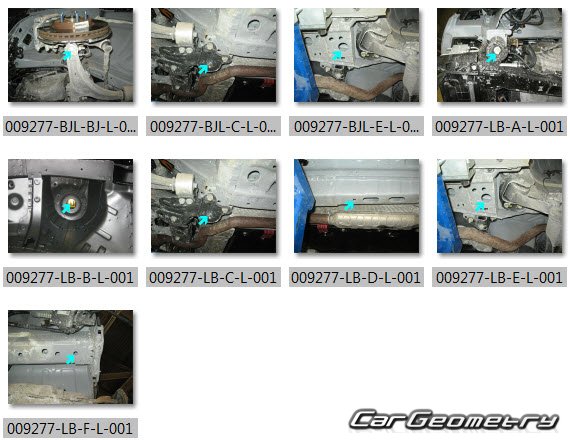

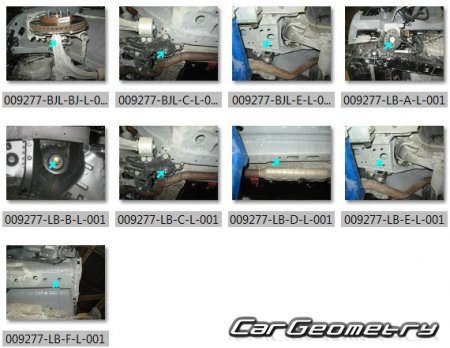

Selection from factory documentation and vehicle measurement database for Opel Ampera: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Data sample from the archive

Opel Ampera & Chevrolet Volt 2011–2018 Body dimensions

Download vehicle dimensions
Chevrolet Volt & Opel Ampera 2011–2018

Price: $30
