Body dimensions for restoring the body geometry of Renault Grand Scenic IV 2016–2022. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

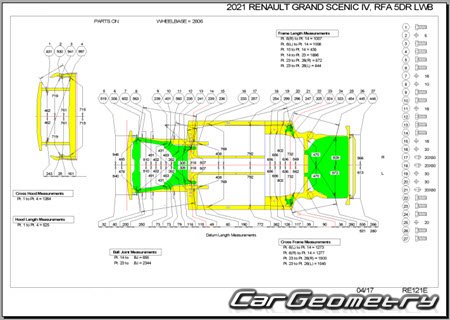

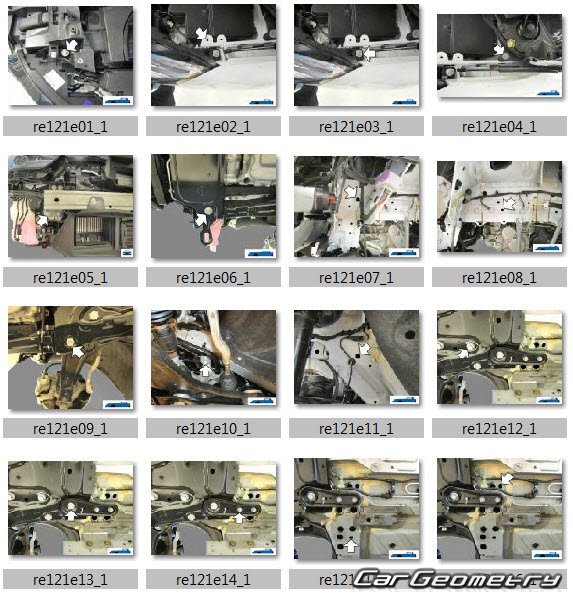

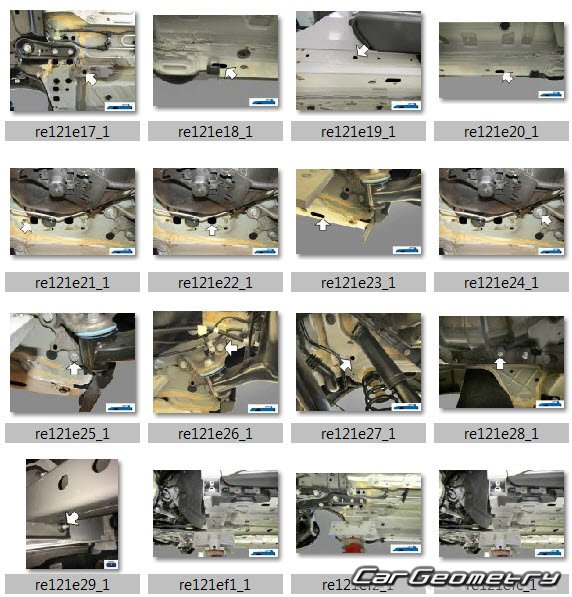

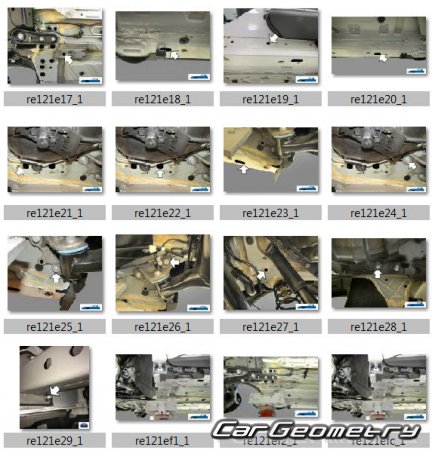

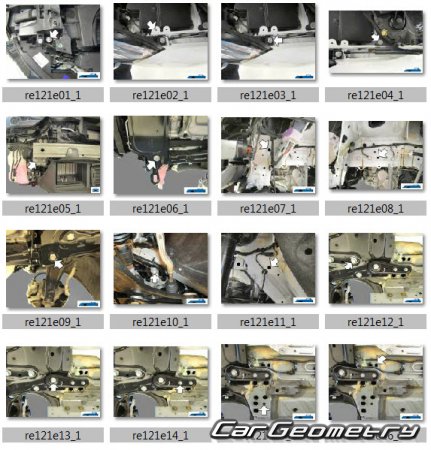

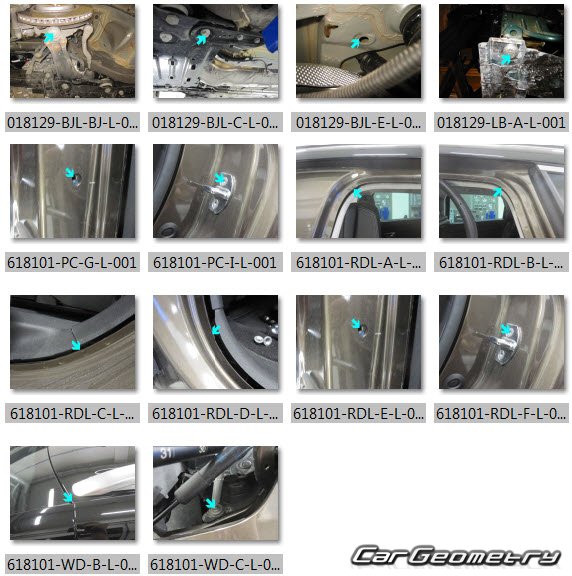

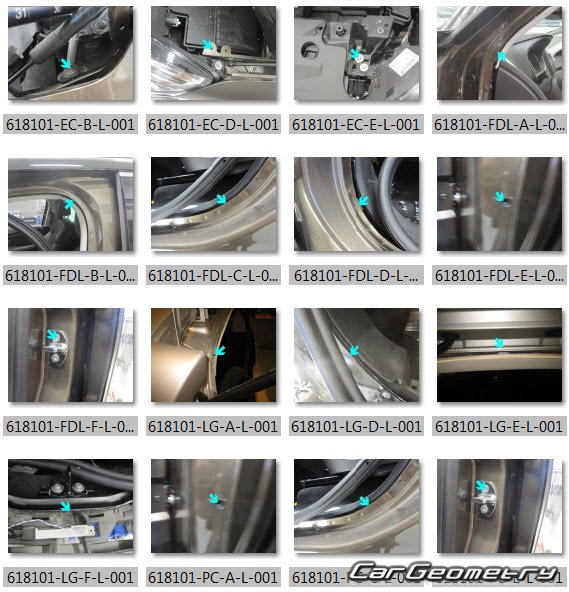

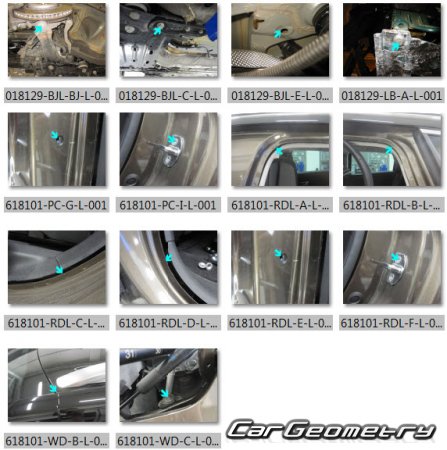

Selection from factory documentation and vehicle measurement database for Renault Grand Scenic IV 2016–2022: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

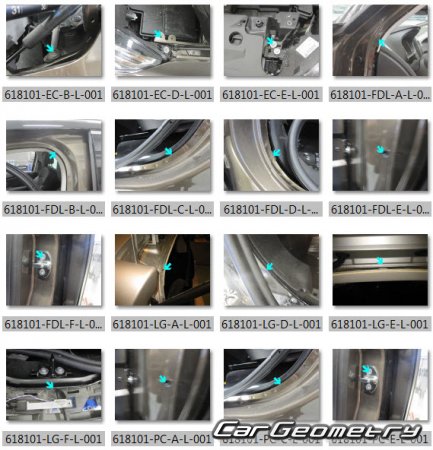

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

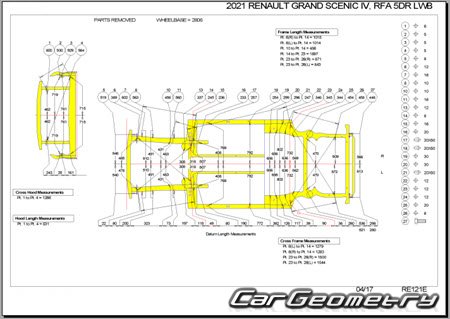

Data sample from the archive











Download vehicle dimensions Renault Grand Scenic IV 2016–2022

Price: $30
