Body dimensions for restoring the body geometry of Alfa Romeo Spider (105/115) 1966–1995. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

The Alfa Romeo Spider (105/115 series) is an iconic Italian two-seater roadster produced from 1966 to 1993 (with some 115-series cars sold until 1995). The model is known for its elegant Pininfarina design, rear-wheel-drive layout, and inline-four Twin Cam engines.

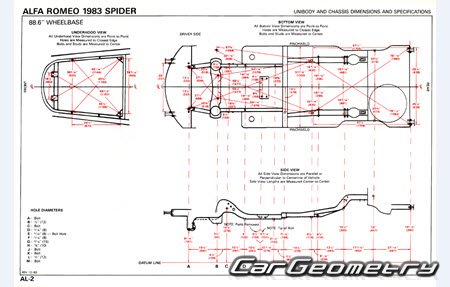

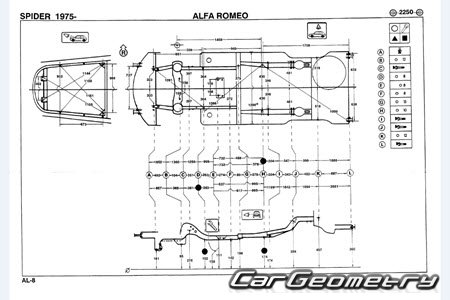

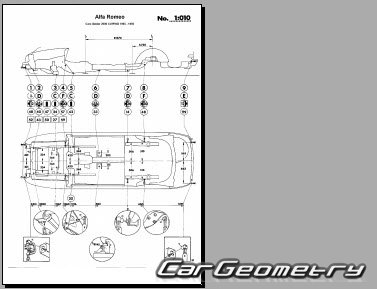

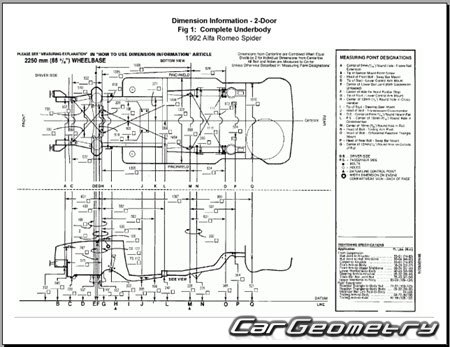

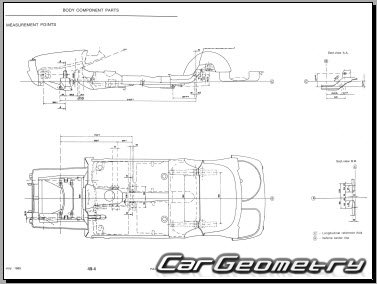

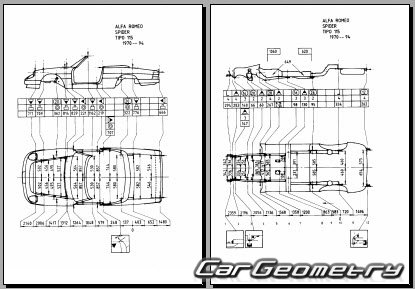

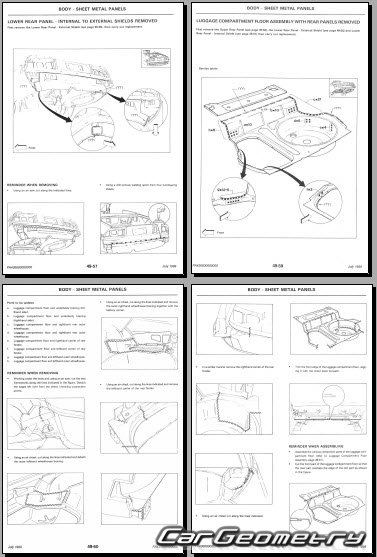

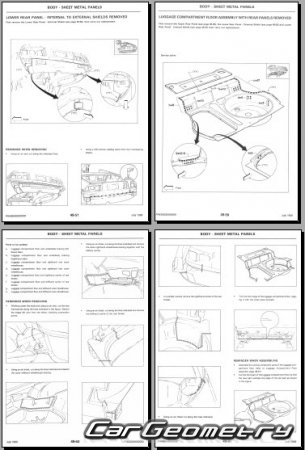

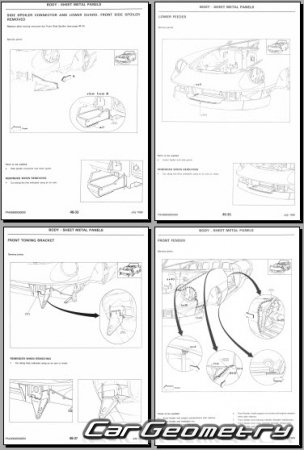

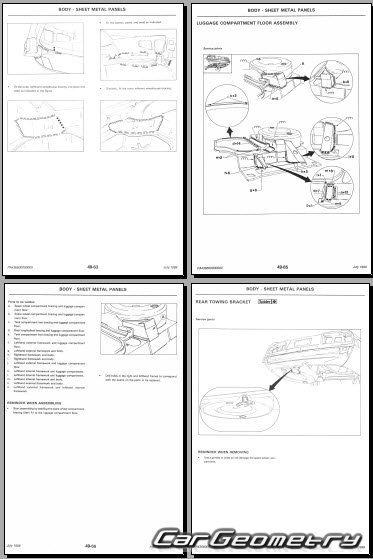

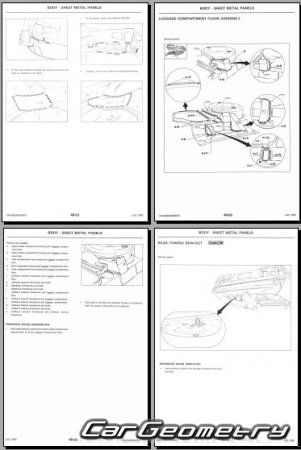

Selection from factory documentation and vehicle measurement database for Alfa Romeo Spider 1966–1995: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

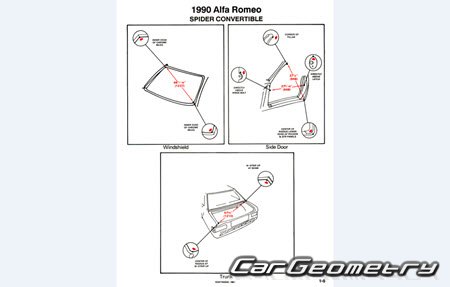

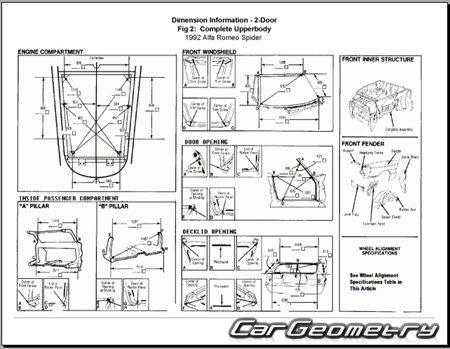

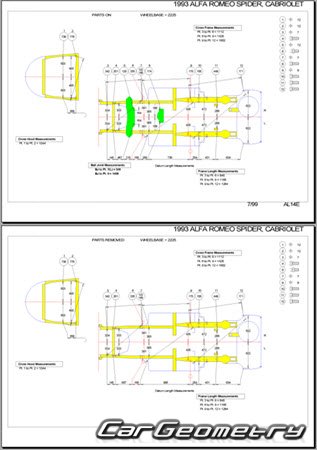

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Alfa Romeo Spider (105/115) 1966–1995

Price: $30
