Citroen Jumper Van 2002-2006 Body dimensions

Citroen Jumper Van 2002-2006 Body dimensions


Body dimensions for restoring the body geometry of Citroen Jumper Van 2002-2006 (SWB, NWB, LWB). With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

Selection from vehicle measurement database for Citroen Jumper Van 2002-2006: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

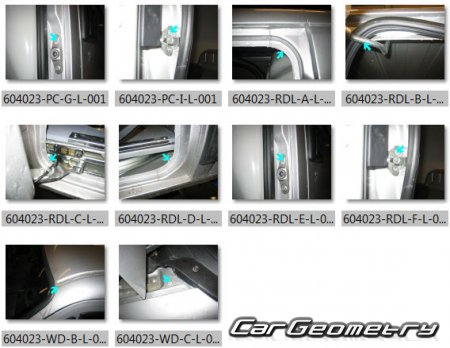

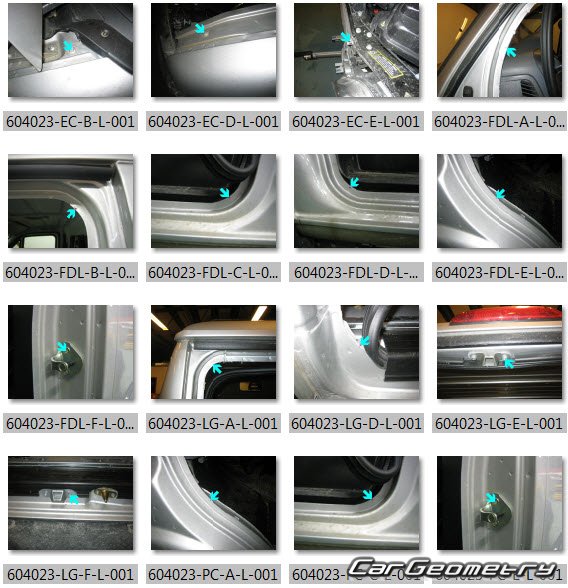

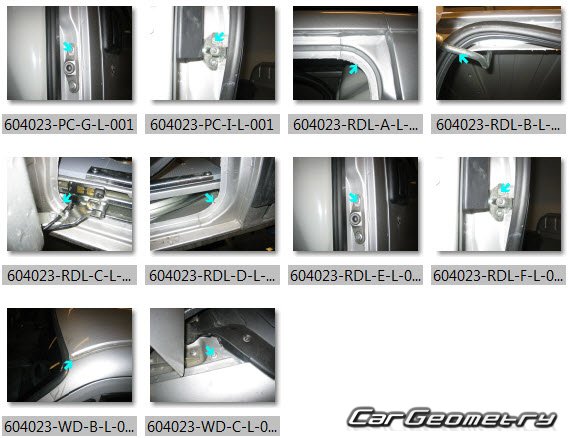

Data sample from the archive


Citroen Jumper Van 2002-2006 Body dimensions















Download vehicle dimensions Citroen Jumper Van 2002-2006

Price: $20
