Daihatsu Hijet Caddie (LA700V LA710V) 2016-2021 (RH Japanese market) Body dimensions

Body dimensions for restoring the body geometry of Daihatsu Hijet Caddie (LA700V LA710V) 2016-2021. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

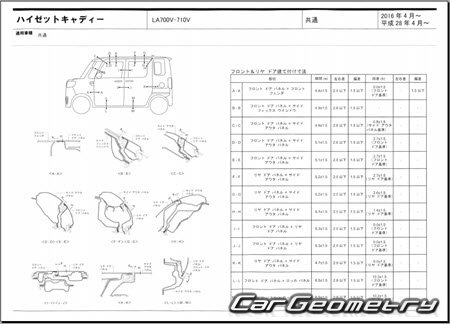

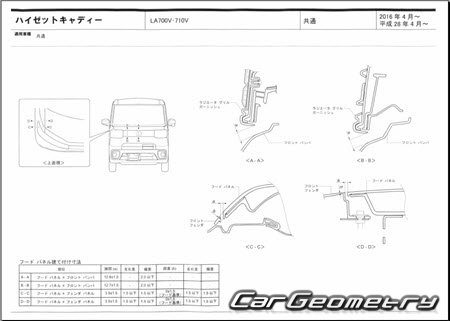

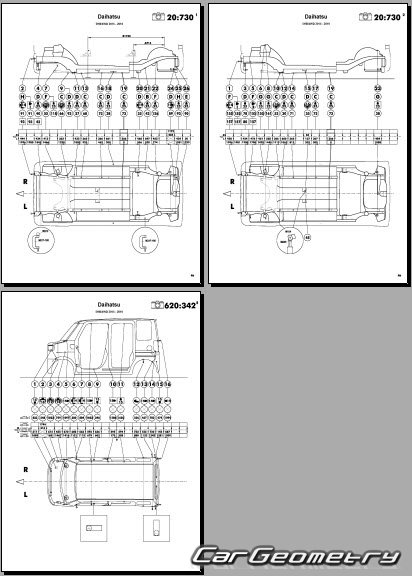

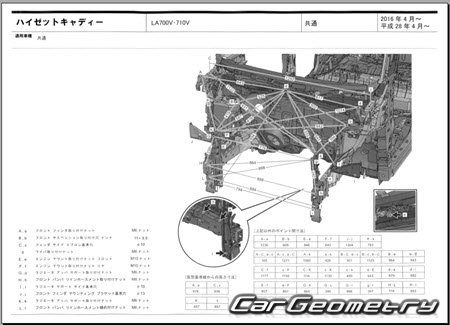

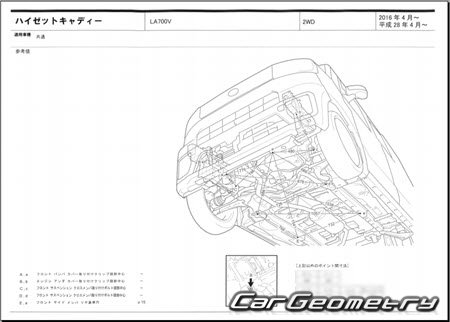

Selection from factory documentation (Japanese) and vehicle measurement database for Daihatsu Hijet Caddie 2016-2021: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

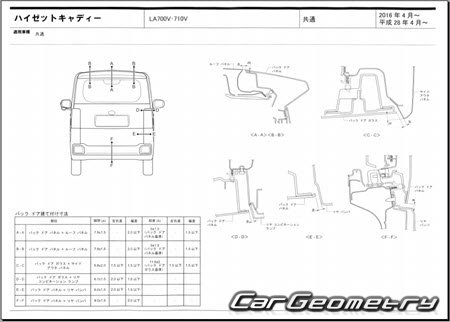

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

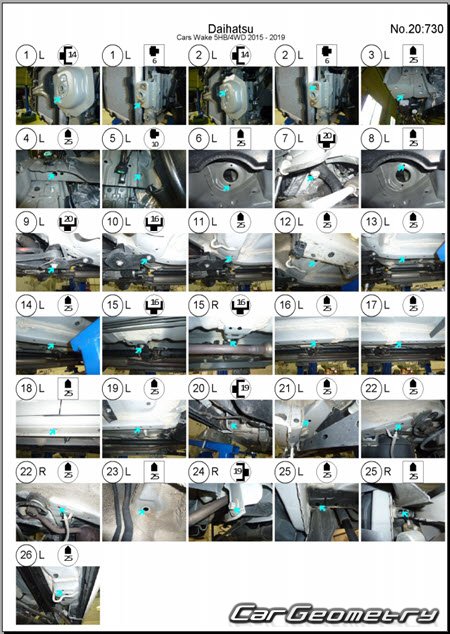

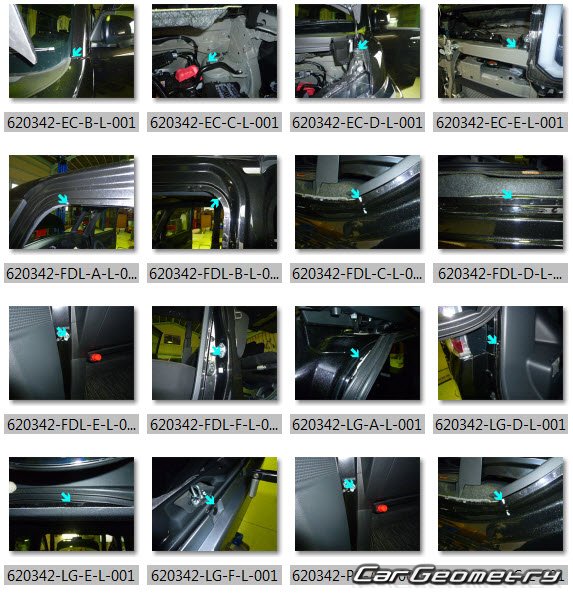

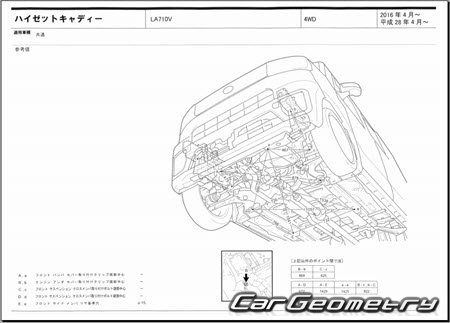

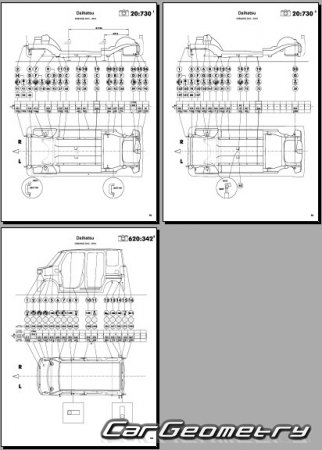

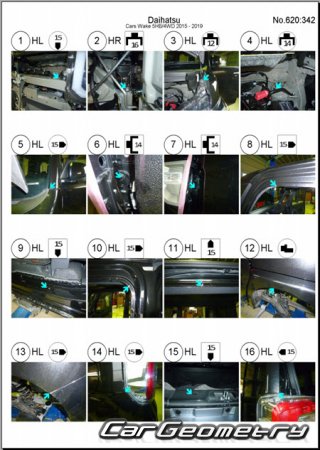

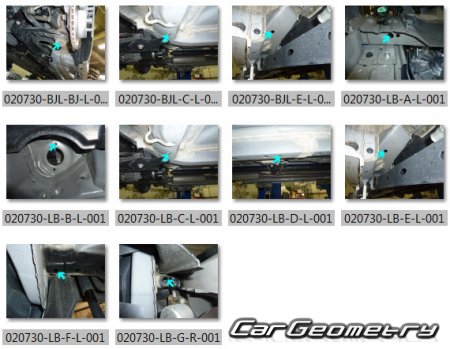

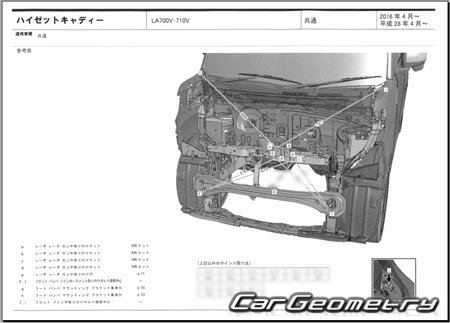

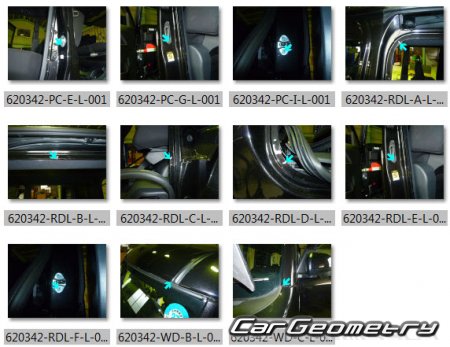

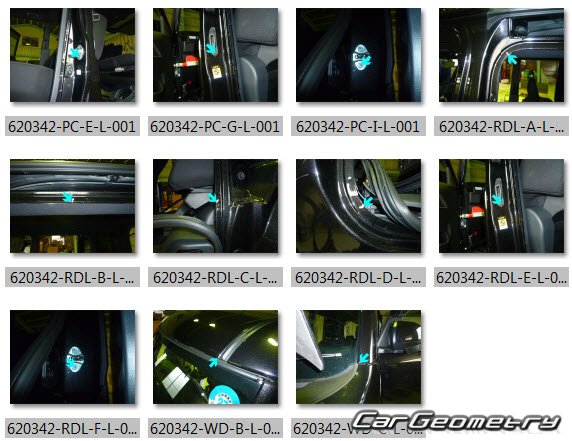

Data sample from the archive
Download vehicle dimensions Daihatsu Hijet Caddie (LA700V LA710V) 2016-2021
Price: $40
