Body dimensions for restoring the body geometry of Geely Atlas (FX11) 2022-2025. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. In the Chinese market, the car was sold as the Geely Boyue L, and the export version was called the Geely Starray; in the Kazakhstan and Russian markets, the car is sold as the Geely Atlas.

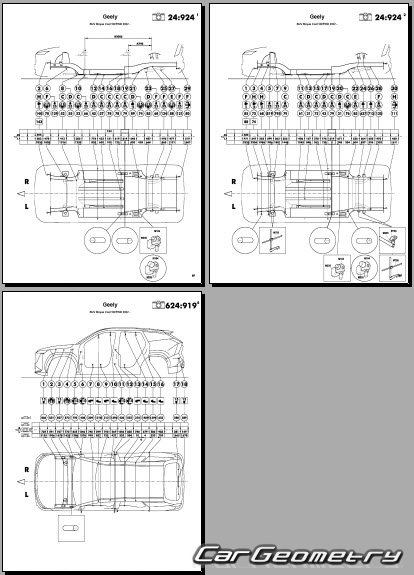

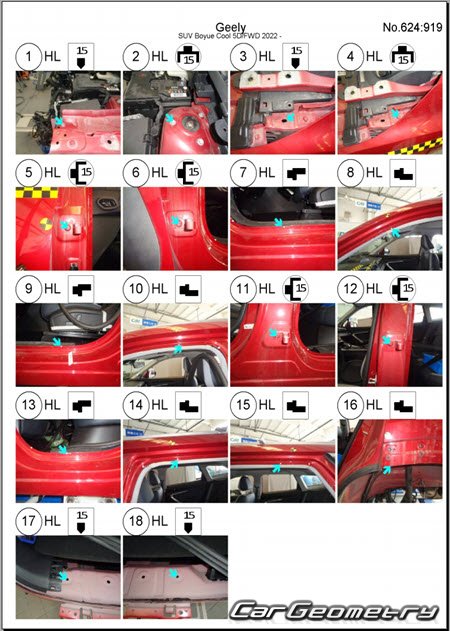

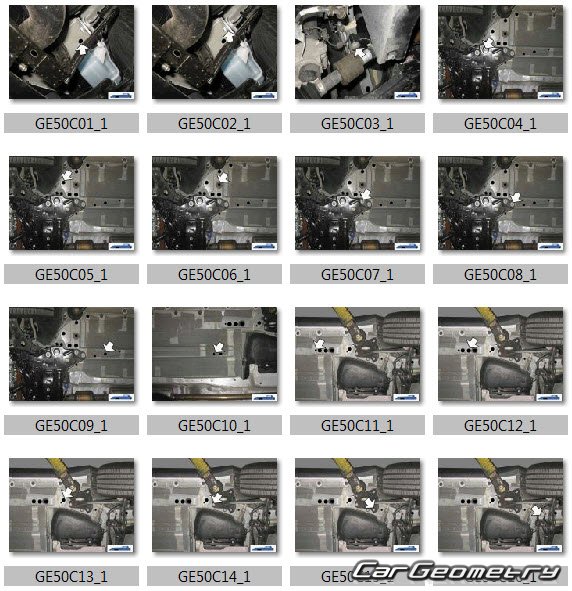

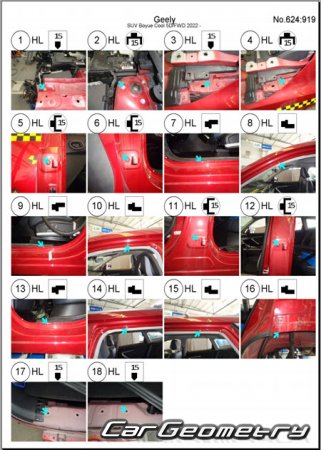

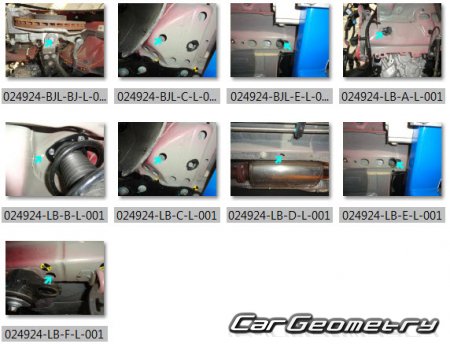

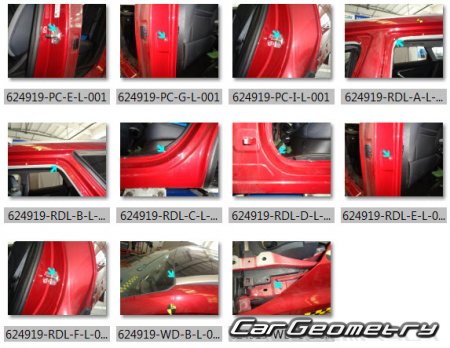

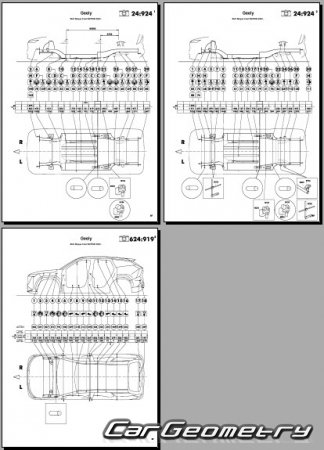

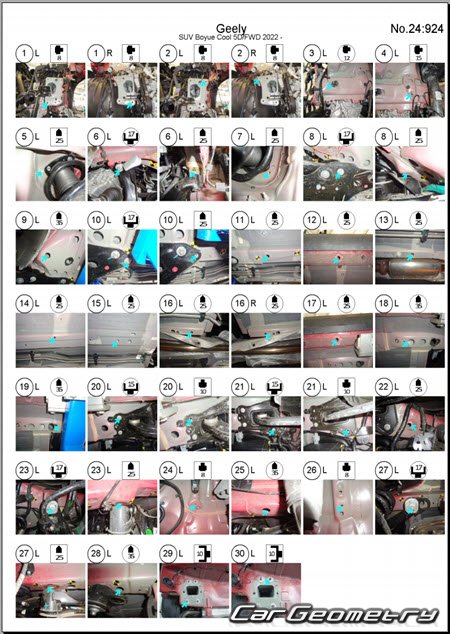

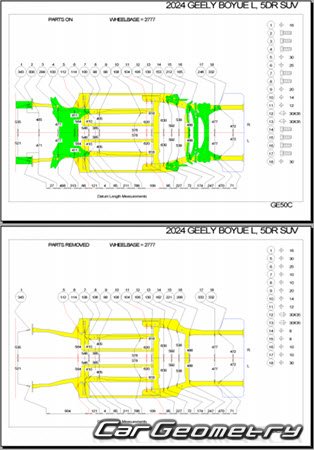

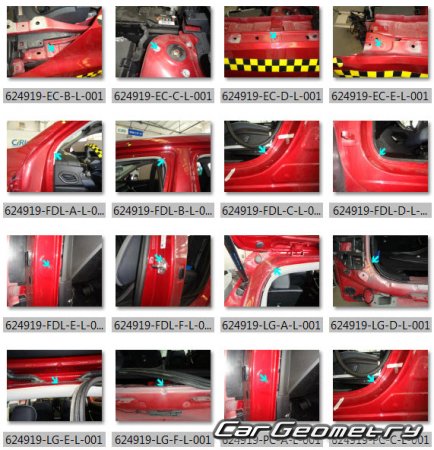

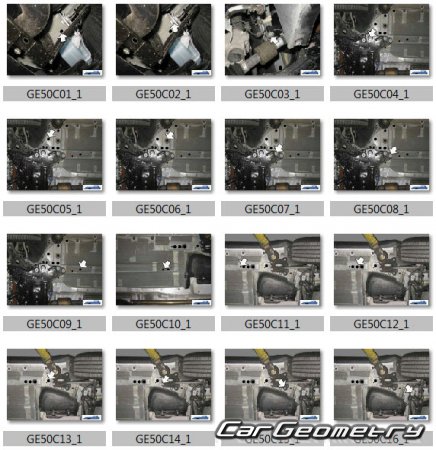

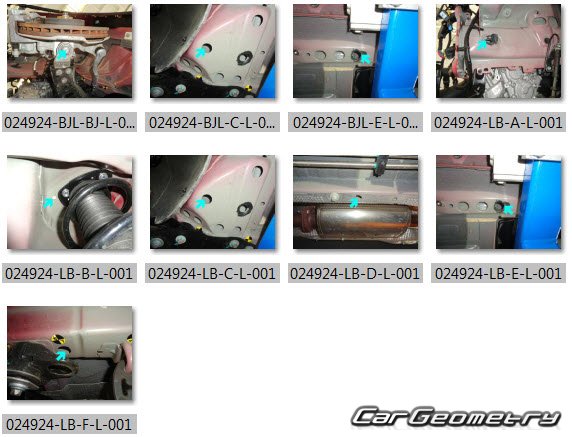

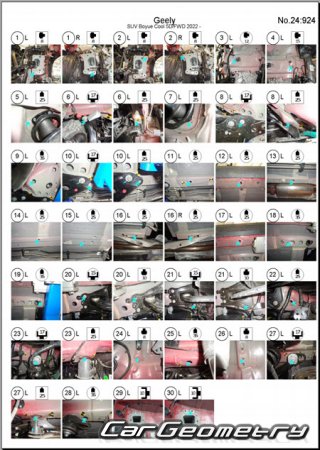

Selection from vehicle measurement database for Geely Atlas: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

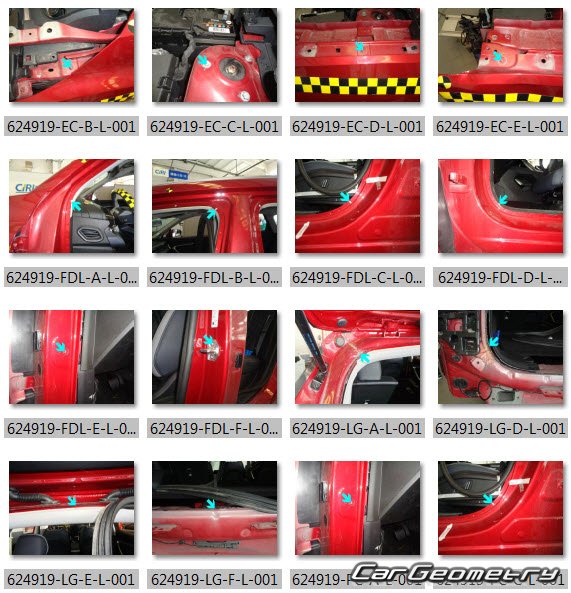

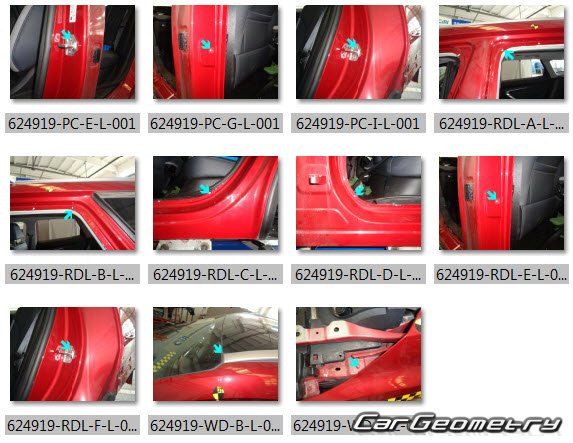

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Geely Atlas (FX11) 2022-2025

Price: $30
