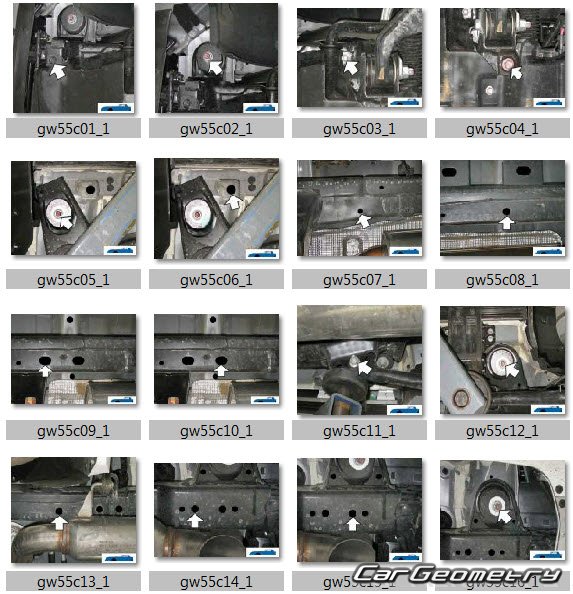

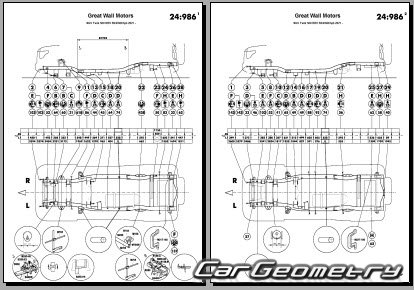

The factory body repair manual contains body dimensions for the Tank 300 2021-2027 and includes description of various body parts replacement, body dimension, control points for the GWM Tank.

The GWM Tank 500 is a mid-size SUV manufactured by Great Wall Motor since 2021. It was initially sold under the premium Wey brand as the Wey Tank 500. From April 2021, the vehicle was renamed as the Tank 500 under the Tank brand.

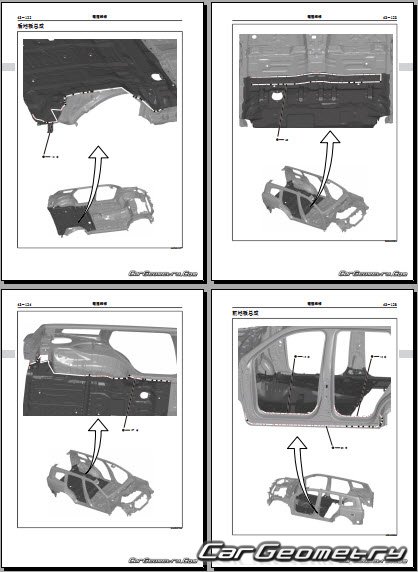

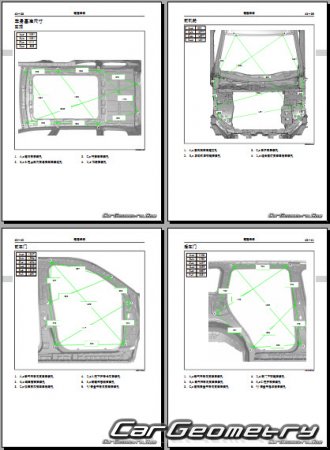

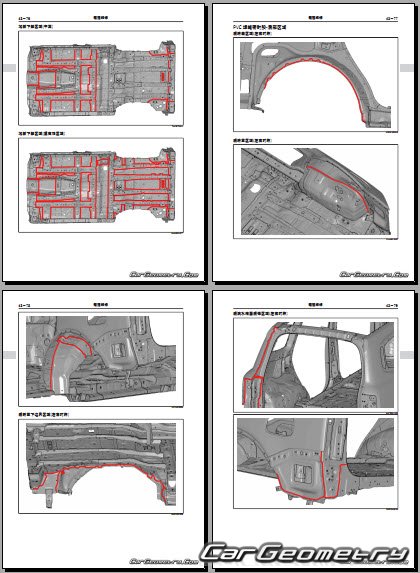

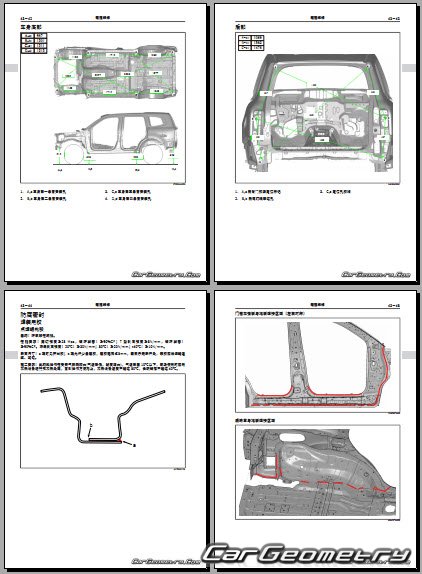

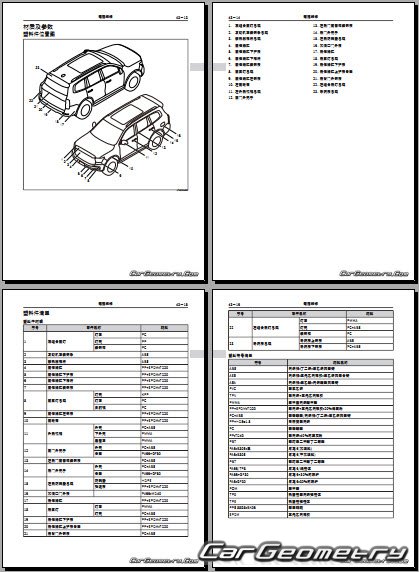

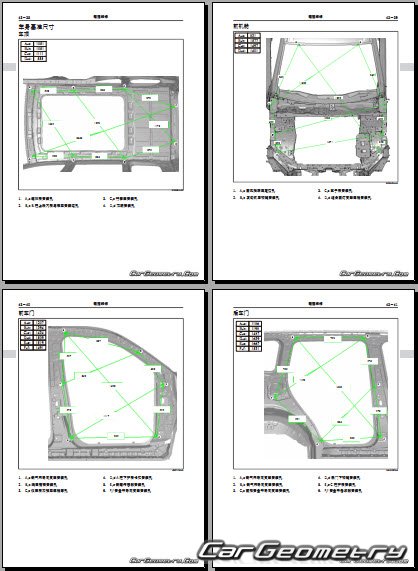

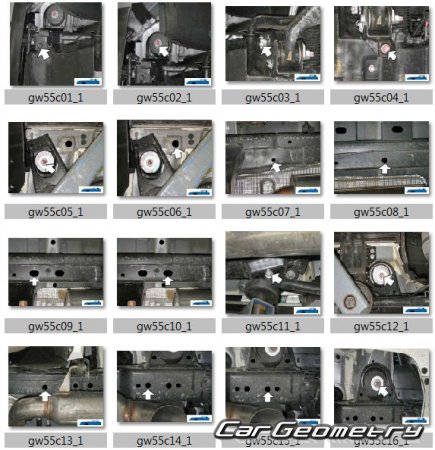

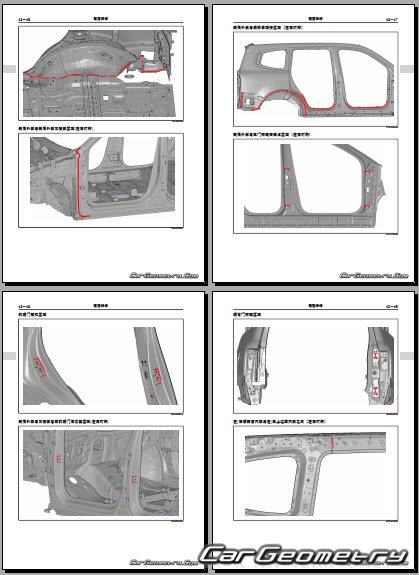

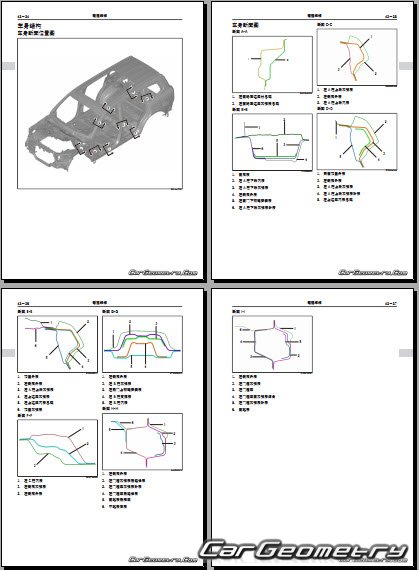

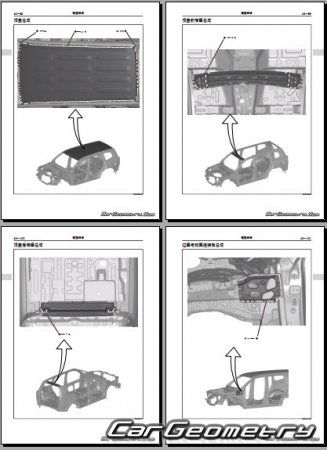

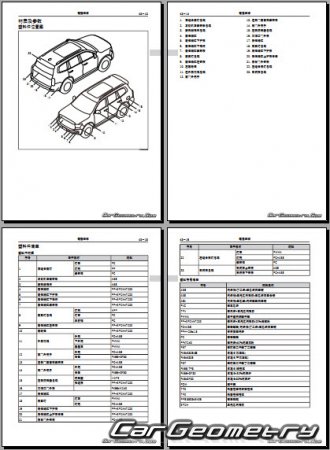

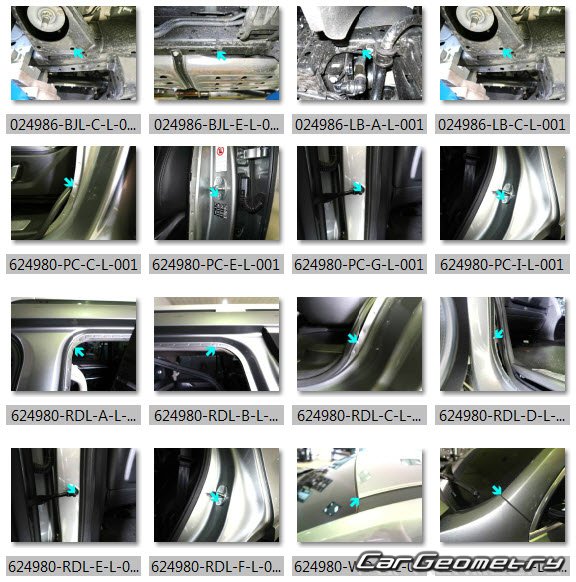

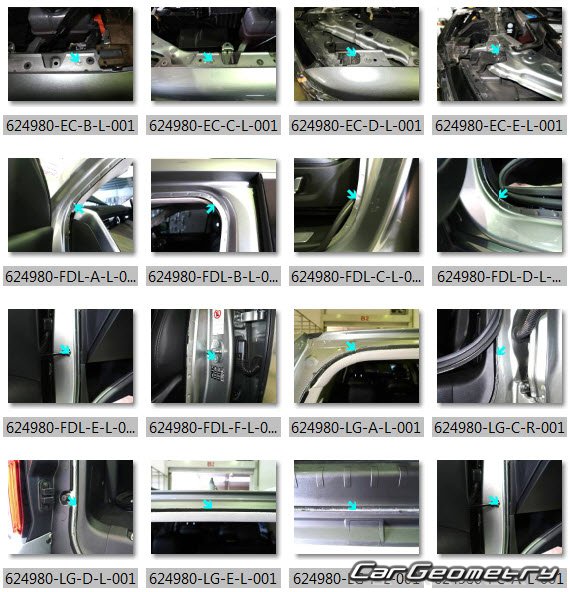

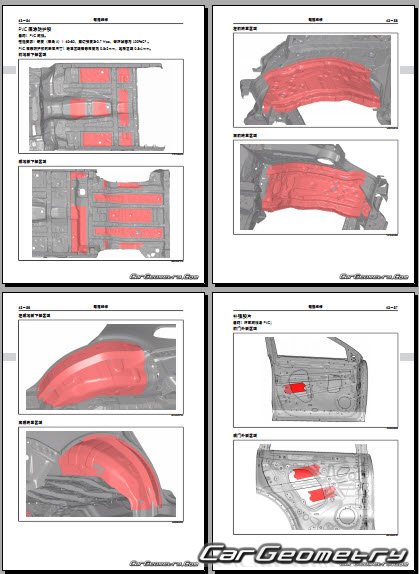

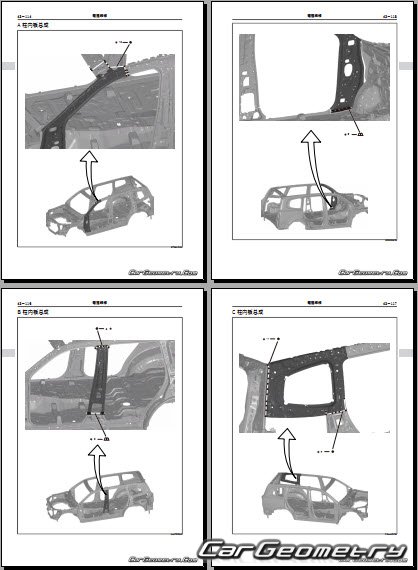

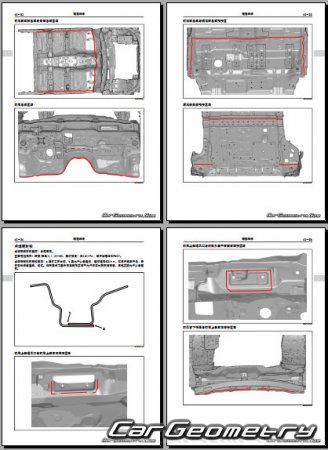

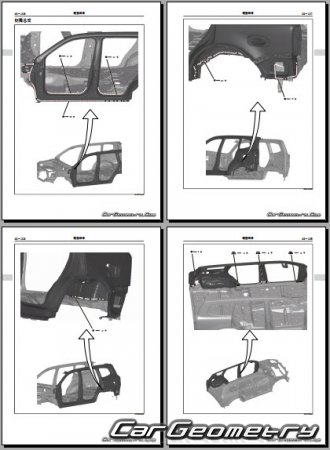

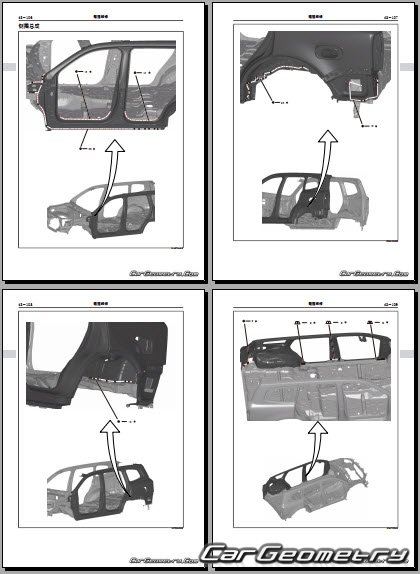

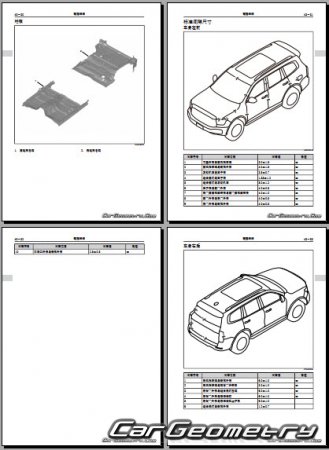

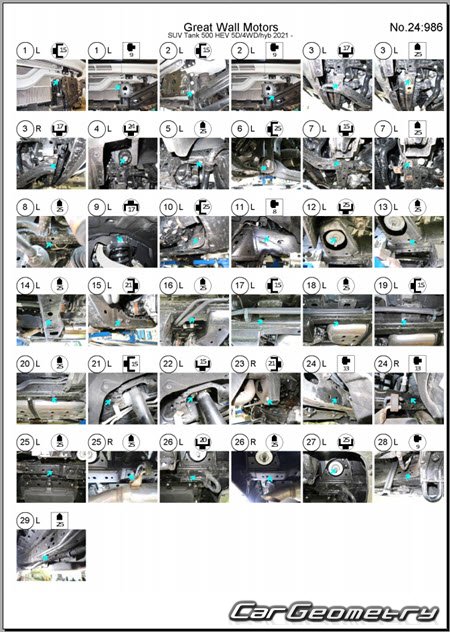

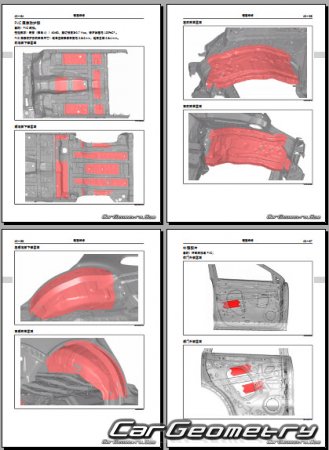

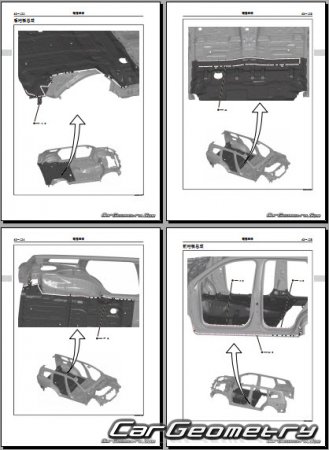

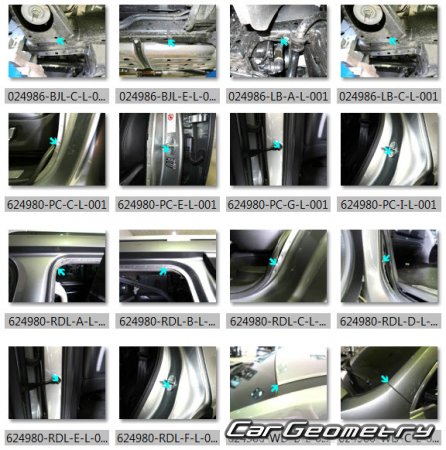

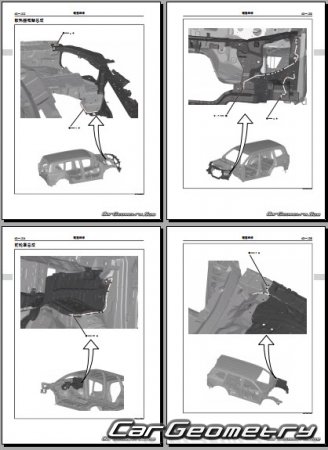

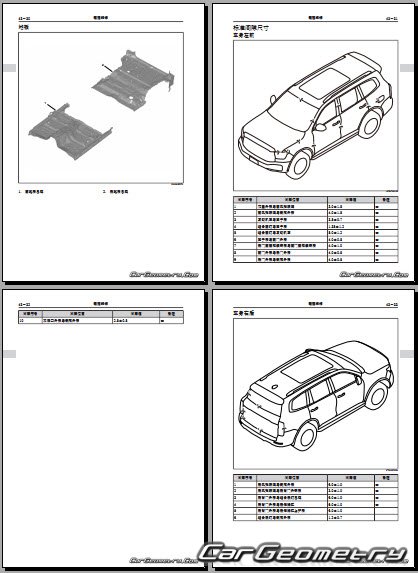

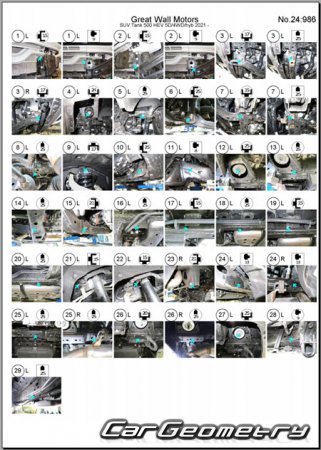

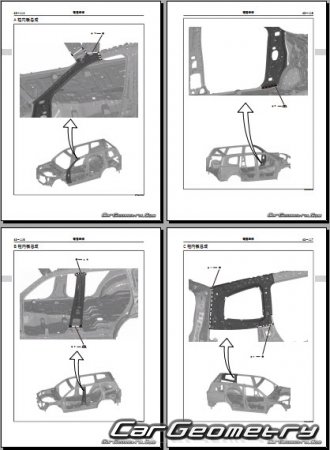

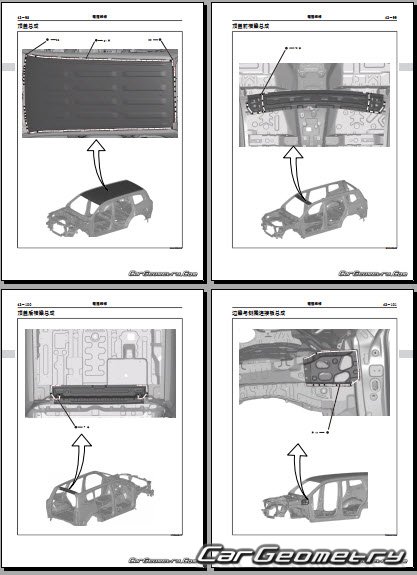

Information for the Tank 500 body geometric dimensions, control points, images of body elements, materials used, recommendations on applicable types, methods and materials for the welding points; places and materials for applying seam, soundproof and anti-corrosion sealants; points and directions for pre-cuts of body parts for the future installation of the new ones; types of interior materials, definitions and decoding.

Great Wall Tank 500 2021-2027 Body Repair Manual 142 pages in Chinese. This collection contains a huge amount of extremely useful and necessary information for those working in body shops themselves and the owners of body repair companies involved in GWM Tank 500 body repair.

Download Factory manual for body repair and body dimensions
GWM Tank 500 2021-2027

Price: $40
