Body dimensions for restoring the body geometry of Honda Freed e:Hev (GT5 GT6 GT7 GT8) from 2024 are used to verify the body geometry and facilitate the subsequent repair of damaged parts. These measurements are specifically applicable to the right-hand drive versions of Honda Freed e:Hev for the Japanese market.

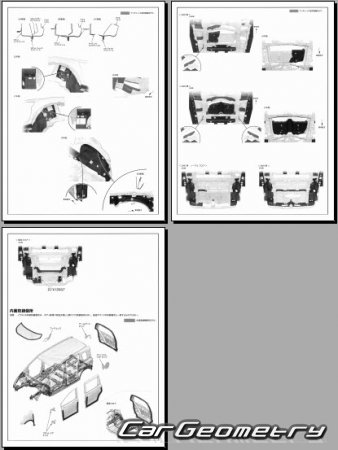

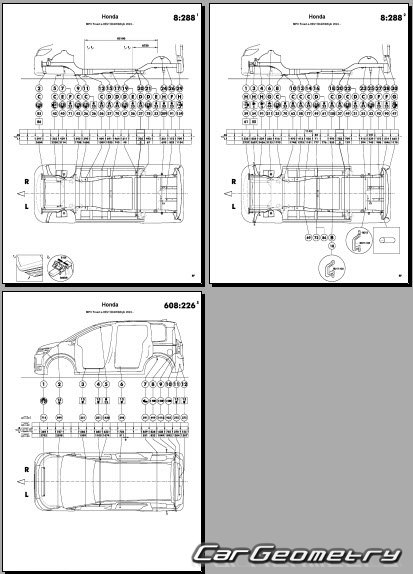

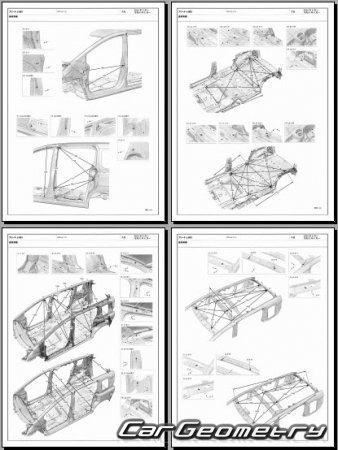

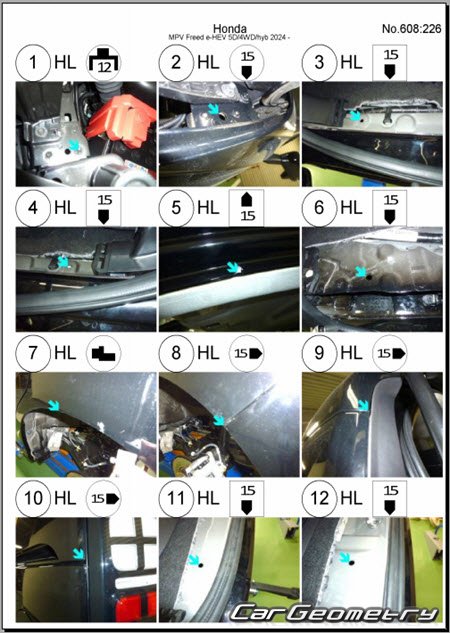

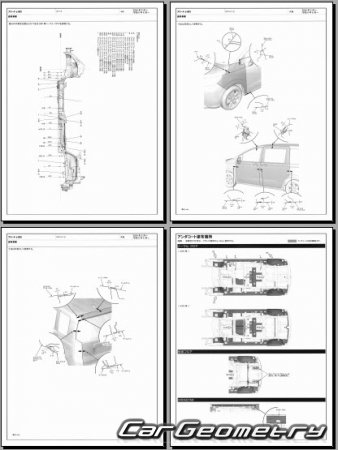

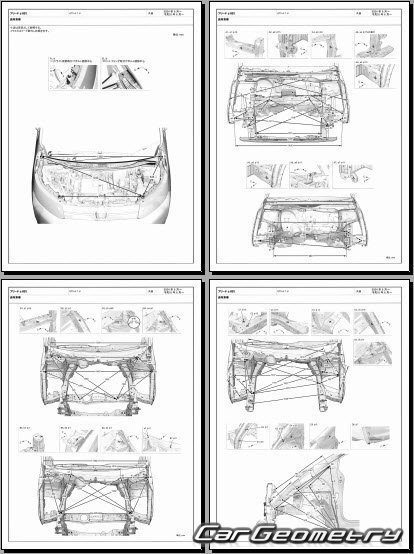

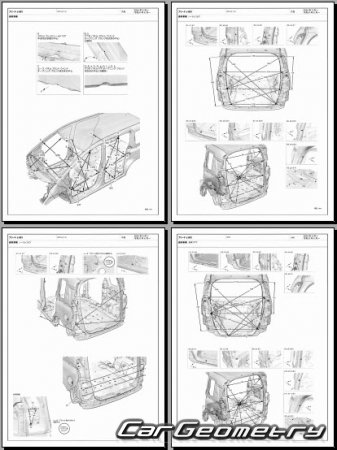

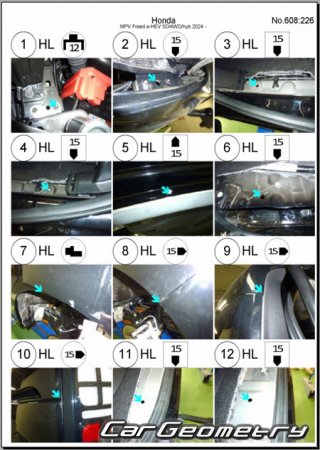

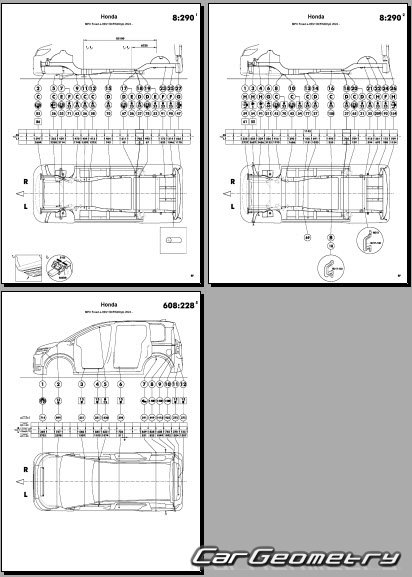

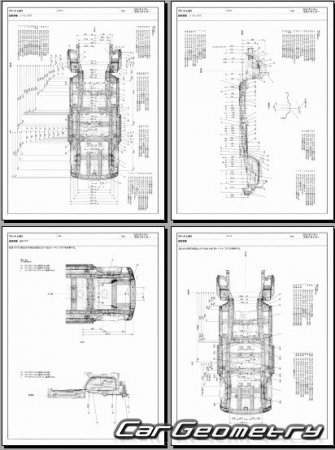

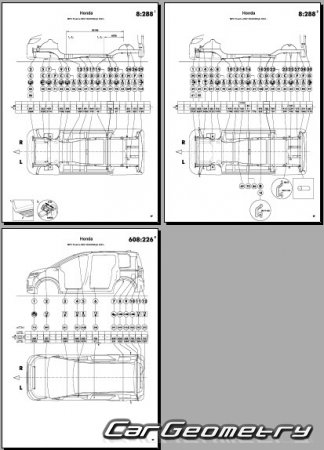

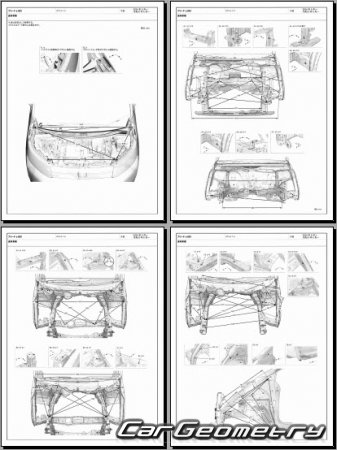

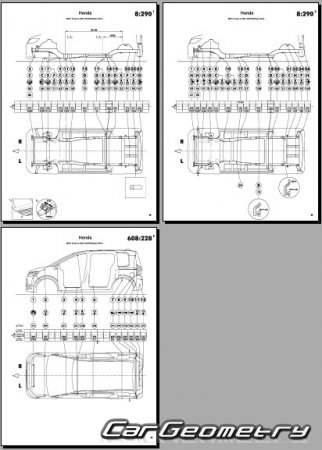

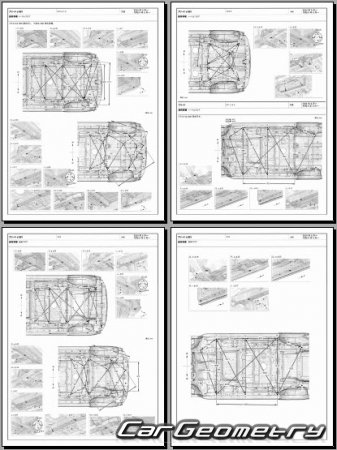

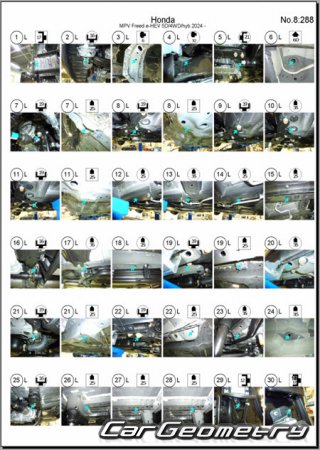

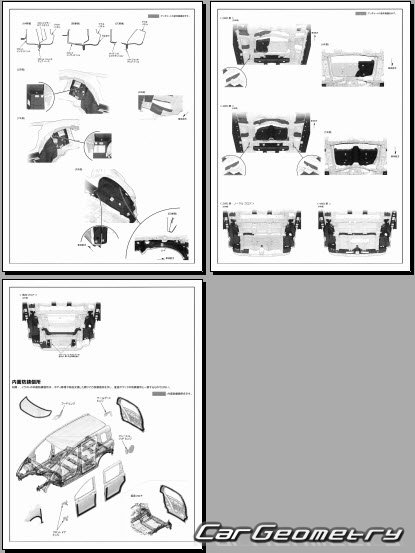

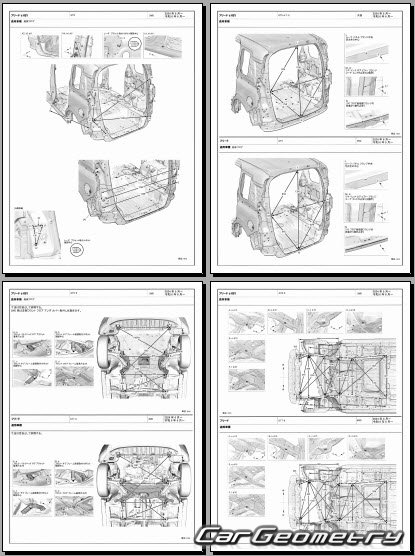

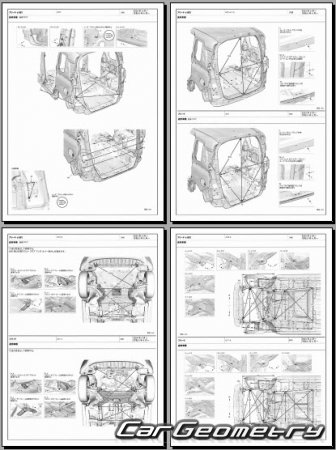

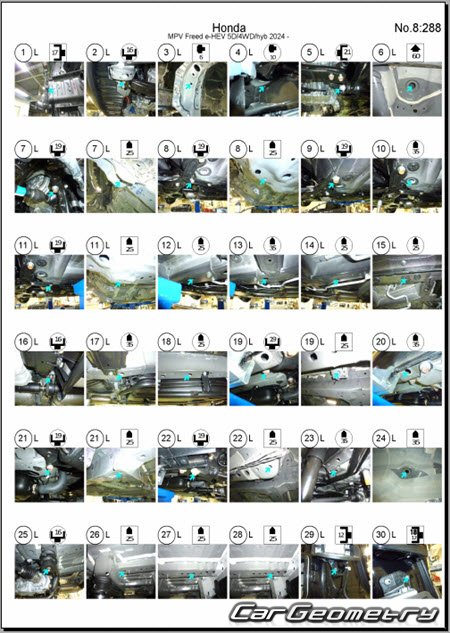

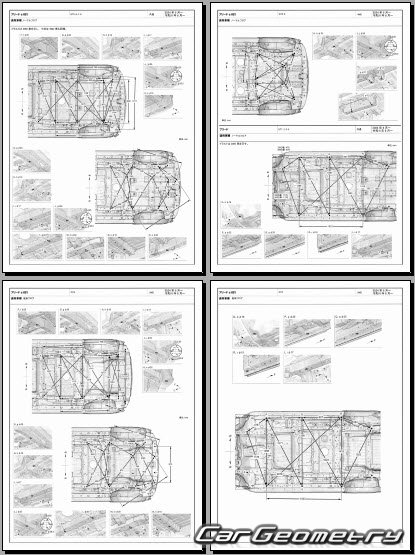

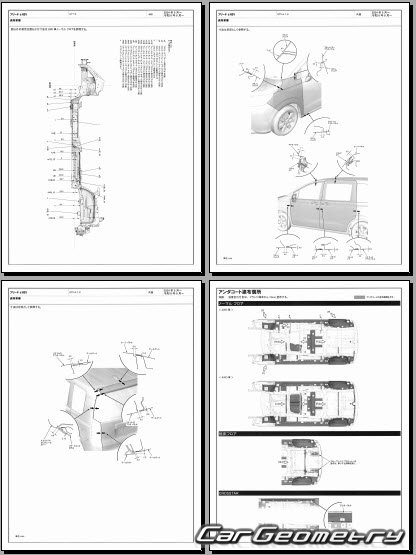

A selection of information is available from the factory documentation and vehicle measurement database in Japanese for the Honda Freed e:Hev from 2024 with right-hand drive, including body dimensions and control points (chassis diagrams, upper body datasheet, underbody datasheet).

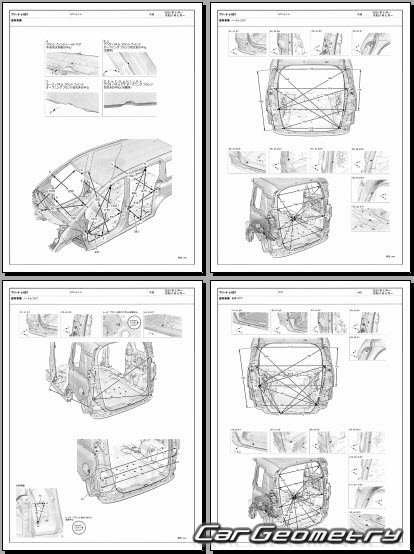

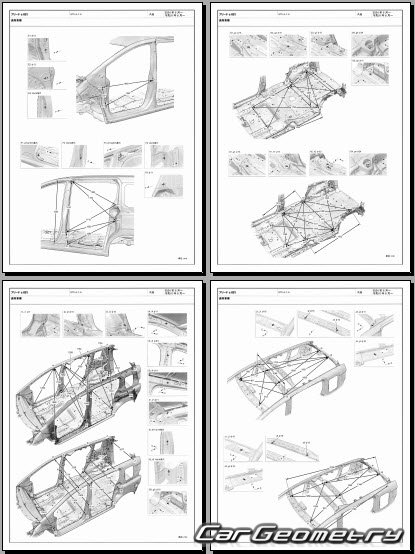

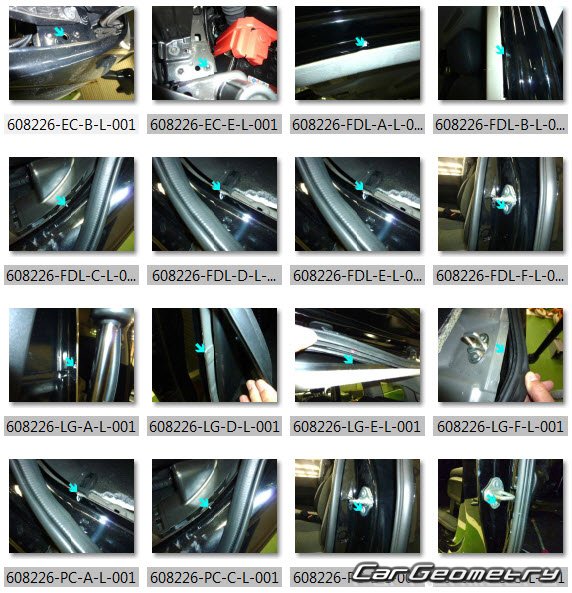

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions

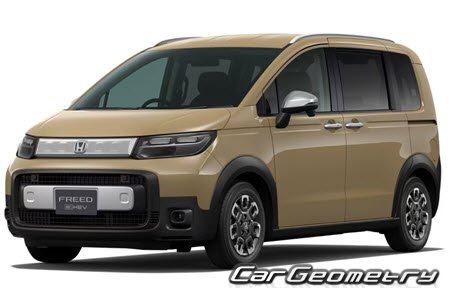

Honda Freed e:Hev (GT5 GT6 GT7 GT8) from 2024 (RH Japanese market)

Price: $40
