Body dimensions for restoring the body geometry of Hyundai Grand Santa Fe (NC) 2012-2019. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

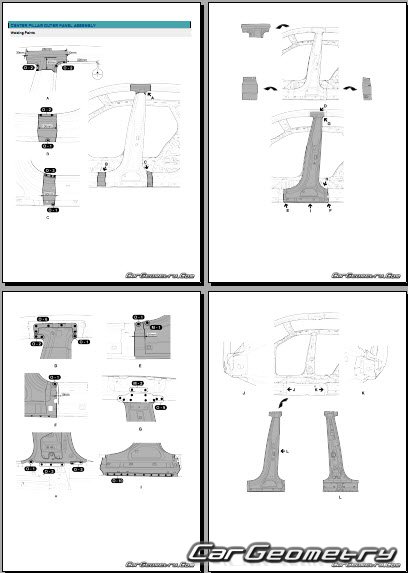

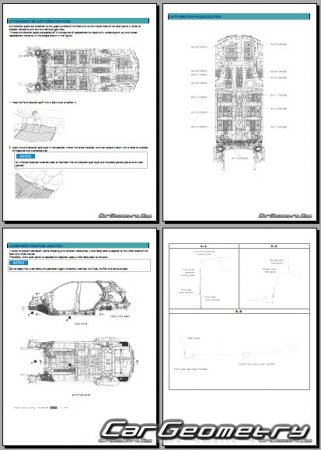

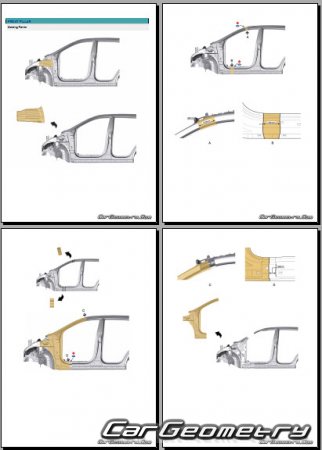

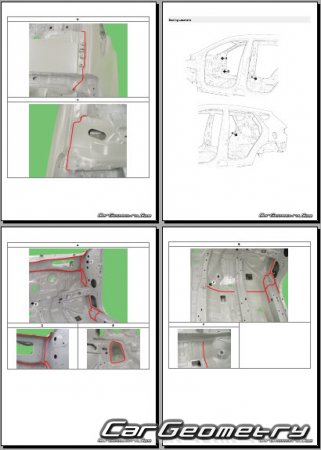

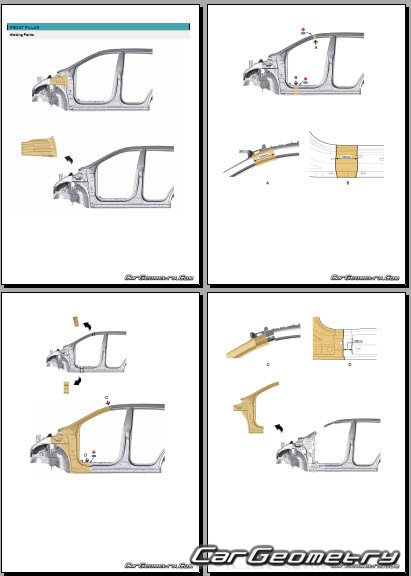

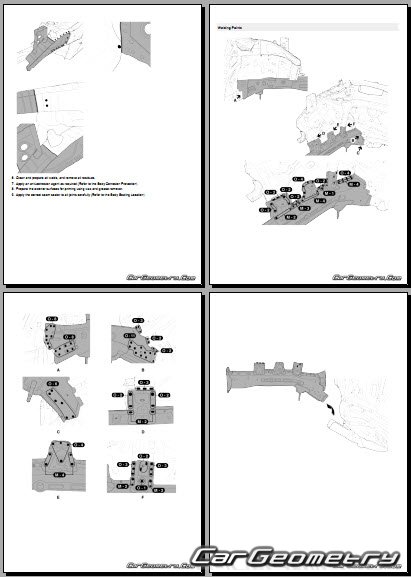

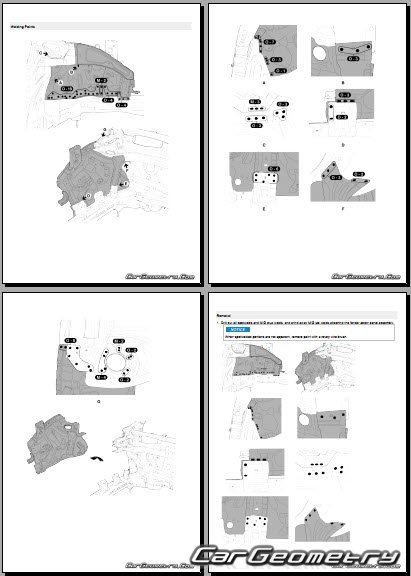

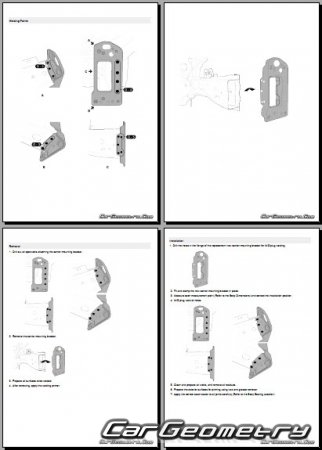

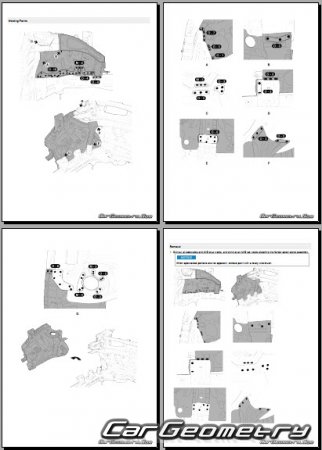

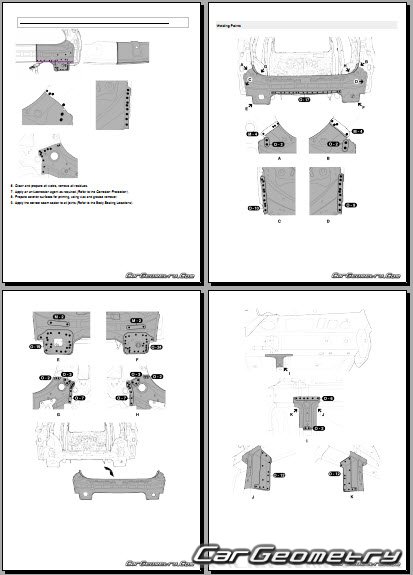

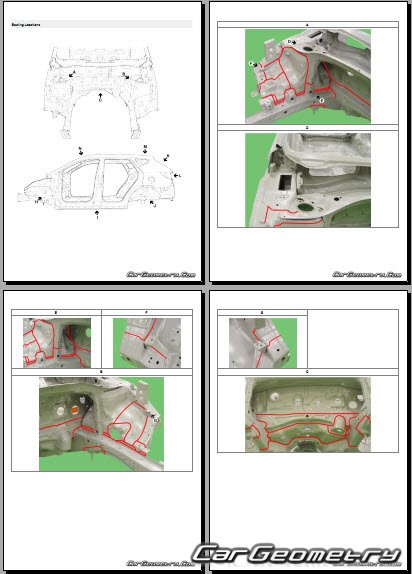

Selection from factory documentation and vehicle measurement database for Hyundai Grand Santa Fe 2012-2019: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Hyundai Grand Santa Fe (DM&NC) 2012-2019

Price: $30
