Hyundai H-1 (TQ) 2018-2021 Body Repair Manual

The factory body repair manual contains body dimensions for the Hyundai H-1 (TQ) 2018-2021 and includes description of various body parts replacement, body dimension, control points for the Hyundai H-1. In different markets, the car was sold under the names: Hyundai Grand Starex, Hyundai iMax (passenger version) / iLoad (cargo version) 2018-2021.

Information for the Hyundai Grand Starex body geometric dimensions, control points, images of body elements, materials used, recommendations on applicable types, methods and materials for the welding points; places and materials for applying seam, soundproof and anti-corrosion sealants; points and directions for pre-cuts of body parts for the future installation of the new ones; types of interior materials, definitions and decoding.

Hyundai H-1 (TQ) 2018-2021 Body Repair Manual 215 pages in English. This collection contains a huge amount of extremely useful and necessary information for those working in body shops themselves and the owners of body repair companies involved in Hyundai H-1 body repair.

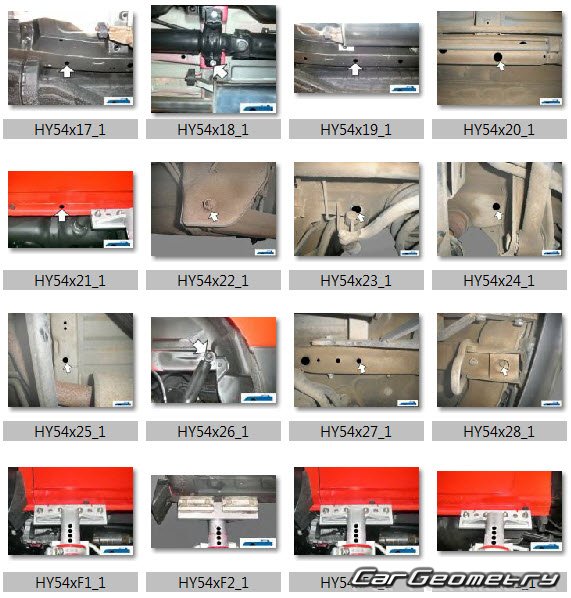

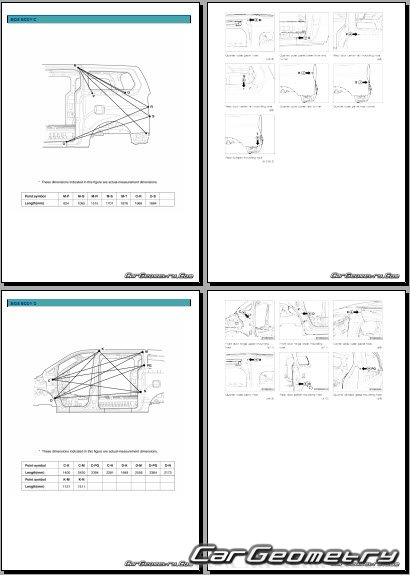

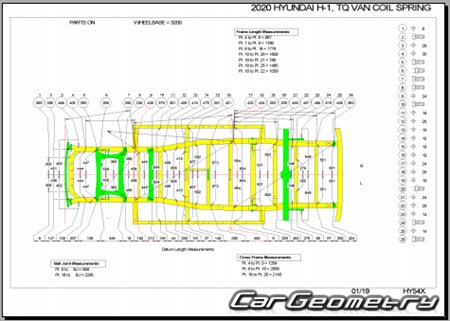

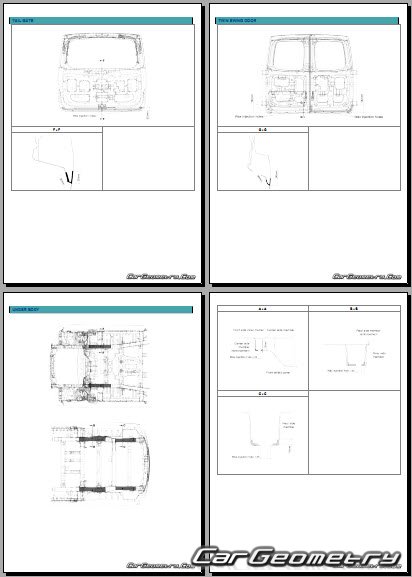

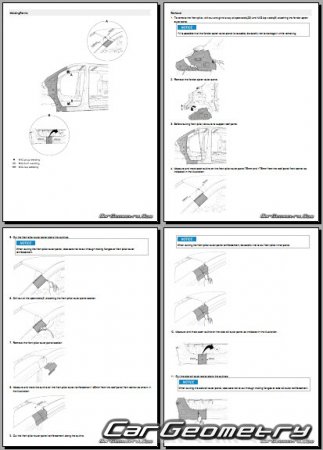

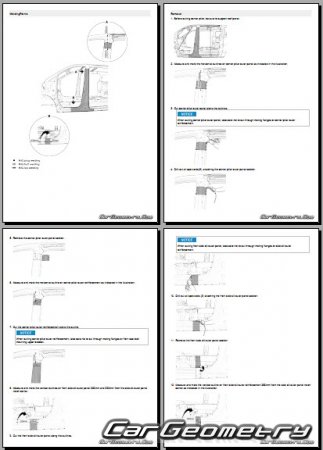

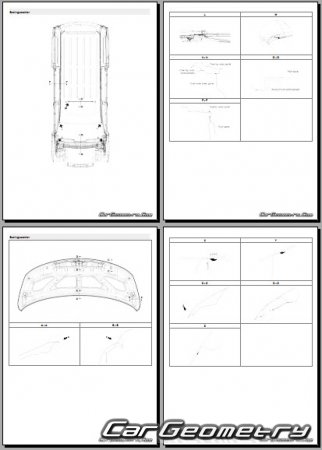

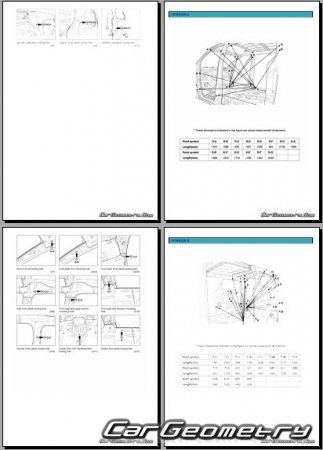

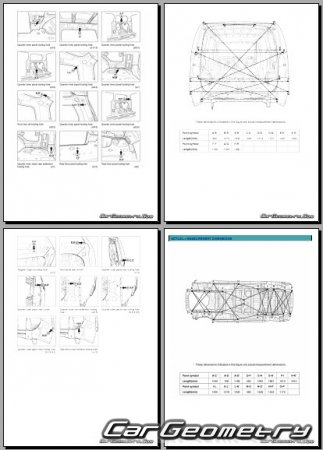

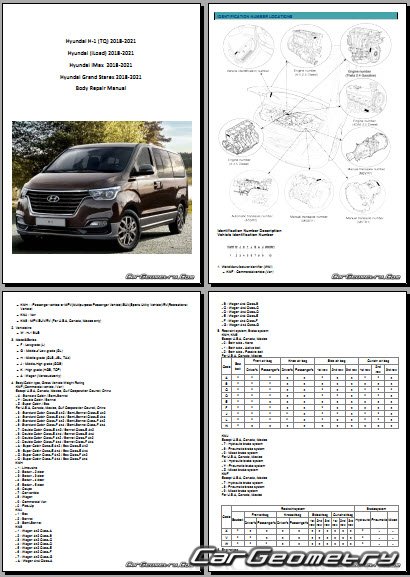

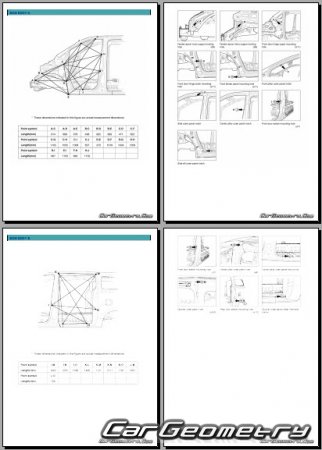

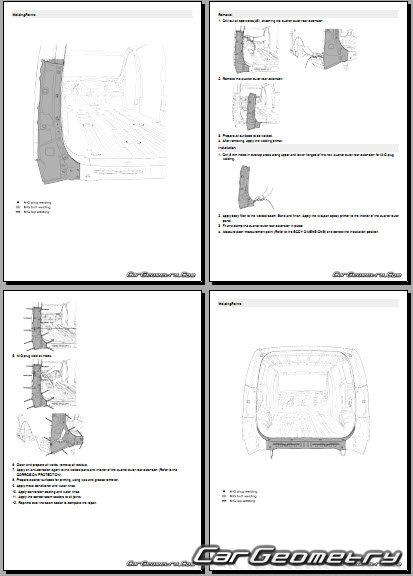

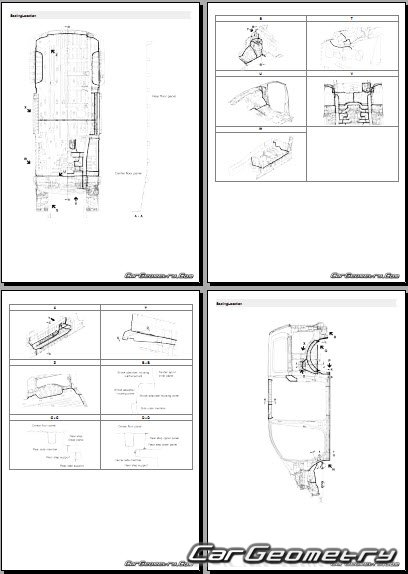

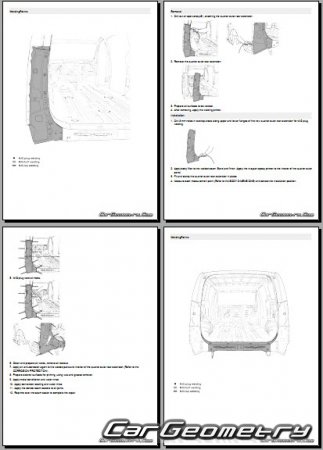

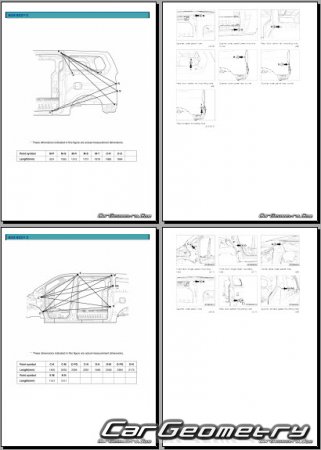

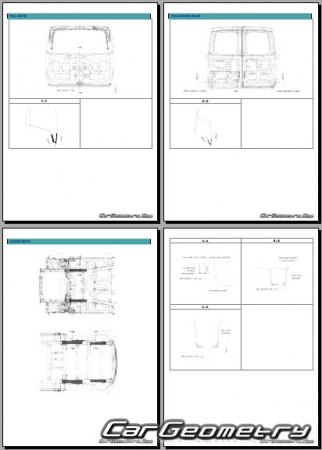

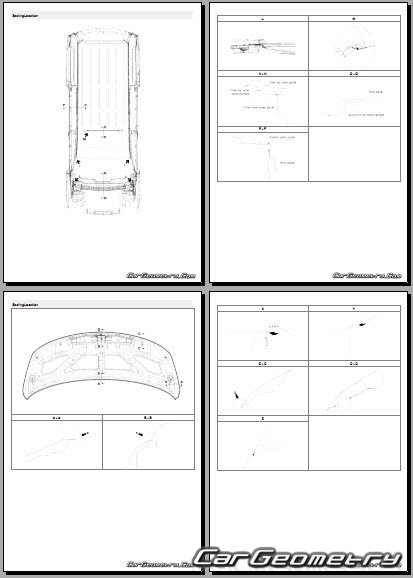

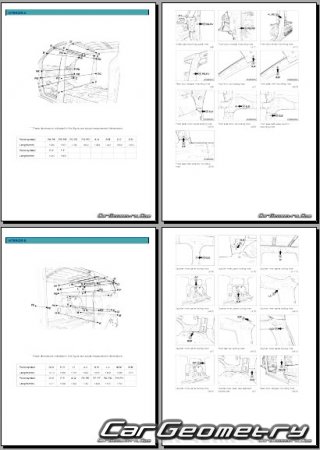

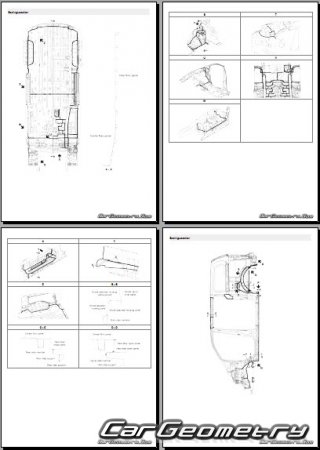

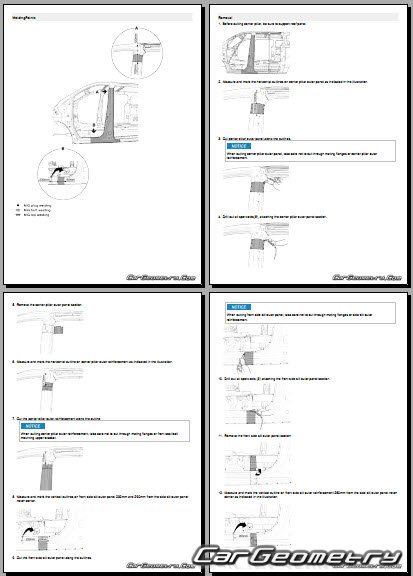

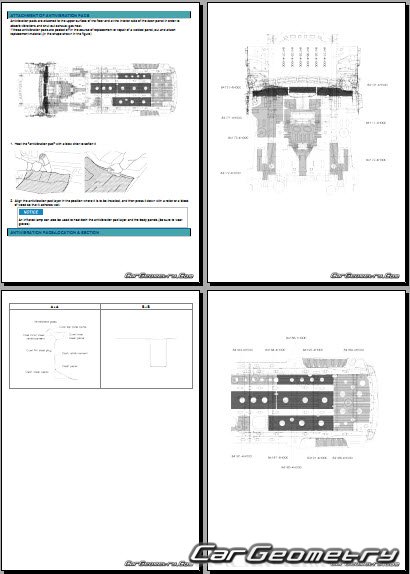

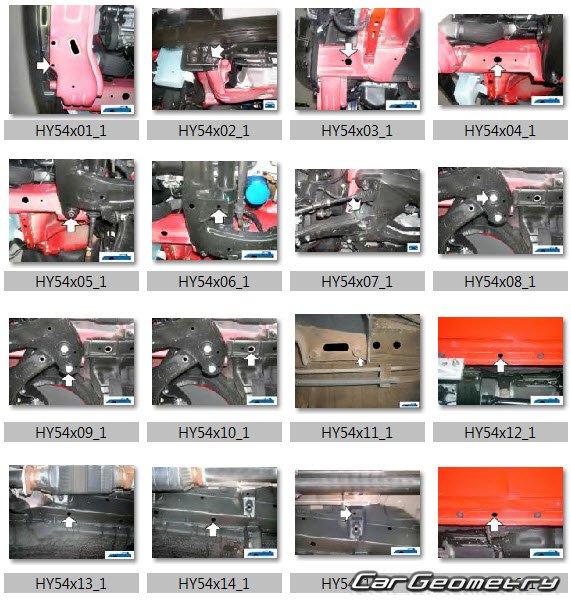

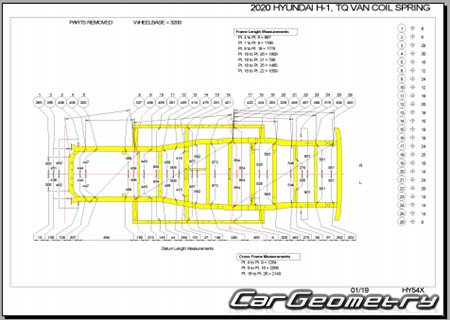

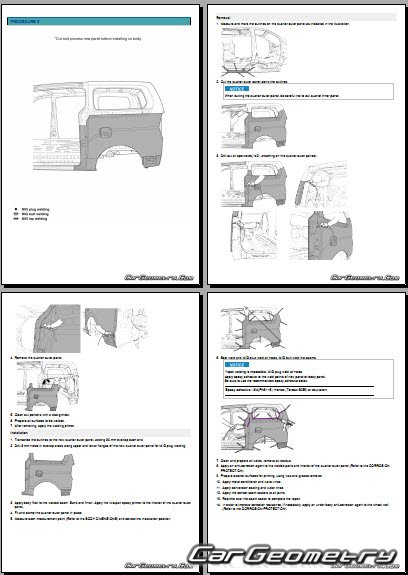

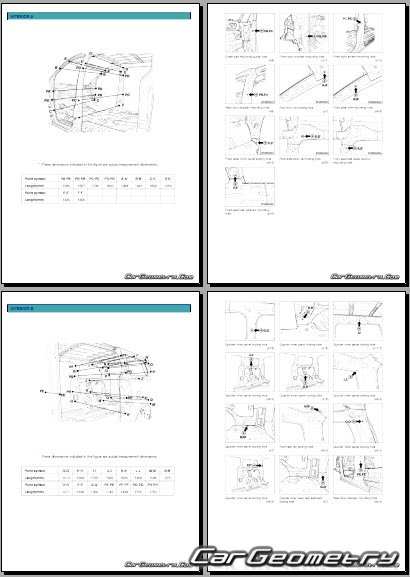

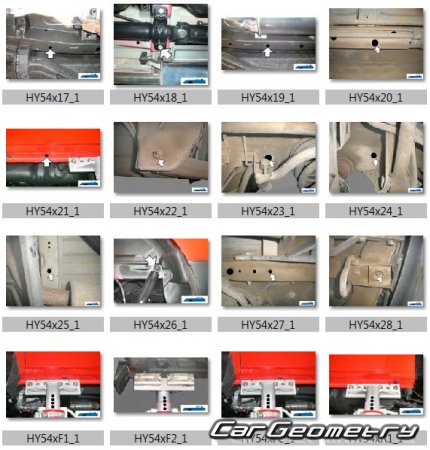

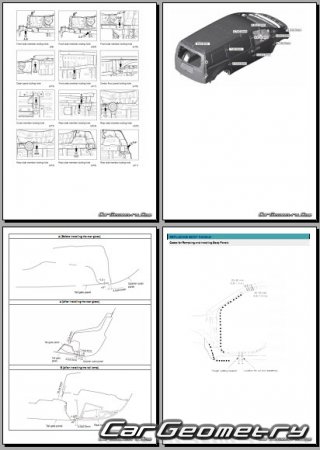

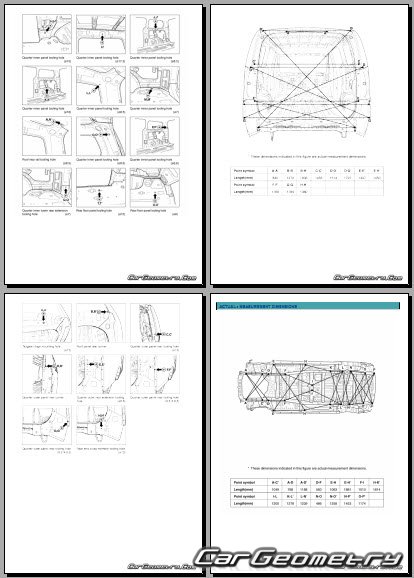

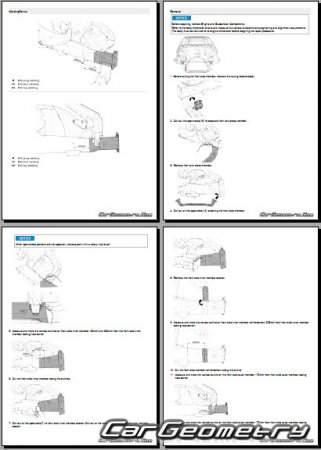

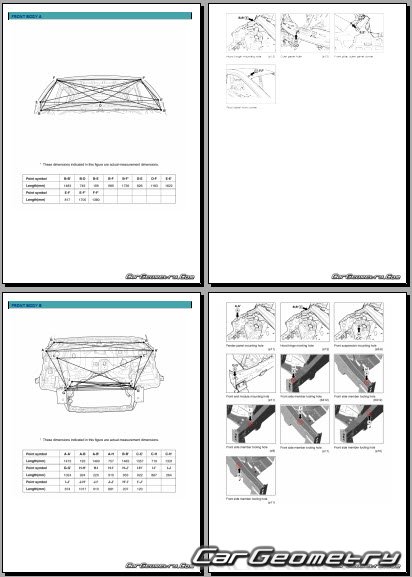

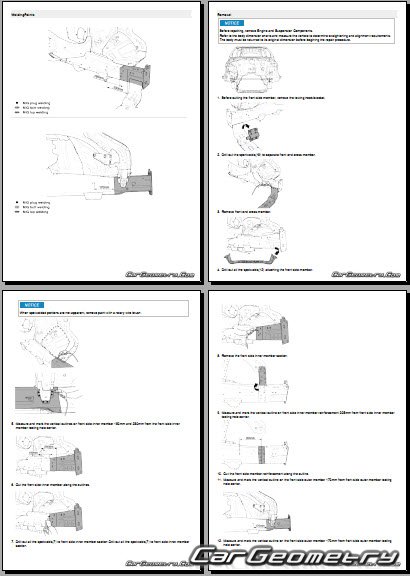

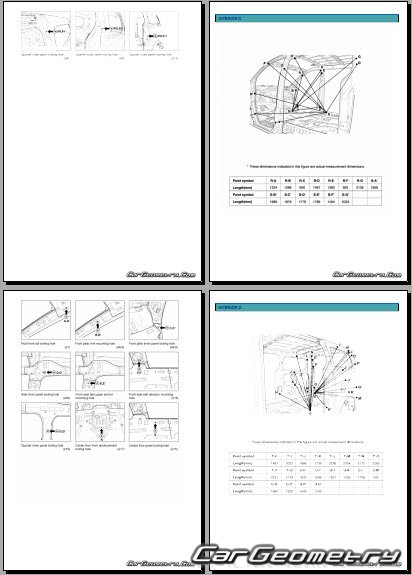

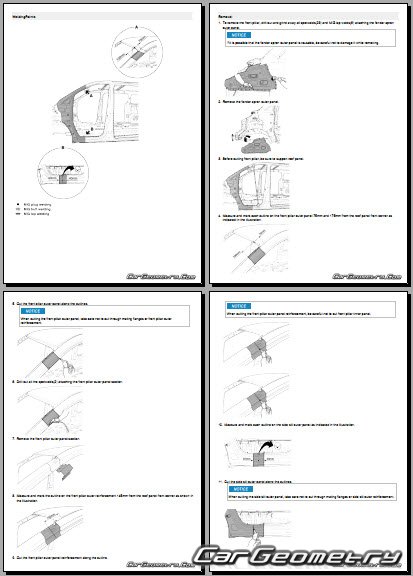

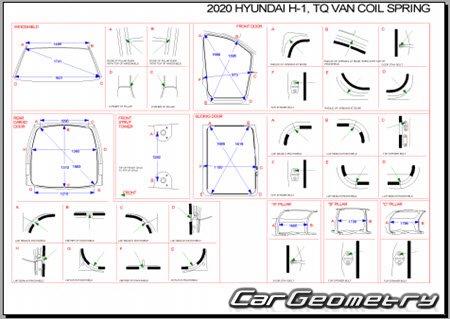

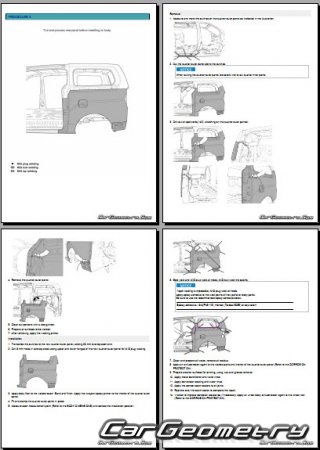

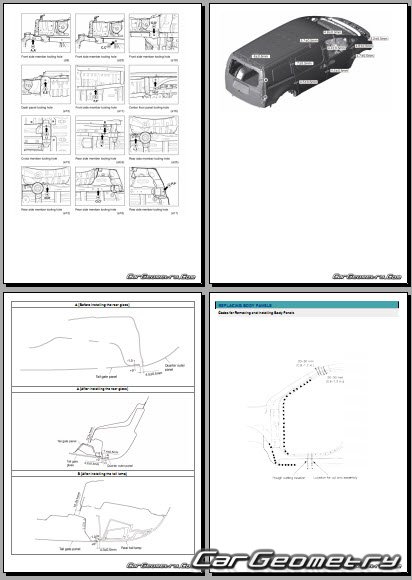

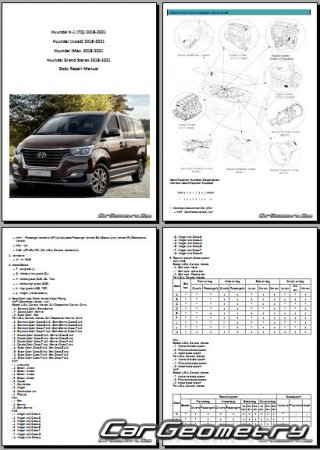

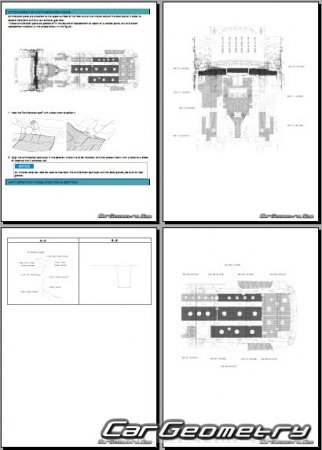

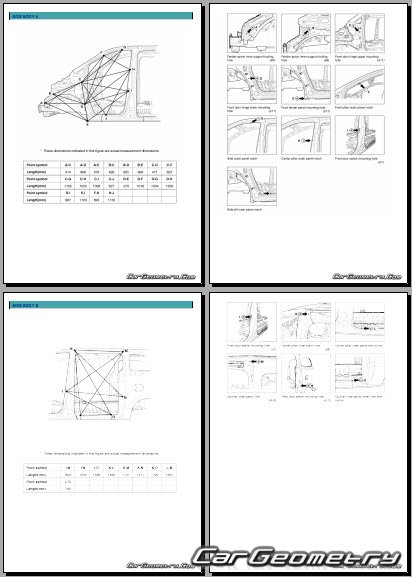

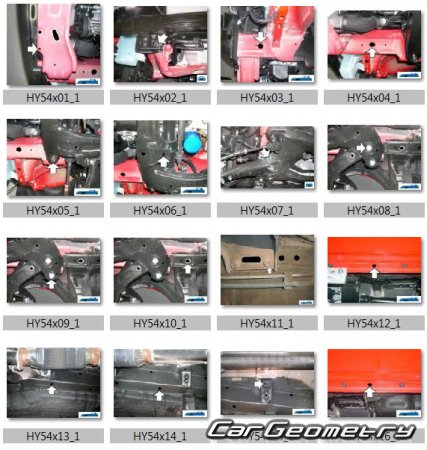

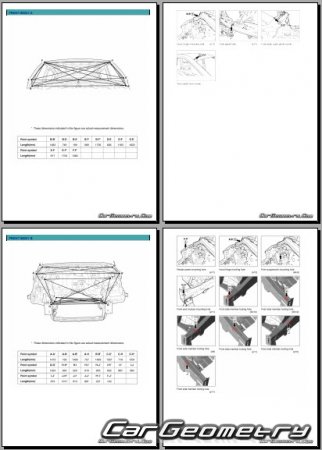

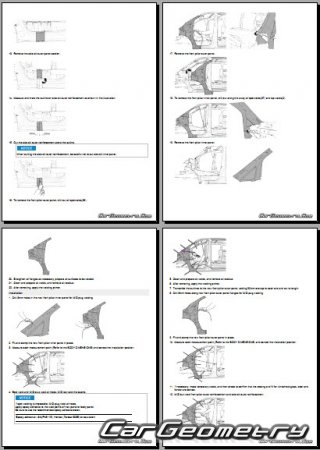

Data sample from the archive
