Hyundai ix35 (EL) 2010-2016 Body Repair Manual

The factory body repair manual contains body dimensions for the Hyundai ix35 (EL) 2010-2016 and includes description of various body parts replacement, body dimension, control points for the Hyundai ix35.

Information for the Hyundai ix35 body geometric dimensions, control points, images of body elements, materials used, recommendations on applicable types, methods and materials for the welding points; places and materials for applying seam, soundproof and anti-corrosion sealants; points and directions for pre-cuts of body parts for the future installation of the new ones; types of interior materials, definitions and decoding.

Hyundai ix35 (EL) 2010-2016 Body Repair Manual 234 pages in English. This collection contains a huge amount of extremely useful and necessary information for those working in body shops themselves and the owners of body repair companies involved in Hyundai ix35 body repair.

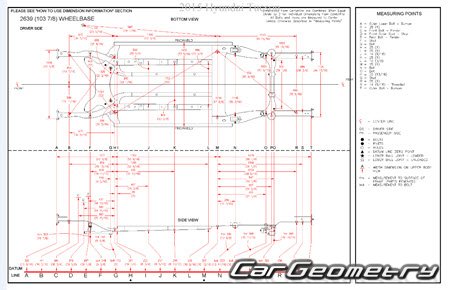

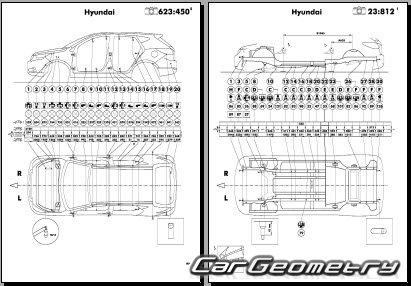

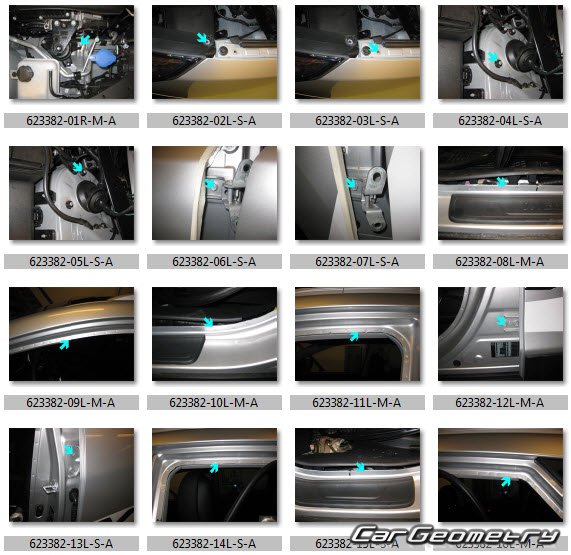

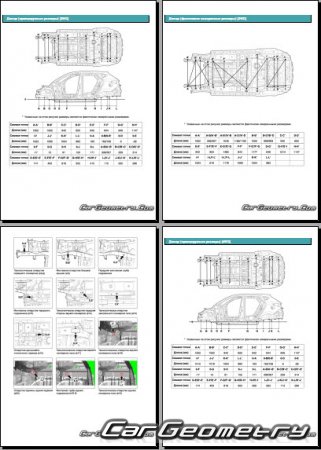

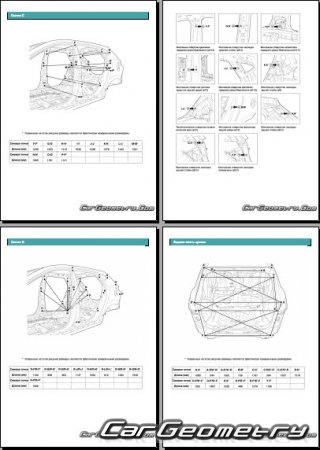

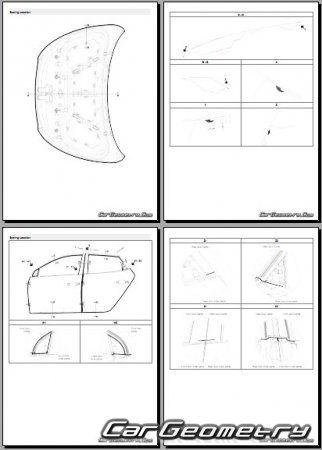

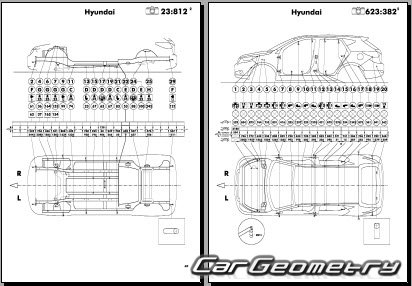

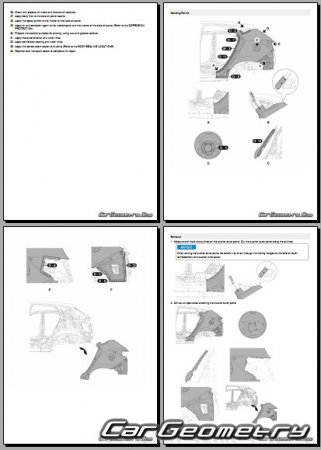

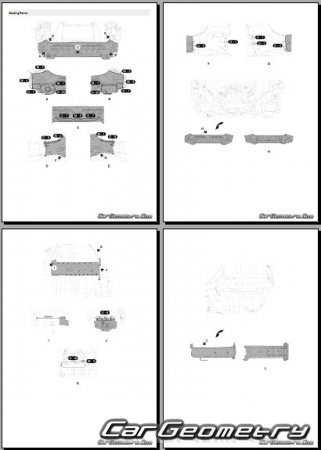

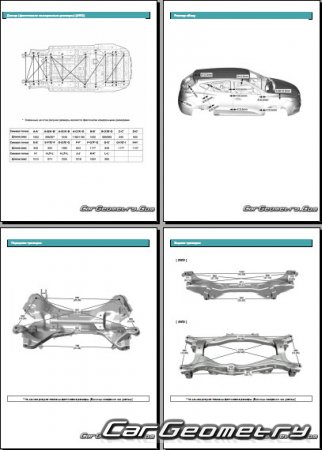

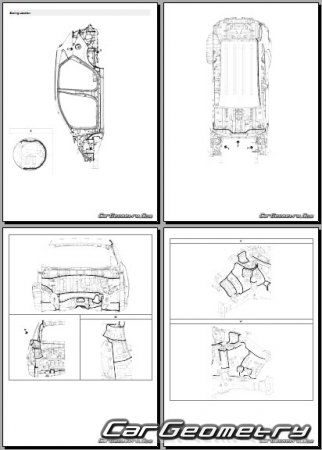

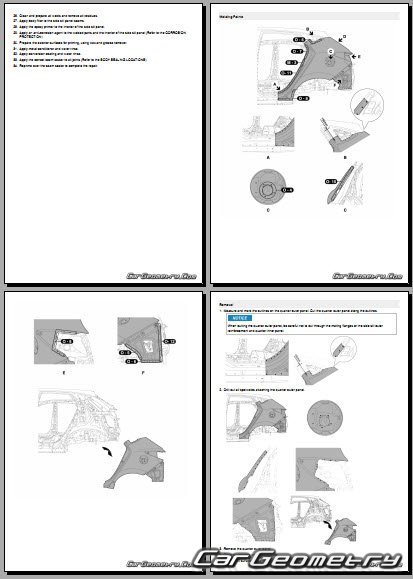

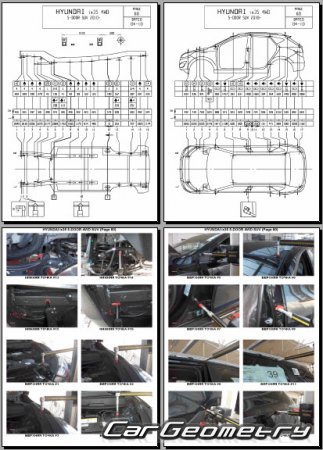

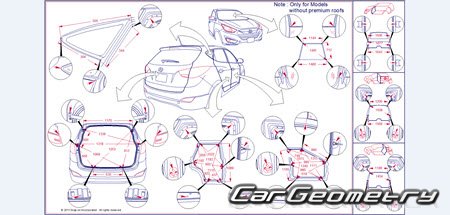

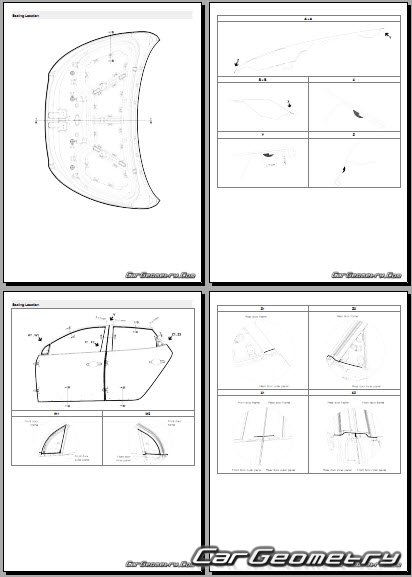

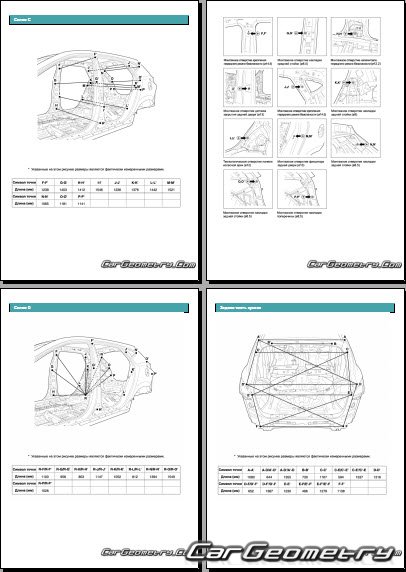

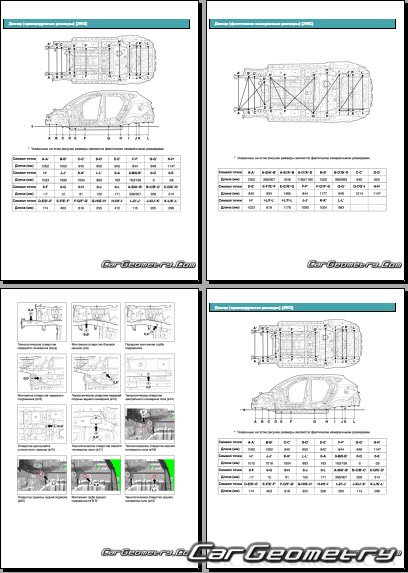

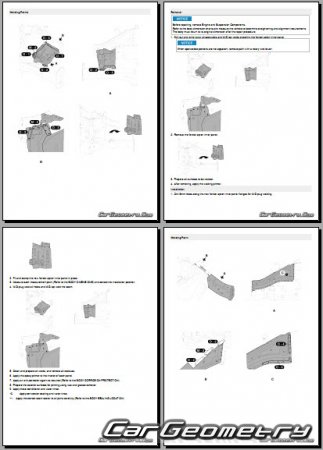

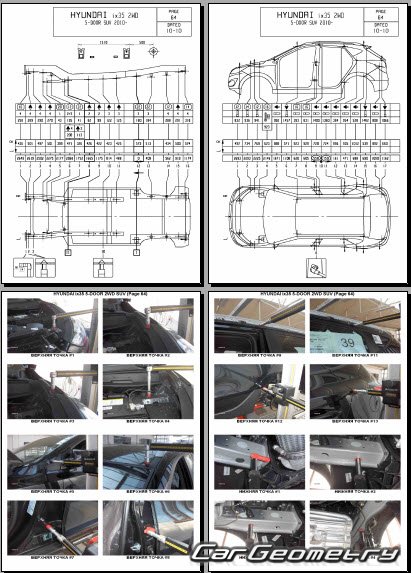

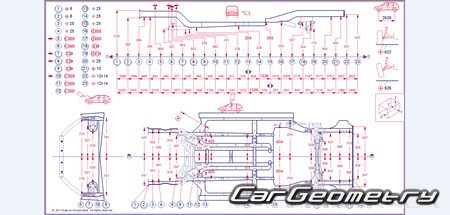

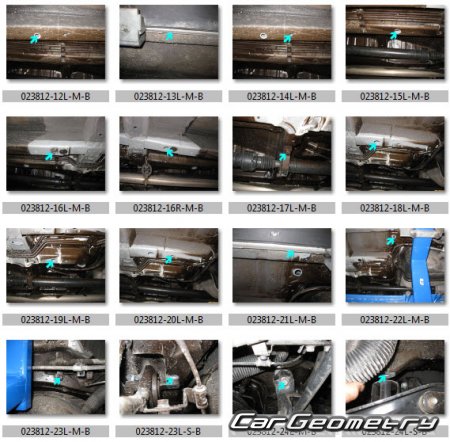

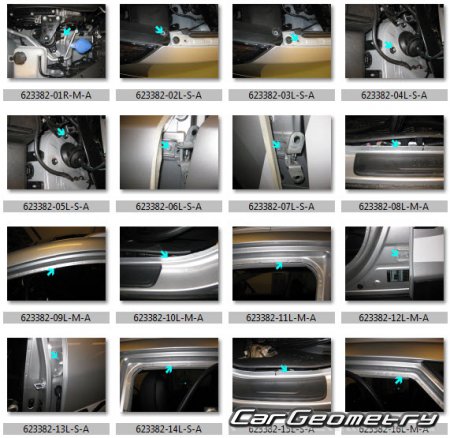

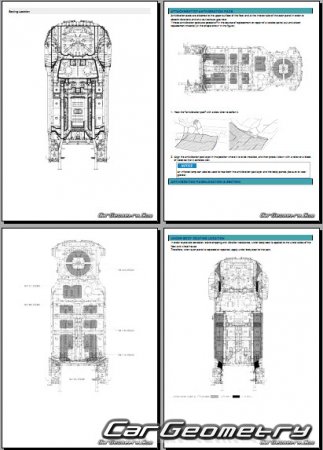

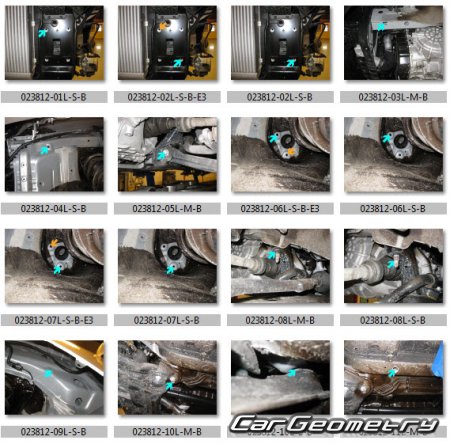

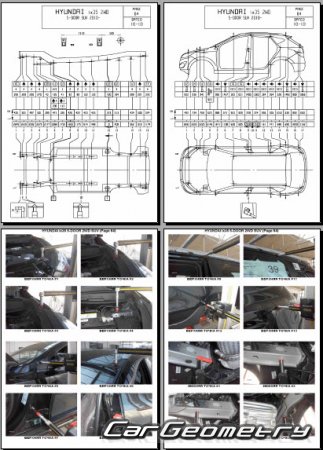

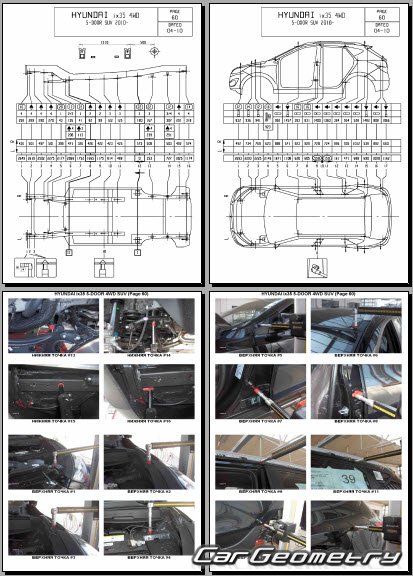

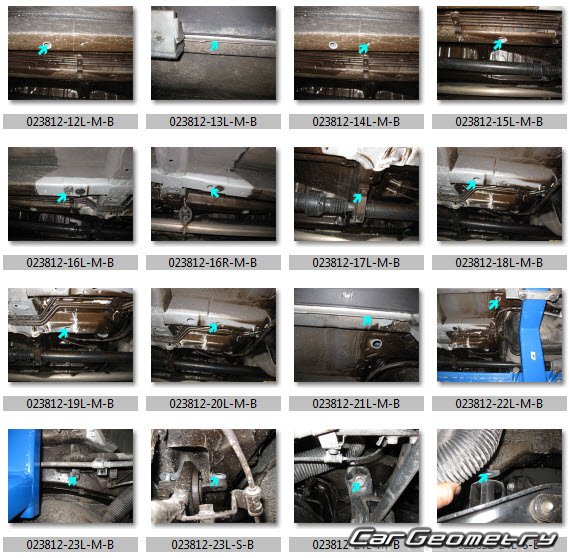

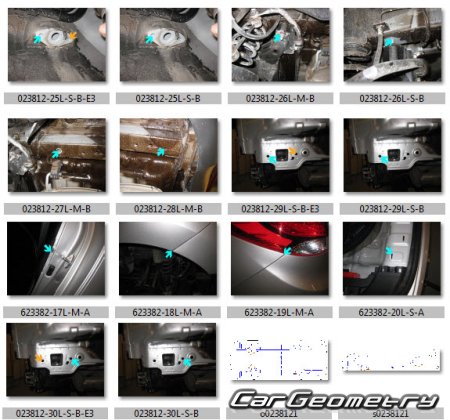

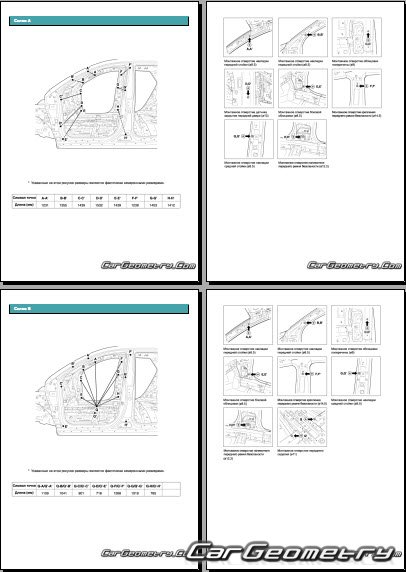

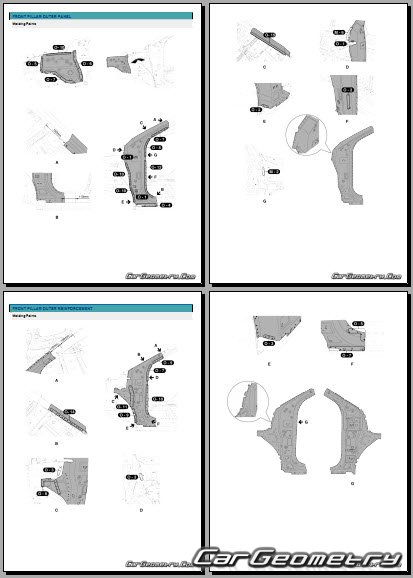

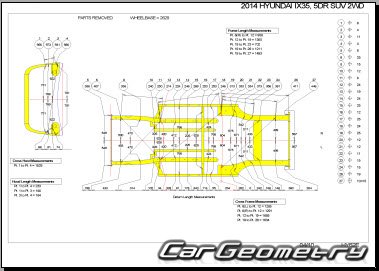

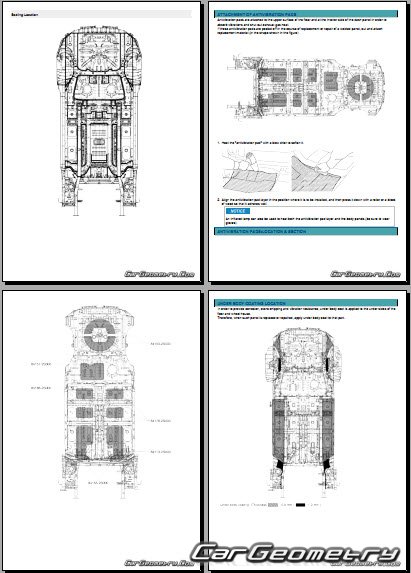

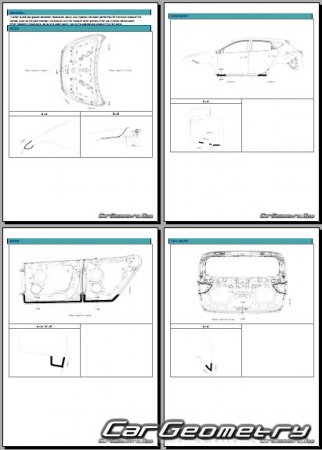

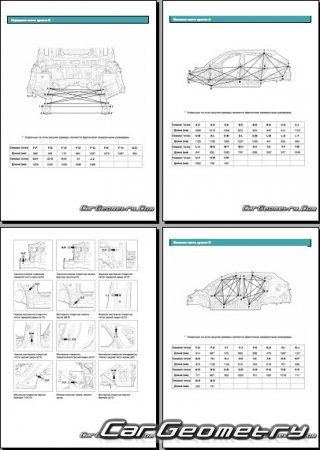

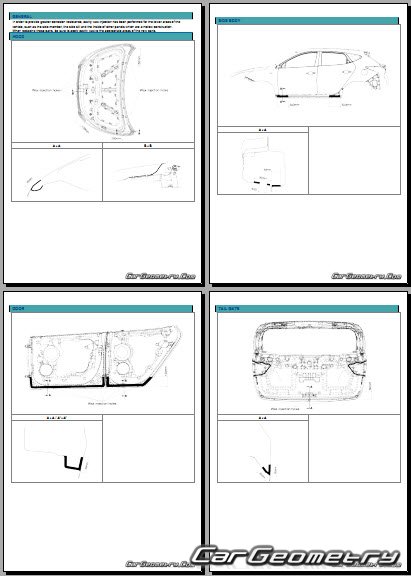

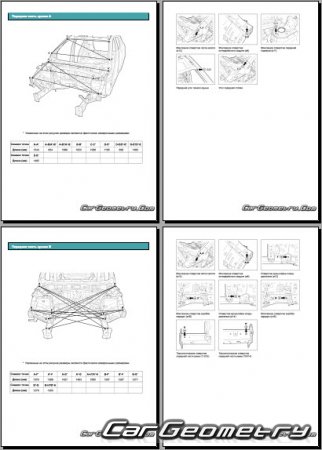

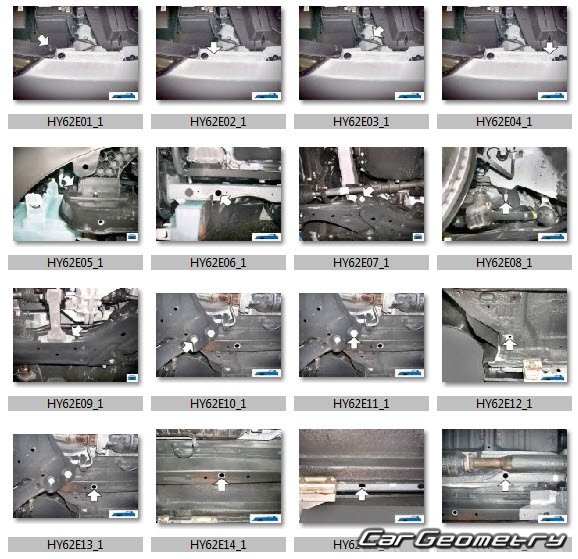

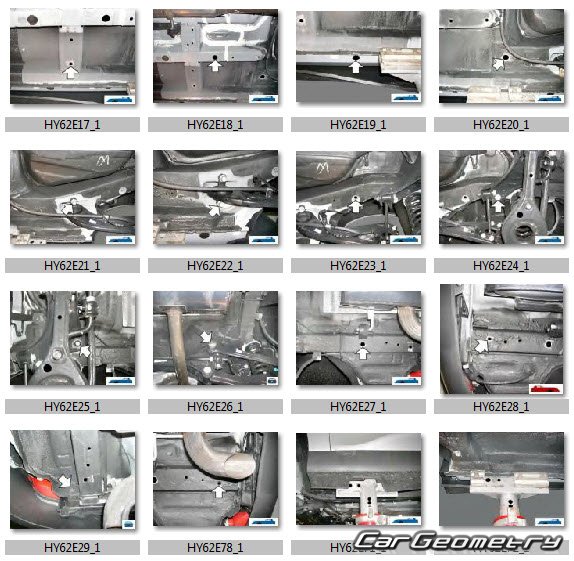

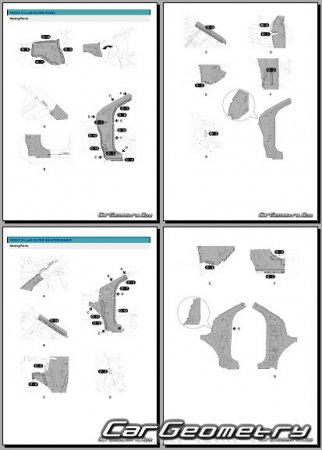

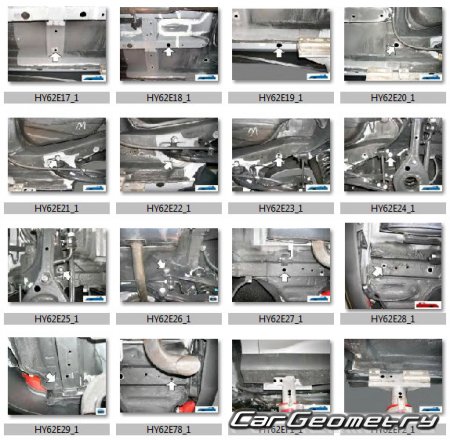

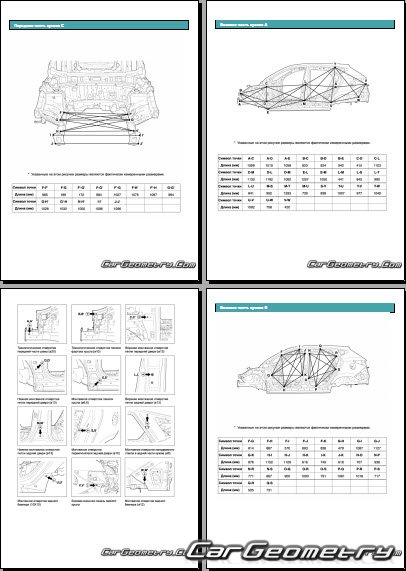

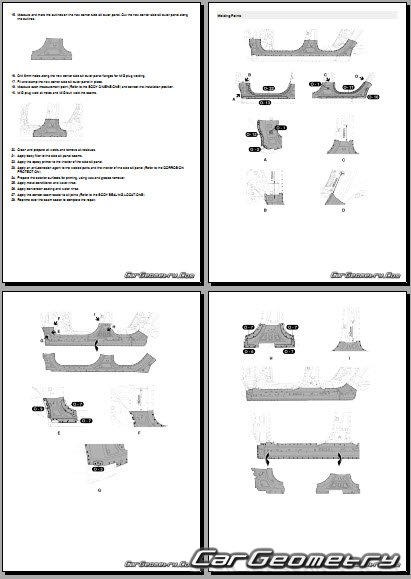

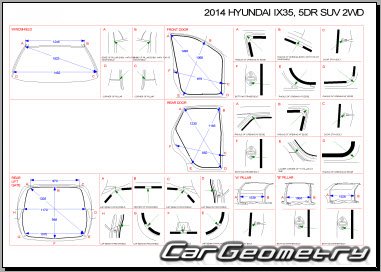

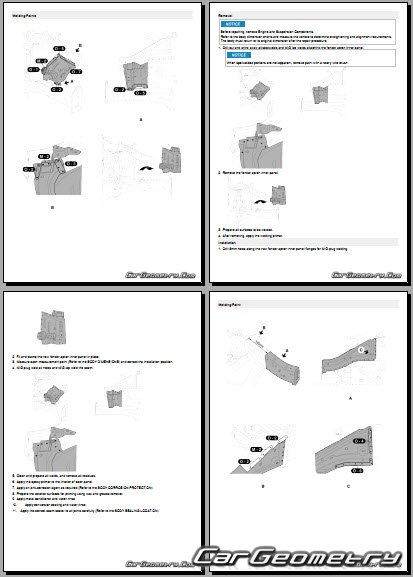

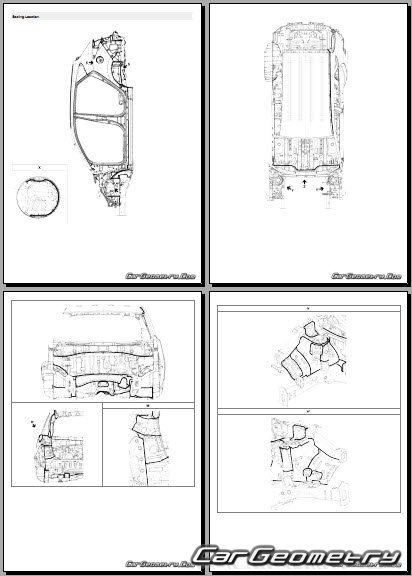

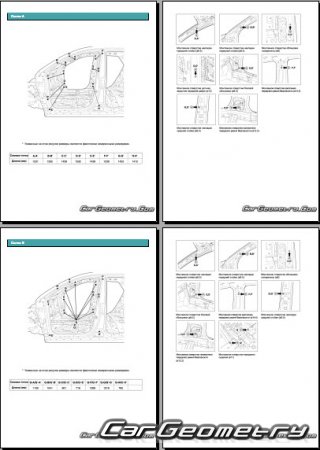

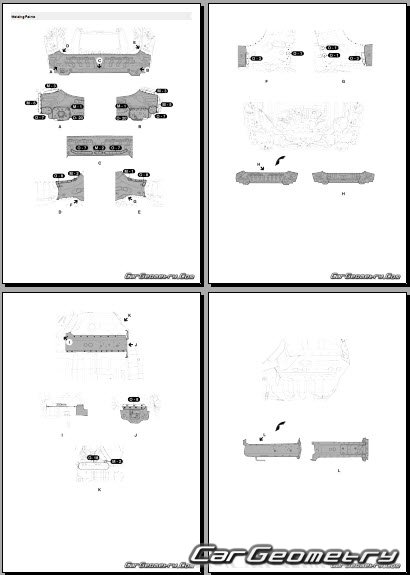

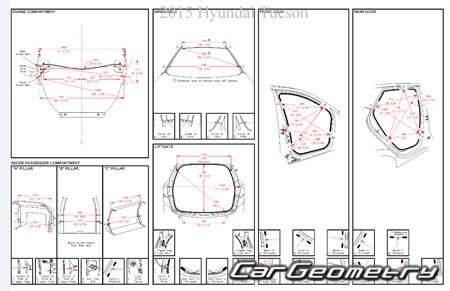

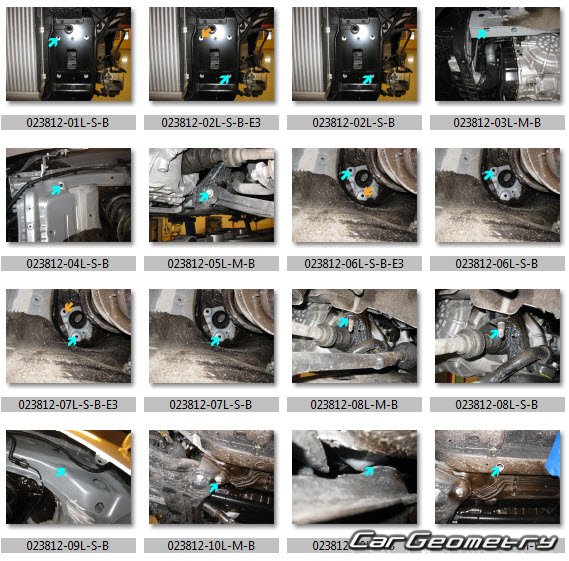

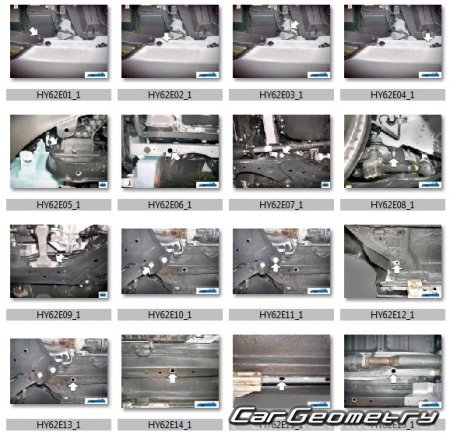

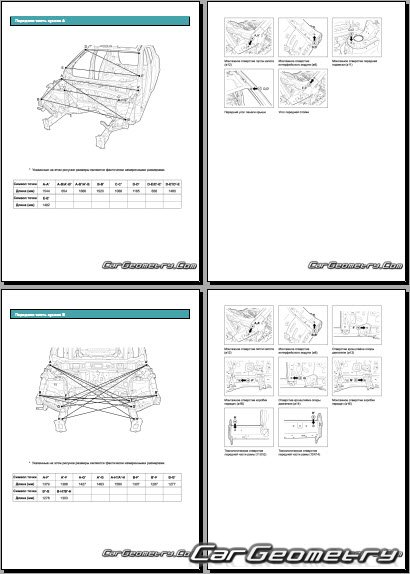

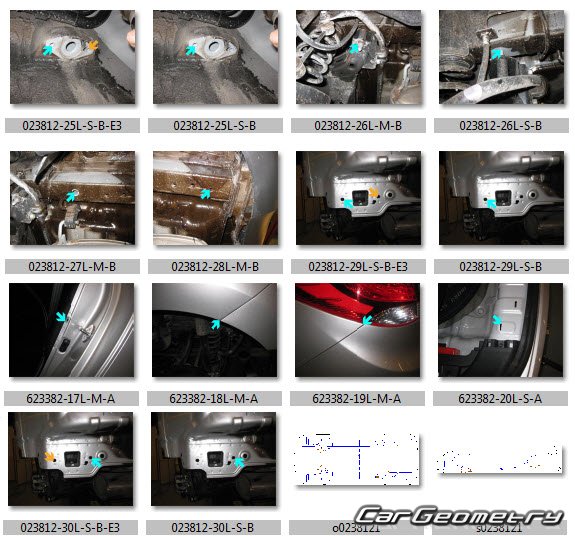

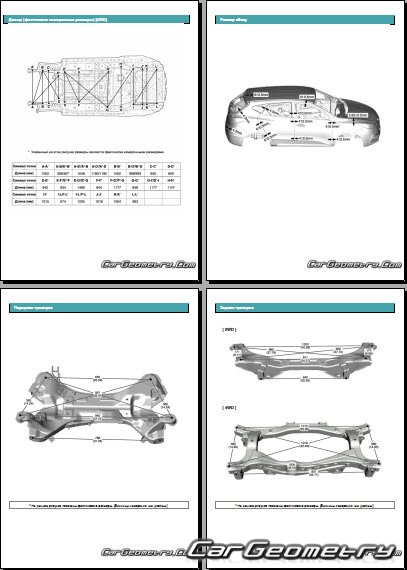

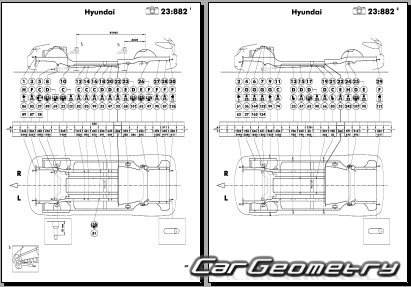

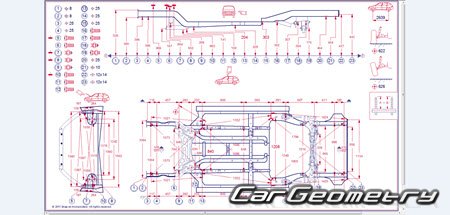

Data sample from the archive
