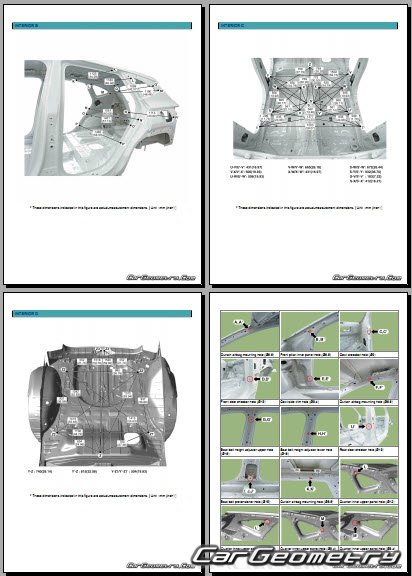

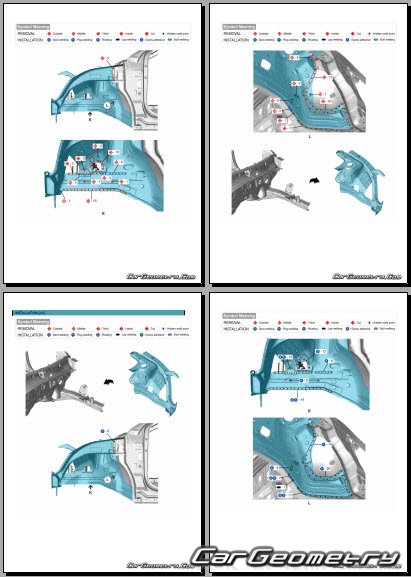

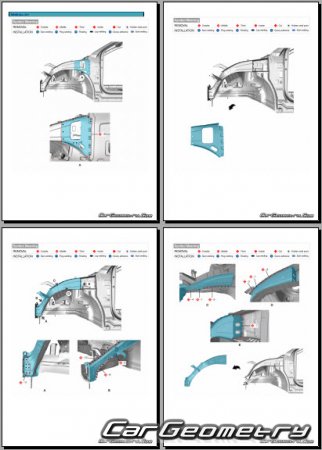

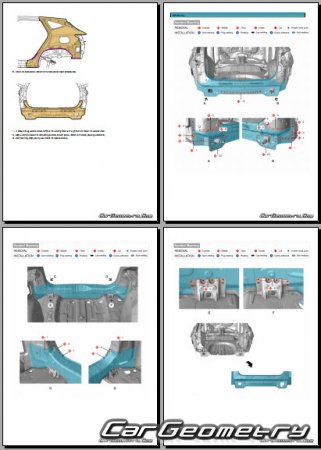

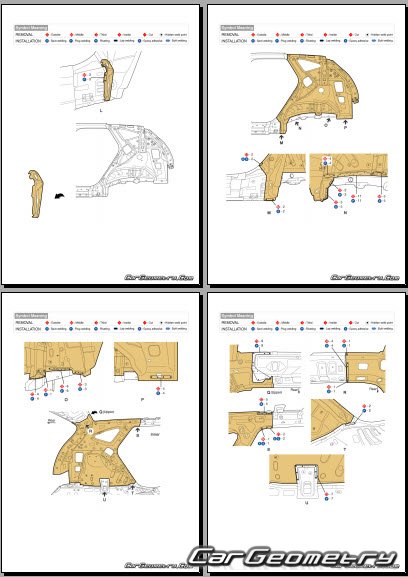

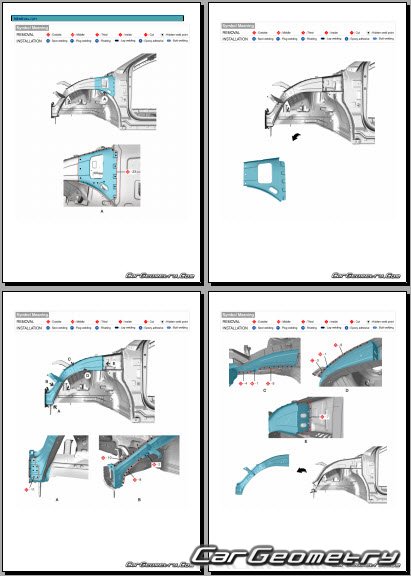

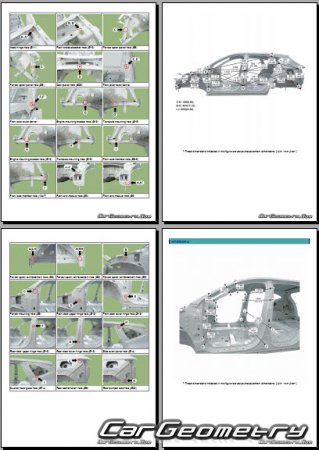

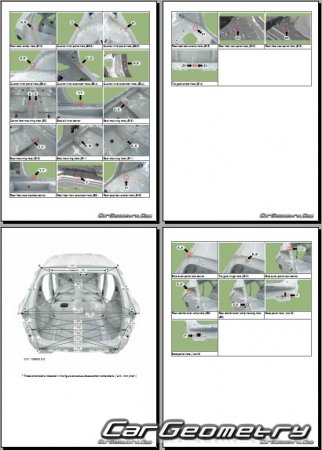

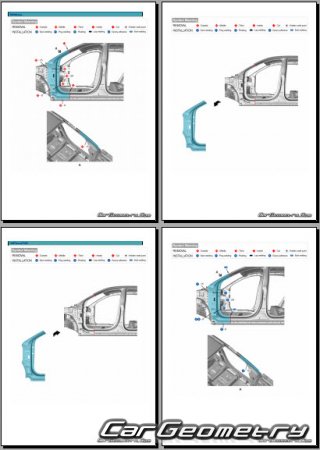

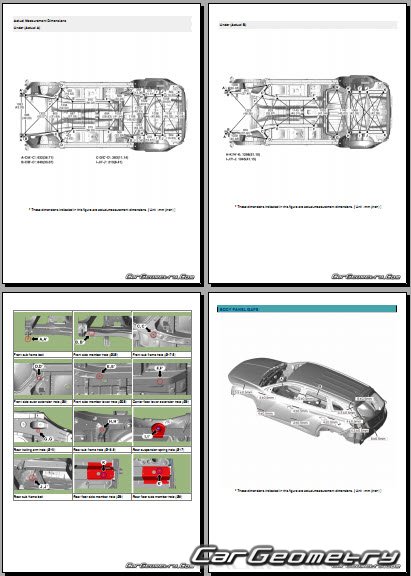

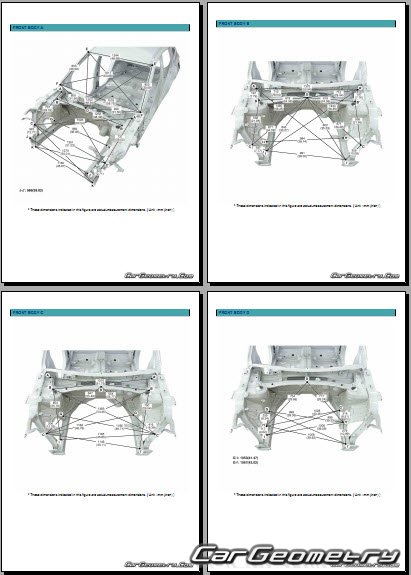

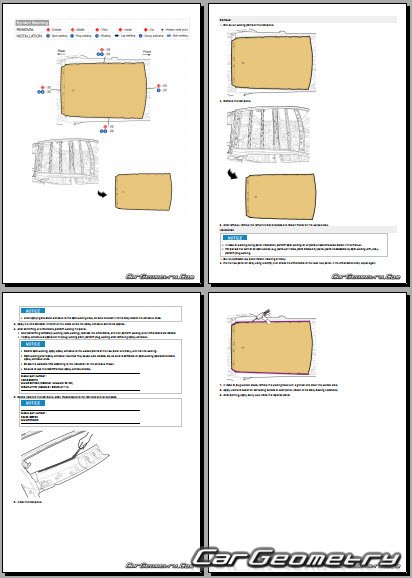

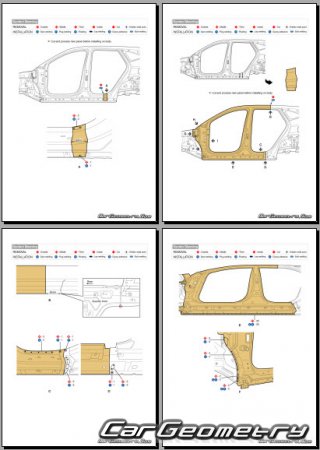

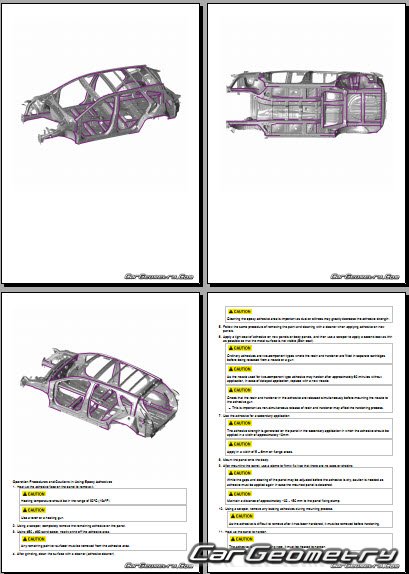

The factory body repair manual contains body dimensions for the Hyundai Tucson (NX4e) 2021-2027 and includes description of various body parts replacement, body dimension, control points for the Hyundai Tucson (short base SWB 2,680 mm).

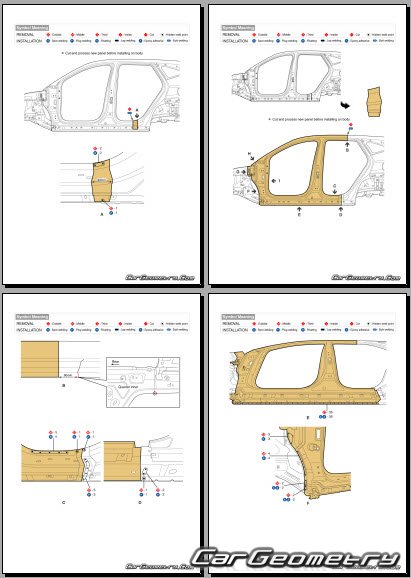

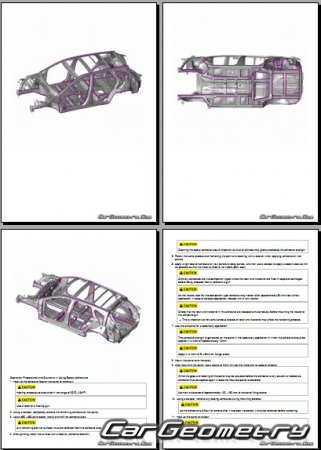

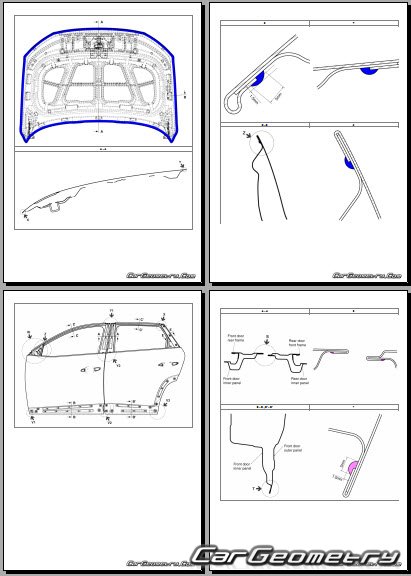

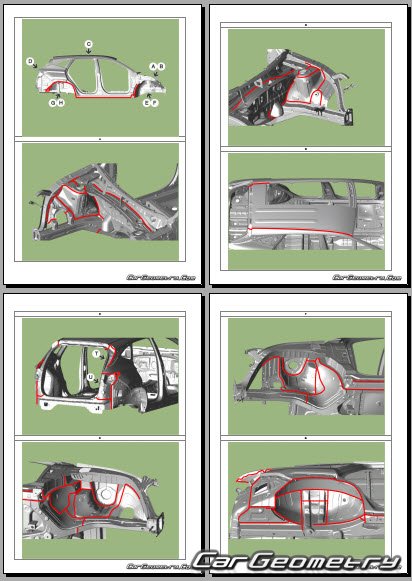

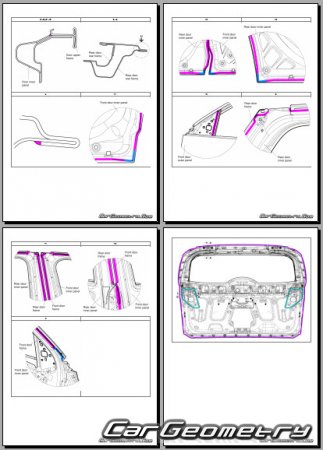

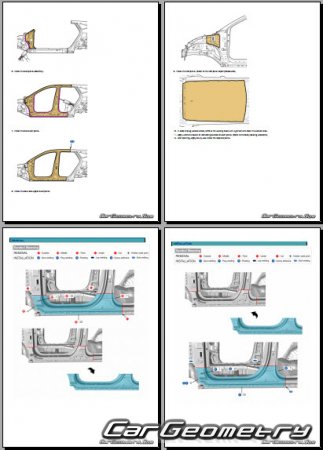

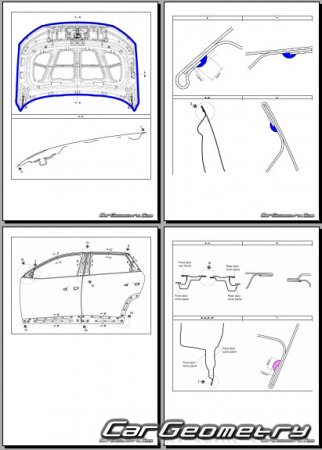

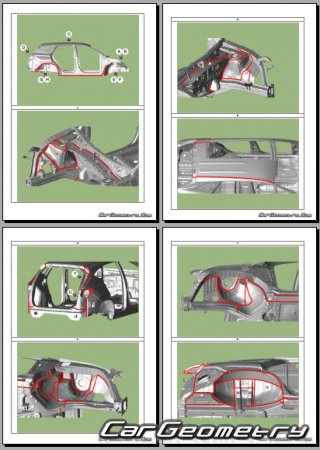

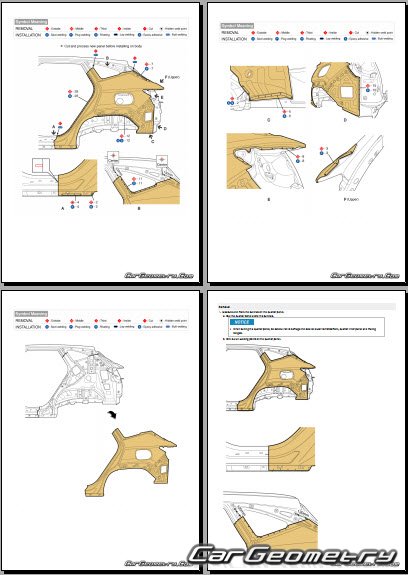

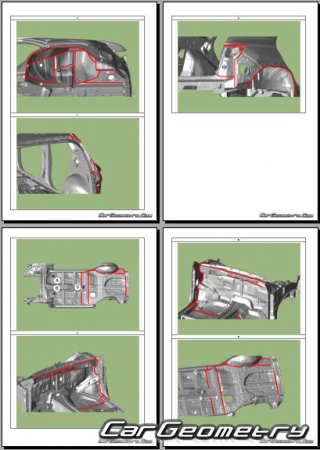

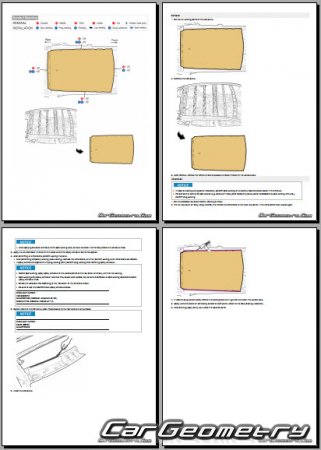

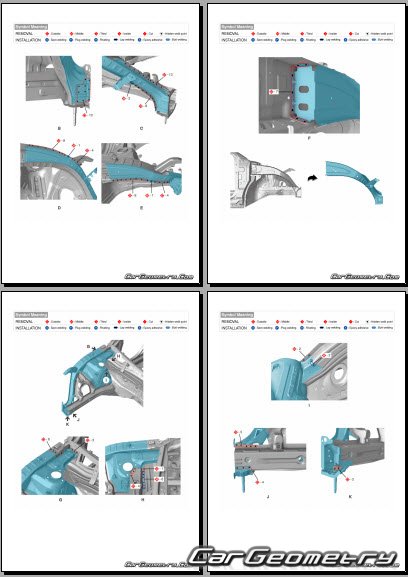

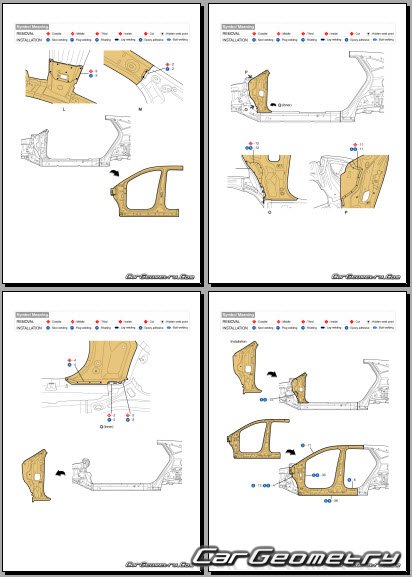

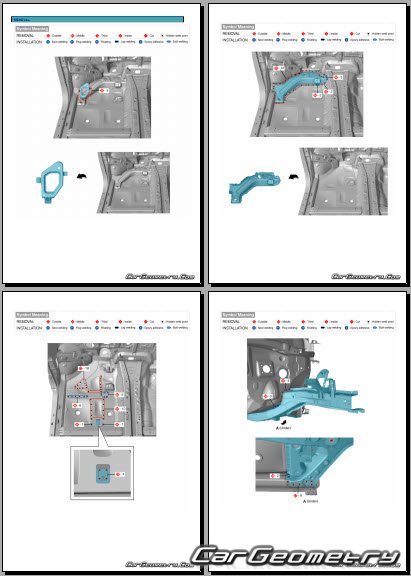

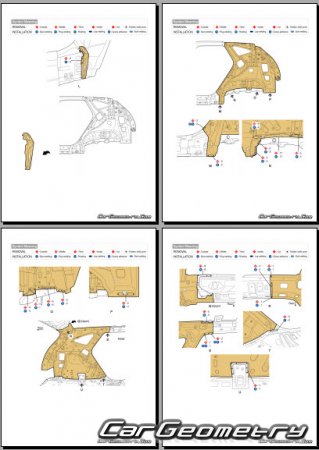

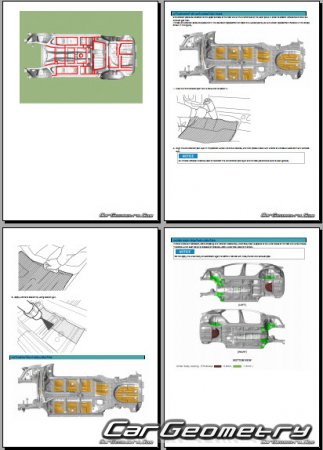

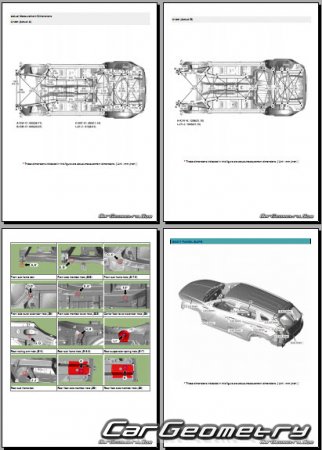

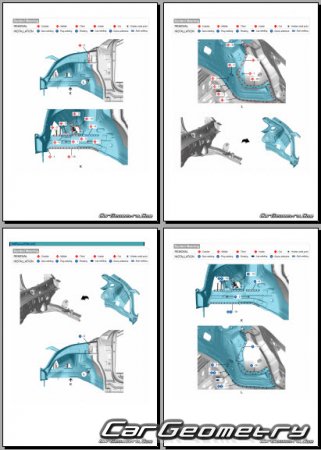

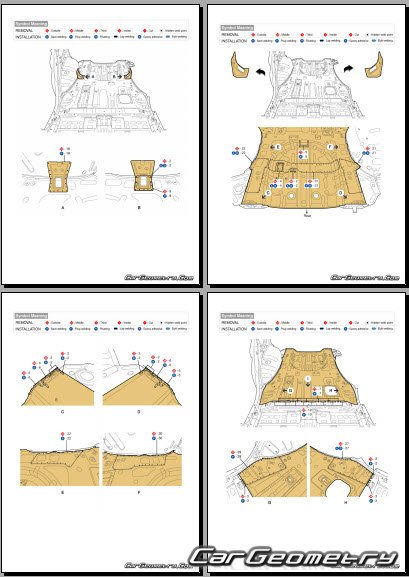

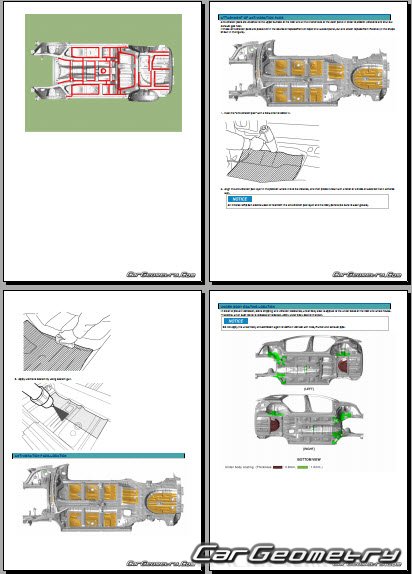

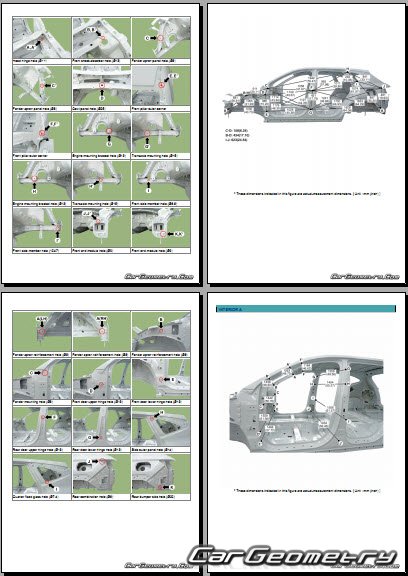

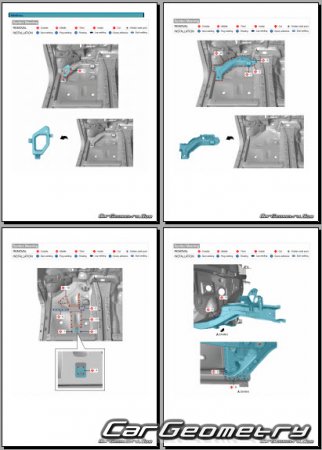

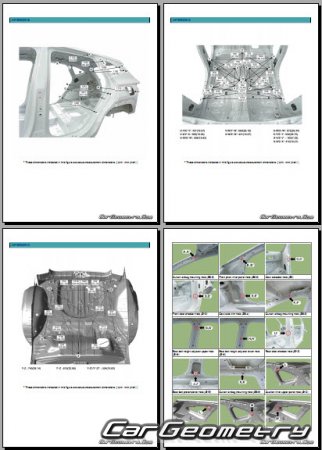

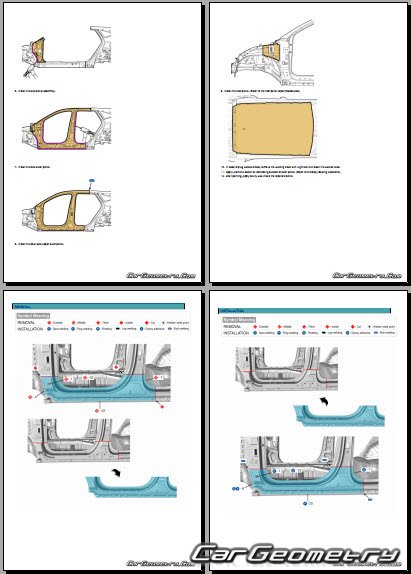

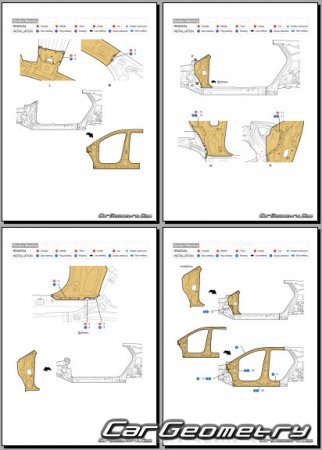

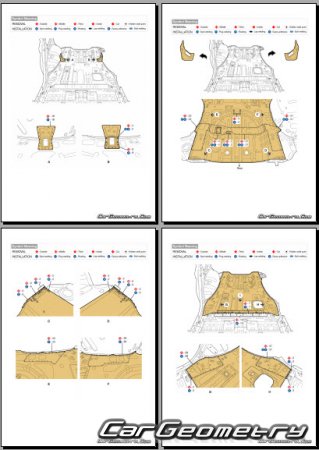

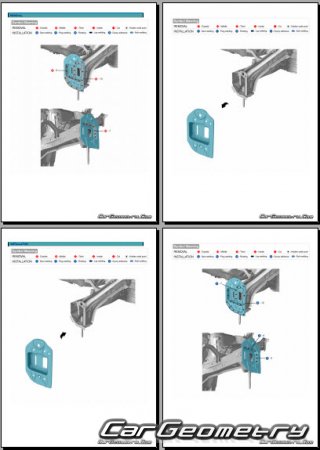

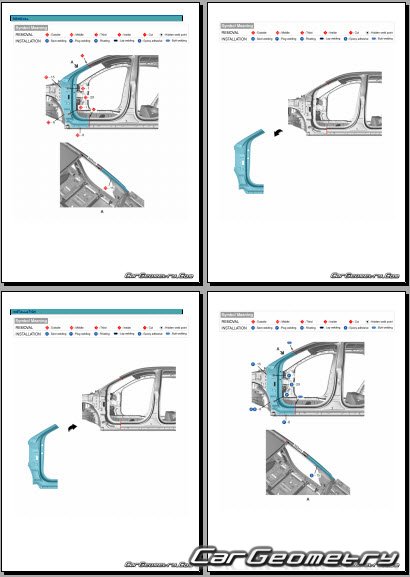

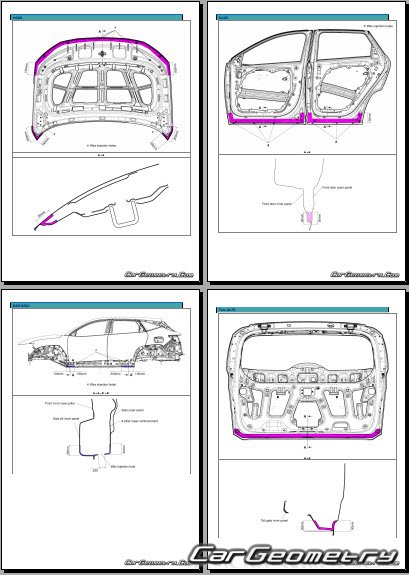

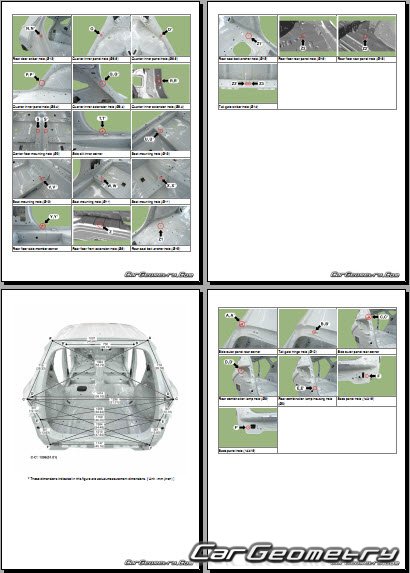

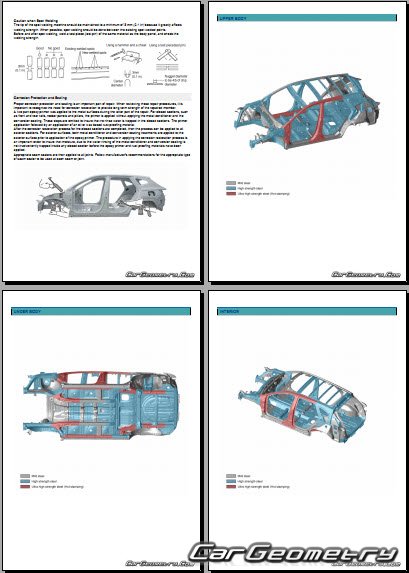

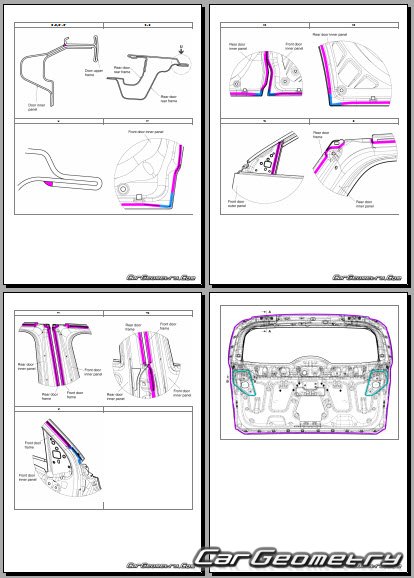

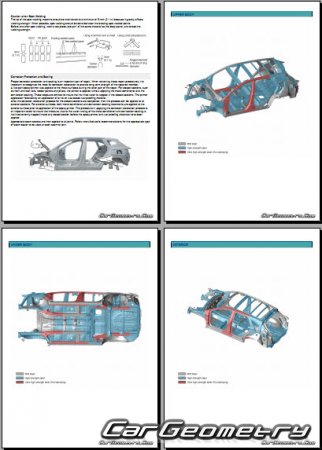

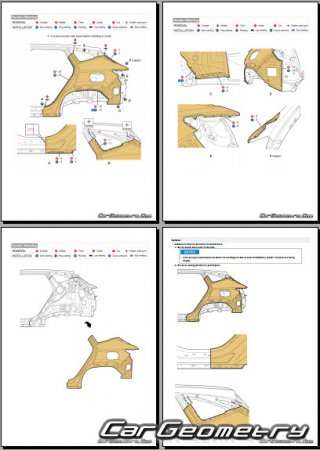

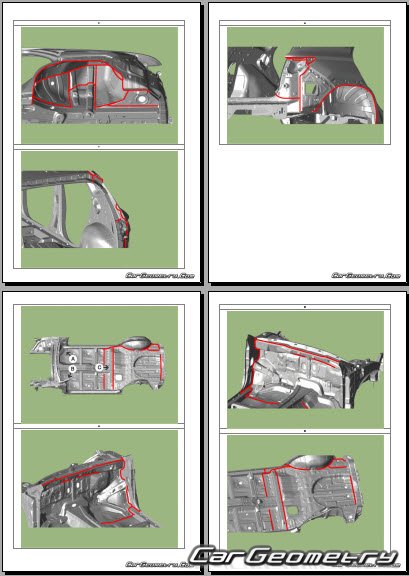

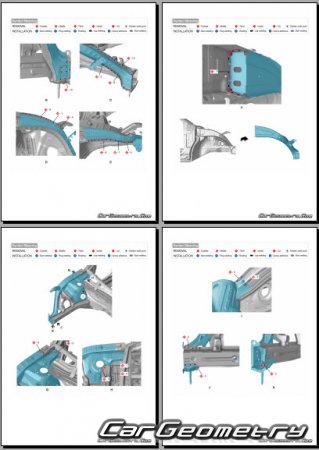

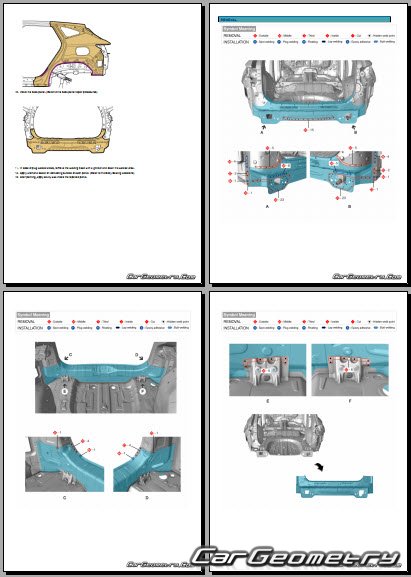

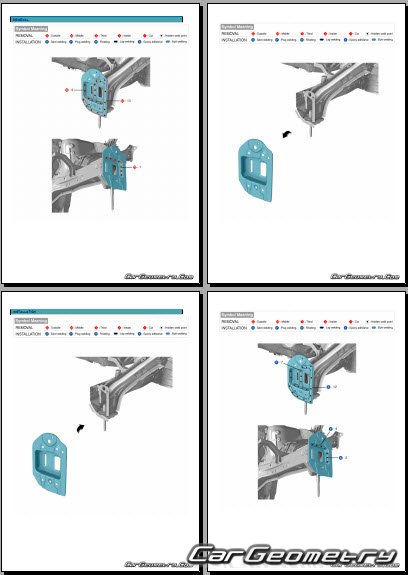

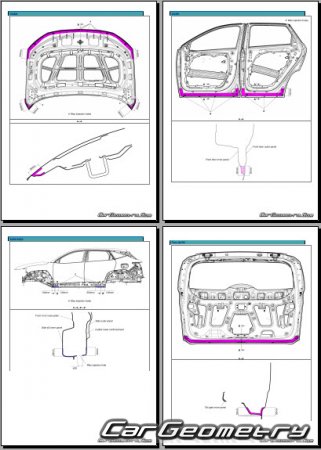

Information for the Hyundai Tucson (NX4e) 2021-2027 body geometric dimensions, control points, images of body elements, materials used, recommendations on applicable types, methods and materials for the welding points; places and materials for applying seam, soundproof and anti-corrosion sealants; points and directions for pre-cuts of body parts for the future installation of the new ones; types of interior materials, definitions and decoding.

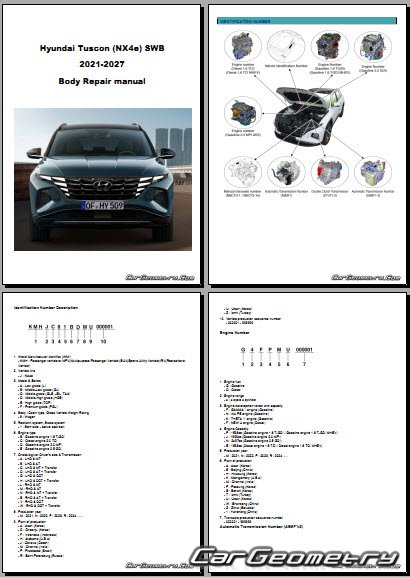

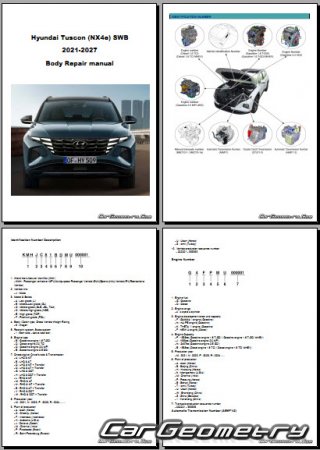

Hyundai Tucson SWB 2021-2027 Body Repair Manual 264 pages in English. This collection contains a huge amount of extremely useful and necessary information for those working in body shops themselves and the owners of body repair companies involved in Hyundai Tuscon PHEV body repair.

Download Factory manual for body repair and body dimensions
Hyundai Tucson (NX4e) 2021-2027

Price: $36
