Jeep Wagoneer (WS) 2021-2031 Body dimensions

Jeep Wagoneer (WS) 2021-2031 Body dimensions


Body dimensions for restoring the body geometry of Jeep Wagoneer (WS) 2021-2031. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

Selection from factory documentation and vehicle measurement database for Jeep Wagoneer 2021-2031: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

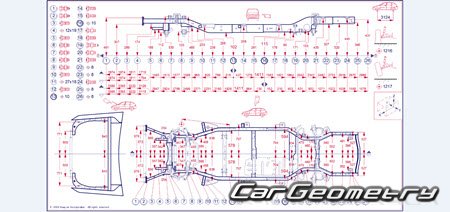

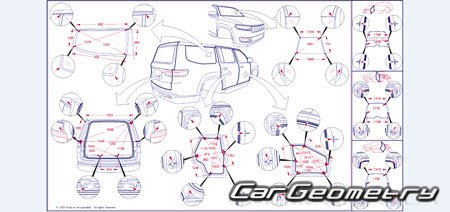

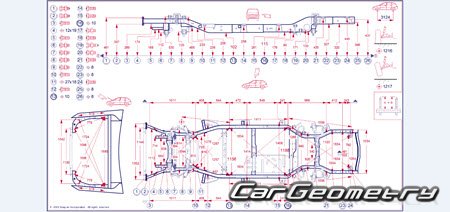

Data sample from the archive



Jeep Wagoneer (WS) 2021-2031 Body dimensions








Download vehicle dimensions Jeep Wagoneer (WS) 2021-2031

Price: $35
