Body dimensions for restoring the body geometry of Mazda CX-80 (KL) 2024-2030 vehicles. These data are used for checking the body geometry and subsequent straightening of damaged parts of Mazda cars. These measurements are specifically applicable to the right-hand drive versions of Mazda CX-80 (KL) 2024-2030 for the Japanese market.

The Mazda CX-80 (KL) is a large three-row SUV, produced in Japan since August 2024, with seating for six or seven passengers. It is available with a 3.3-liter e-Skyactiv D diesel engine with mild hybrid technology (M Hybrid Boost) and also as a PHEV with a 2.5-liter engine and battery.

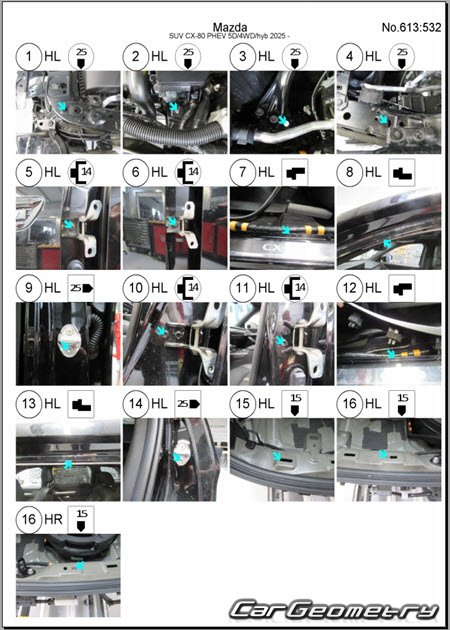

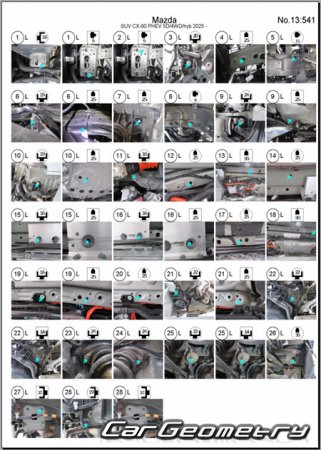

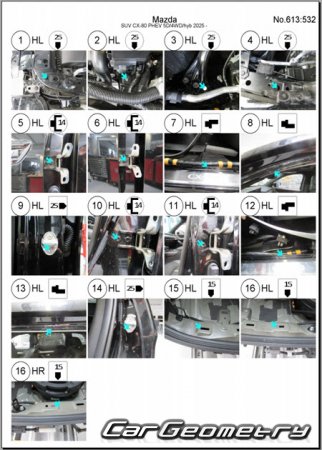

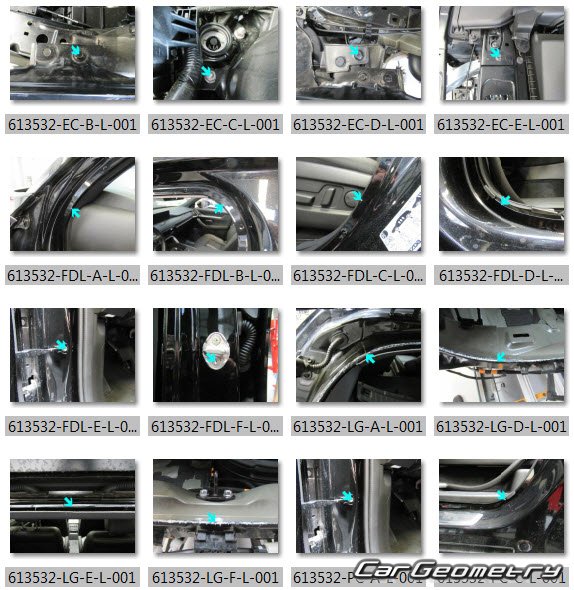

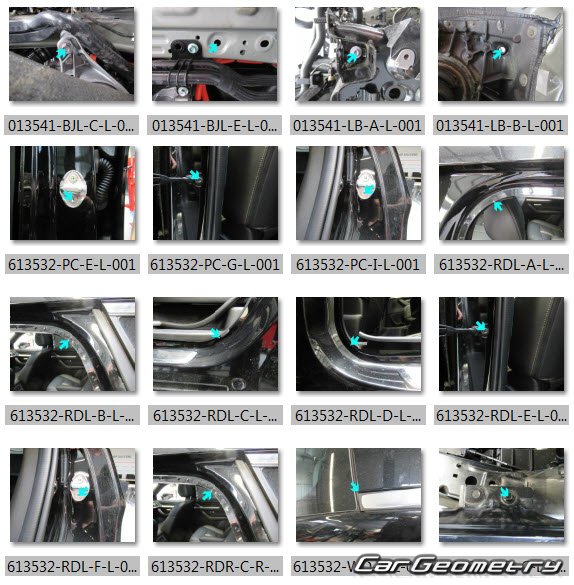

One of the essential features of the manual is its focus on body dimensions and control points. It provides precise measurements for key body components, allowing technicians to assess and restore the vehicle's geometry accurately. The control points serve as reference points for evaluating the alignment and structural integrity of the vehicle's body, ensuring that repairs are carried out to the highest standards.

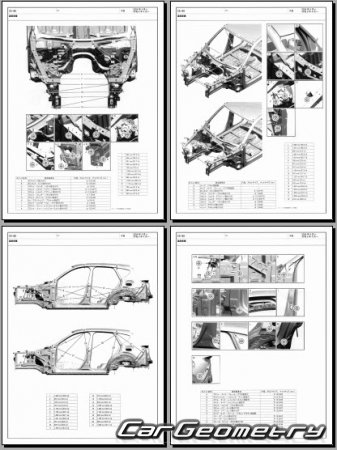

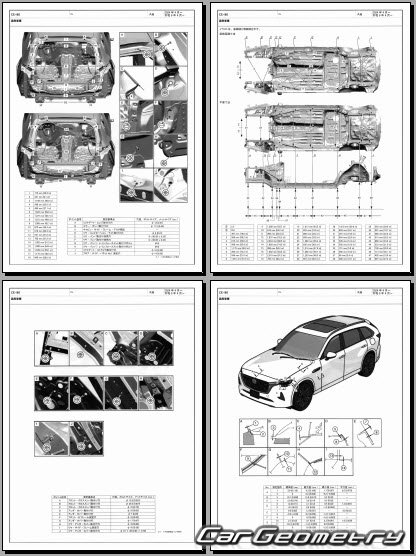

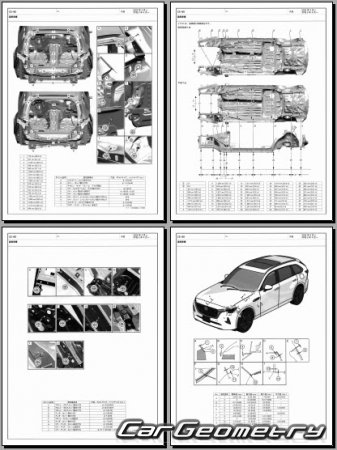

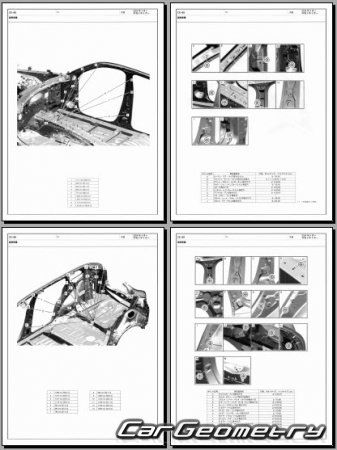

A selection of information is available from the factory documentation in Japanese and various body measurement bases for the Mazda CX-80 2024-2030 with right-hand drive, including body dimensions and control points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions
Mazda CX-80 (KL) 2024-2030 (RH Japanese market)

Price: $40
