Mercedes Vito (W447) 2015-2023 Body dimensions

Mercedes Vito (W447) 2015-2023 Body dimensions


Body dimensions for restoring the body geometry of Mercedes Vito (W447) 2015-2023 (SWB 3200 and LWB 3430). With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. The data can be used for body repair of Mercedes-Benz Metris W447 (USA market).

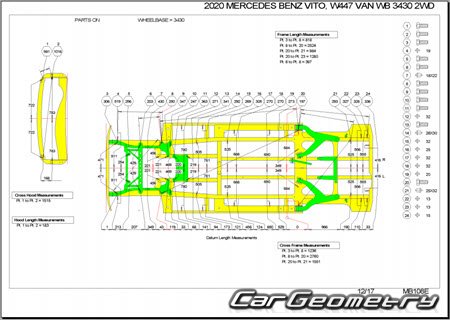

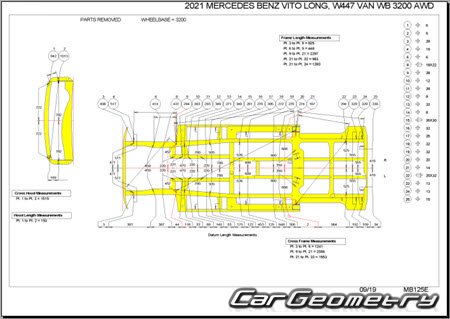

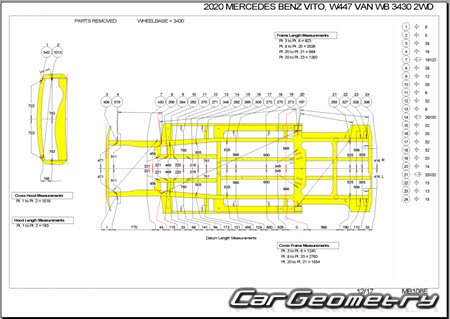

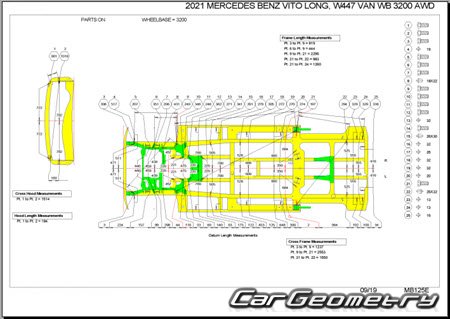

Selection from factory documentation and vehicle measurement database for Mercedes Vito 2015-2023: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

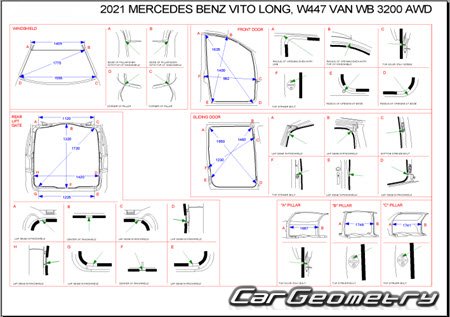

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

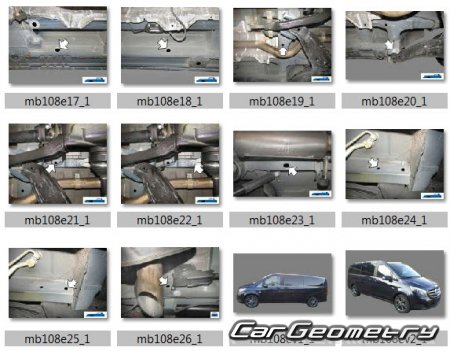

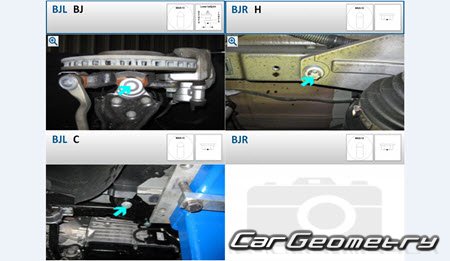

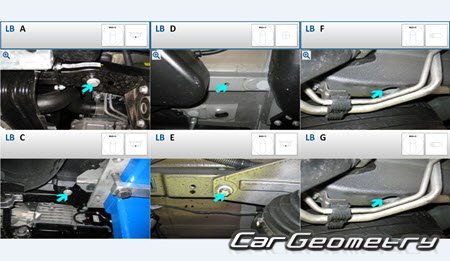

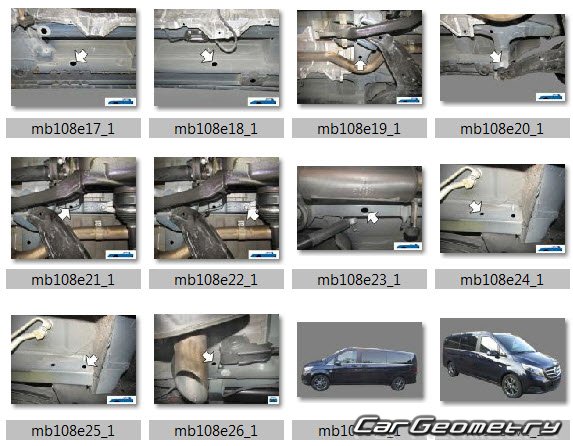

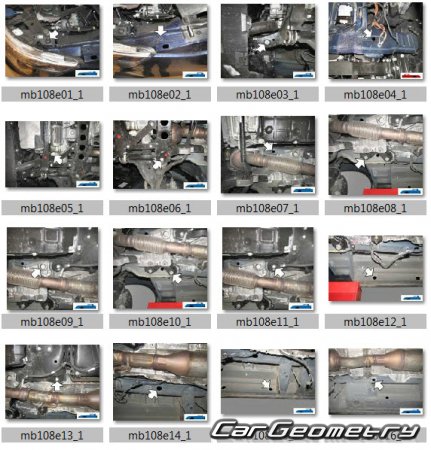

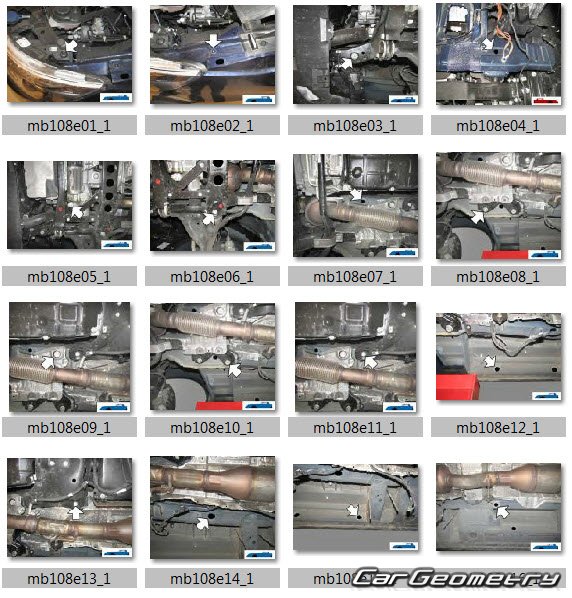

Data sample from the archive











Mercedes Vito (W447) 2015-2023 Body dimensions




Download vehicle dimensions Mercedes Vito (W447) 2015-2023

Price: $30
