Mitsubishi Xpander 2018-2024 (RH) Body Repair Manual

Mitsubishi Xpander 2018-2024 Body Repair Manual is a comprehensive guide that provides in-depth information and instructions for repairing and restoring the body of the Mitsubishi Xpander. It is specifically tailored for the Asia market and covers the right-hand drive models.

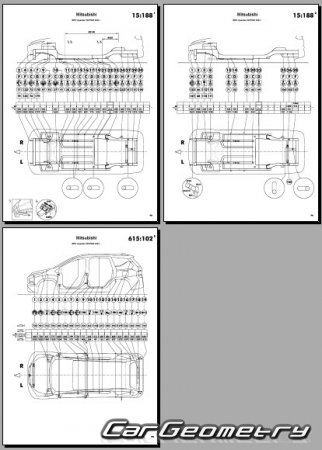

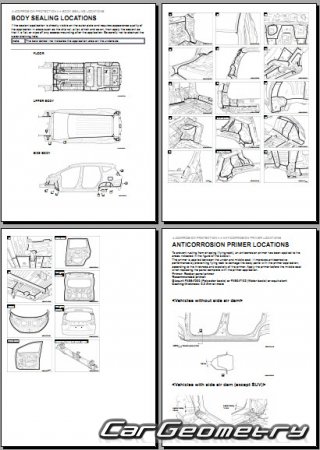

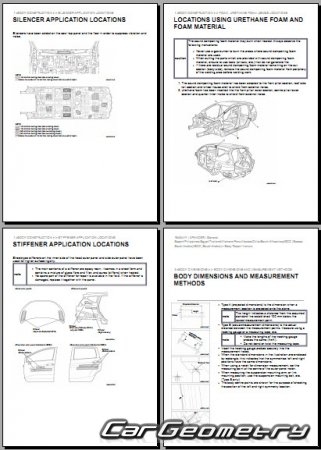

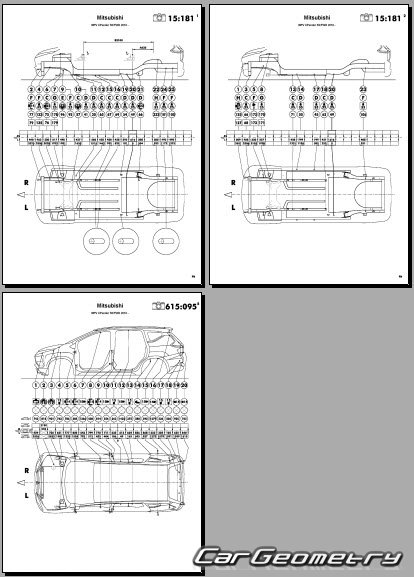

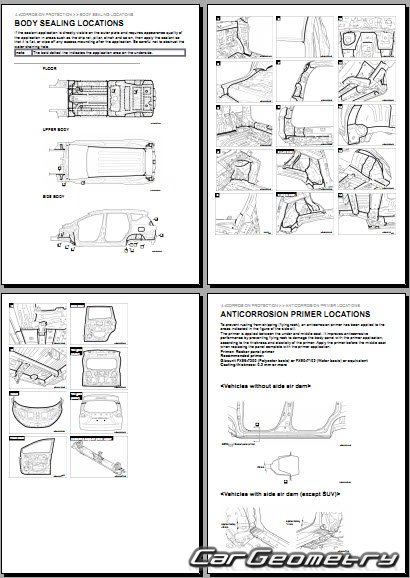

It provides precise body dimensions, control points, and geometric measurements that are crucial for ensuring the proper alignment and geometry of the vehicle's body. Additionally, the manual offers valuable insights into the materials used in the construction of the body and provides recommendations for appropriate welding methods, materials, and locations. It also provides guidance on applying sealants, sound insulation, and anti-corrosion coatings at specific areas of the body.

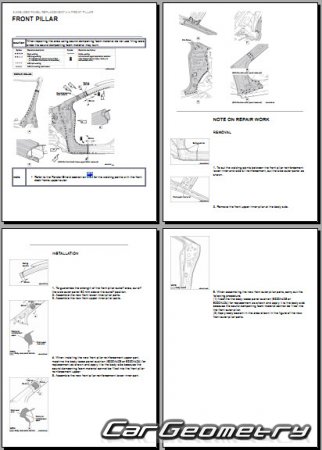

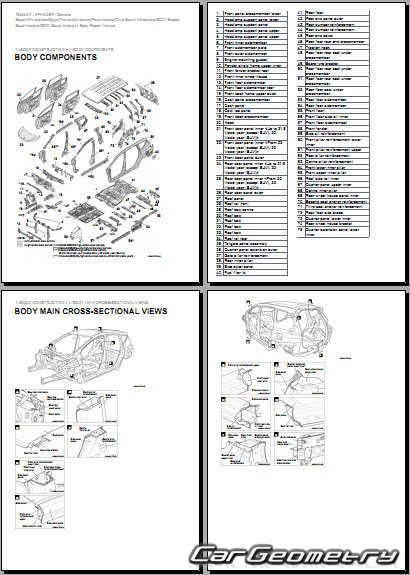

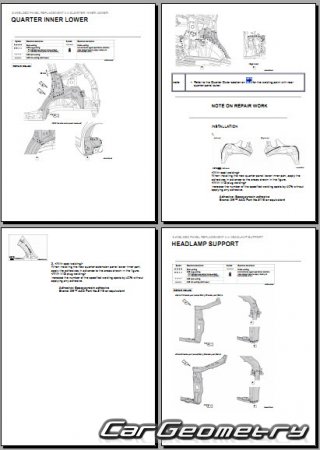

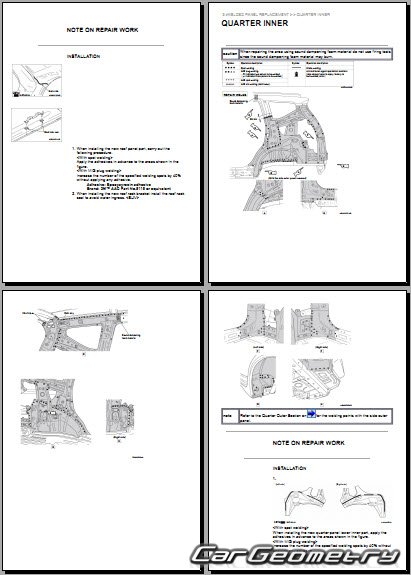

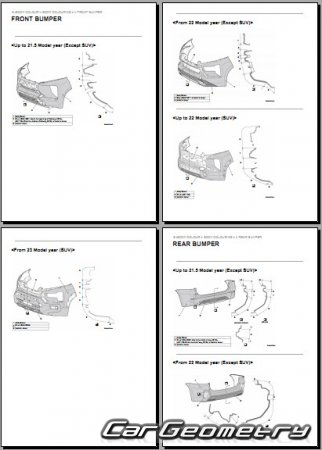

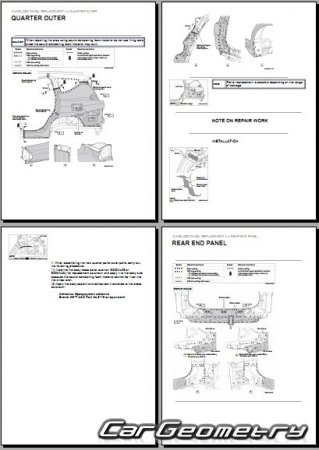

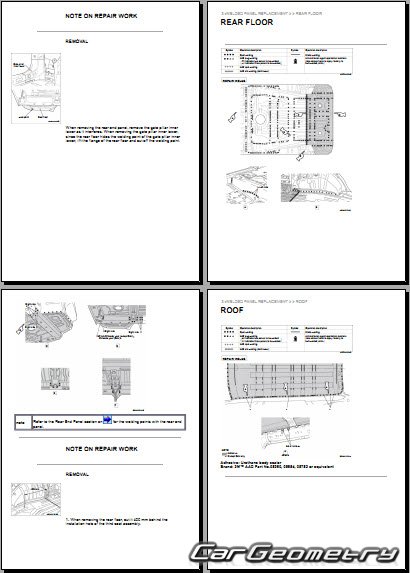

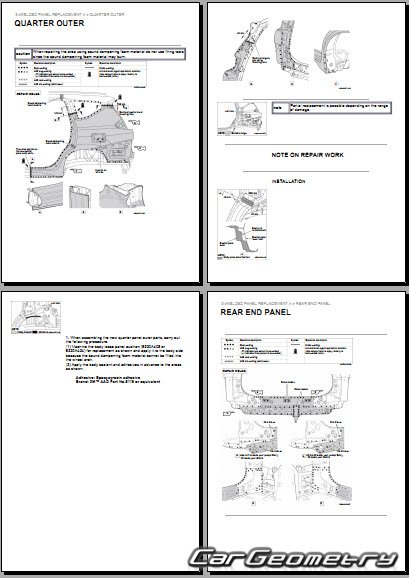

The manual features diagrams and illustrations that depict cross-sections of body elements, aiding in visualizing the structural composition and facilitating the repair process. It also covers cutting procedures and directions for removing and installing new body components, ensuring accurate and efficient repairs.

Overall, the Mitsubishi Xpander 2018-2024 Body Repair Manual,spanning over 111 pages in Japanese, is an indispensable resource for body repair technicians and individuals involved in the repair and restoration of Mitsubishi Xpander. It contains a wealth of useful and necessary information to ensure precise and reliable body repairs in accordance with the manufacturer's recommendations.

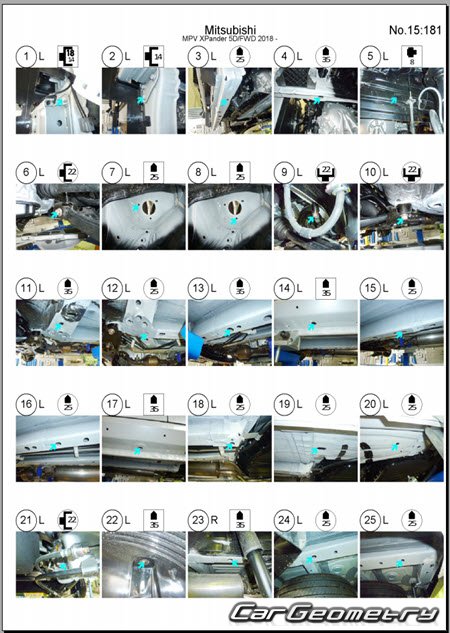

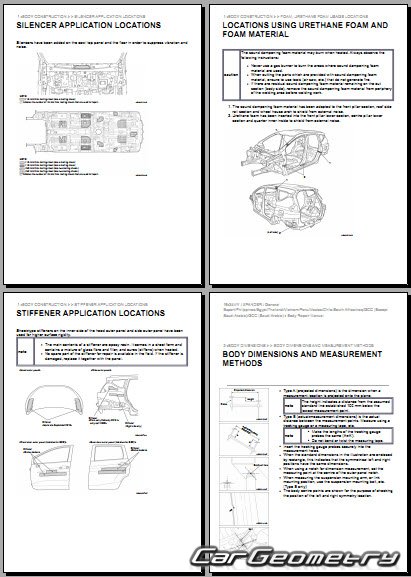

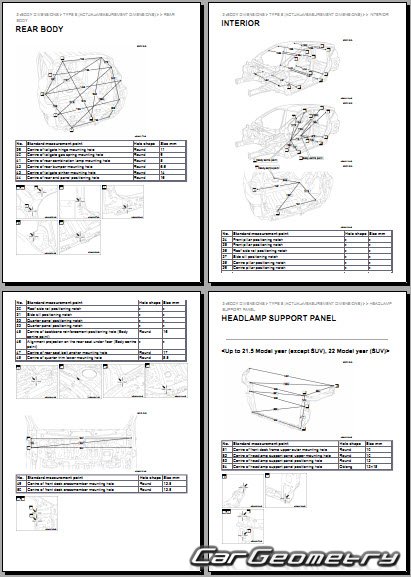

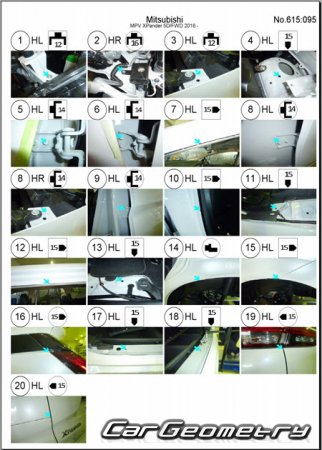

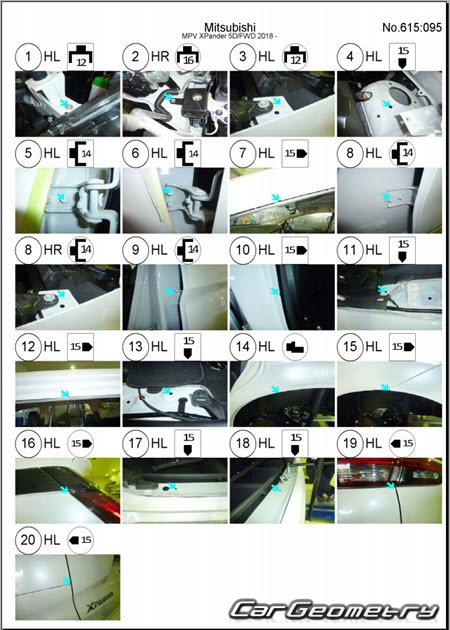

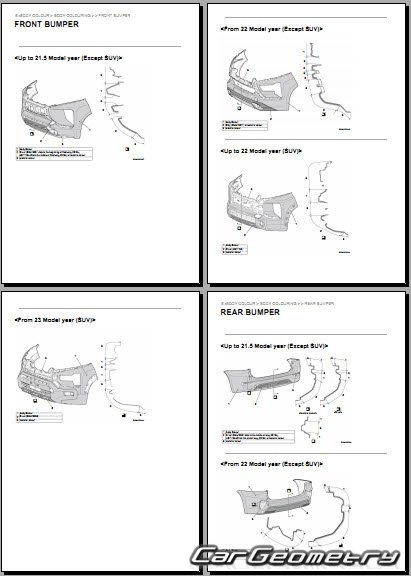

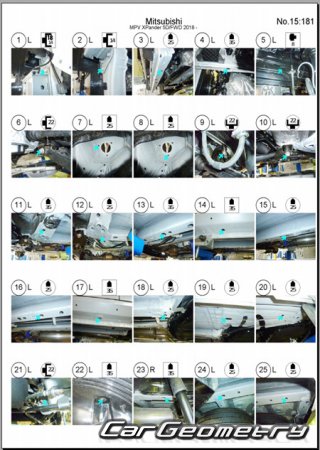

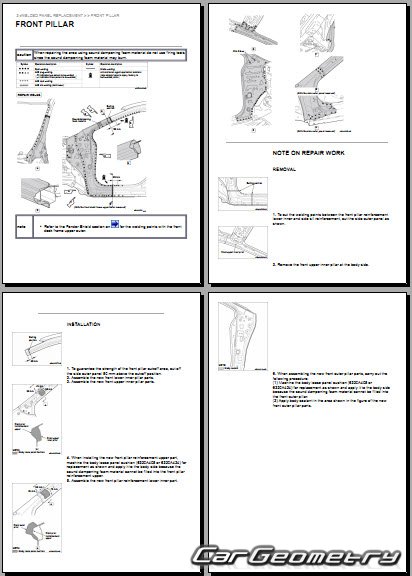

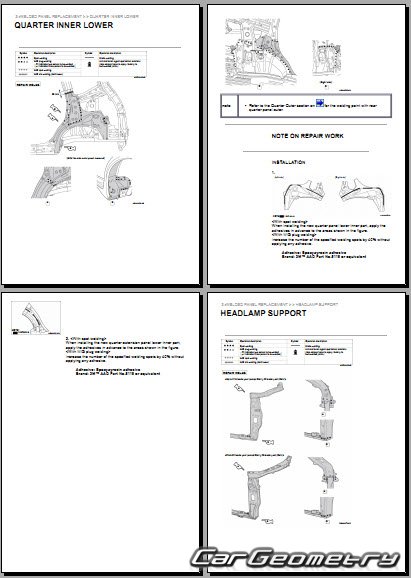

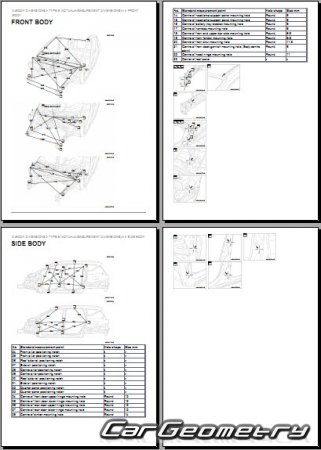

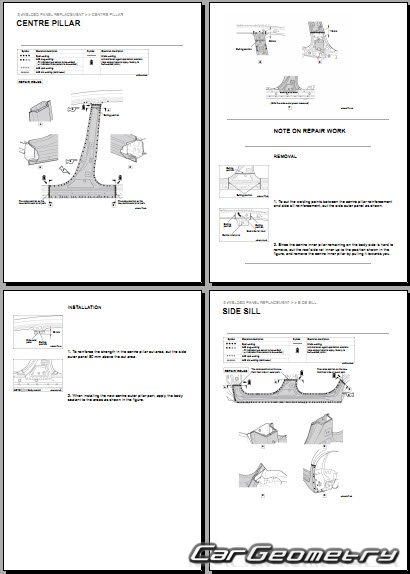

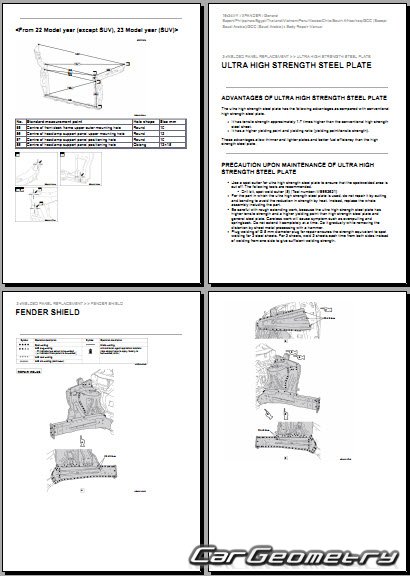

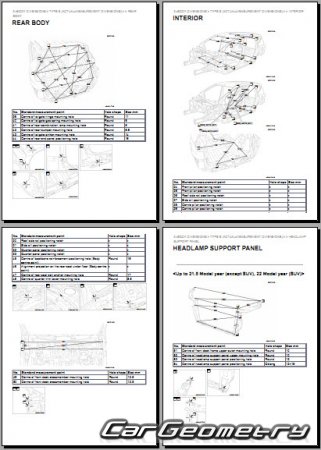

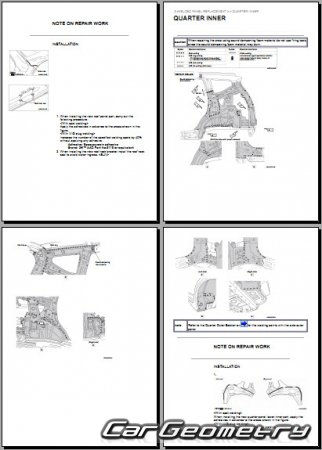

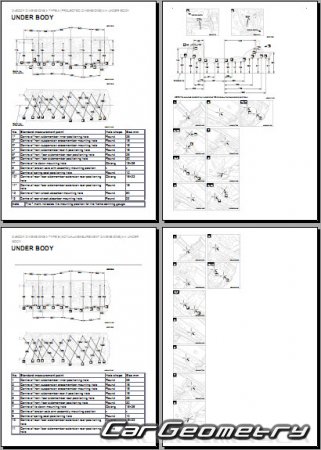

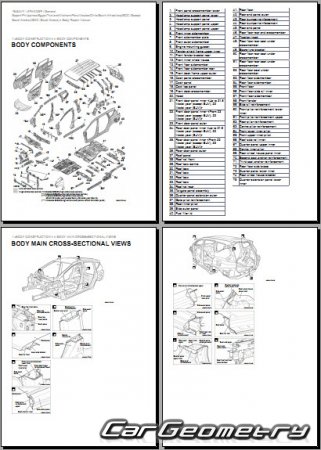

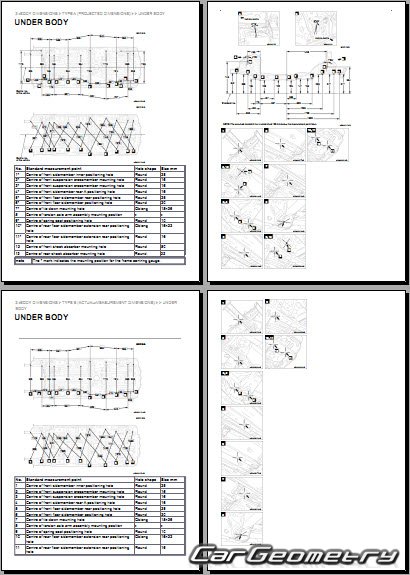

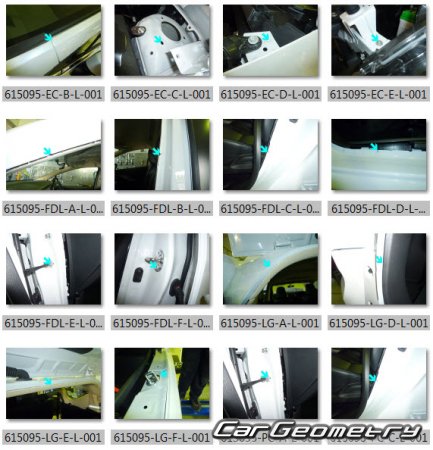

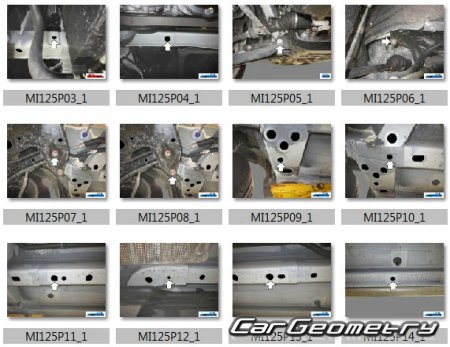

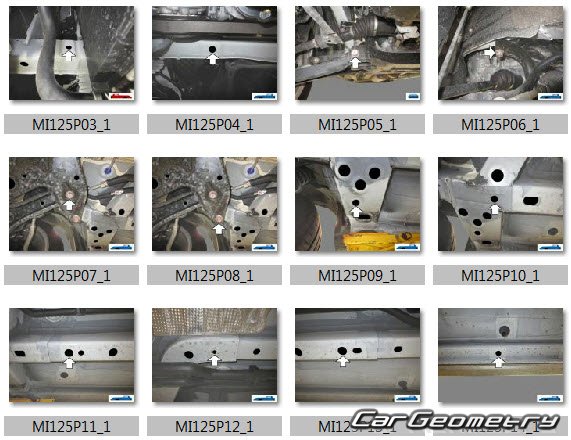

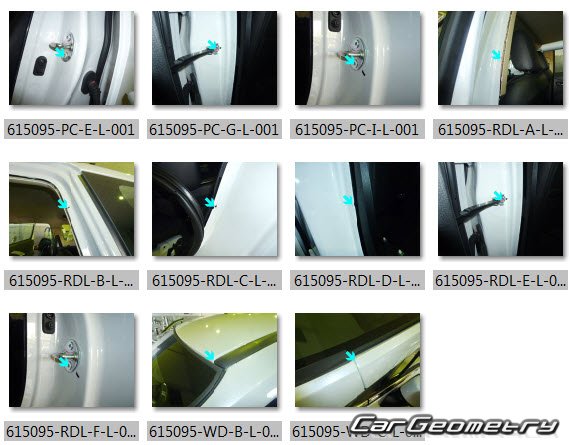

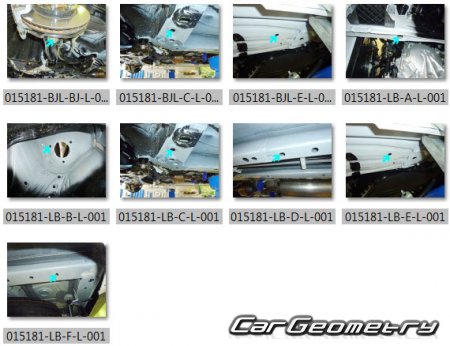

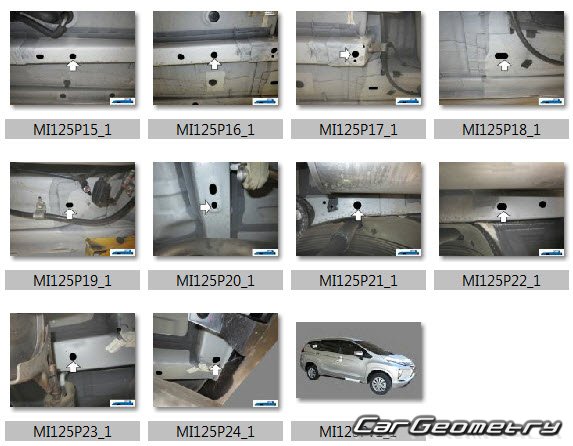

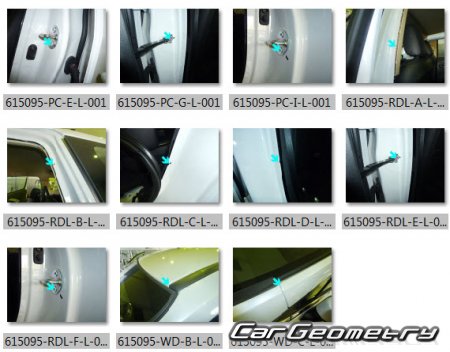

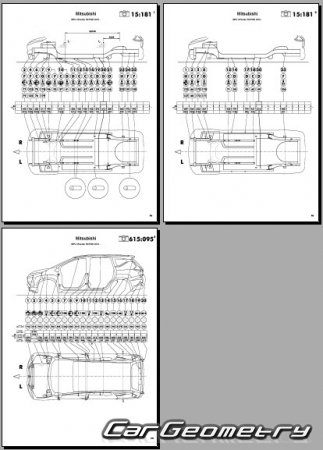

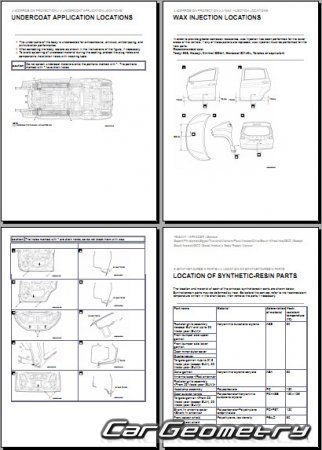

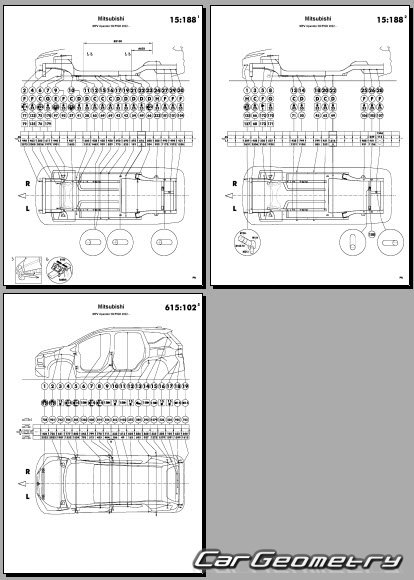

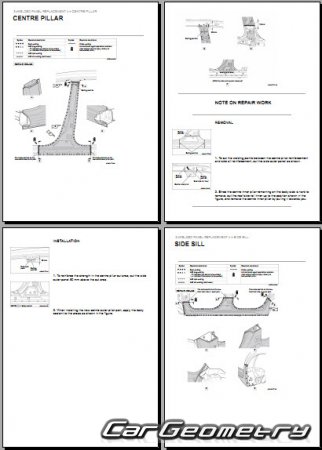

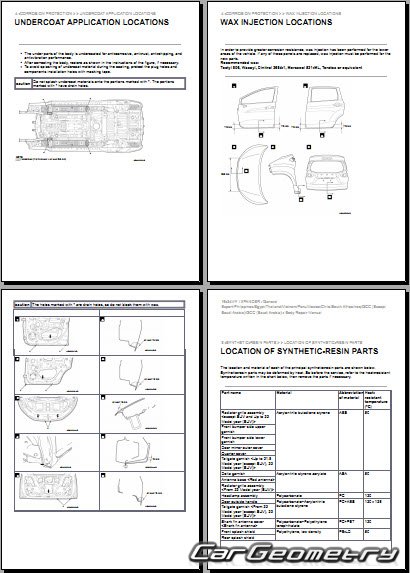

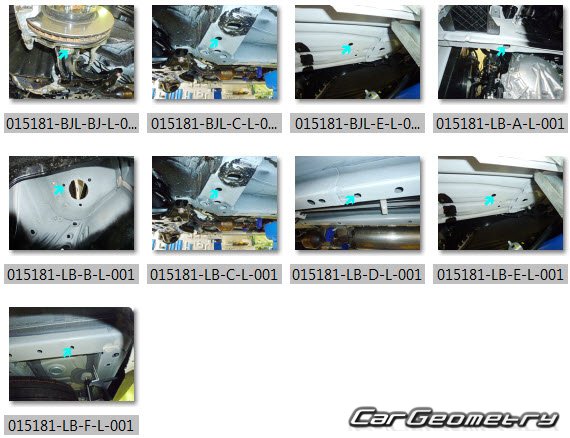

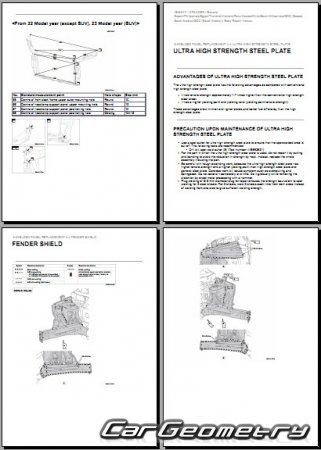

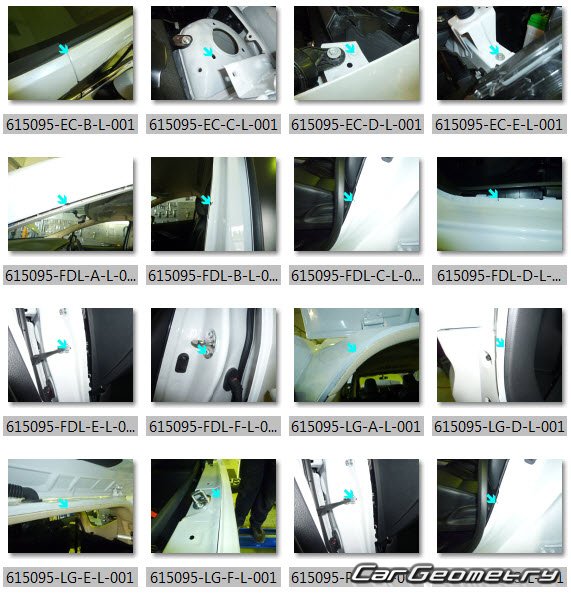

Data sample from the archive
