Opel Astra Sedan (J) 2012-2015 Body dimensions

Opel Astra Sedan (J) 2012-2015 Body dimensions


Body dimensions for restoring the body geometry of Opel Astra Sedan (J) 2012-2015. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. The manual can also be used for Buick Verano bodywork from 2011.

Selection from factory documentation and vehicle measurement database for Opel Astra Sedan J: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

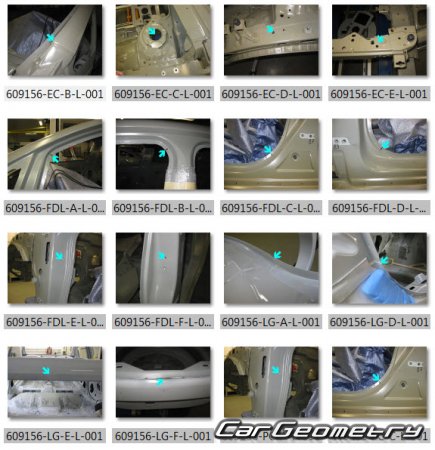

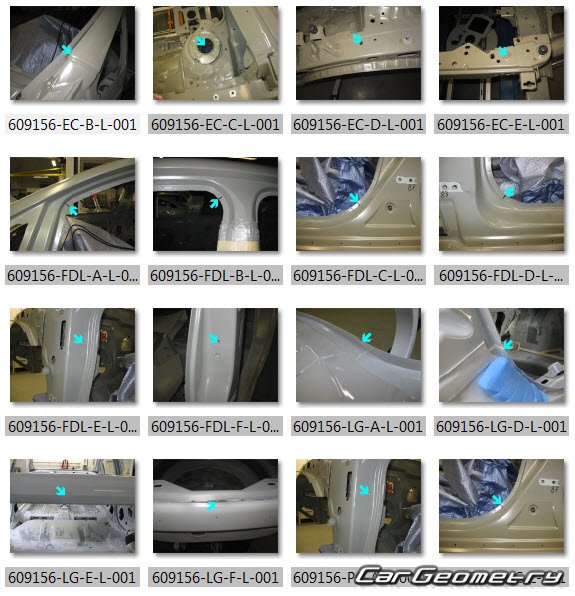

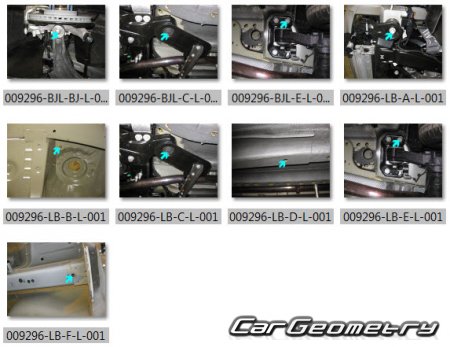

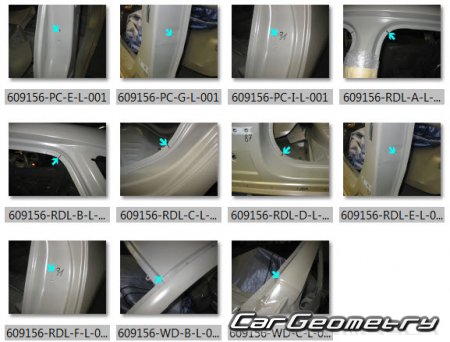

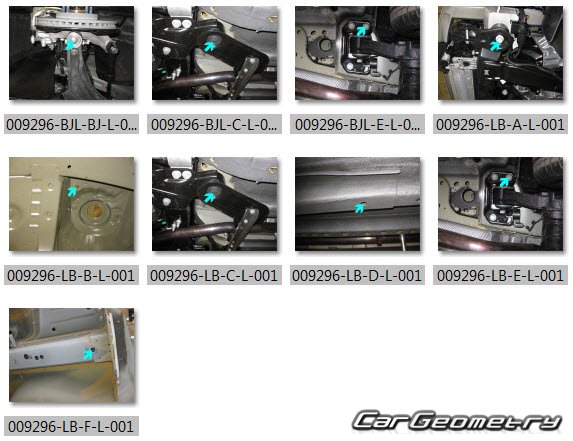

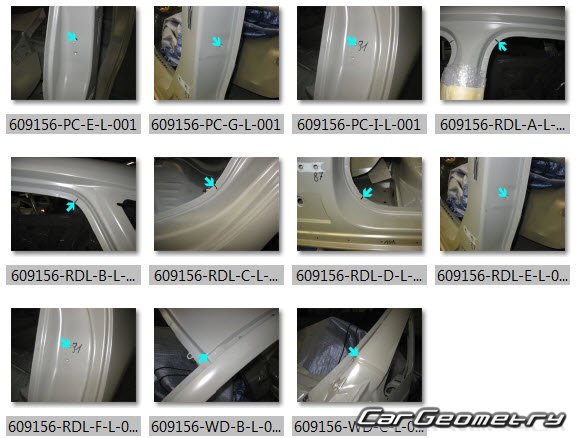

Data sample from the archive



Opel Astra Sedan (J) 2012-2015 Body dimensions





















Download vehicle dimensions Opel Astra Sedan (J) 2012-2015

Price: $30
