Subaru Chiffon (LA600F LA610F) 2016–2019 (RH Japanese market) Body dimensions

Subaru Chiffon (LA600F LA610F) 2016–2019 Body dimensions

Body dimensions for restoring the body geometry of Subaru Chiffon (LA600F LA610F) 2016–2019. These data are used to verify the geometry of both 2WD and 4WD body configurations, followed by the straightening of damaged parts for right-hand drive Subaru Chiffon models intended for the Japanese market, including Custom versions.

Selection from factory documentation and vehicle measurement database for Subaru Chiffon 2016–2019. These resources are valuable for technicians who perform body repairs, enabling them to accurately assess and restore the body geometry according to the manufacturer's recommendations.

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

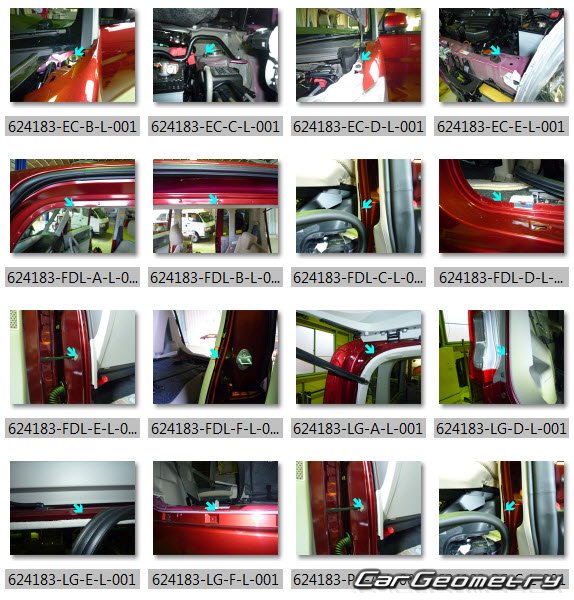

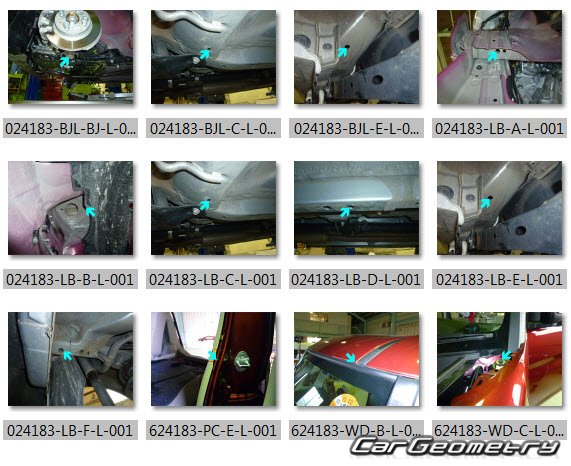

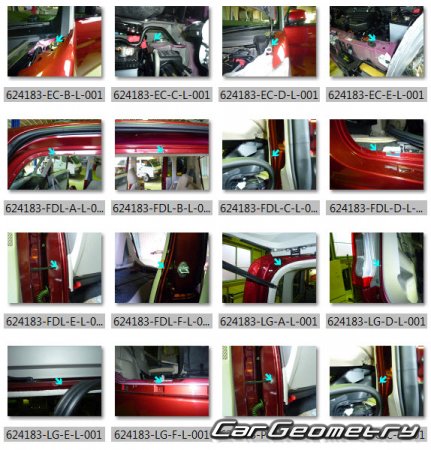

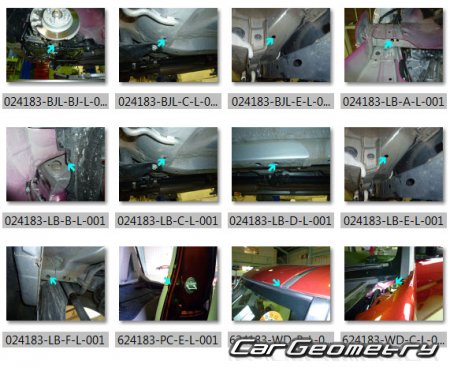

Data sample from the archive

Subaru Chiffon (LA600F LA610F) 2016–2019 (RH Japanese market) Body dimensions

Download vehicle dimensions

Price: $40
