Body dimensions for restoring the body geometry of Suzuki Baleno 2015-2021 vehicles. These data are used for checking the body geometry and subsequent straightening of damaged parts of Suzuki Baleno cars.

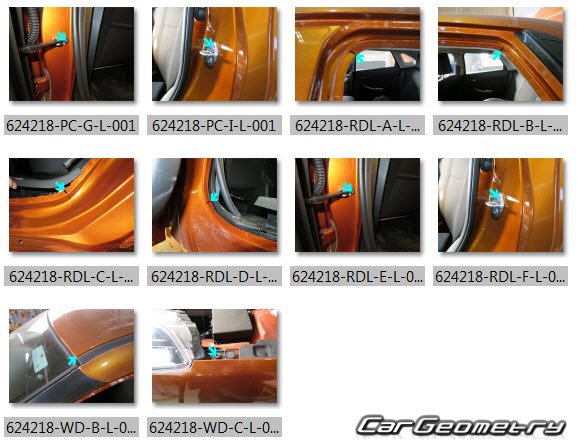

One of the essential features of the manual is its focus on body dimensions and control points. It provides precise measurements for key body components, allowing technicians to assess and restore the vehicle's geometry accurately. The control points serve as reference points for evaluating the alignment and structural integrity of the vehicle's body, ensuring that repairs are carried out to the highest standards.

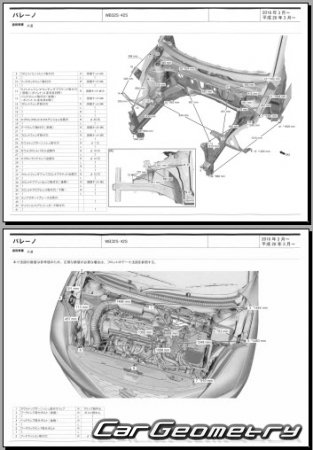

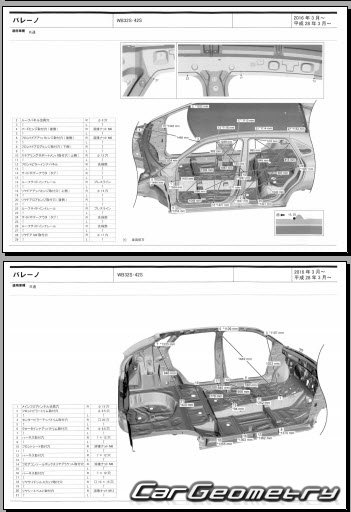

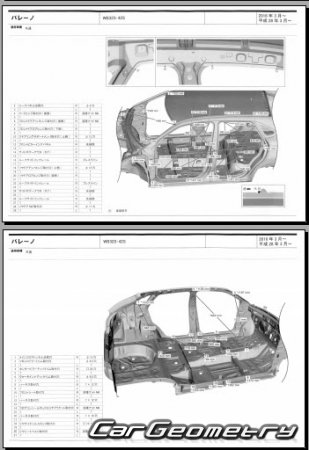

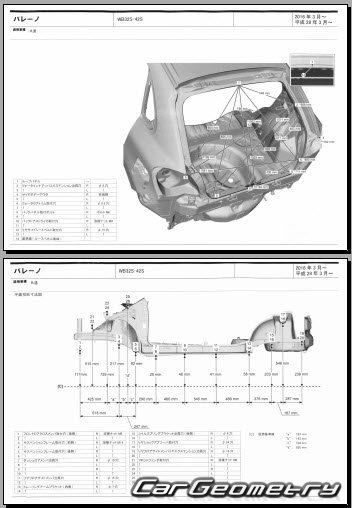

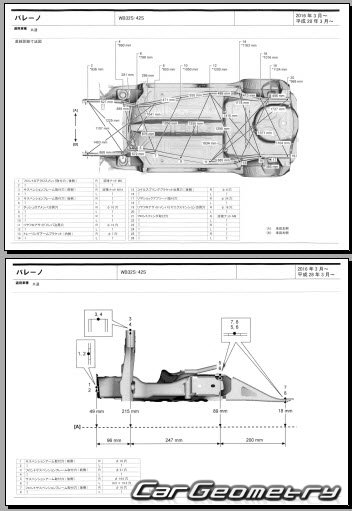

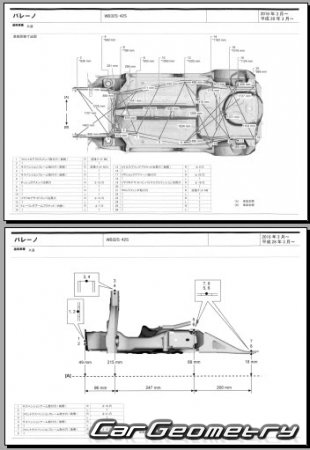

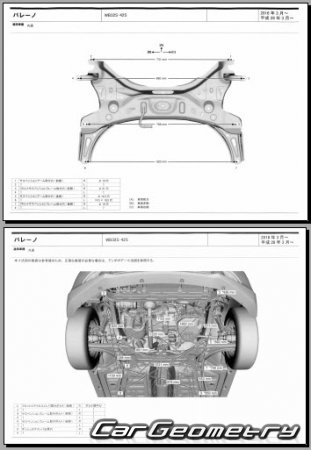

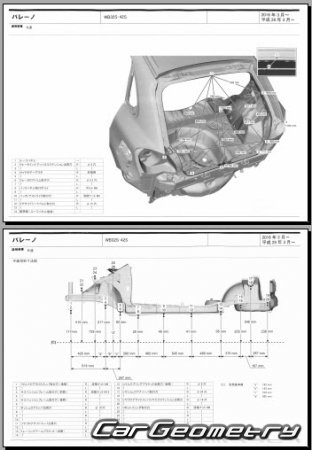

Selection from factory documentation and vehicle measurement database for Suzuki Baleno 2015-2021: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Data sample from the archive

Download vehicle dimensions
Suzuki Baleno 2015-2021

Price: $30
