Audi Q5 (8R) 2008–2016 Body Repair Manual
The factory body repair manual contains body dimensions for the Audi Q5 (8R) 2008–2016 and includes description of various body parts replacement, body dimension, control points for the Audi Q5.
Information for the Audi Q5 (8R) 2008–2016 body geometric dimensions, control points, images of body elements, materials used, recommendations on applicable types, methods and materials for the welding points; places and materials for applying seam, soundproof and anti-corrosion sealants; points and directions for pre-cuts of body parts for the future installation of the new ones; types of interior materials, definitions and decoding.
Audi Q5 (8R) 2008–2016 Body Repair Manual 256 pages in English. This collection contains a huge amount of extremely useful and necessary information for those working in body shops themselves and the owners of body repair companies involved in Audi Q5 body repair.

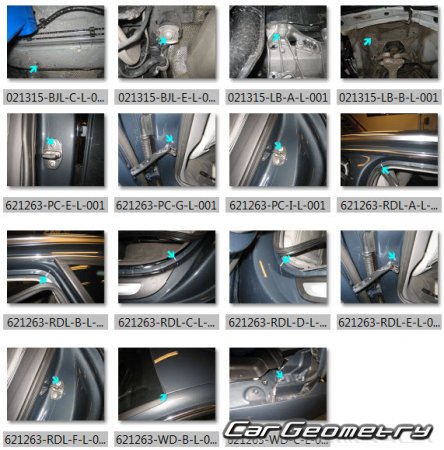

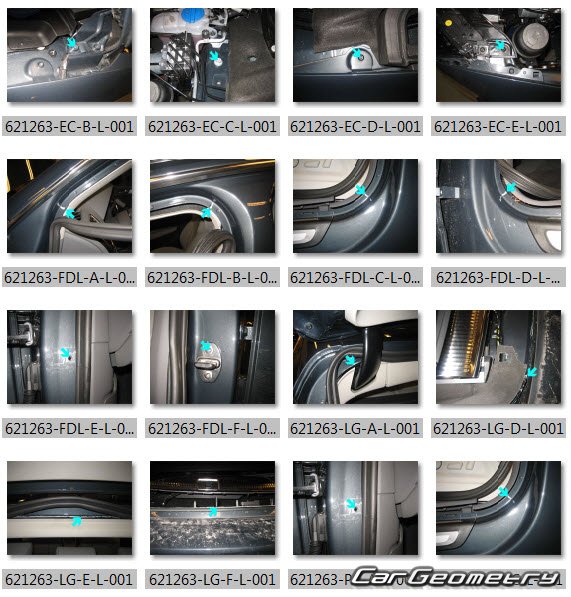

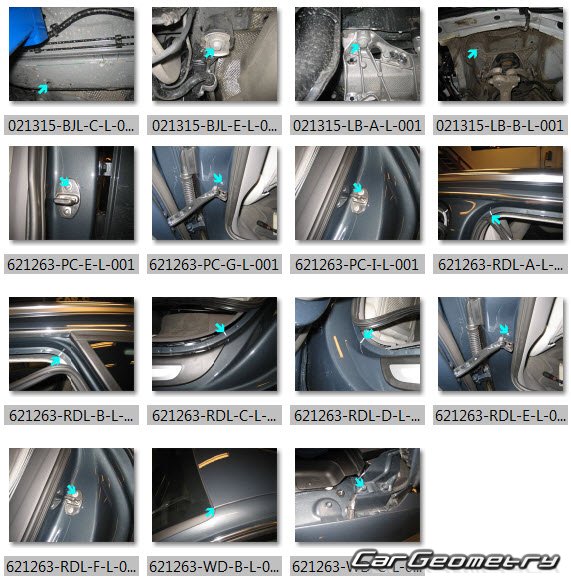

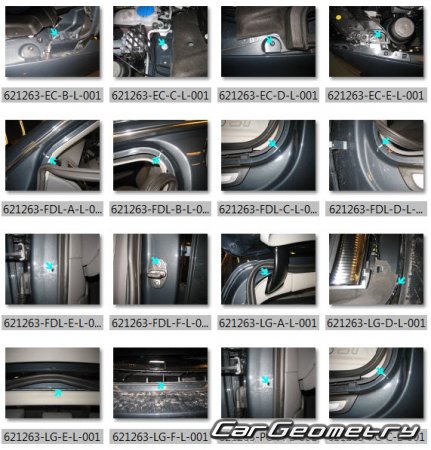

Data sample from the archive
Download Factory manual for body repair and body dimensions
Audi Q5 (8R) 2008–2016
Audi Q5 (8R) 2008–2016
Price: $30
