Body dimensions for restoring the body geometry of BYD G3 G3R 2009-2014. With the help of this information, you can check the geometry of the damaged body (sedan and hatchback), as well as carry out restoration work on the straightening of cars.

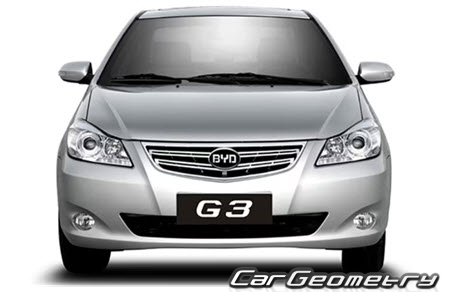

The BYD G3 was a slightly stretched version of the popular BYD F3, offering a more spacious interior and an increased body length (~4600 mm), aimed at “upscale” markets like Beijing and Shanghai. It was offered as a sedan (G3) and hatchback (G3R), with a choice of 1.5L or 1.8L petrol engines, mated to a 5-speed manual, CVT or 6-speed DCT.

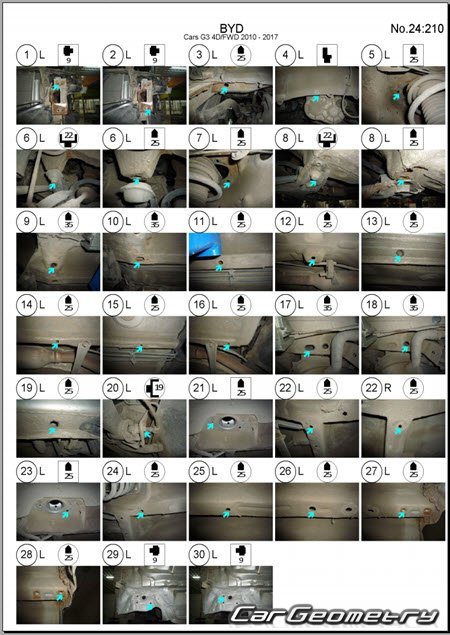

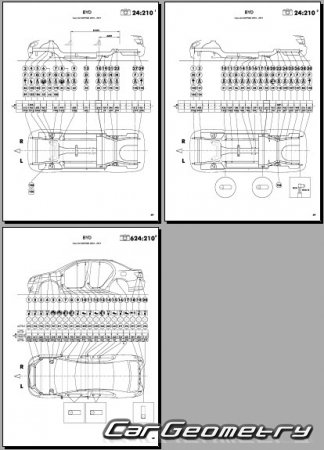

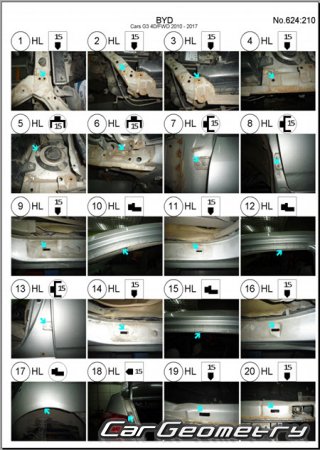

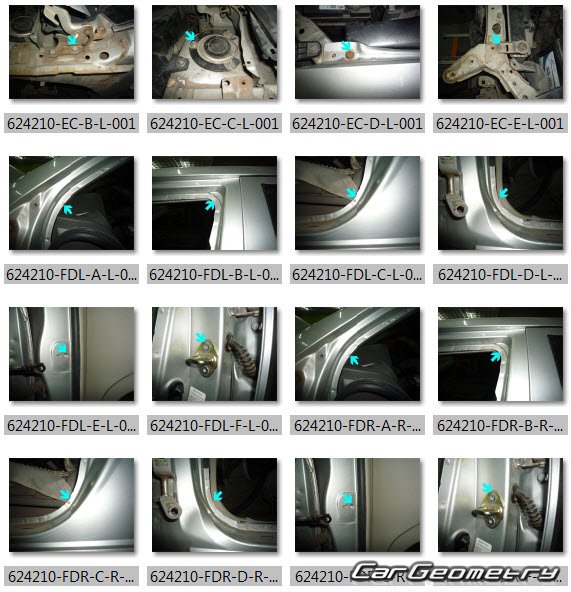

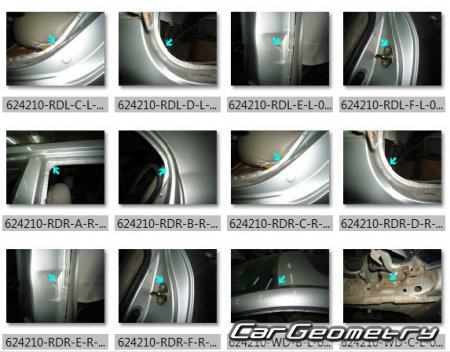

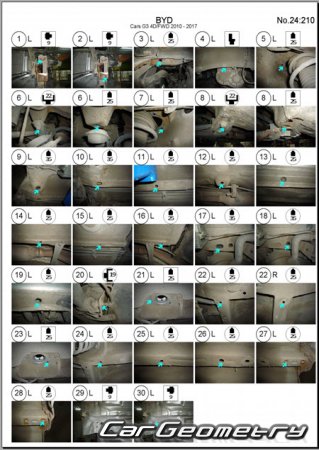

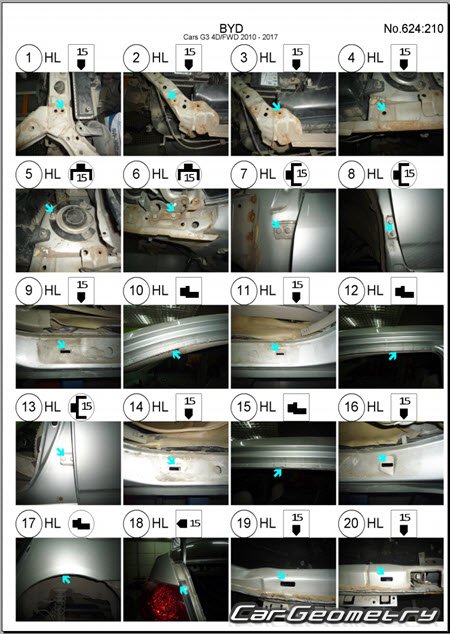

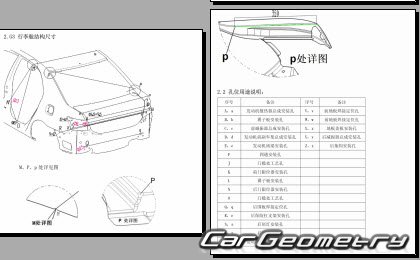

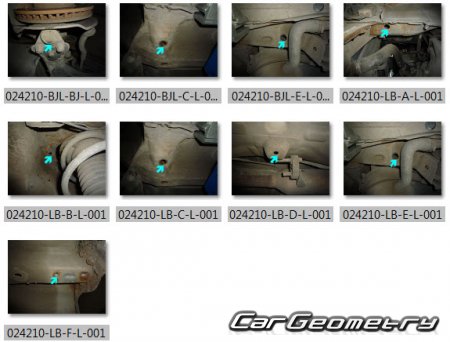

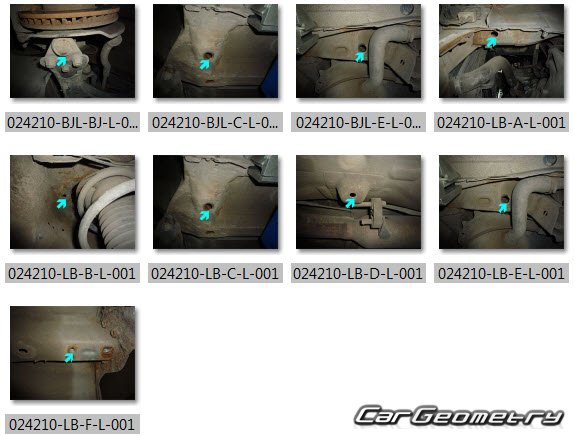

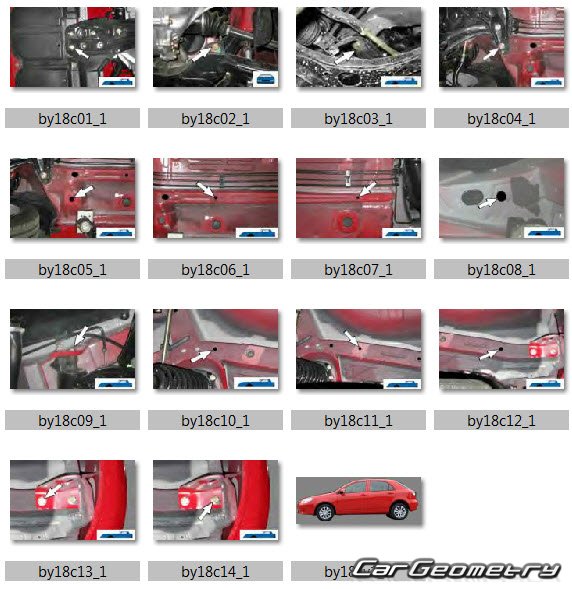

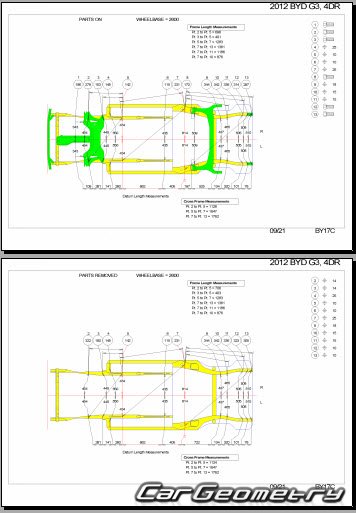

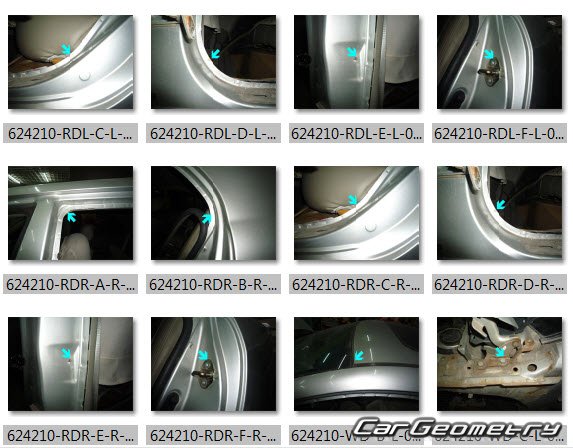

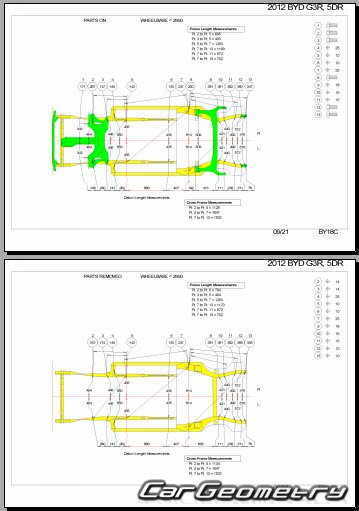

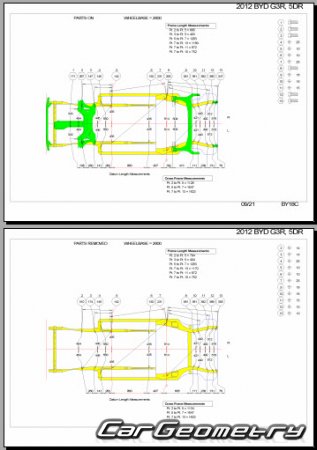

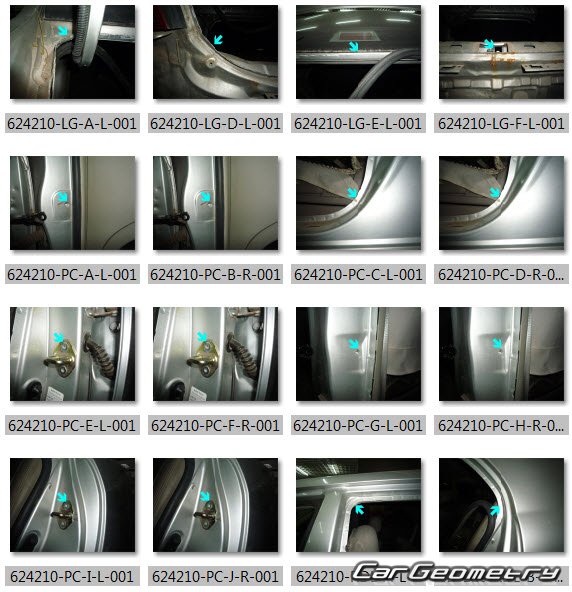

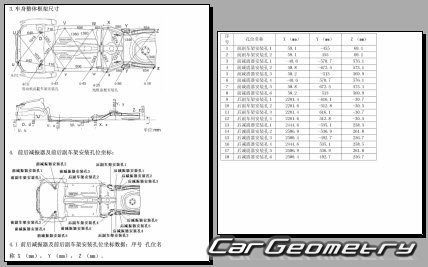

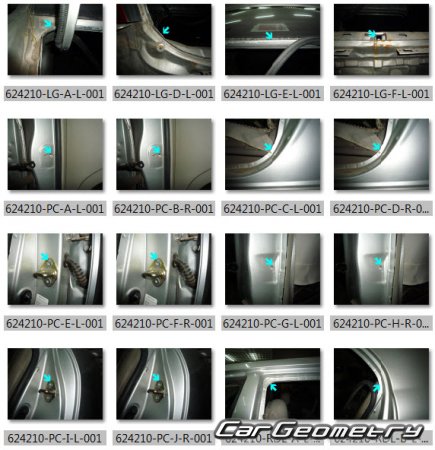

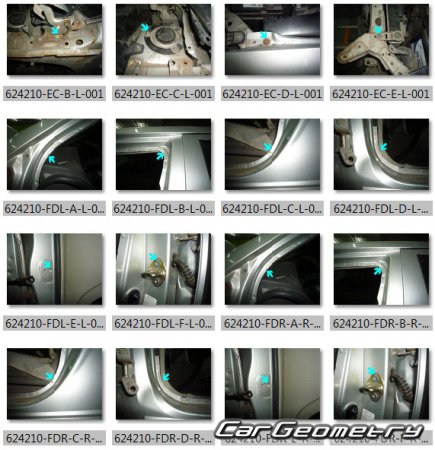

Selection from vehicle measurement database for BYD G3 G3R: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

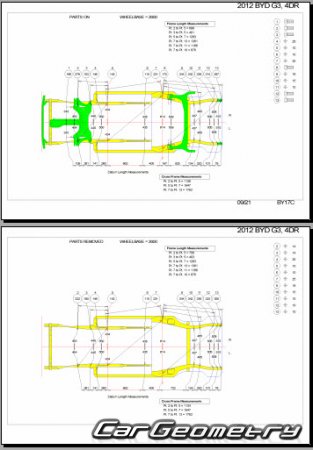

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions BYD G3 G3R 2009-2014

Price: $25
