BYD Seal U (Song Plus) EV 2023-2028 Body Repair Manual

The factory manual provides the body dimensions for the BYD Seal U EV 2023-2028, including descriptions of replacement procedures for various body components and the body dimensions and control points for the BYD Song Plus EV body geometry. In Europe, the model is officially called BYD Seal U EV, in China this model is called BYD Song Plus EV.

The information included in the manual consists of body dimensions, control points, sectional images of body elements, applicable materials, recommendations for welding types, methods, and materials, locations and materials for applying seals, sound insulation, and anti-corrosion sealants, areas and directions for cutting body elements for subsequent installation of new parts, interior material types, and decoding of markings.

BYD Seal U EV 2023-2028 Collision Repair Manual is available in English and contains a wealth of useful and necessary information for individuals involved in self-performed body repairs and for owners of body repair companies working on BYD Song Plus EV 2023-2028 vehicles.

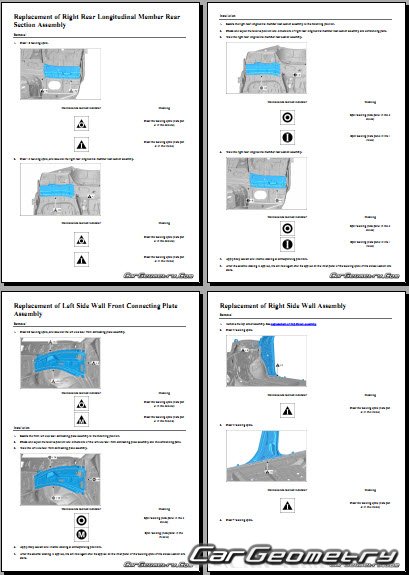

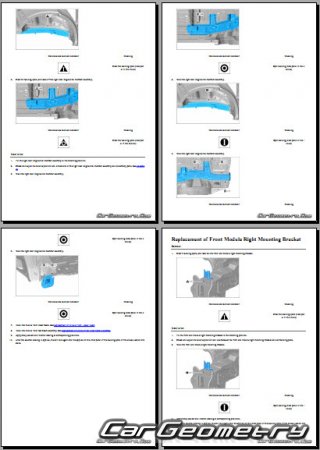

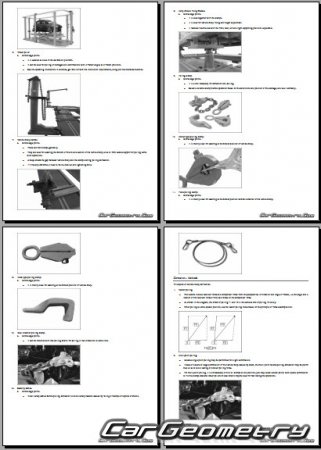

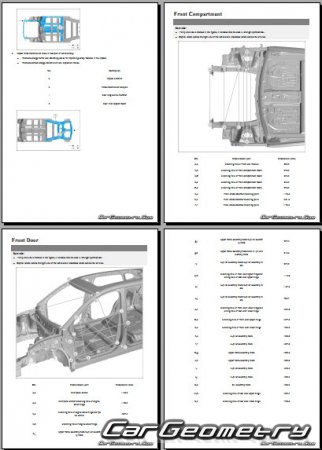

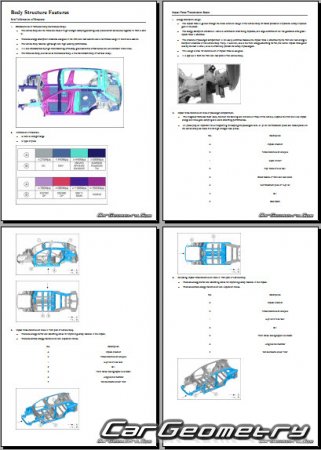

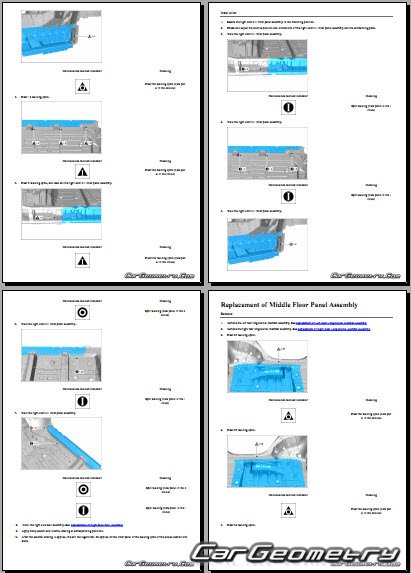

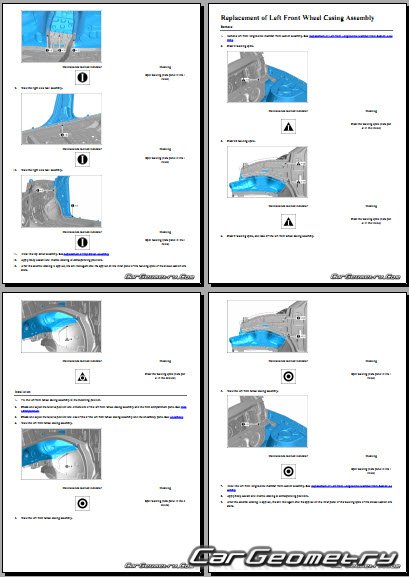

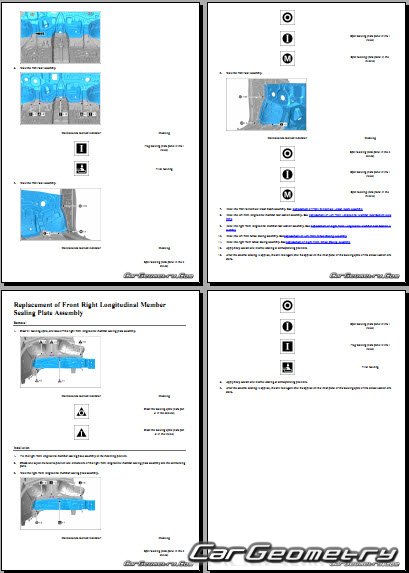

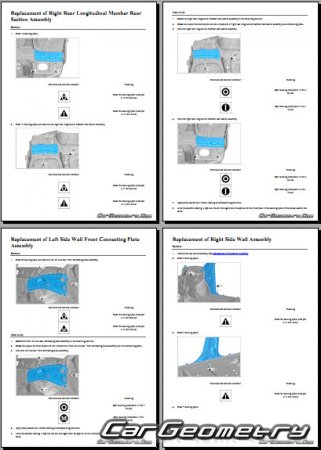

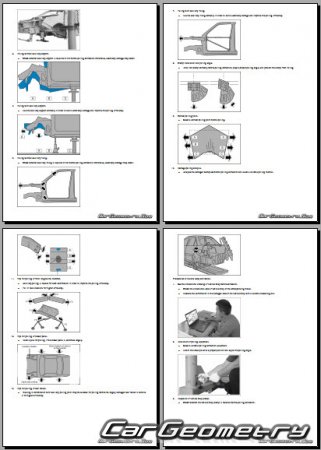

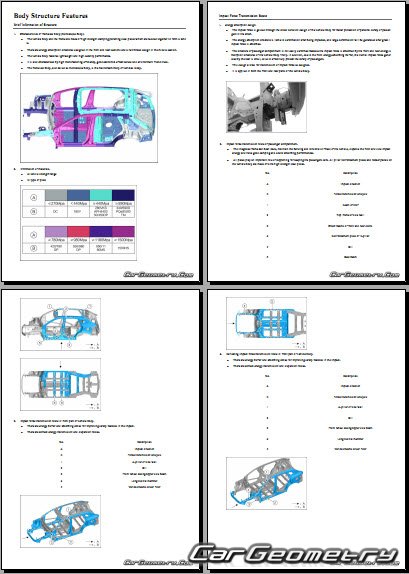

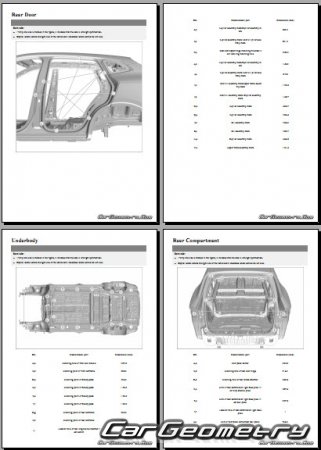

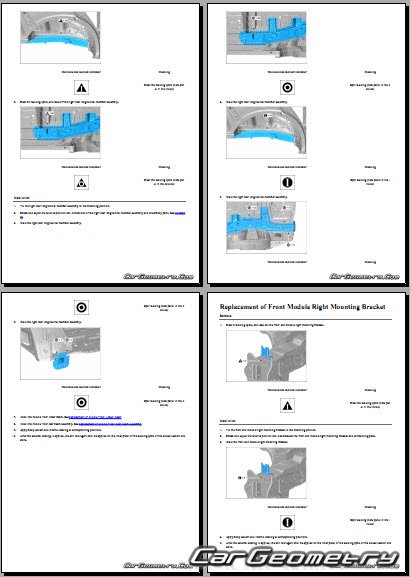

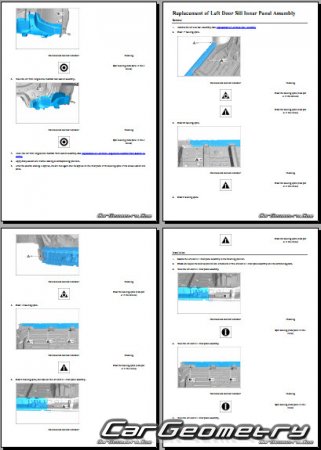

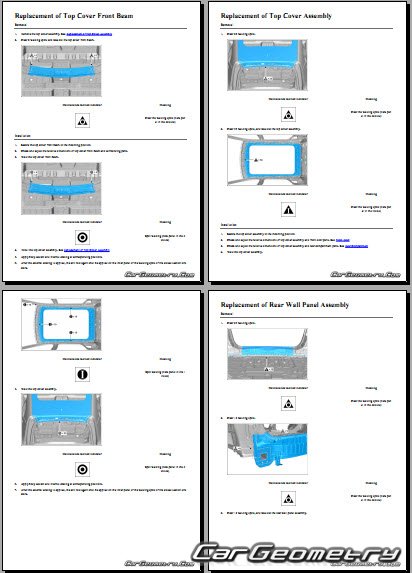

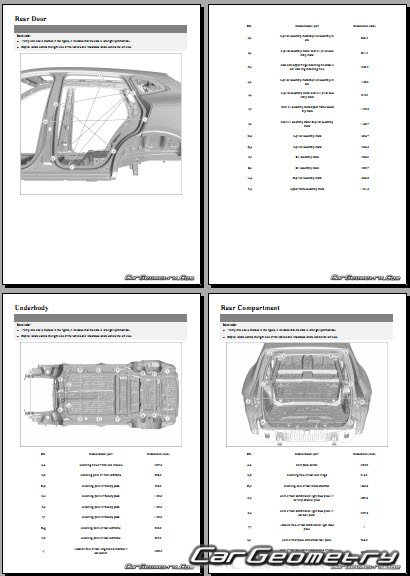

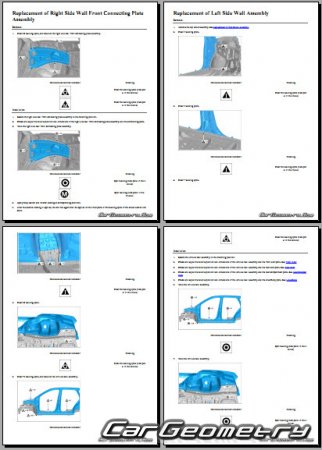

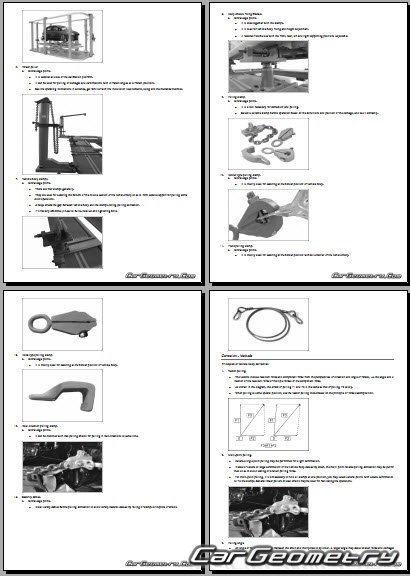

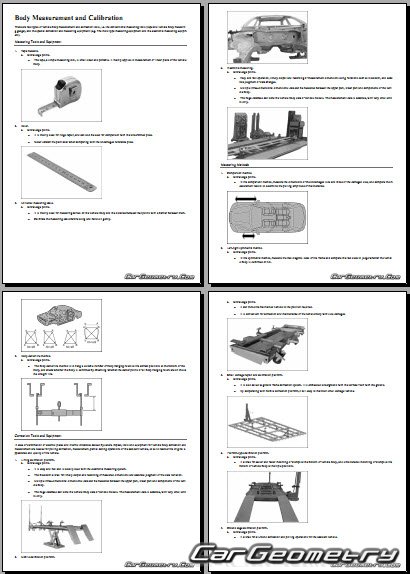

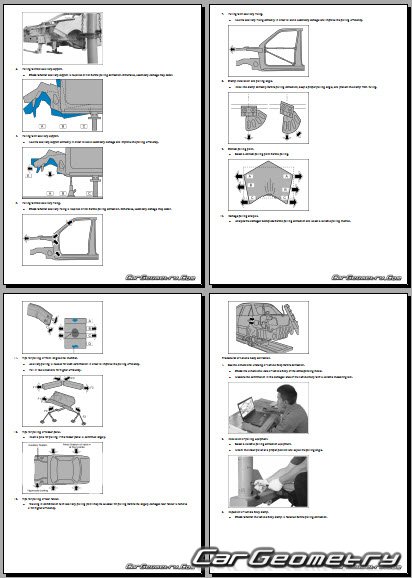

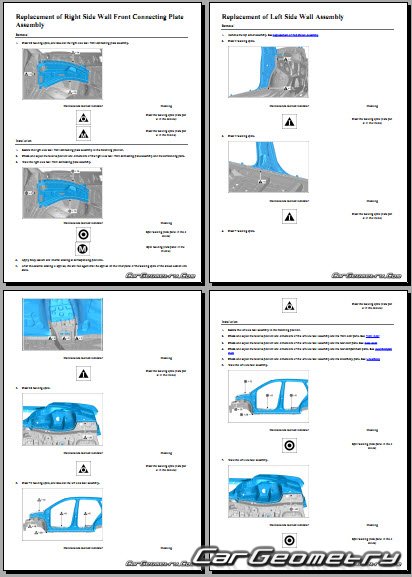

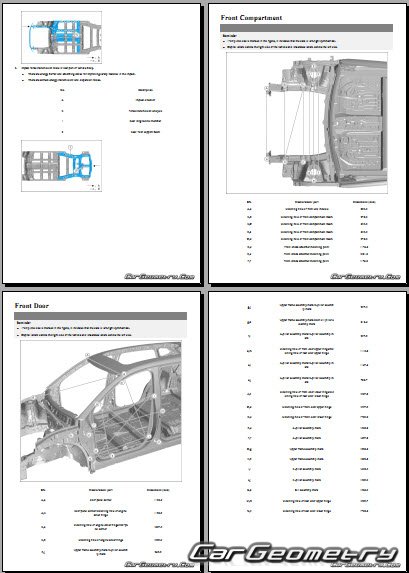

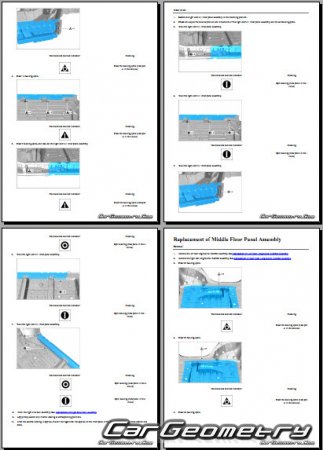

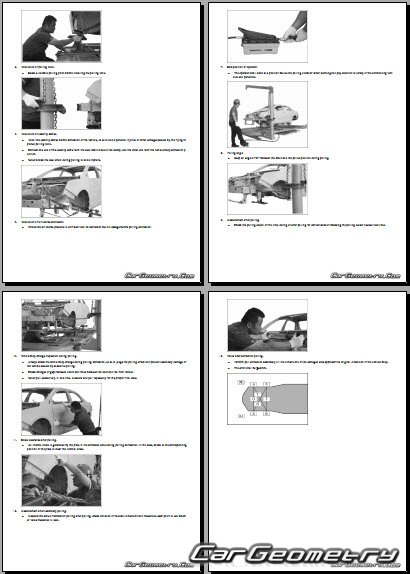

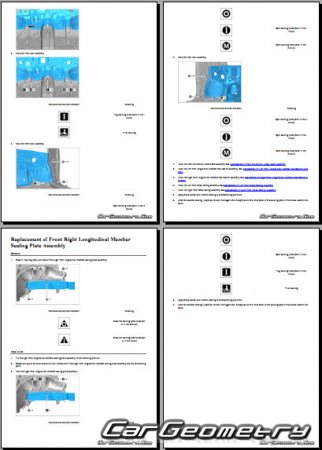

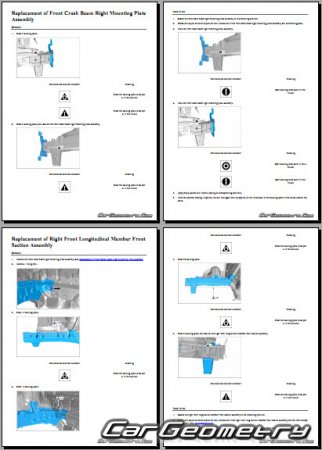

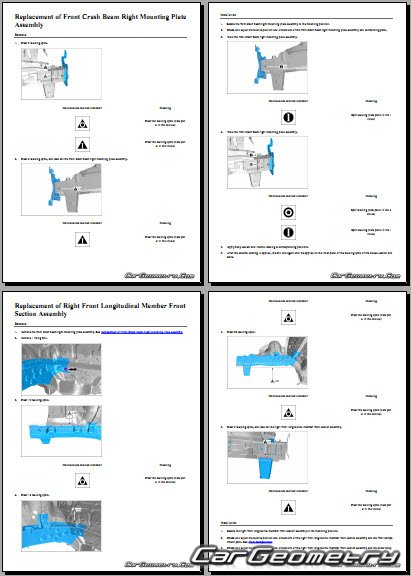

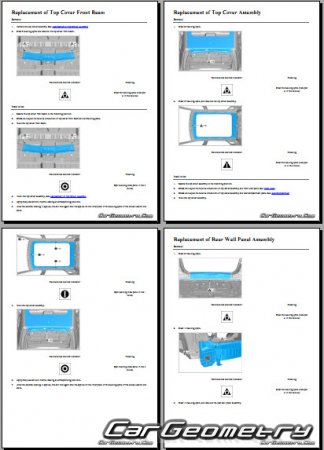

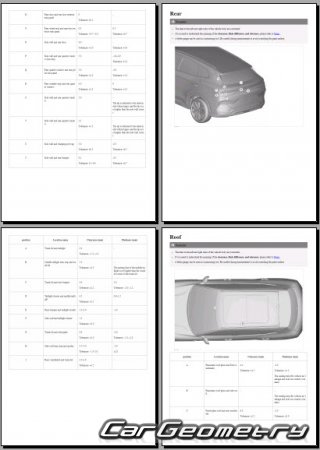

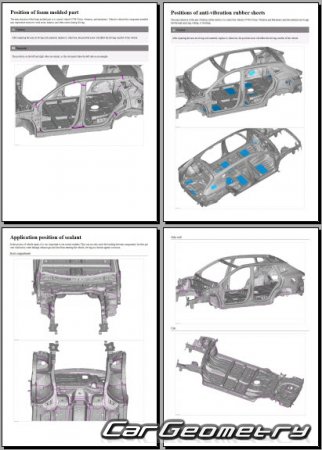

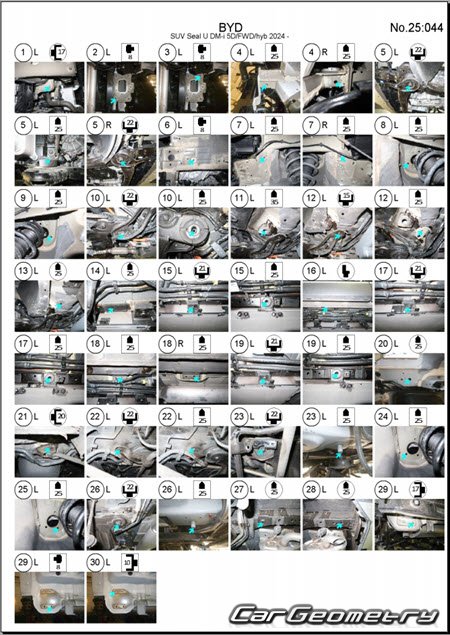

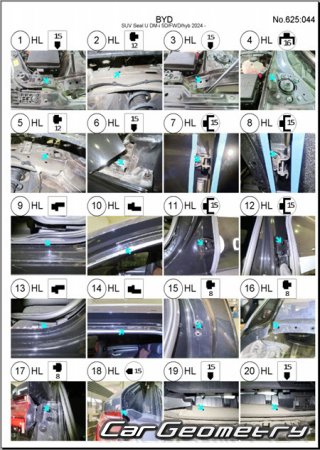

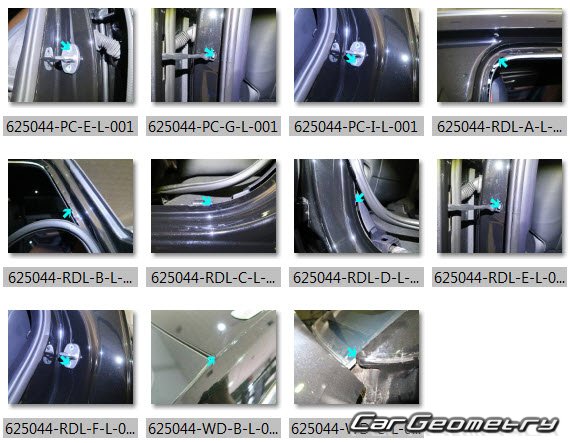

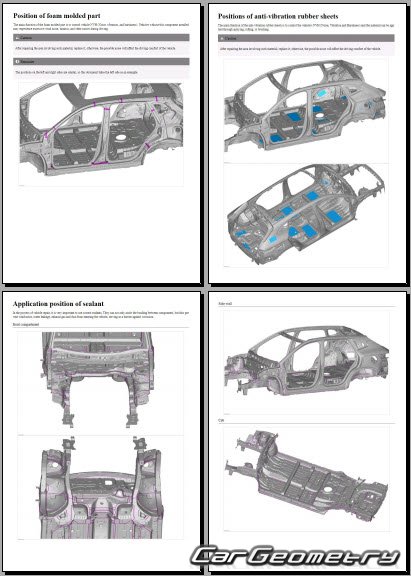

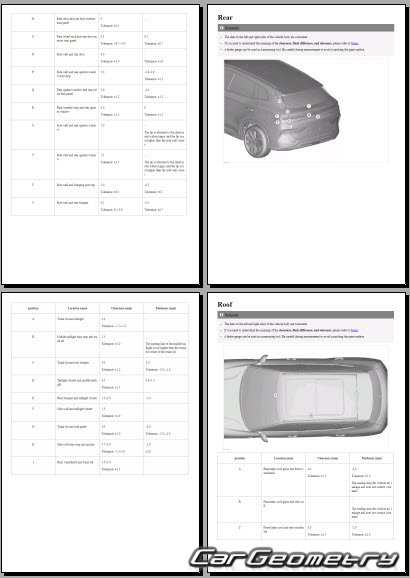

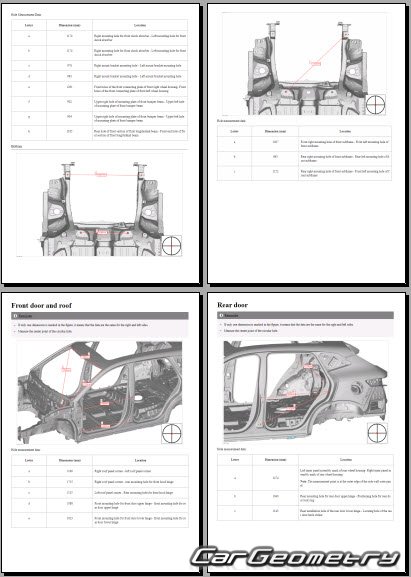

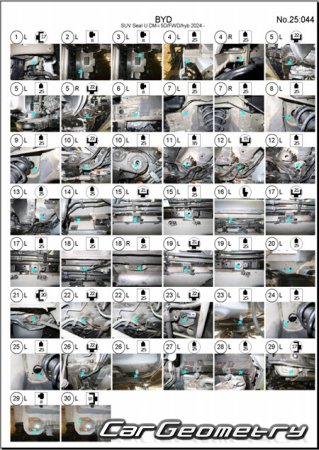

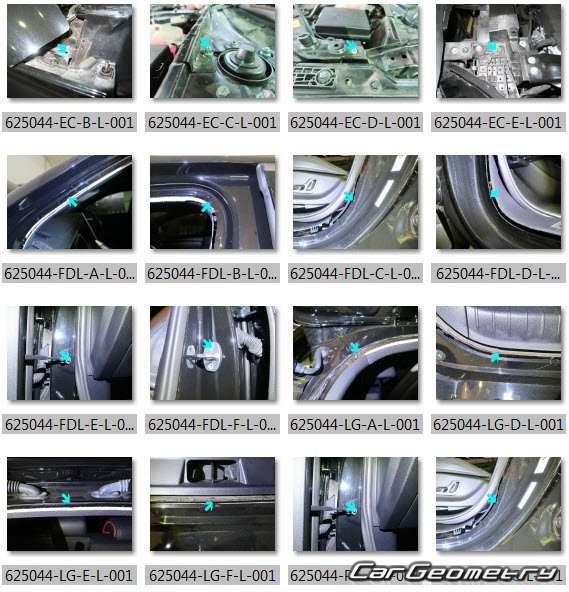

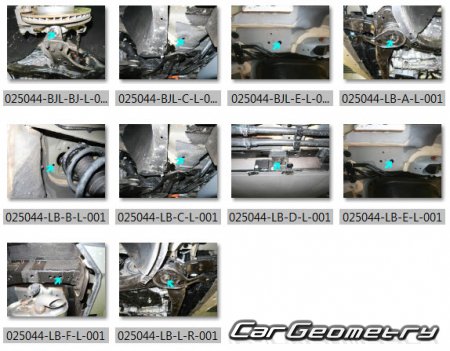

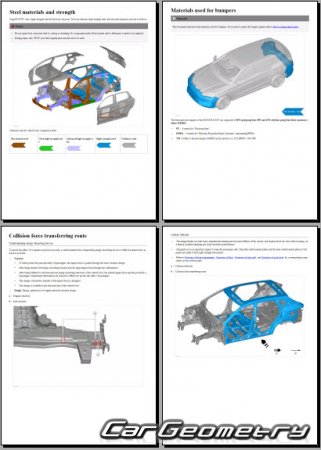

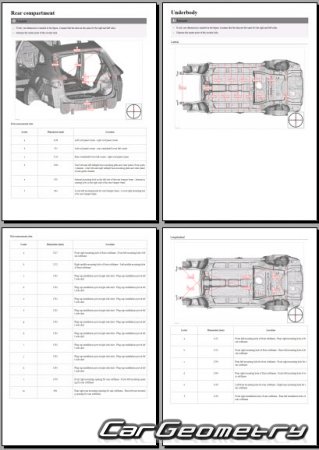

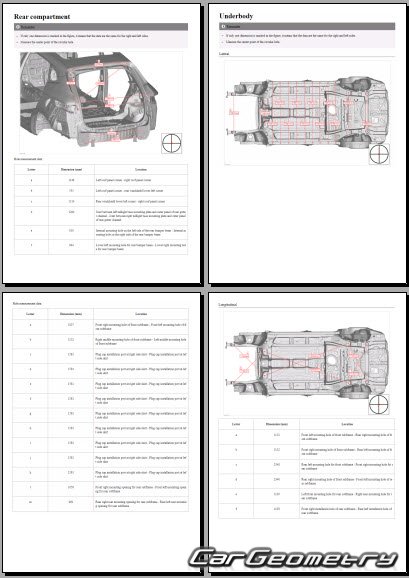

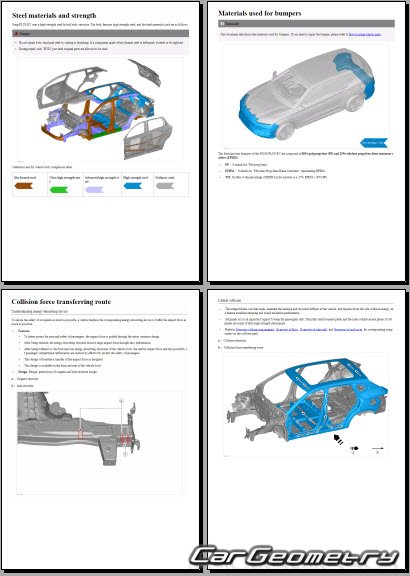

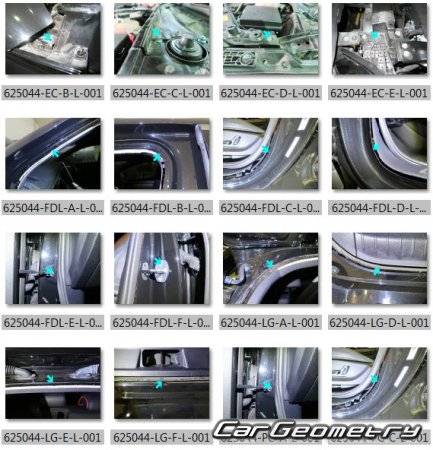

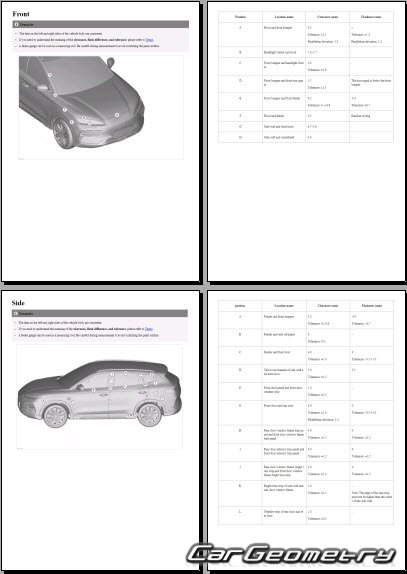

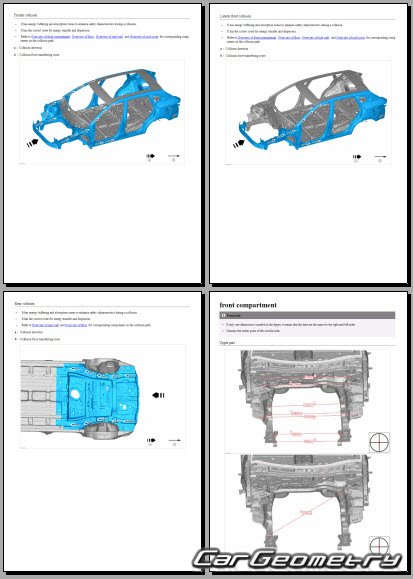

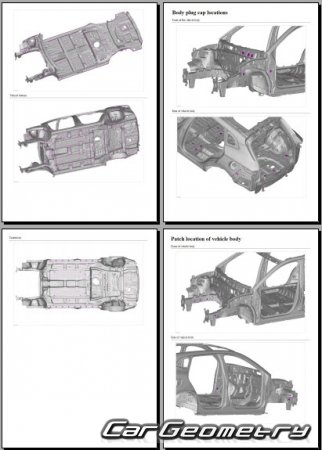

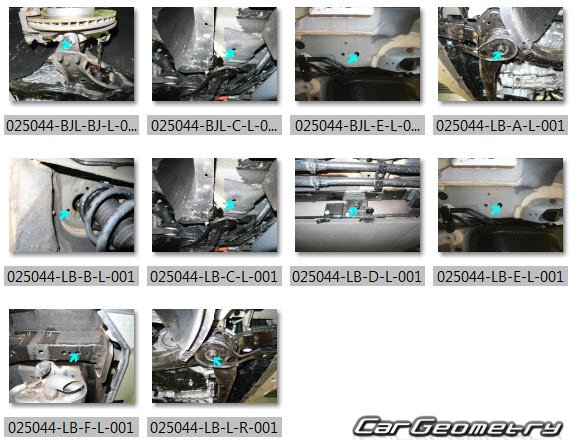

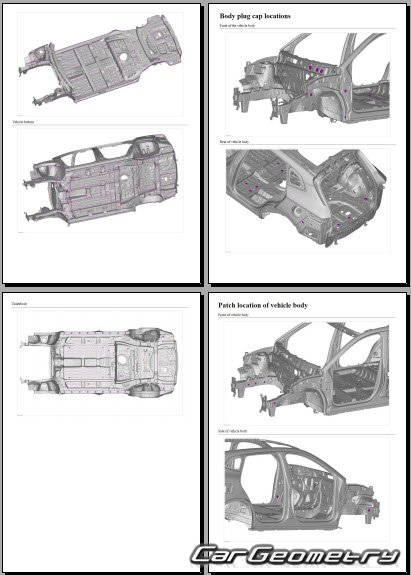

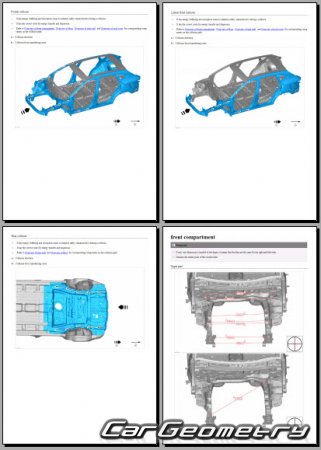

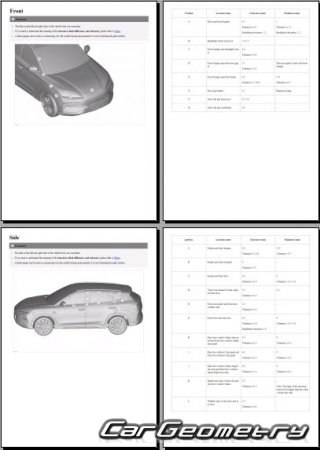

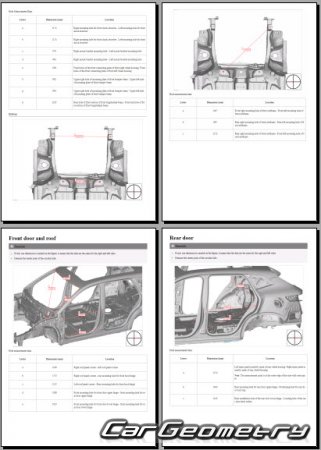

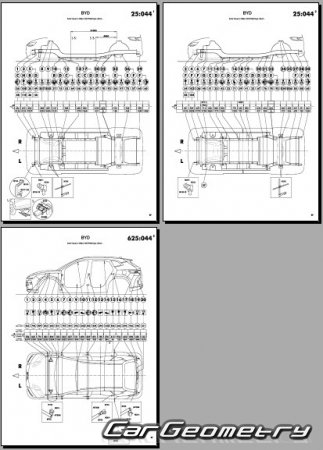

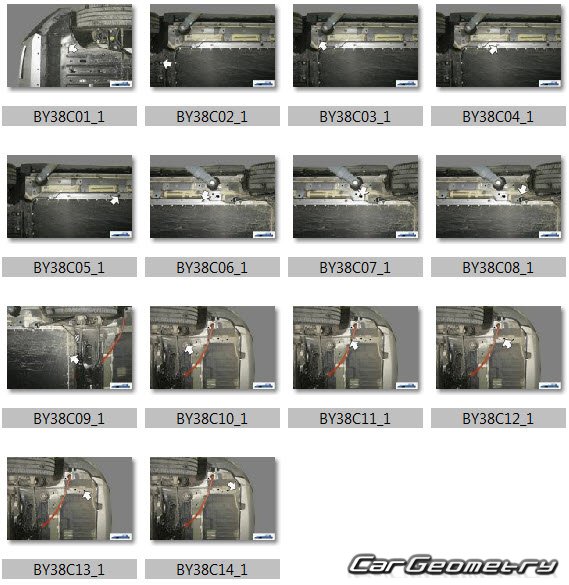

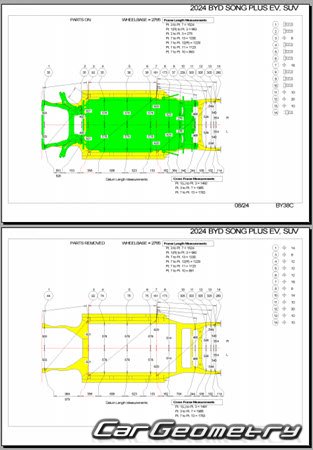

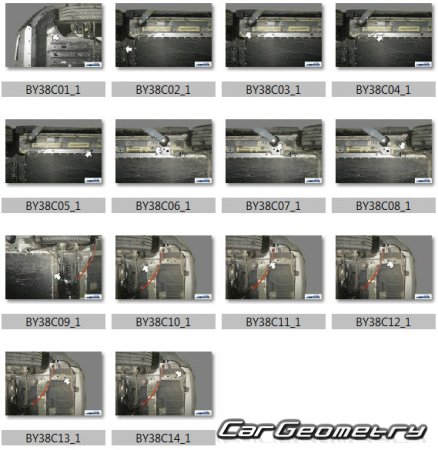

Data sample from the archive
