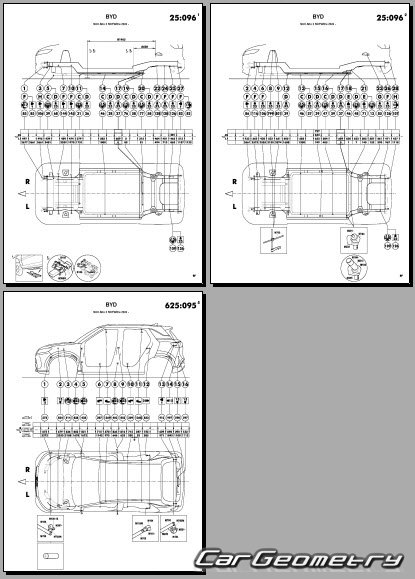

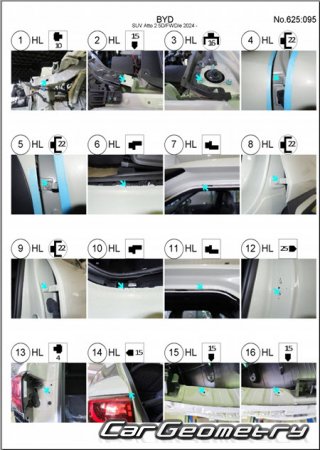

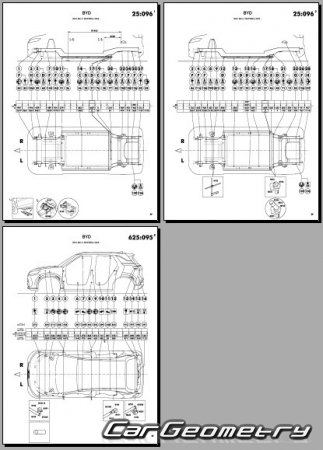

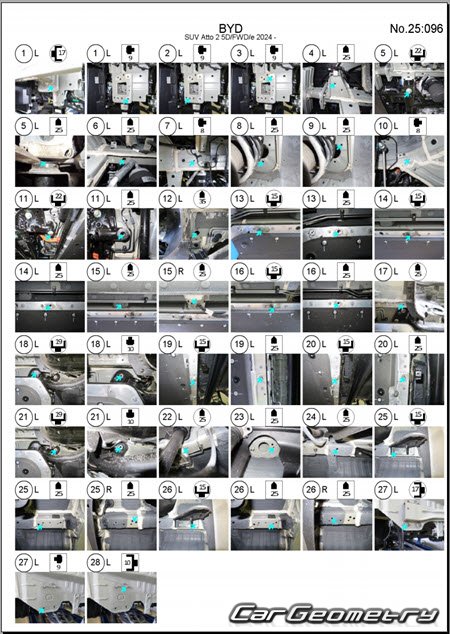

The factory manual provides the body dimensions for the BYD Atto 2 2025-2030, including descriptions of replacement procedures for various body components and the body dimensions and control points for the BYD Yuan Up body geometry. In the Chinese market, the model is sold under the name BYD Yuan Up, in Europe, Asia and Australia, the model is sold under the name BYD Atto 2.

The BYD Atto 2 is a compact front-wheel drive electric crossover equipped with a Blade/LFP battery with a capacity of approximately 45-47 kWh, allowing it to travel up to 312 km (198 mi) according to the WLTP standard in the European version. Dimensions: length 4,310 mm, width 1,830 mm, height 1,675 mm, wheelbase 2,620 mm; trunk space is approximately 400 liters, which can be expanded with the seats folded.

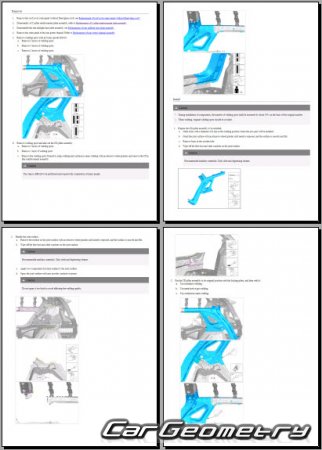

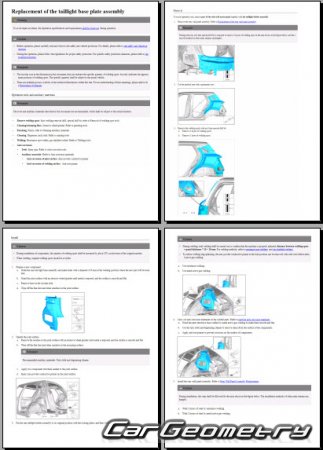

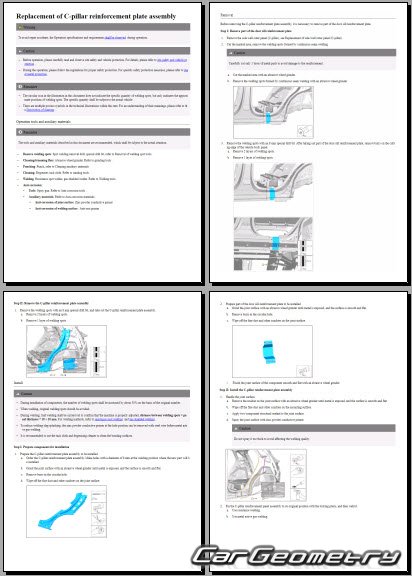

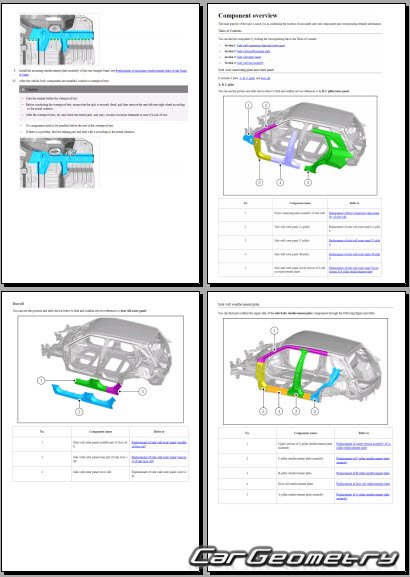

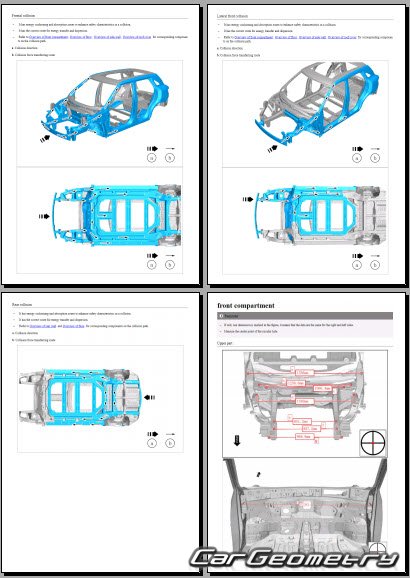

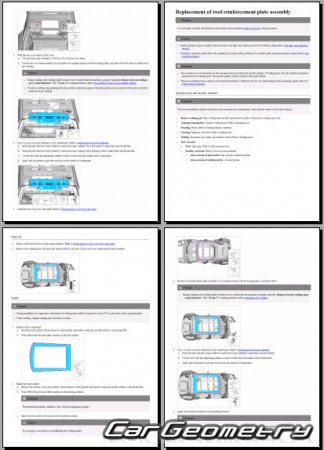

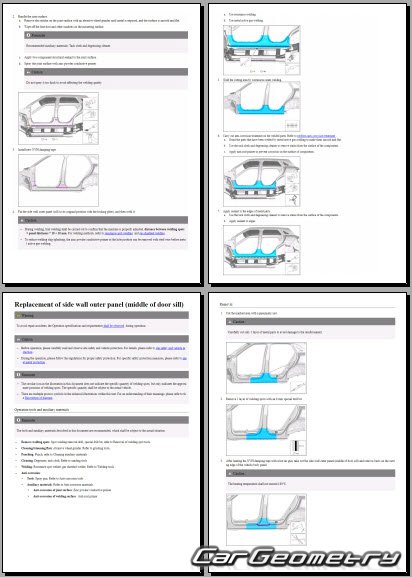

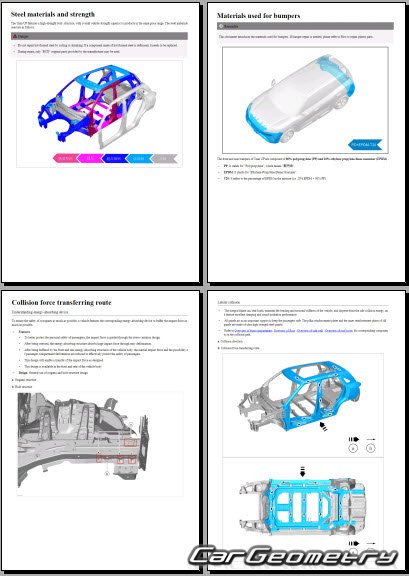

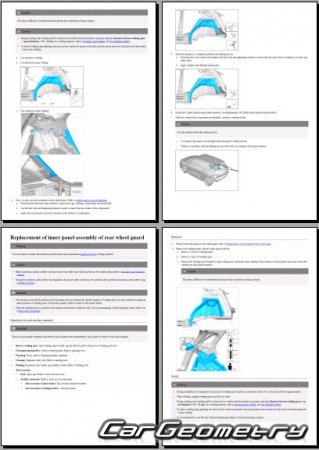

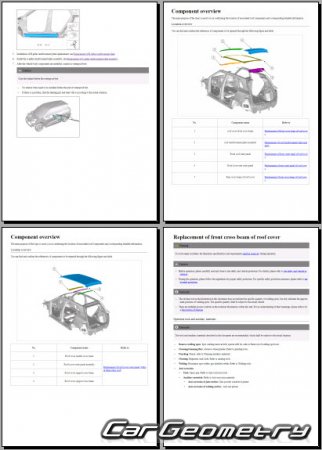

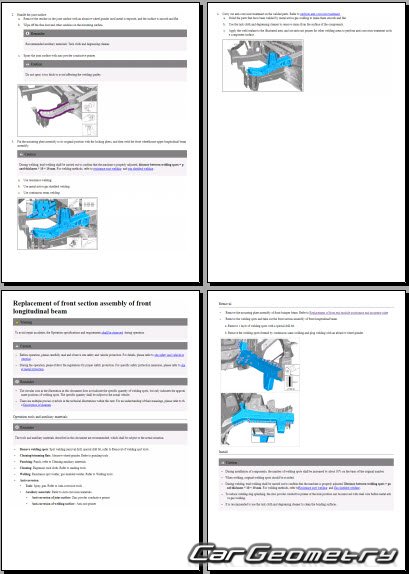

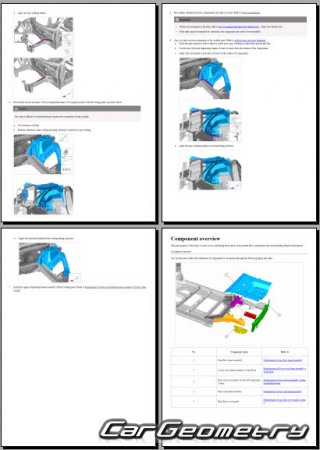

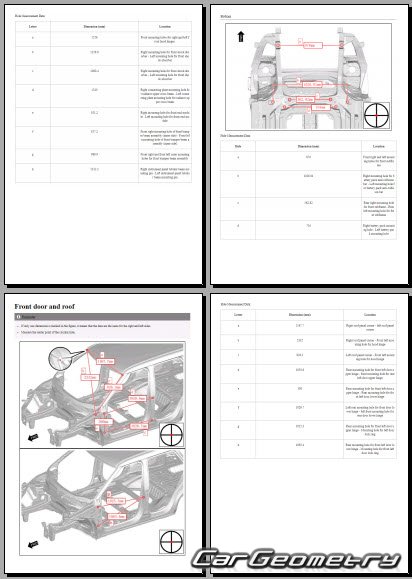

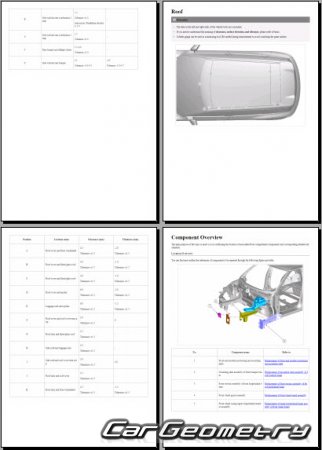

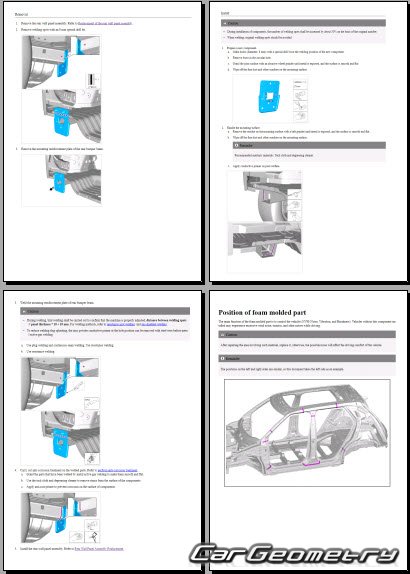

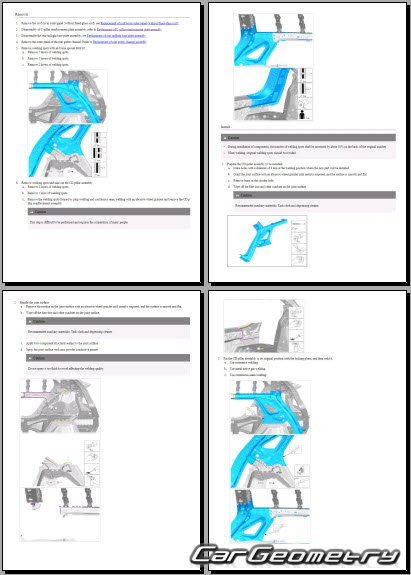

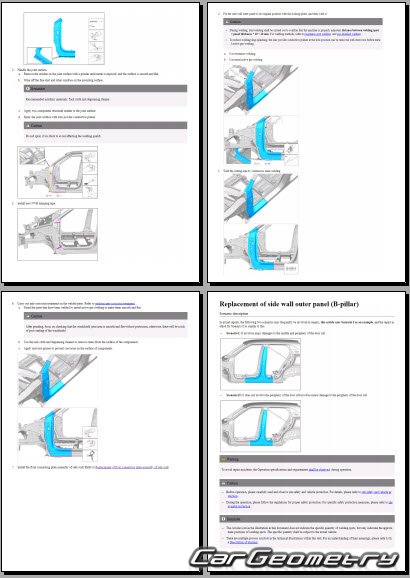

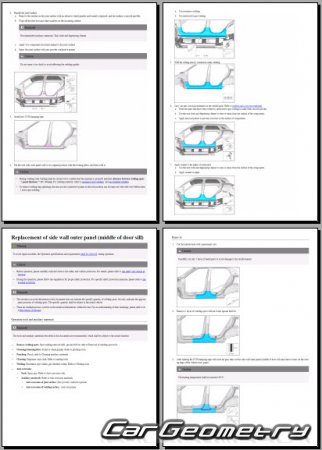

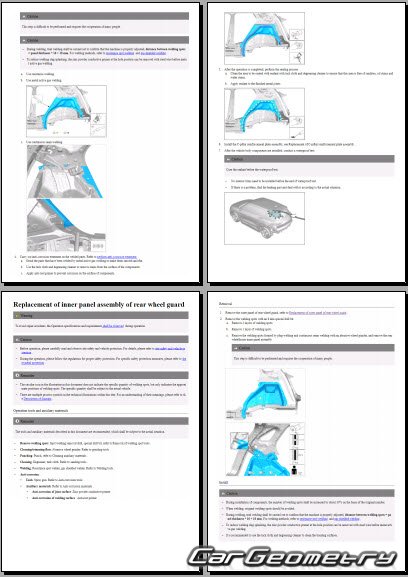

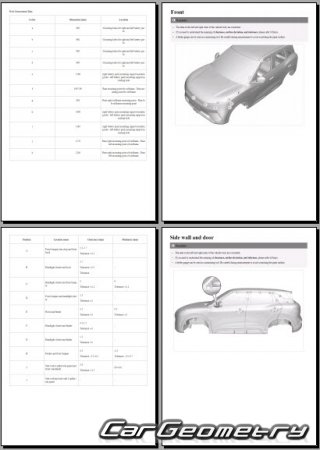

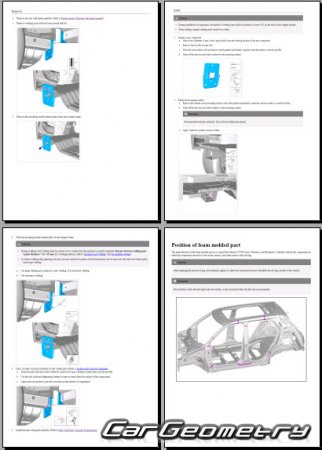

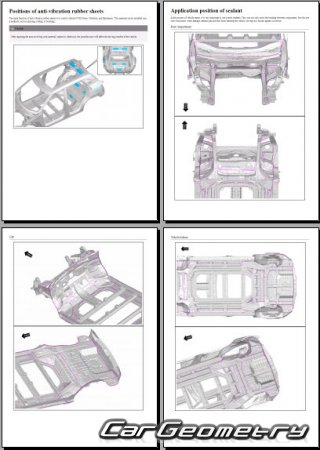

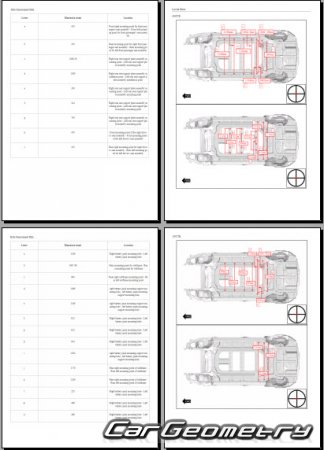

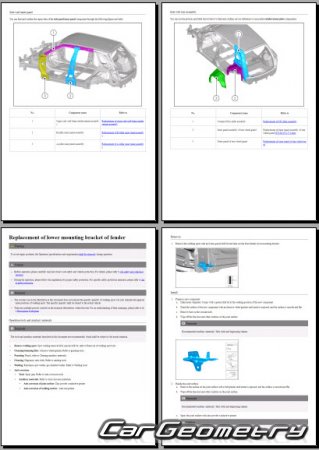

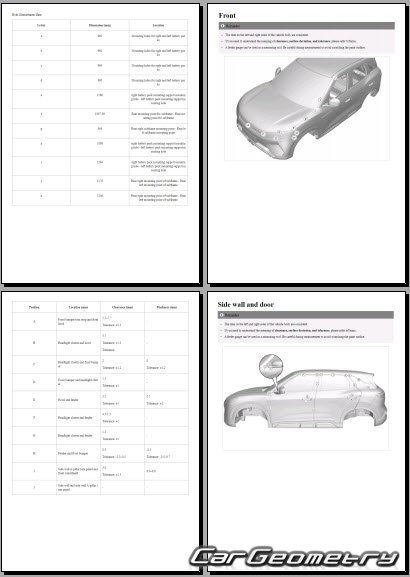

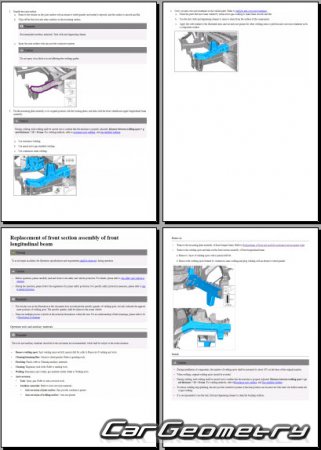

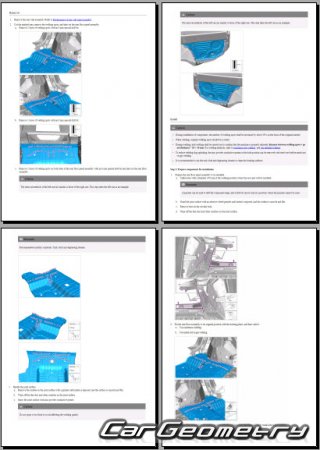

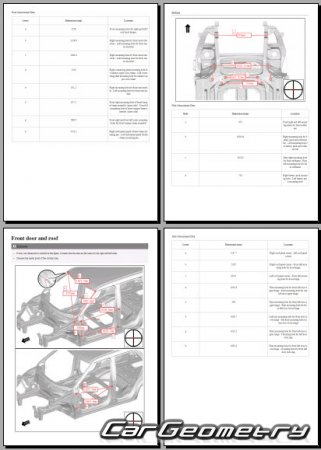

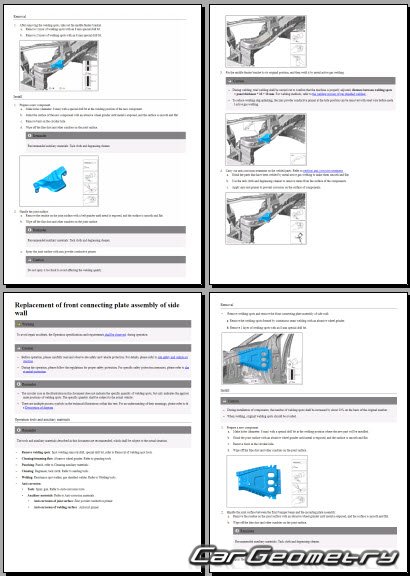

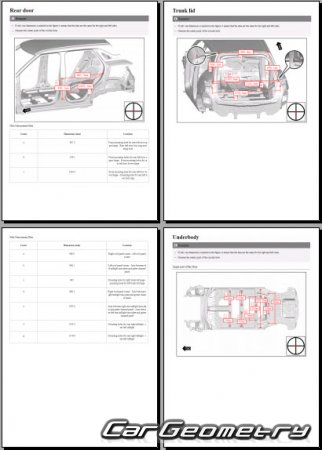

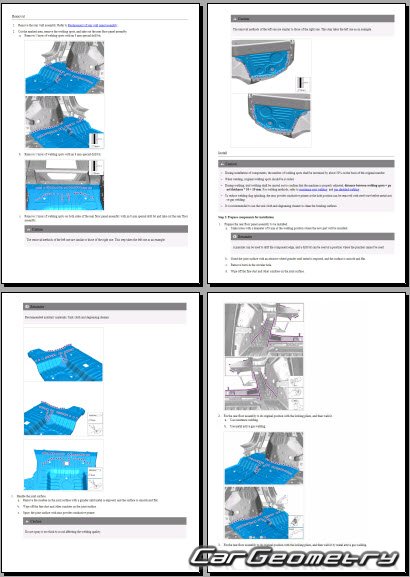

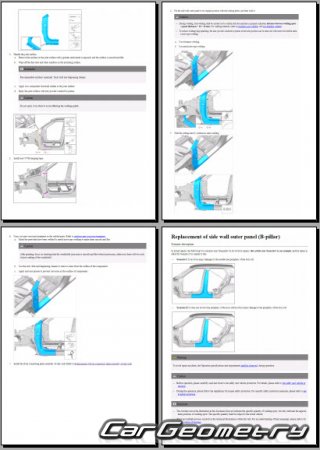

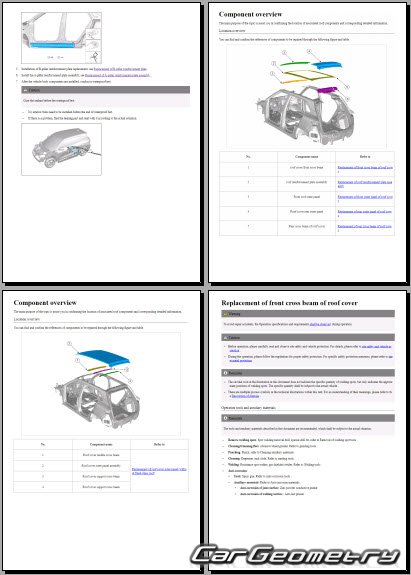

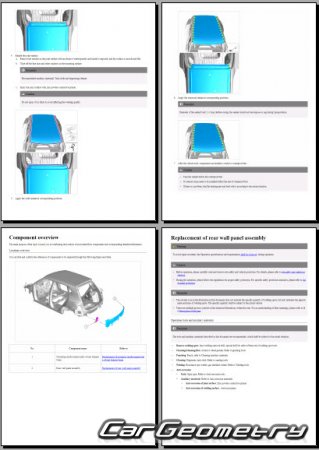

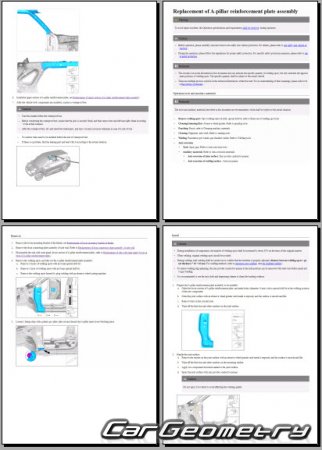

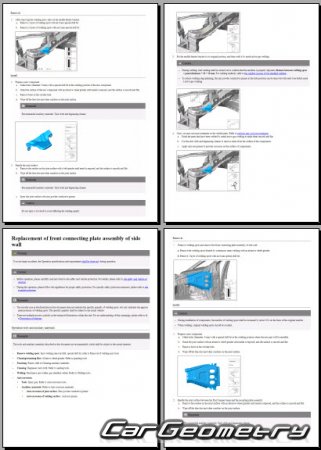

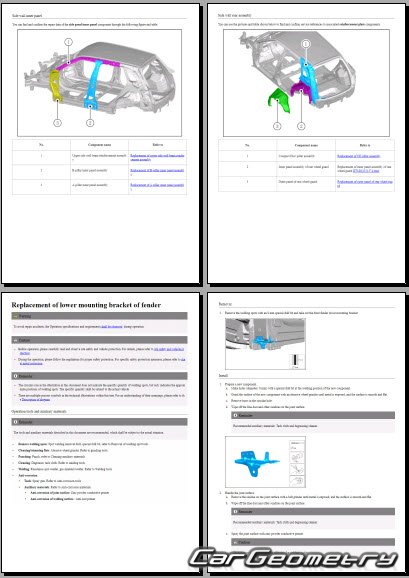

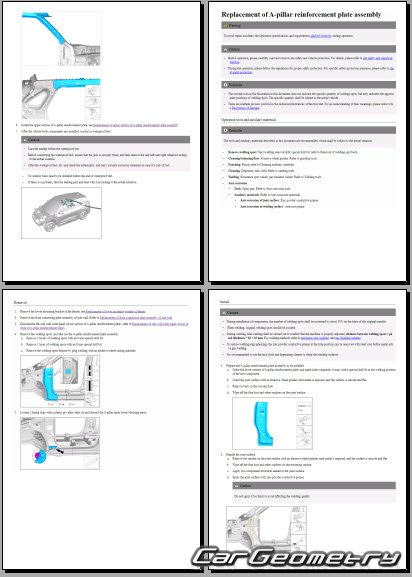

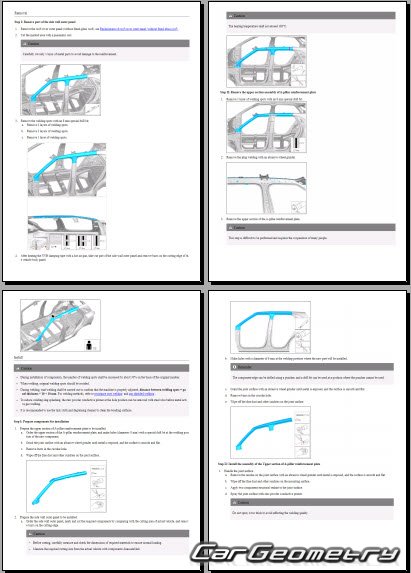

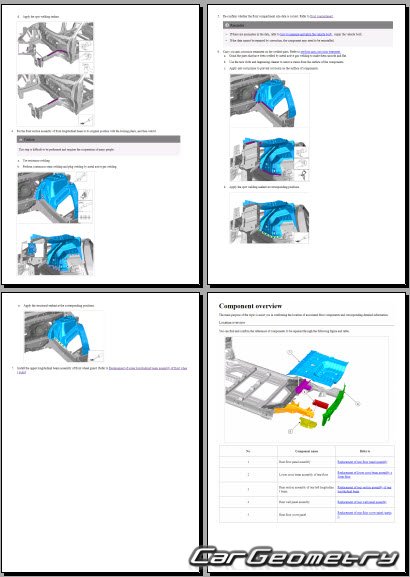

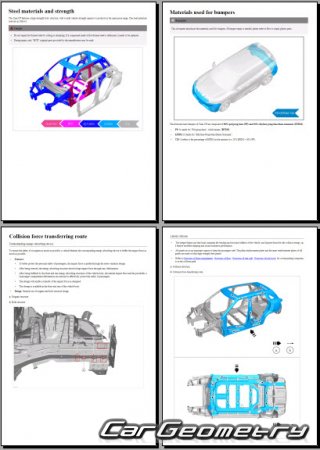

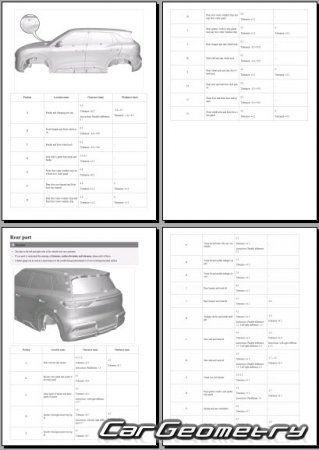

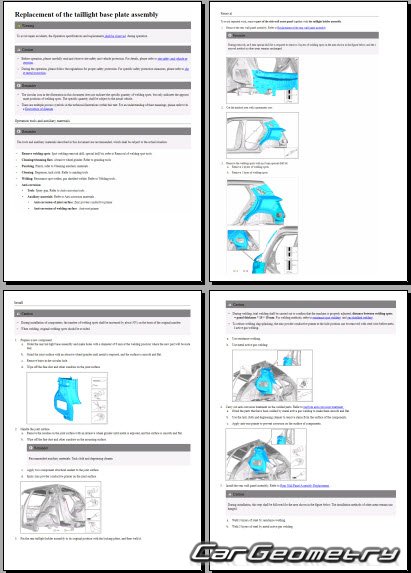

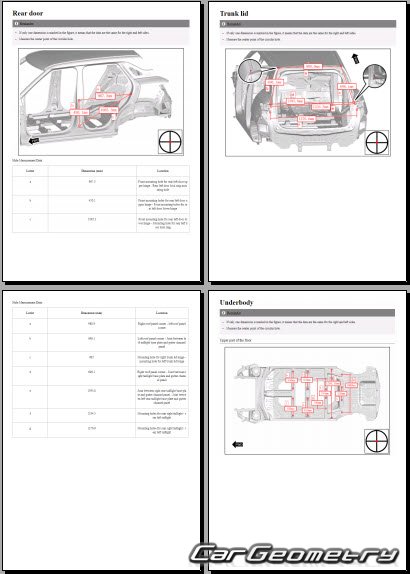

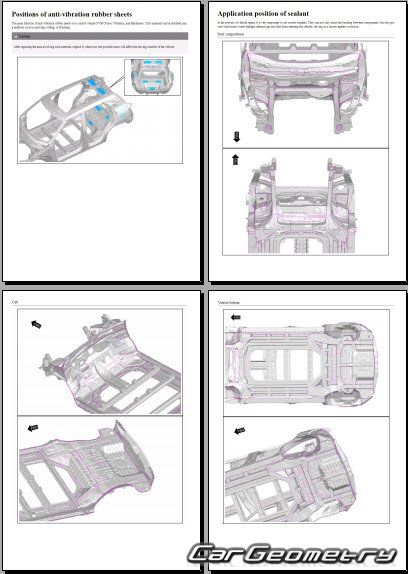

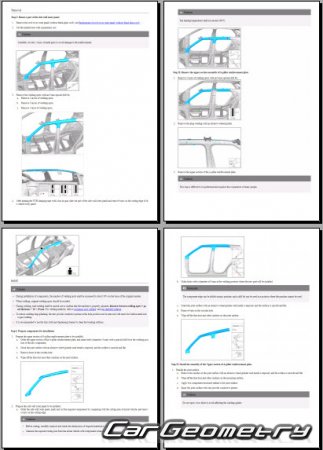

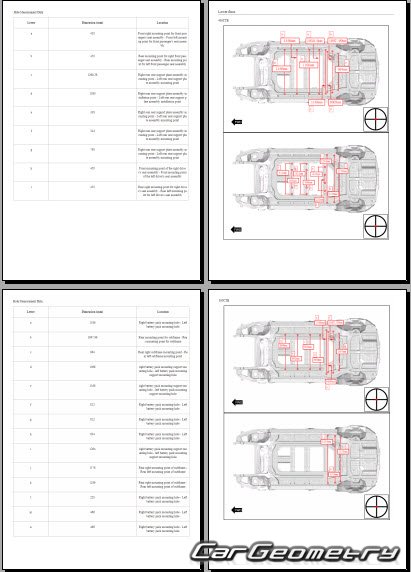

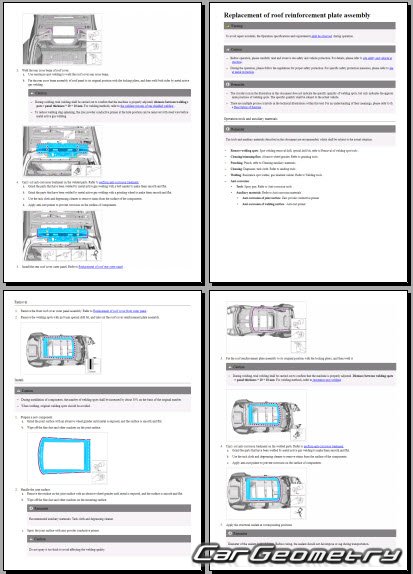

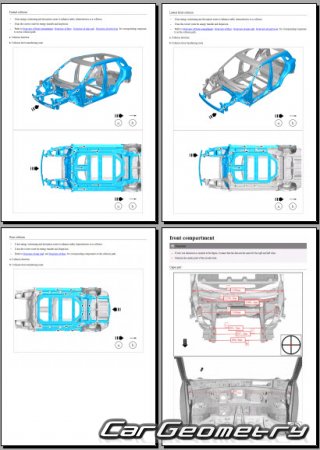

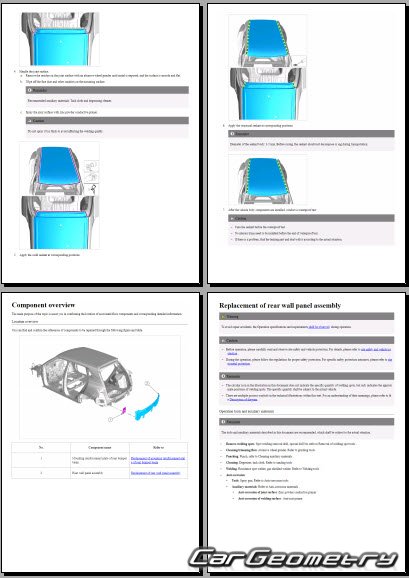

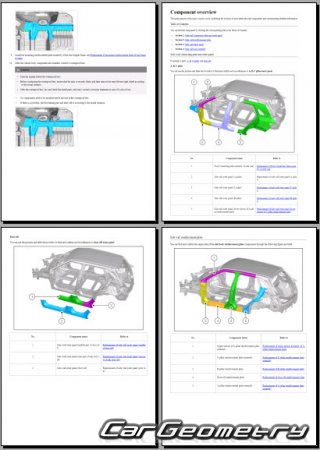

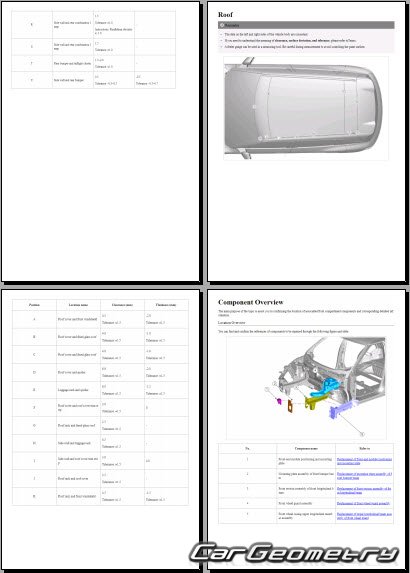

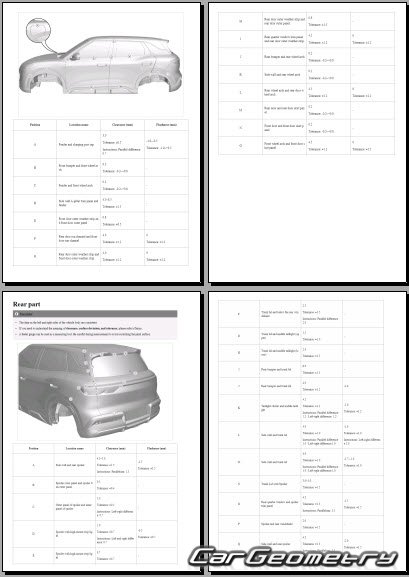

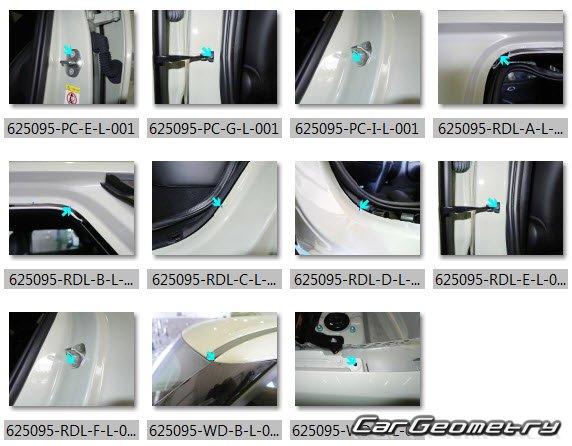

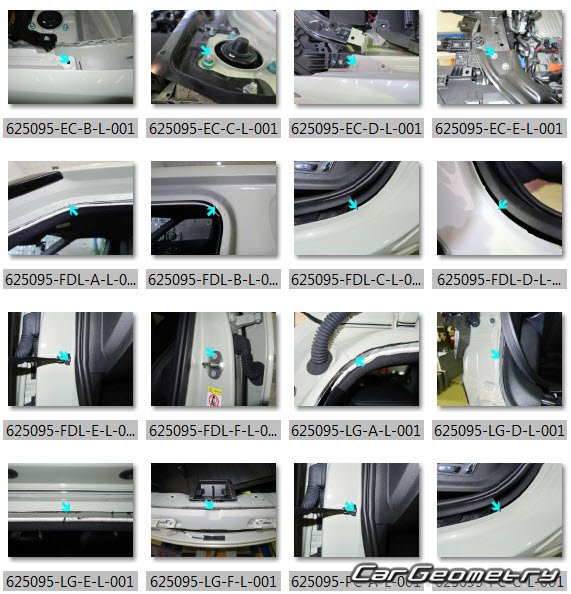

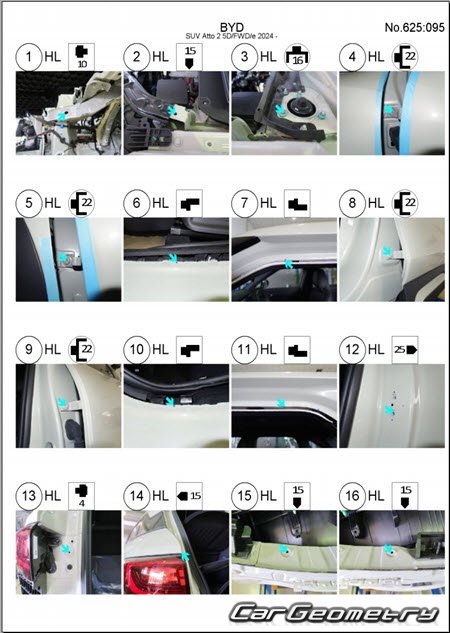

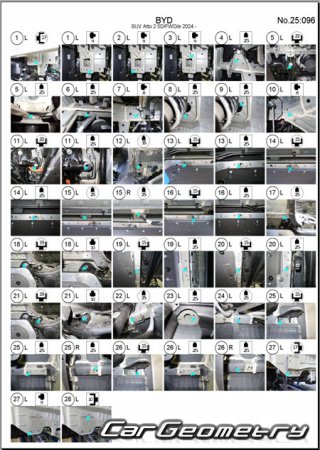

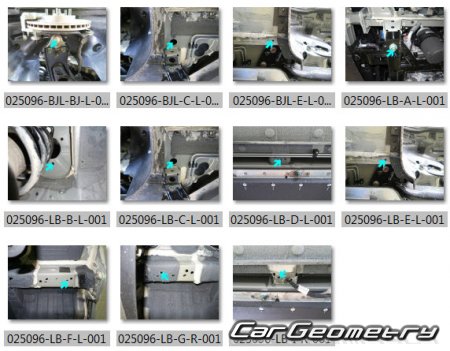

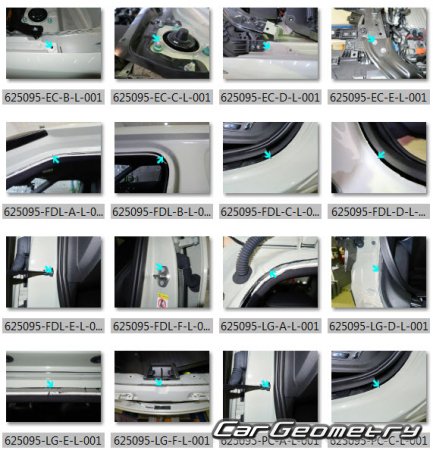

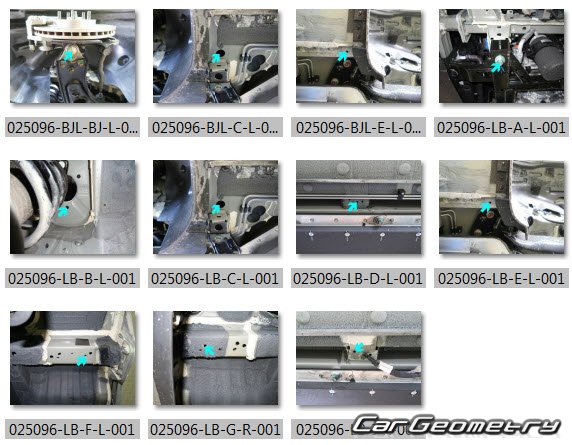

The information included in the manual consists of body dimensions, control points, sectional images of body elements, applicable materials, recommendations for welding types, methods, and materials, locations and materials for applying seals, sound insulation, and anti-corrosion sealants, areas and directions for cutting body elements for subsequent installation of new parts, interior material types, and decoding of markings.

BYD Atto 2 2025-2030 Collision Repair Manual is available in English and contains a wealth of useful and necessary information for individuals involved in self-performed body repairs and for owners of body repair companies working on BYD Atto 2 vehicles.

Download Factory manual for body repair and body dimensions
BYD Atto 2 2025-2030

Price: $40
