BYD Seal 5 DM-i from 2025 Body Repair Manual

The factory manual provides the body dimensions for the BYD Seal 5 DM-i from 2025, including descriptions of replacement procedures for various body components and the body dimensions and control points for the BYD Seal 5 body geometry.

The BYD Seal 05 DM-i is a plug-in hybrid electric vehicle (PHEV) that debuted in China in February 2025. It is offered in several trim levels, including the 55km and 120km ranges. The vehicle's dimensions are: length 4,780 mm, width 1,837 mm, height 1,515 mm, wheelbase 2,718 mm; trunk capacity is approximately 508 liters.

The information included in the manual consists of body dimensions, control points, sectional images of body elements, applicable materials, recommendations for welding types, methods, and materials, locations and materials for applying seals, sound insulation, and anti-corrosion sealants, areas and directions for cutting body elements for subsequent installation of new parts, interior material types, and decoding of markings.

BYD Seal 5 DM-i from 2025 Collision Repair Manual is available in English and contains a wealth of useful and necessary information for individuals involved in self-performed body repairs and for owners of body repair companies working on BYD Seal 5 vehicles.

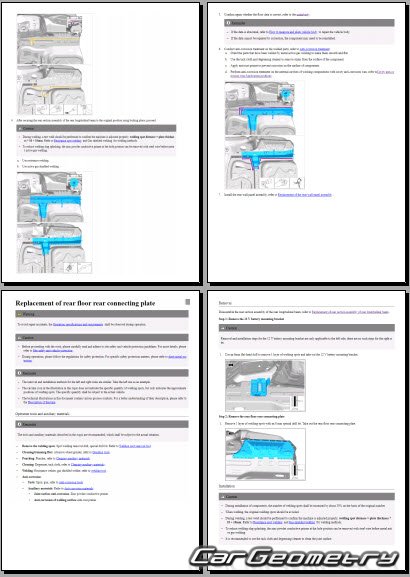

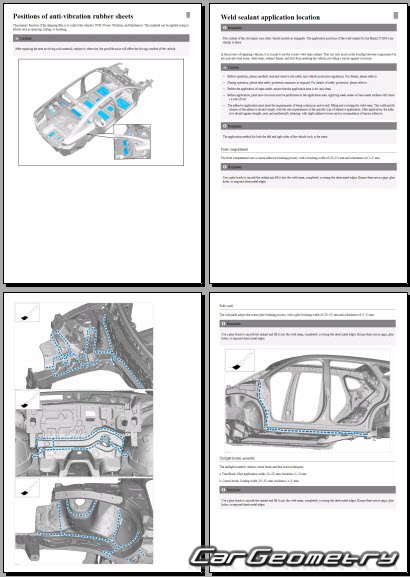

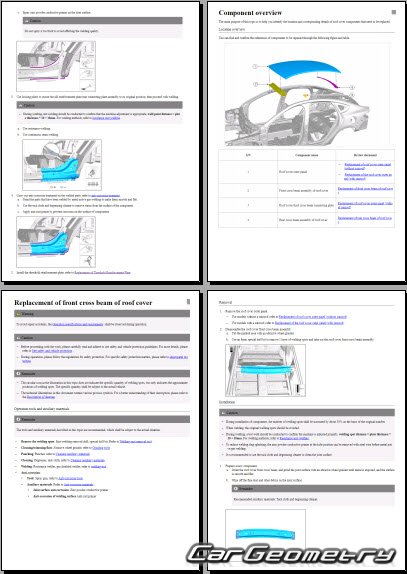

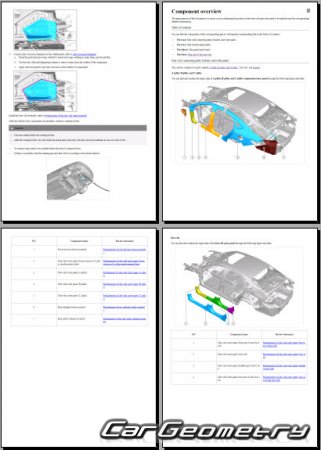

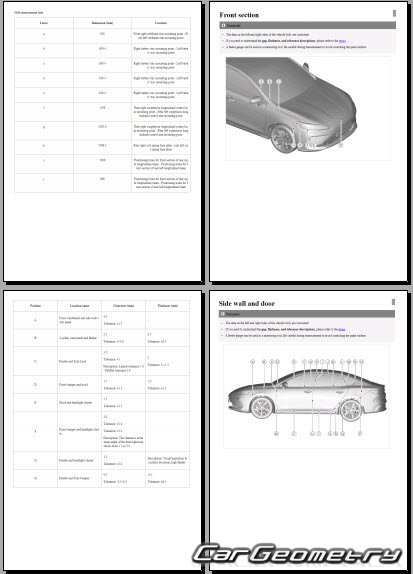

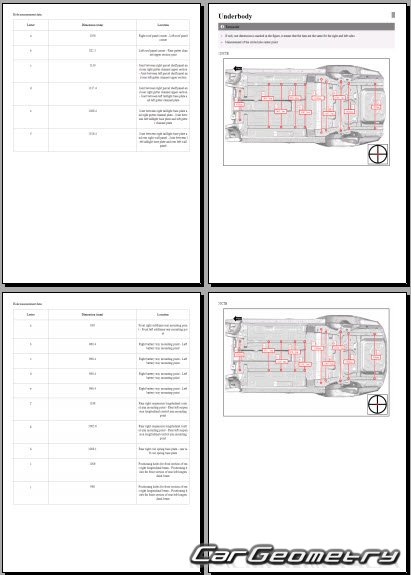

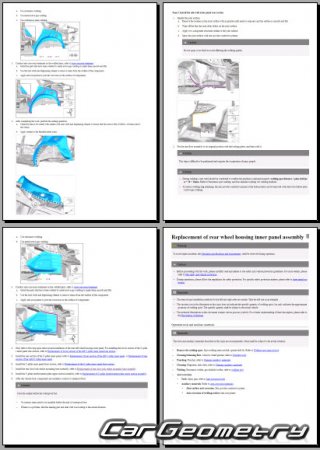

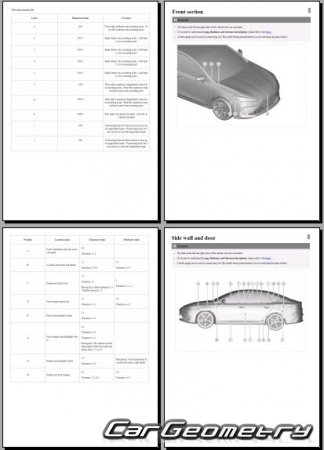

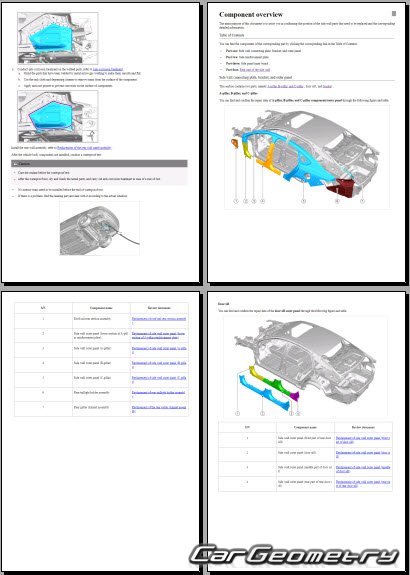

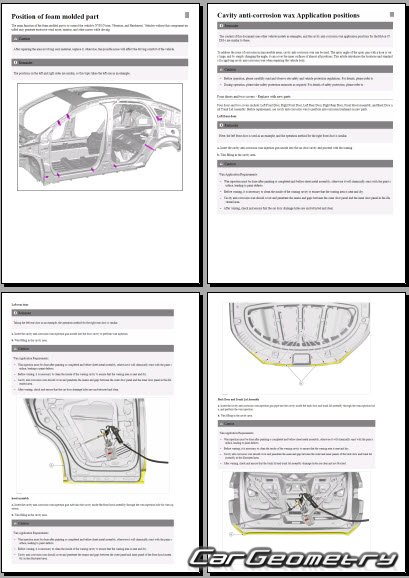

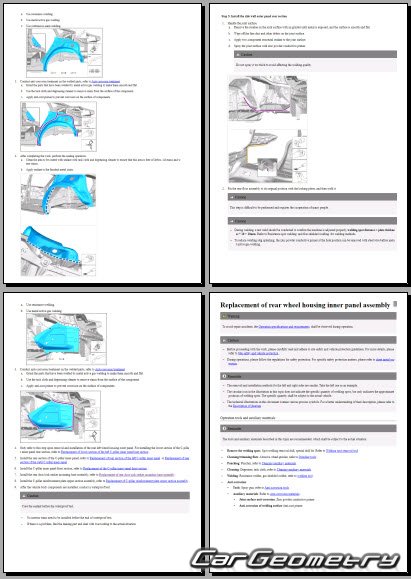

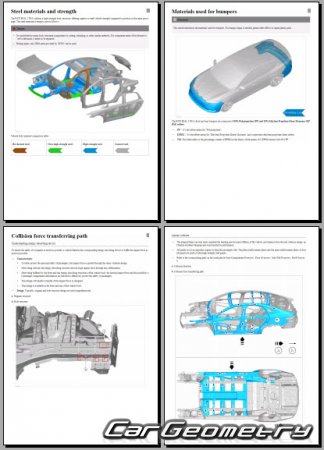

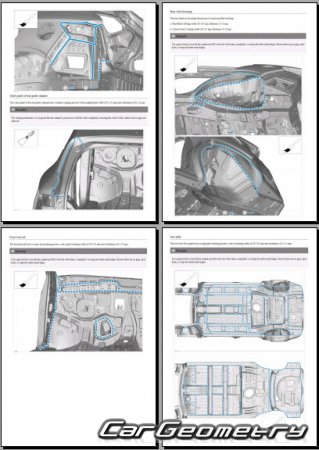

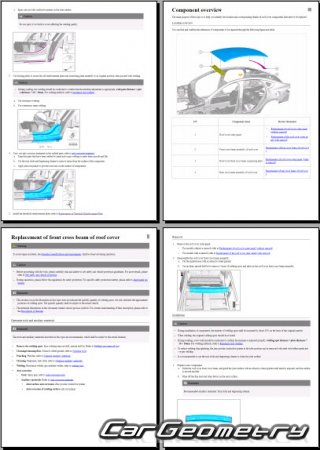

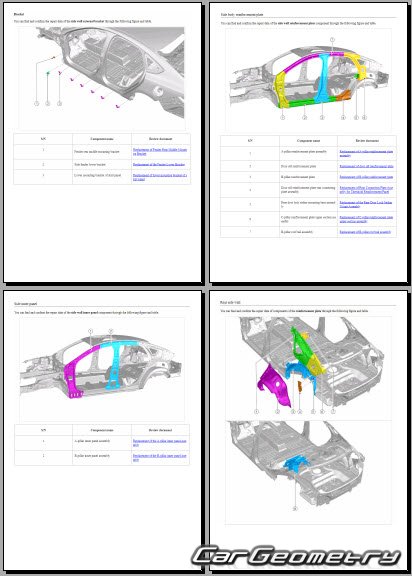

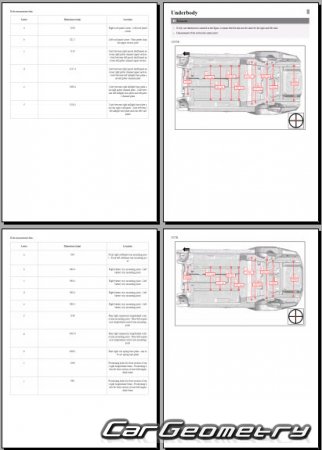

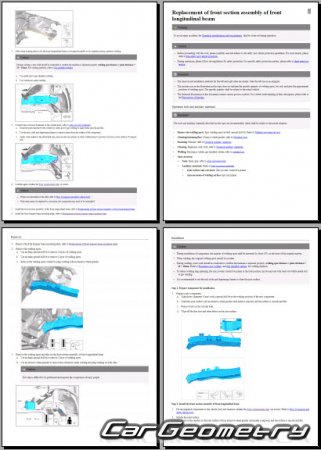

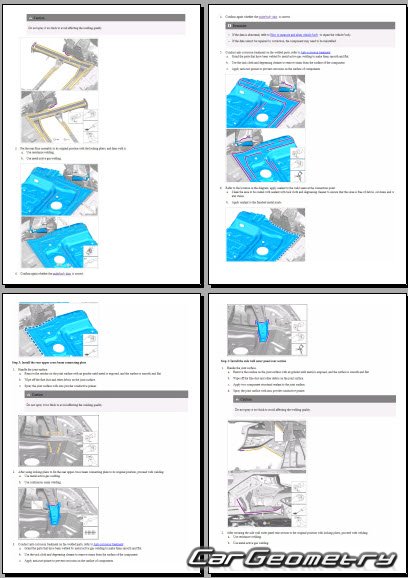

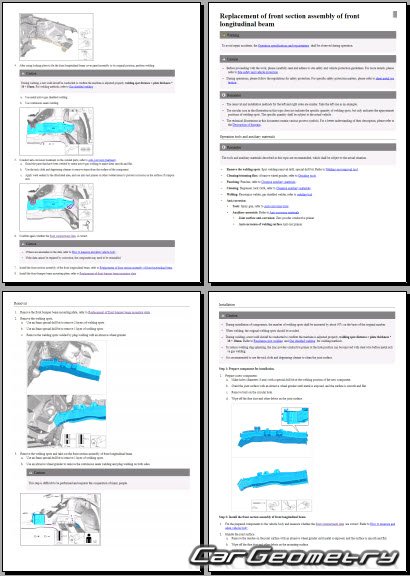

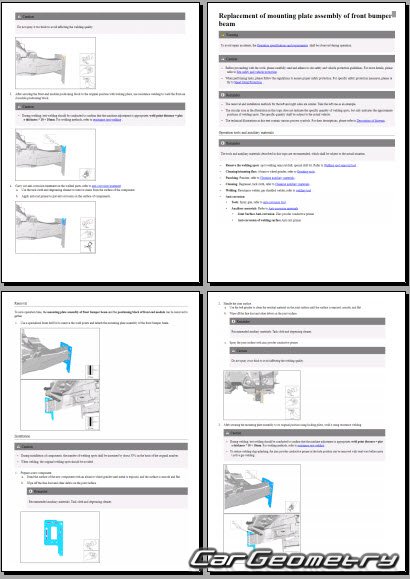

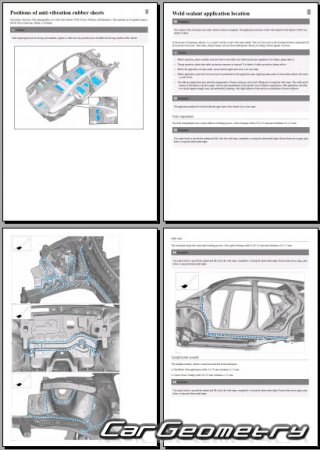

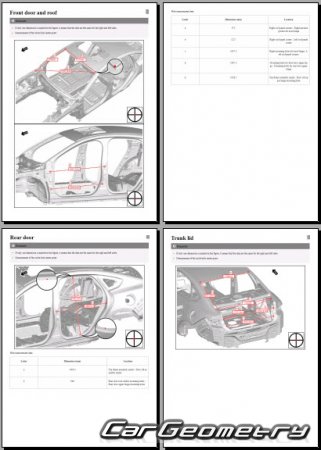

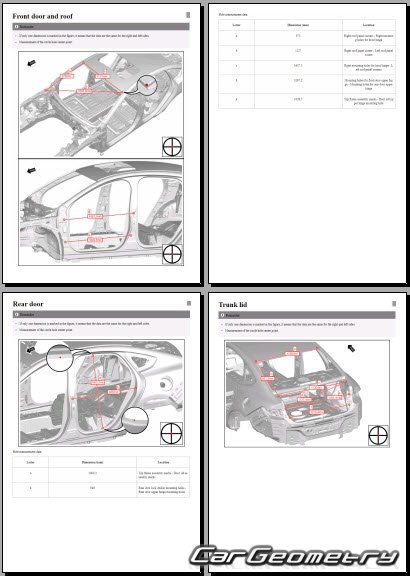

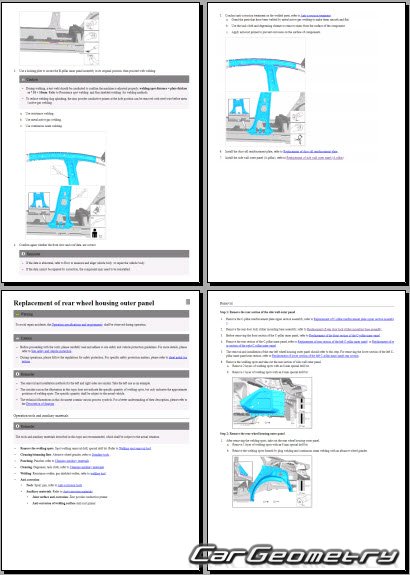

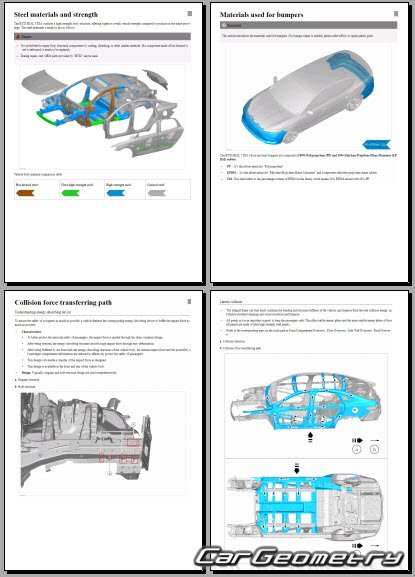

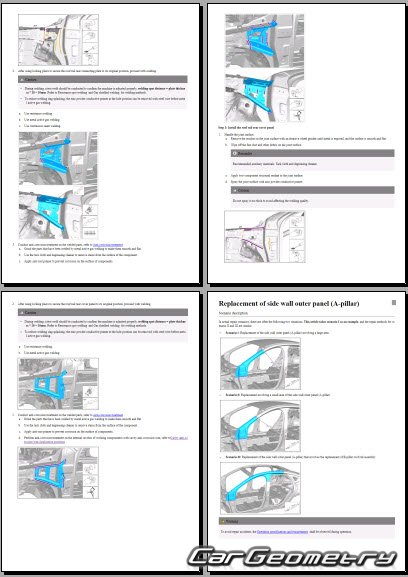

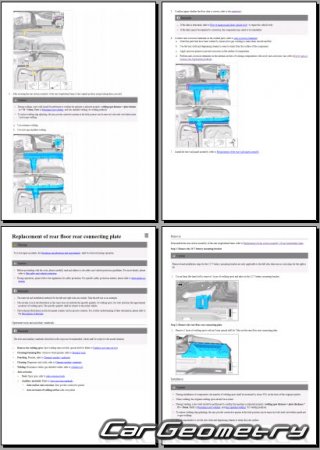

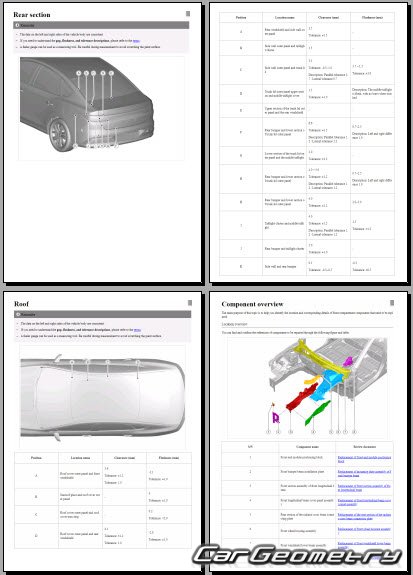

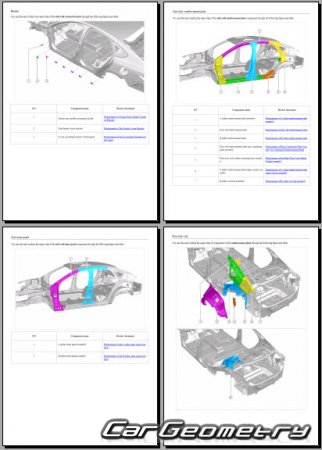

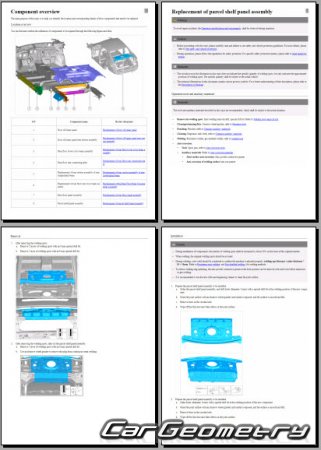

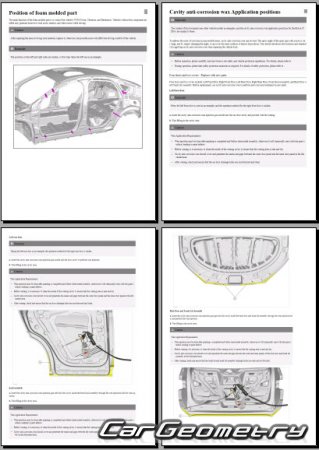

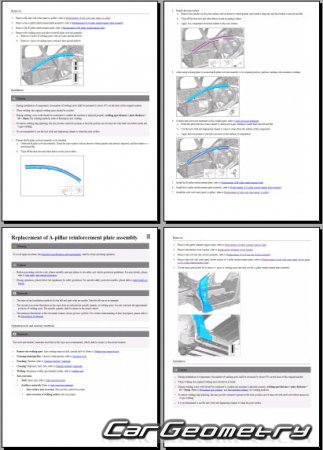

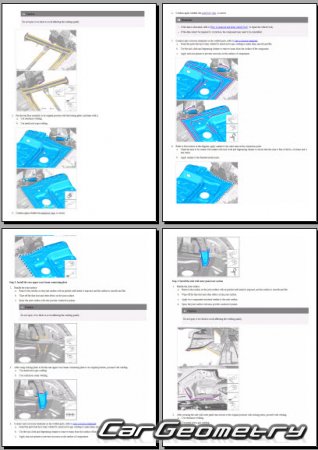

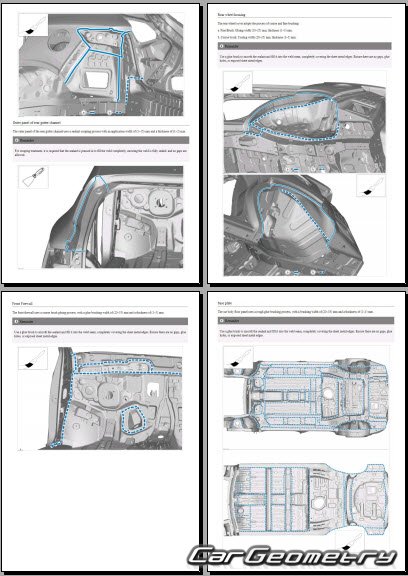

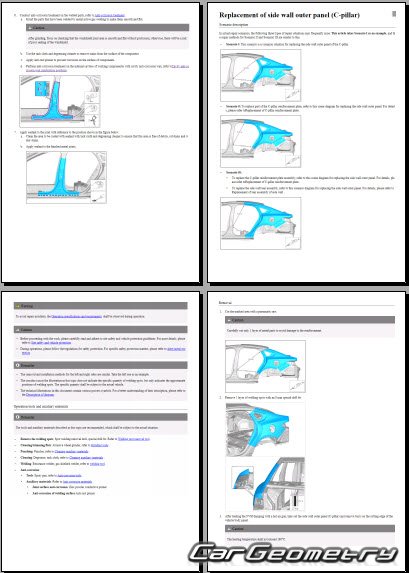

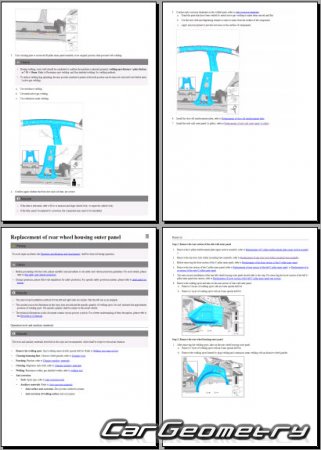

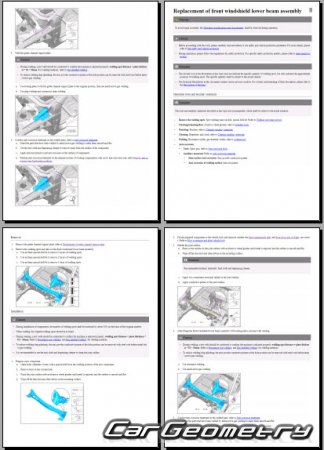

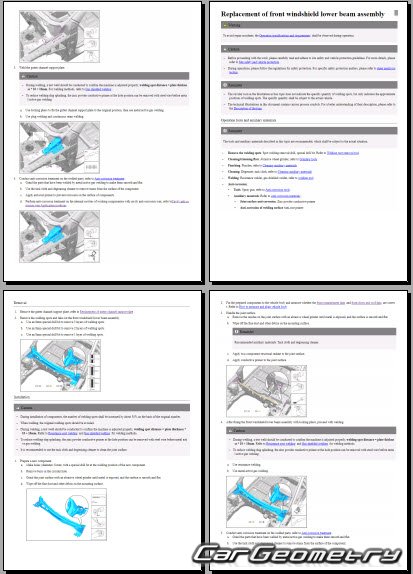

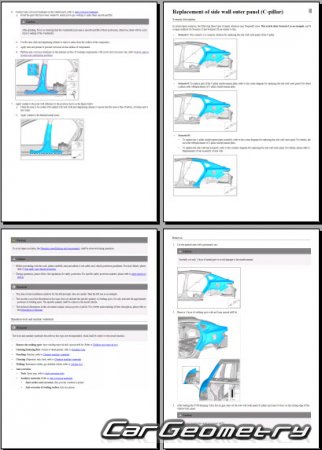

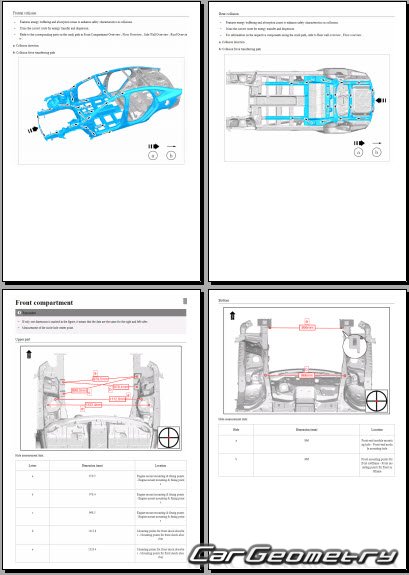

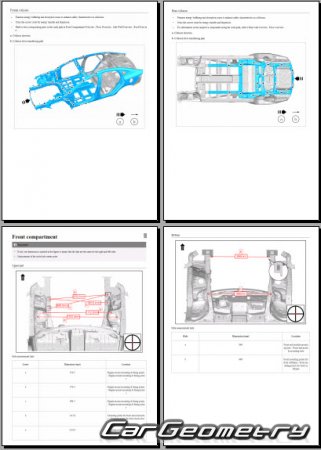

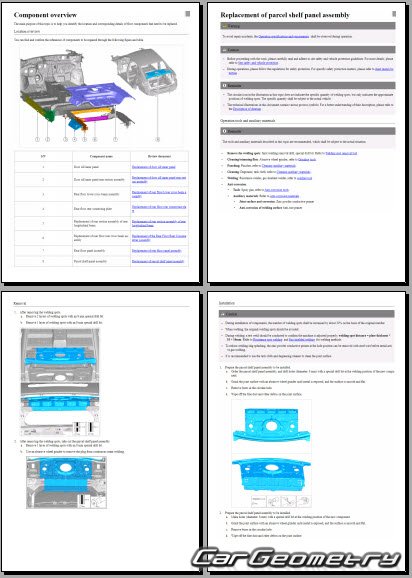

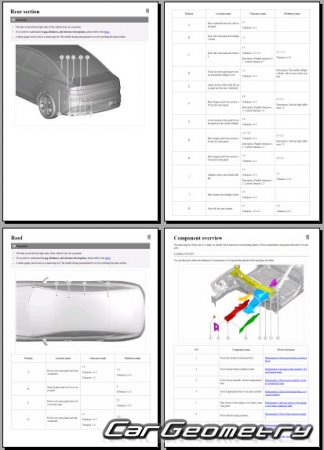

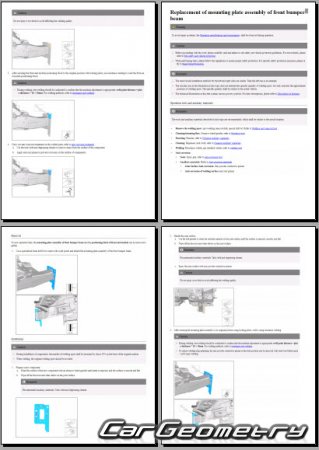

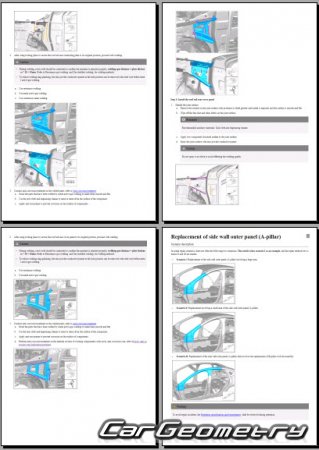

Data sample from the archive
