BYD Atto 2 DMi & Yuan PRO 2025-2030 Body Repair Manual

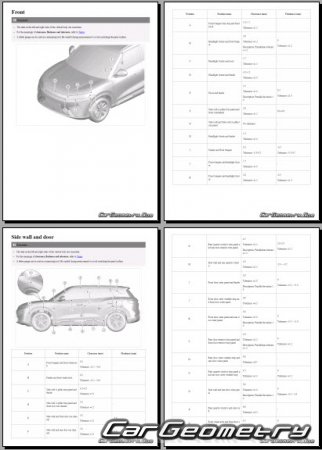

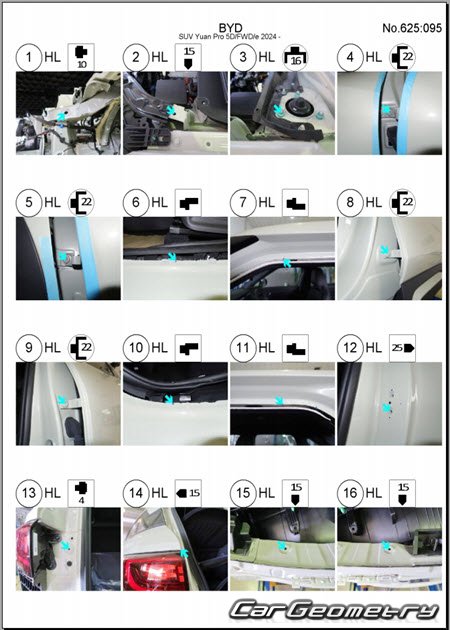

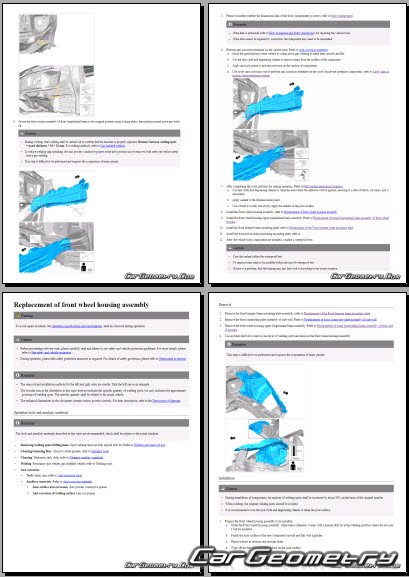

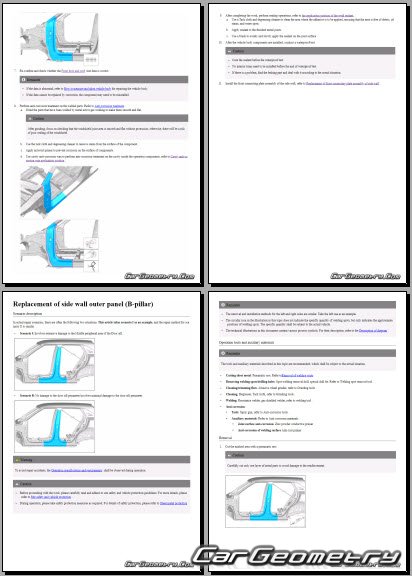

The factory manual provides the body dimensions for the BYD Atto 2 DMi & Yuan PRO 2025-2030, including descriptions of replacement procedures for various body components and the body dimensions and control points for the BYD Yuan PRO body geometry. In the European market, the model is sold as the BYD Atto 2 DM-i (PHEV), while in Latin America, it is marketed as the BYD Yuan PRO DMi.

The BYD Atto 2 is a compact plug-in hybrid (PHEV) crossover built on the proprietary Super DM technology, which combines an electric motor, a 1.5-liter gasoline engine, and the Blade Battery. Depending on the version, the vehicle offers an electric-only range of up to 90 km and a combined range of up to 1,000 km (WLTP) with very low fuel consumption. Its dimensions are 4,310 mm in length, 1,830 mm in width, and 1,675 mm in height, with a wheelbase of 2,620 mm; the trunk capacity is approximately 400 liters, expandable by folding down the seats.

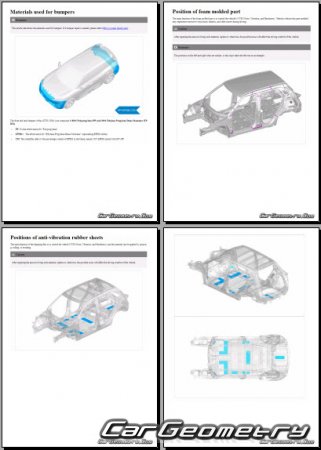

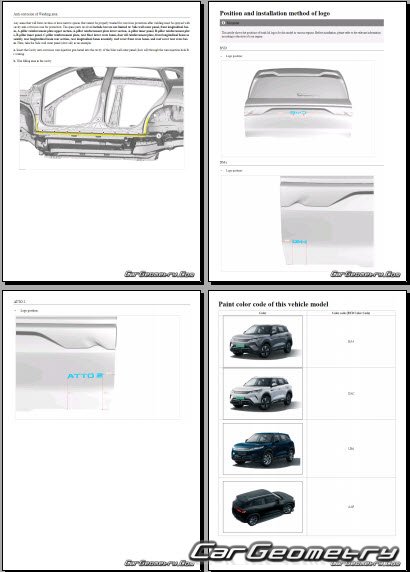

The information included in the manual consists of body dimensions, control points, sectional images of body elements, applicable materials, recommendations for welding types, methods, and materials, locations and materials for applying seals, sound insulation, and anti-corrosion sealants, areas and directions for cutting body elements for subsequent installation of new parts, interior material types, and decoding of markings.

BYD Atto 2 DMi & Yuan PRO 2025-2030 Collision Repair Manual is available in English and contains a wealth of useful and necessary information for individuals involved in self-performed body repairs and for owners of body repair companies working on BYD Atto 2 vehicles.

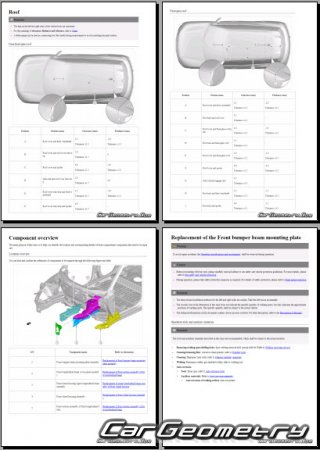

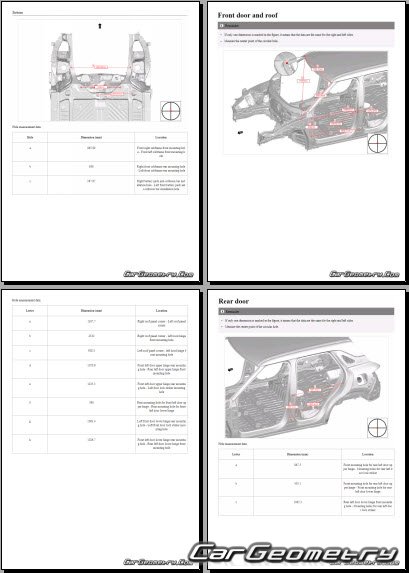

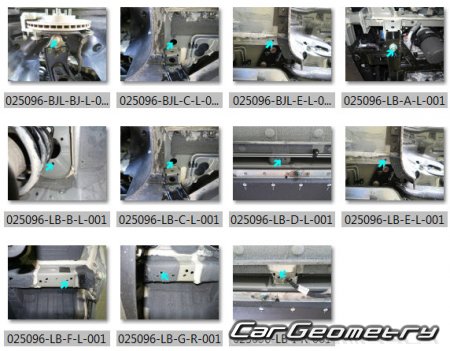

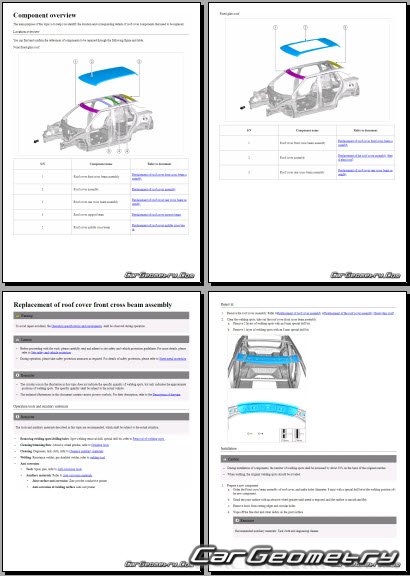

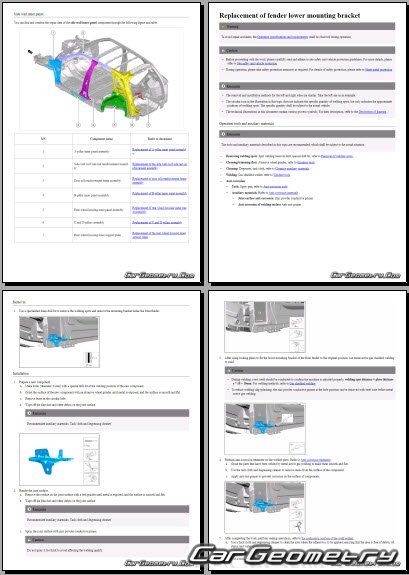

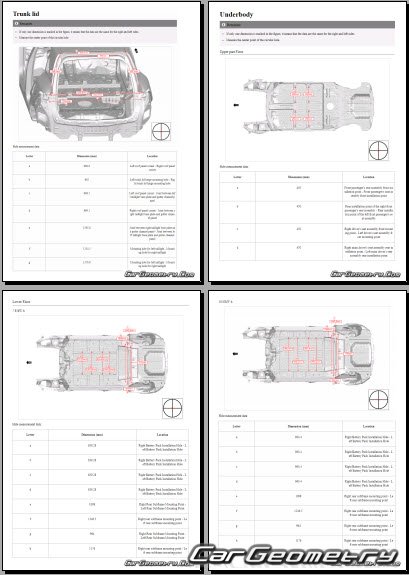

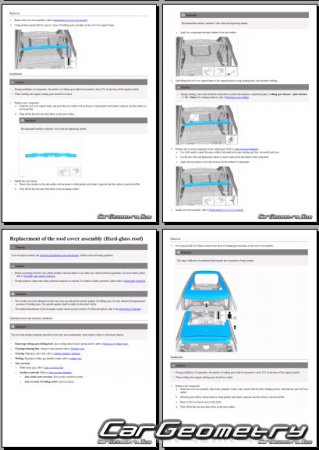

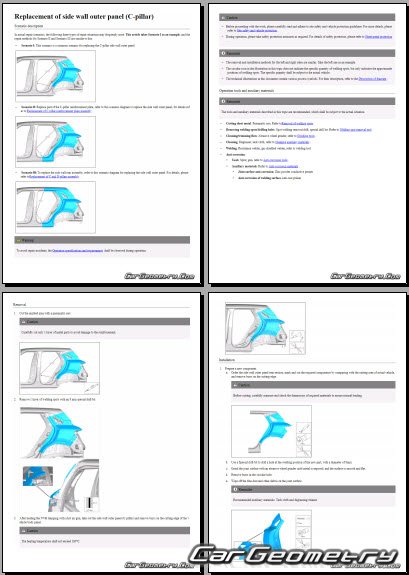

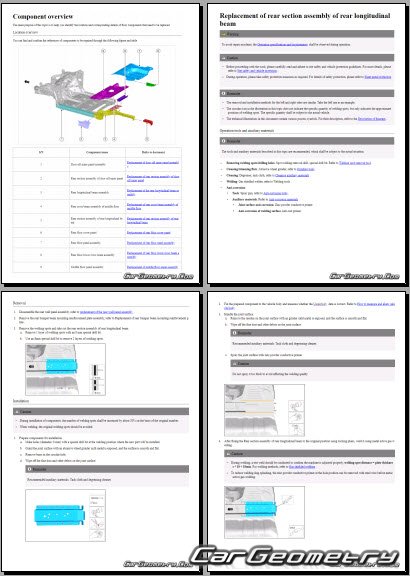

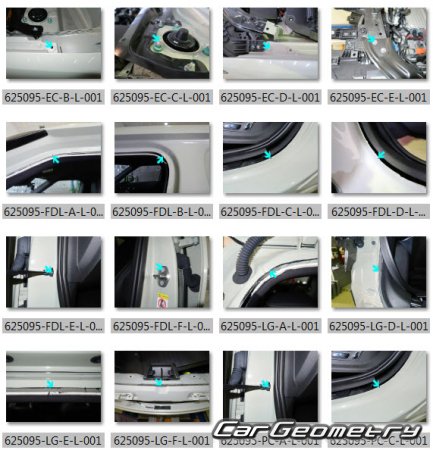

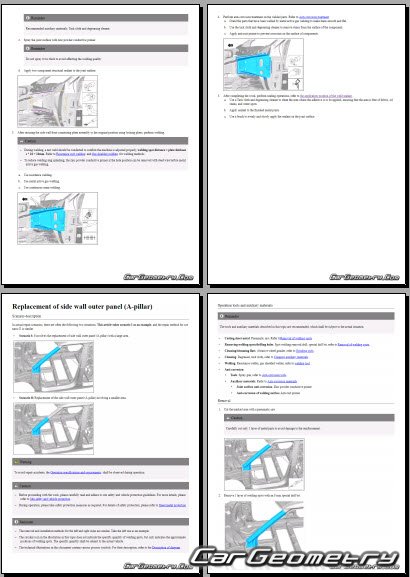

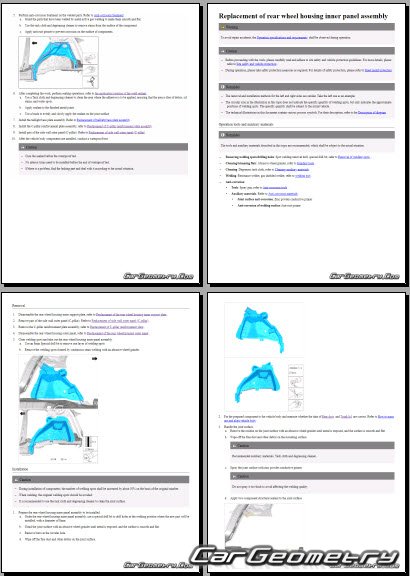

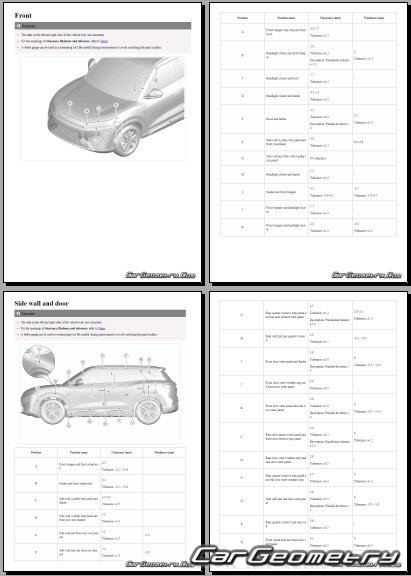

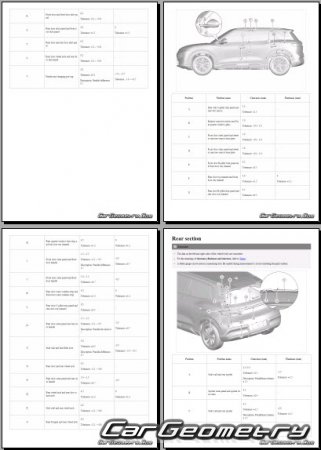

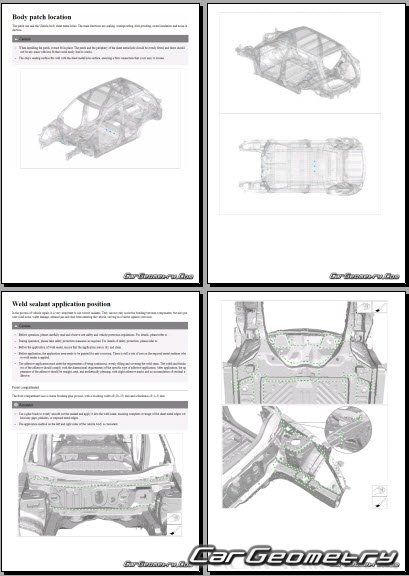

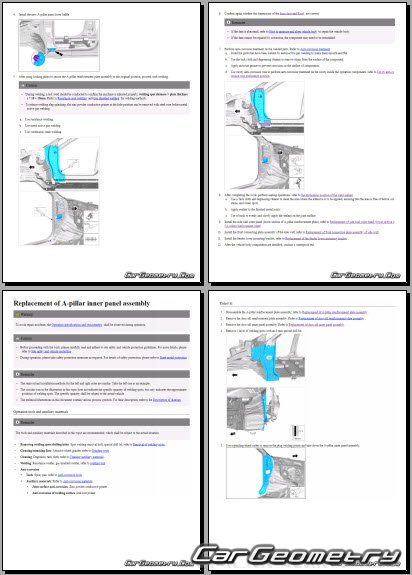

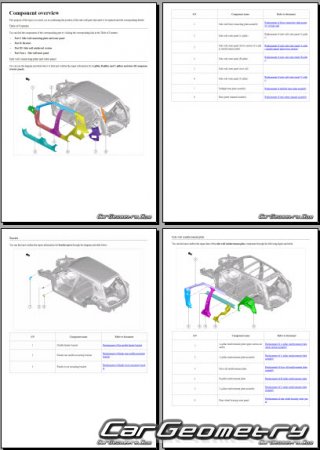

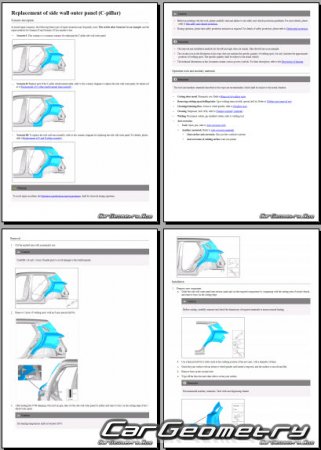

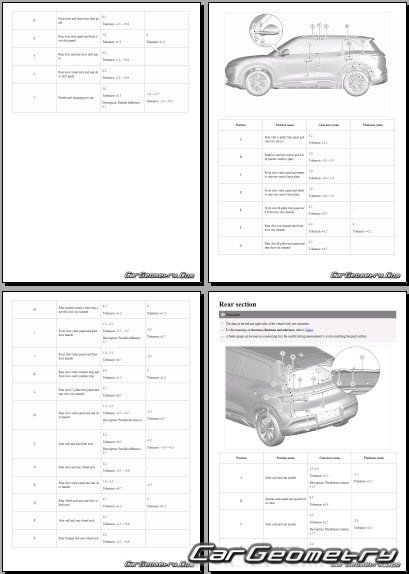

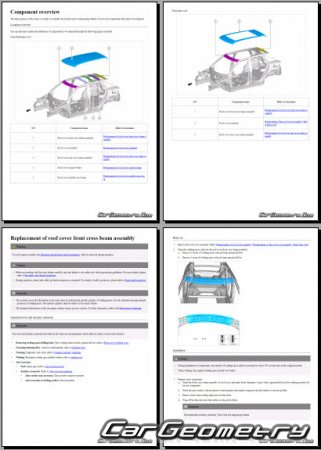

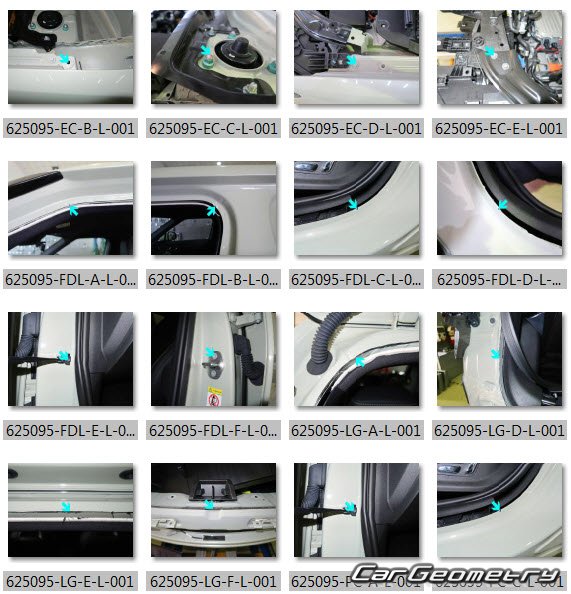

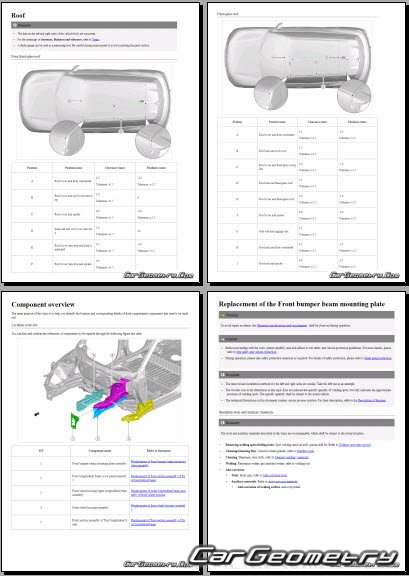

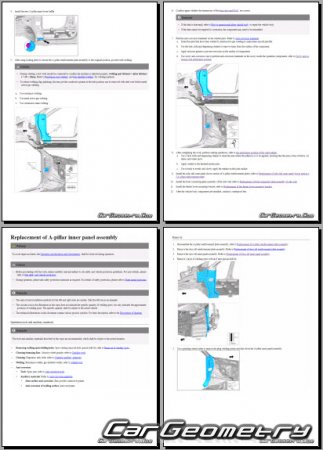

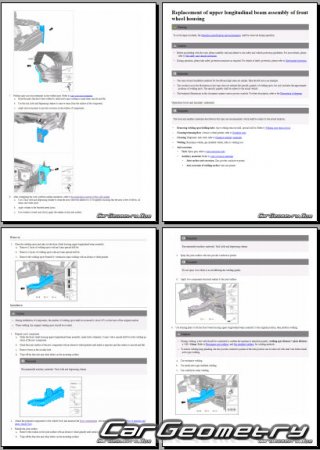

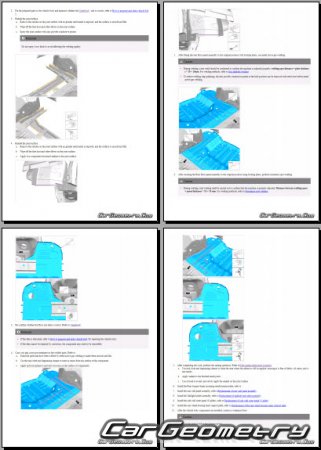

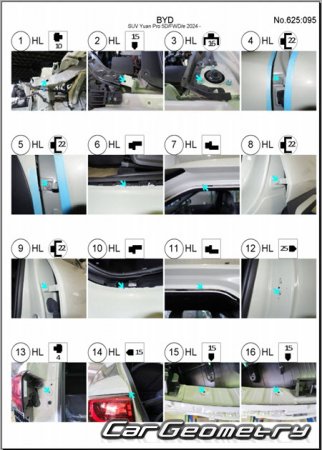

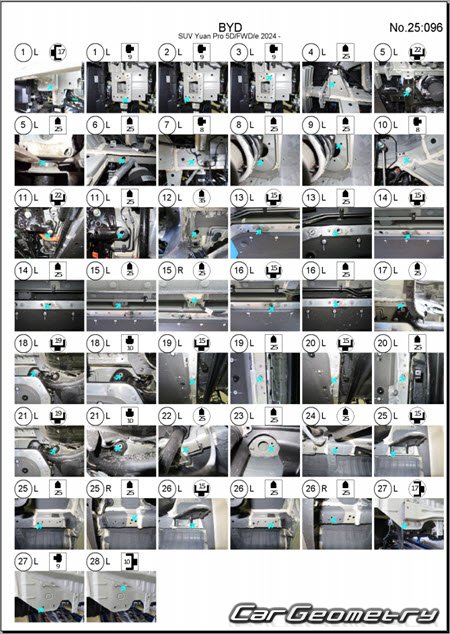

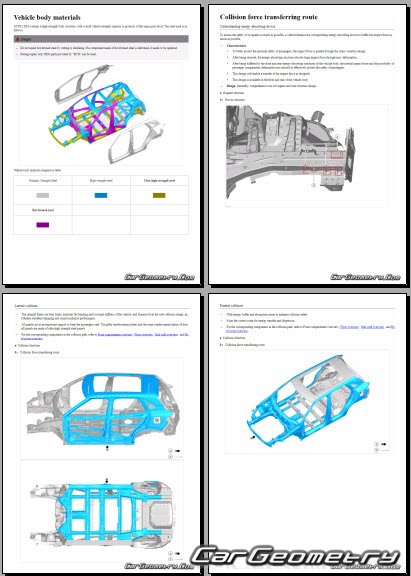

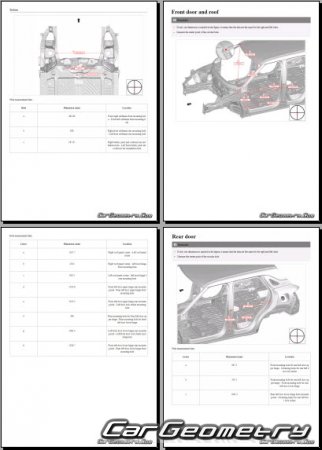

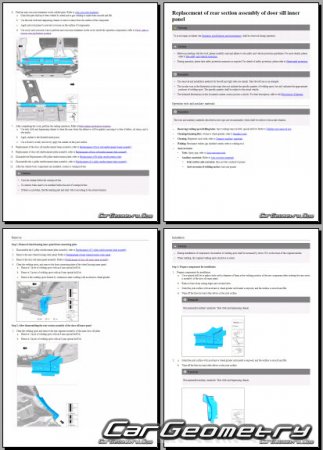

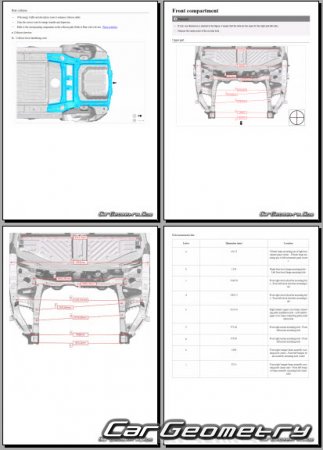

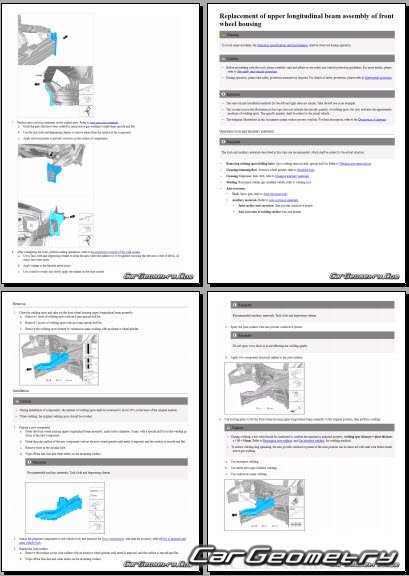

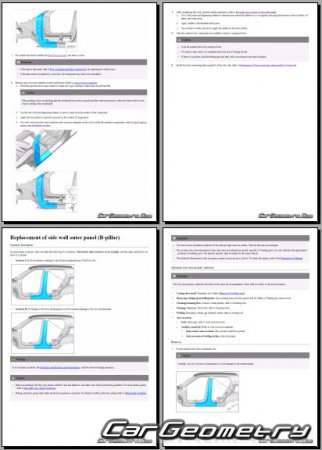

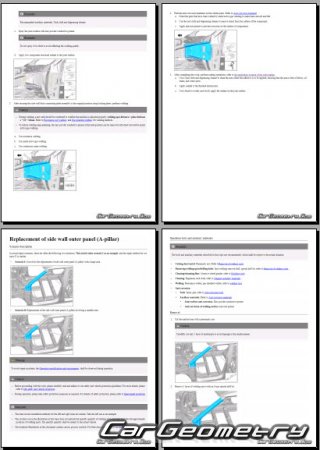

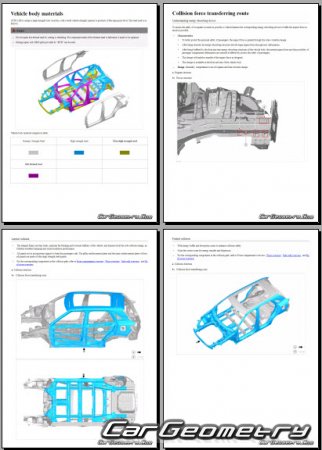

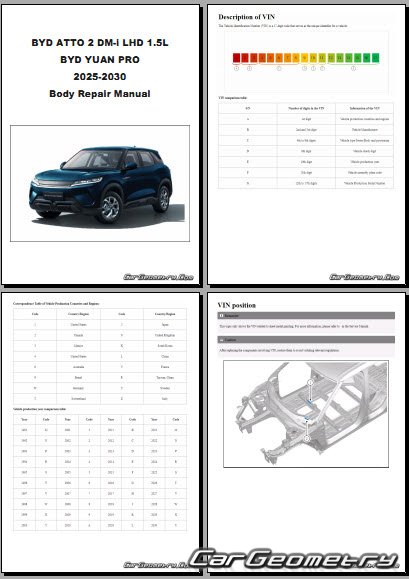

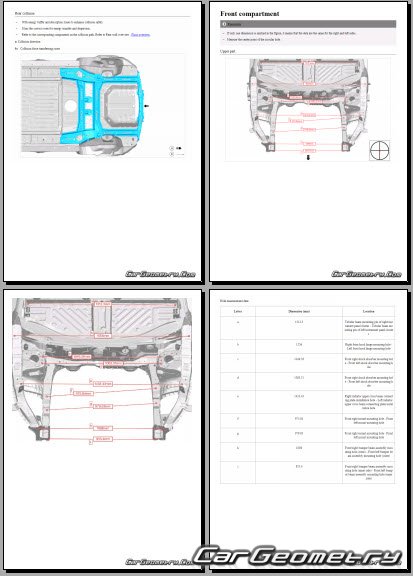

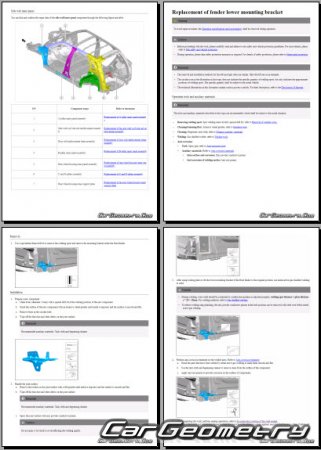

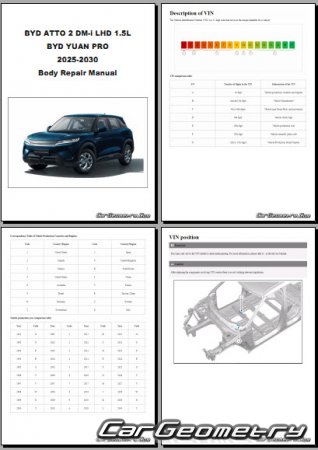

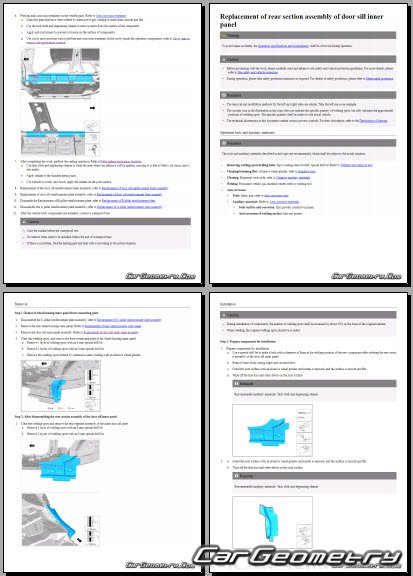

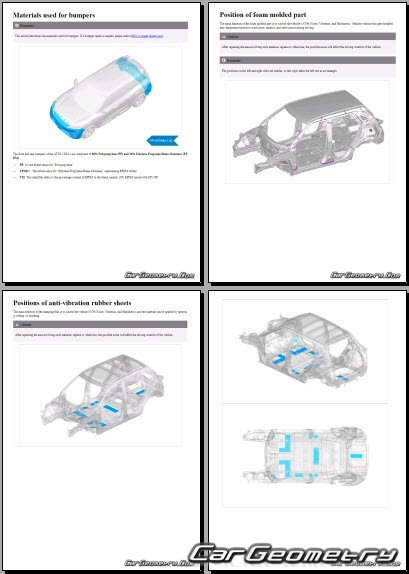

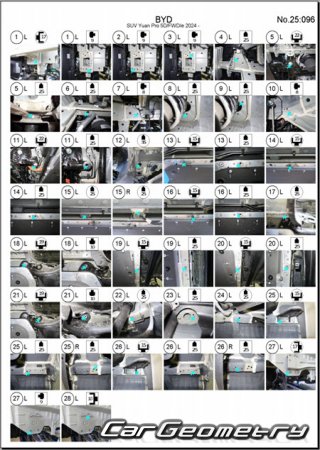

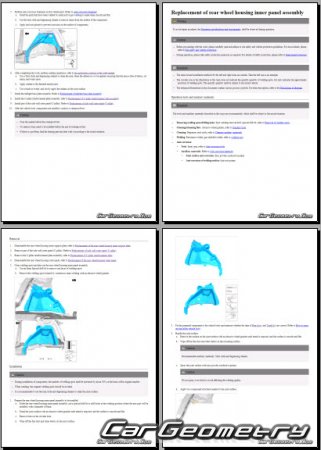

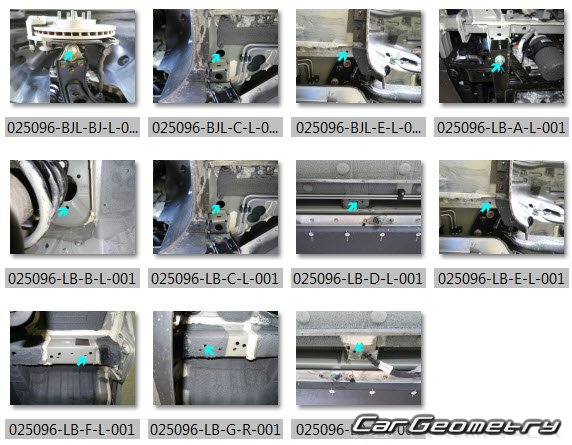

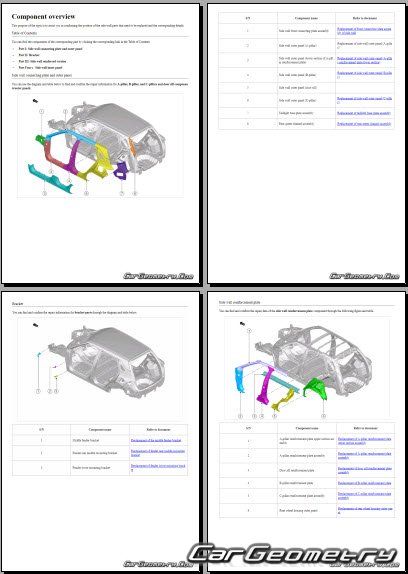

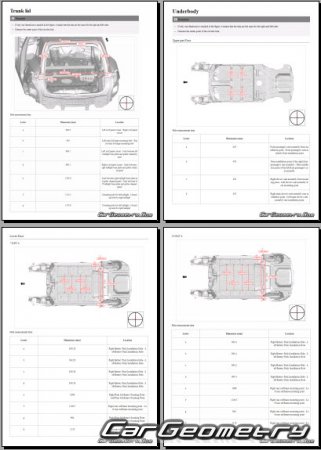

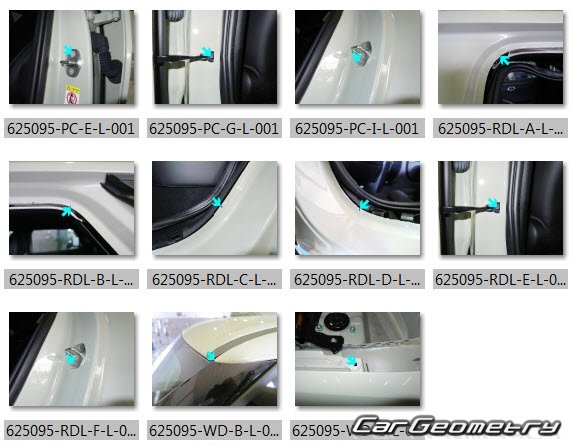

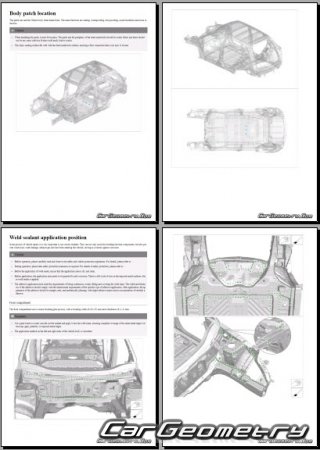

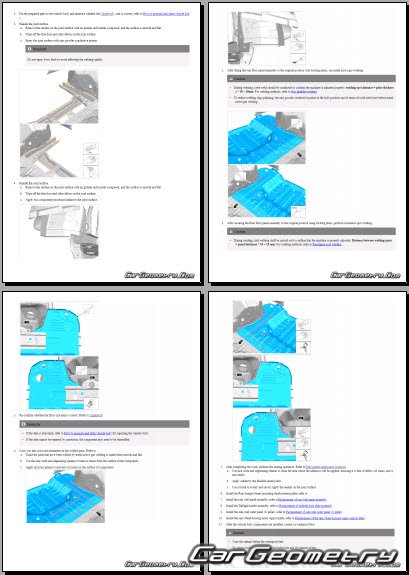

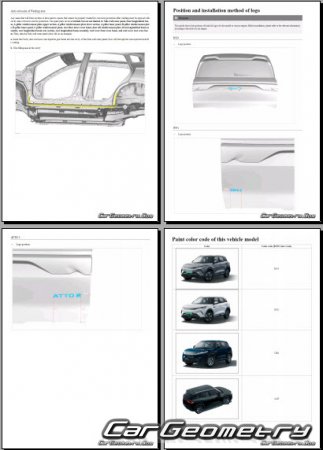

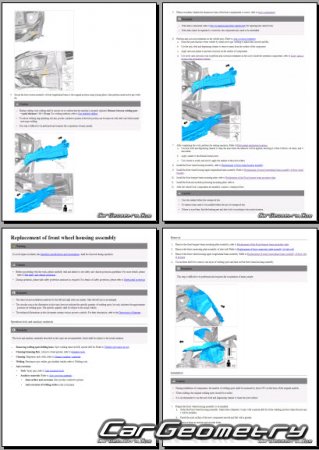

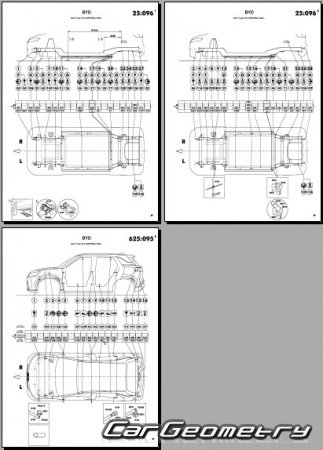

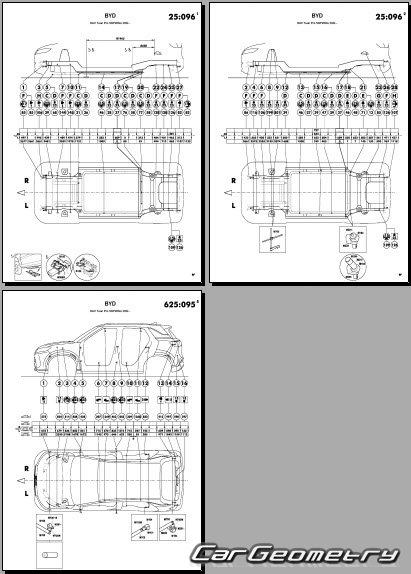

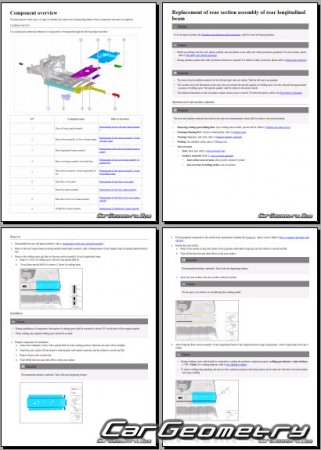

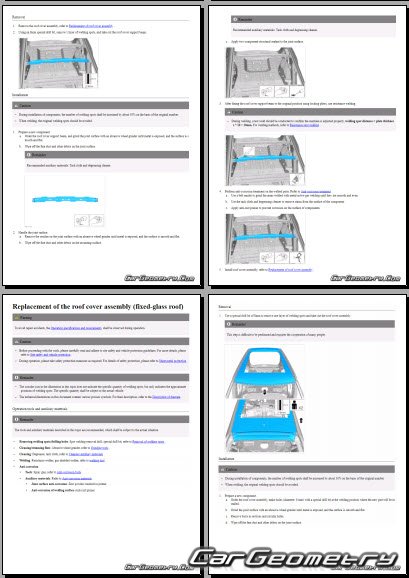

Data sample from the archive
