Body dimensions for restoring the body geometry of Ford F-150 Lightning 2022-2028. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars.

The F-150 Lightning is an all-electric pickup truck with dual electric motors and all-wheel drive, offering a range of up to 320 miles (≈ 515 km) on a single charge, making it a serious option even for long trips.

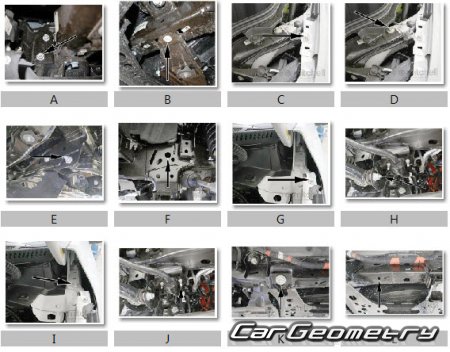

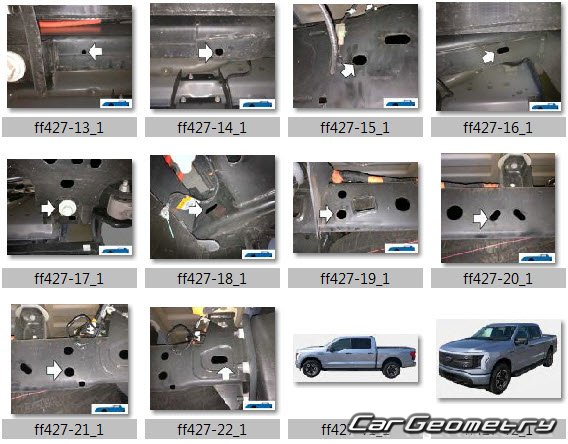

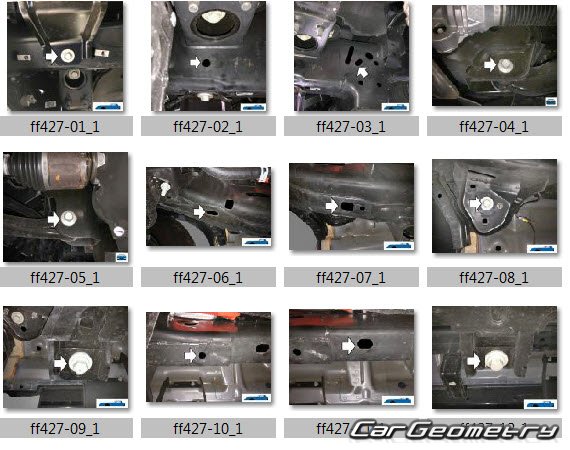

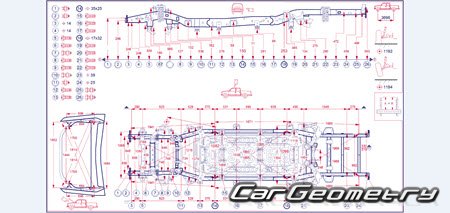

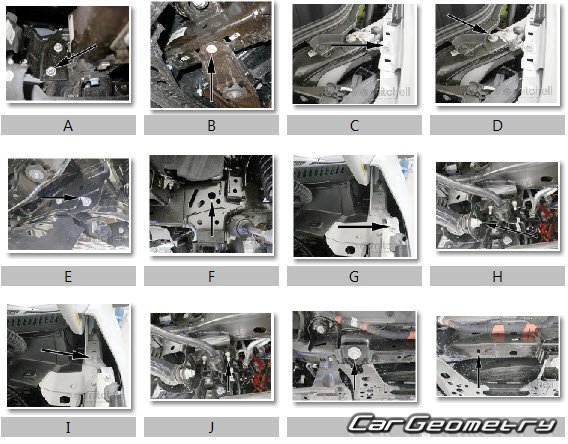

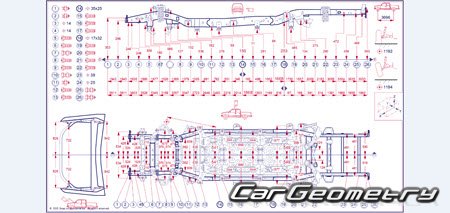

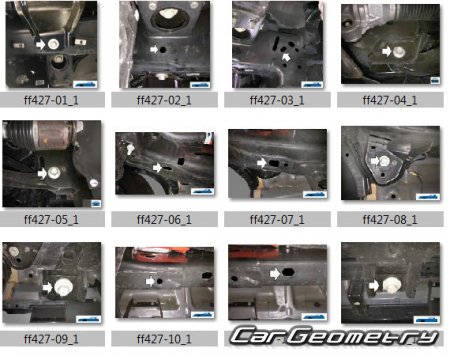

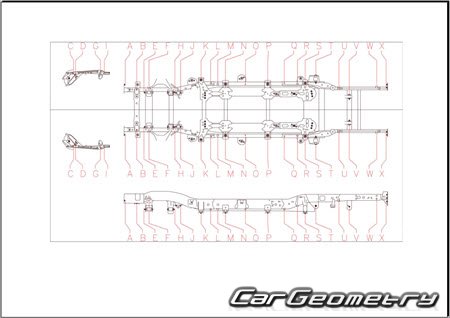

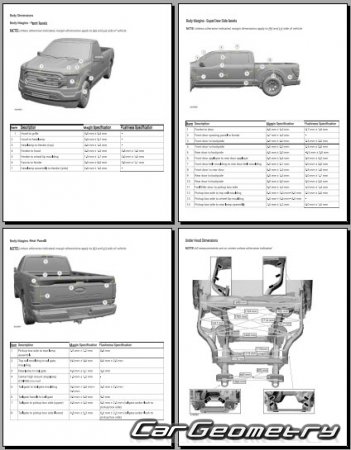

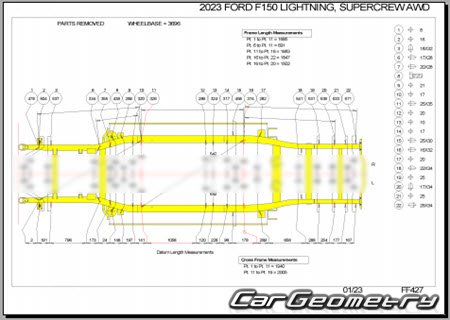

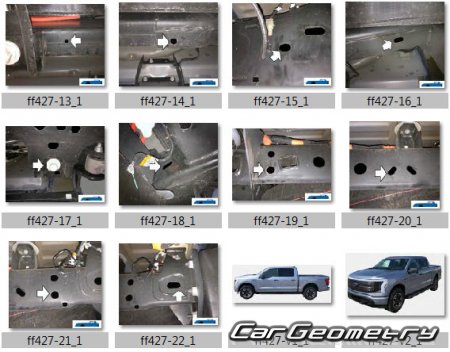

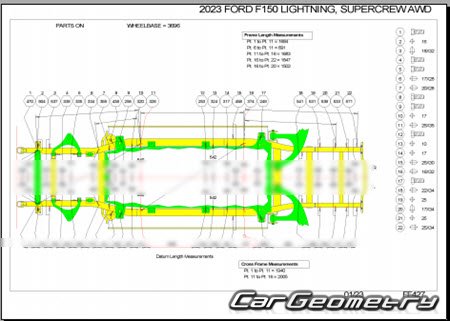

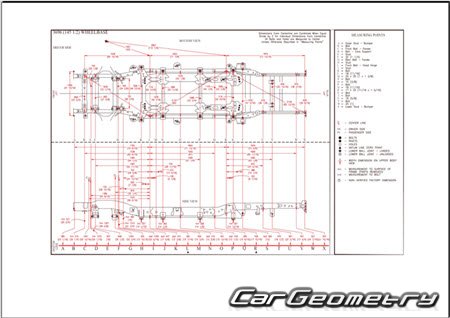

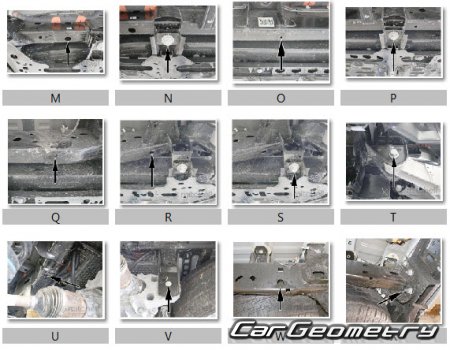

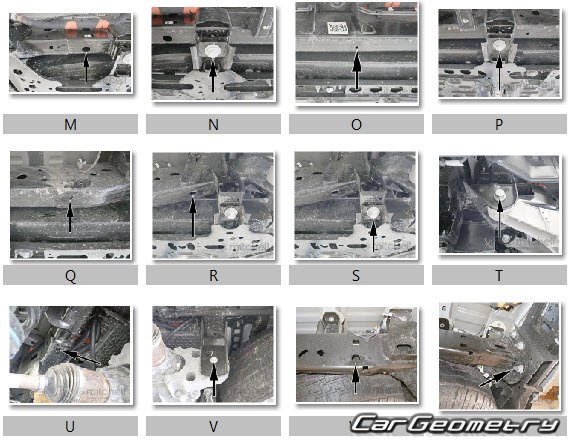

Selection from factory documentation and vehicle measurement database for Ford F-150 Lightning: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

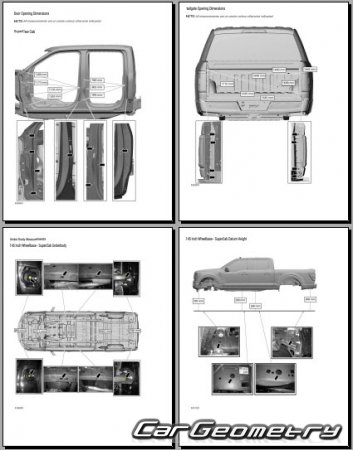

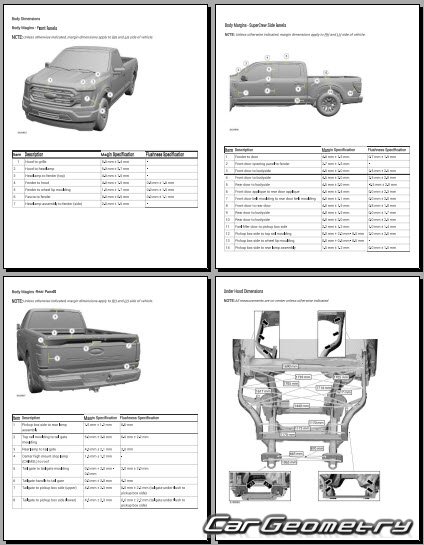

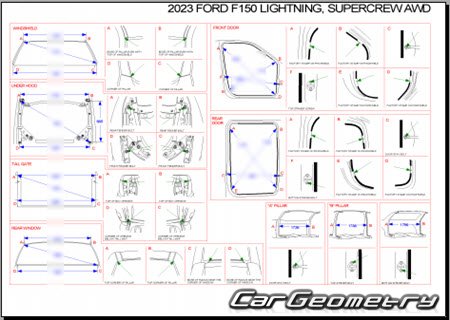

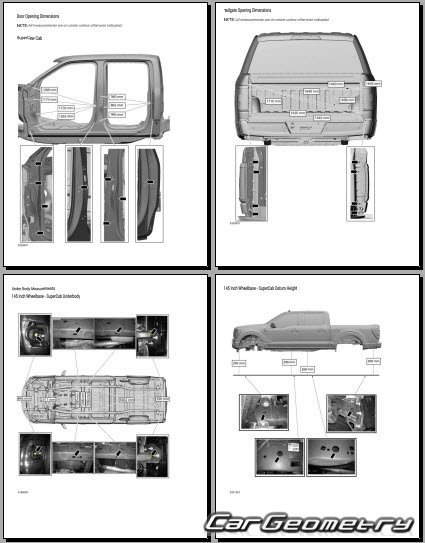

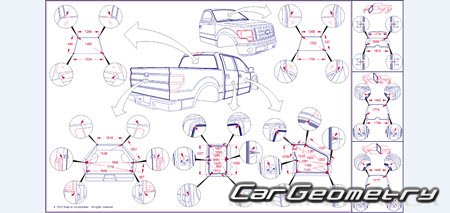

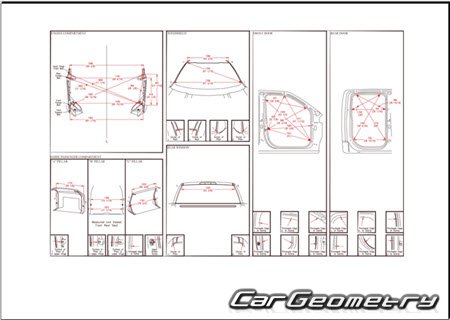

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Ford F-150 Lightning 2022-2028

Price: $36
