Body dimensions for restoring the body geometry of JAC S3 2015-2021. These data are used to check the body geometry, followed by straightening damaged parts of JAC Refine S3 2015-2021.

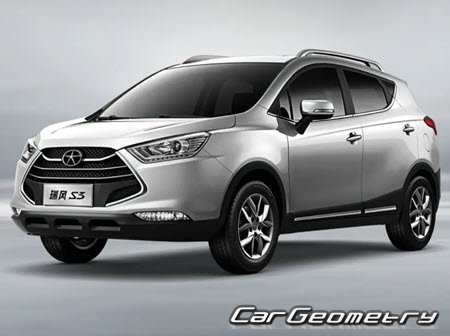

The JAC S3 was released in 2014. It is based on the JAC A30 (JAC J4) sedan. Its exterior clearly reflects its crossover theme. It is equipped with a 1.5-liter gasoline engine producing 113 hp, which is paired with a 5-speed manual transmission by default, or a continuously variable transmission (CVT) for an additional fee.

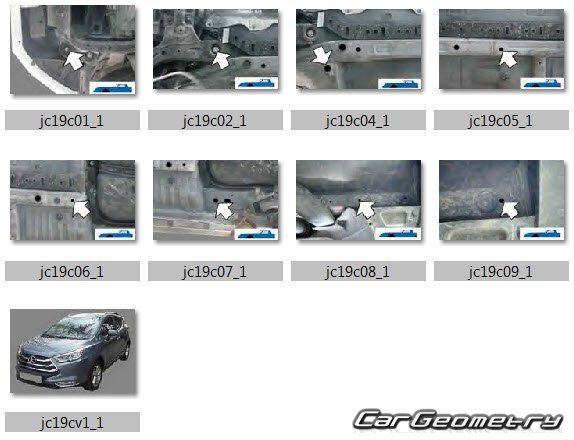

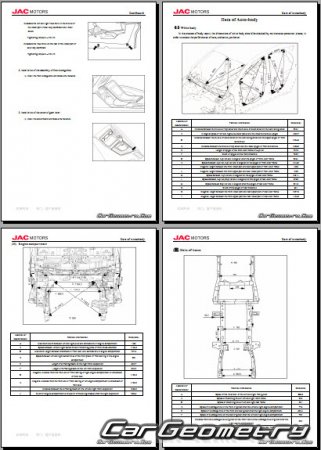

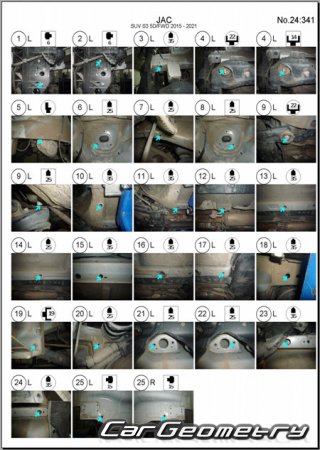

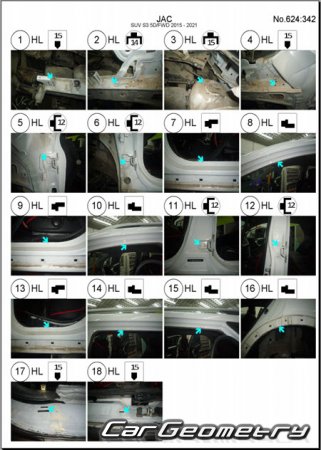

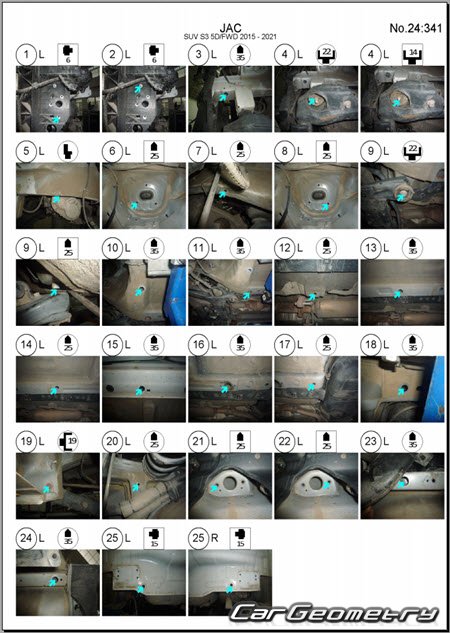

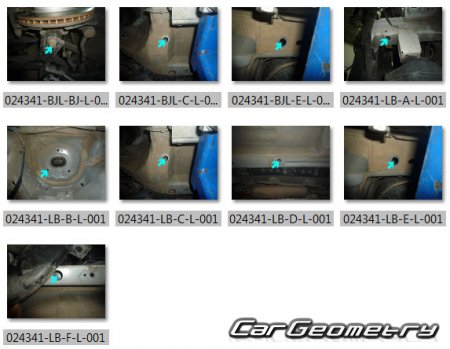

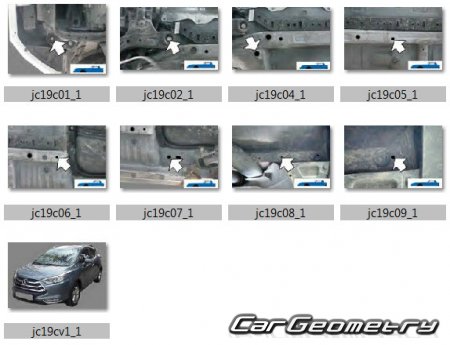

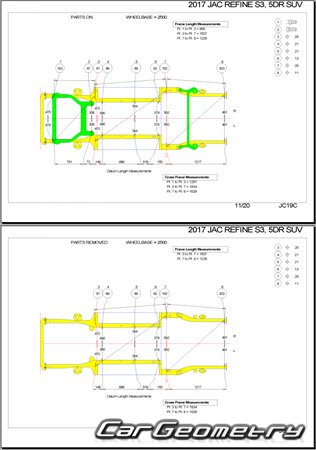

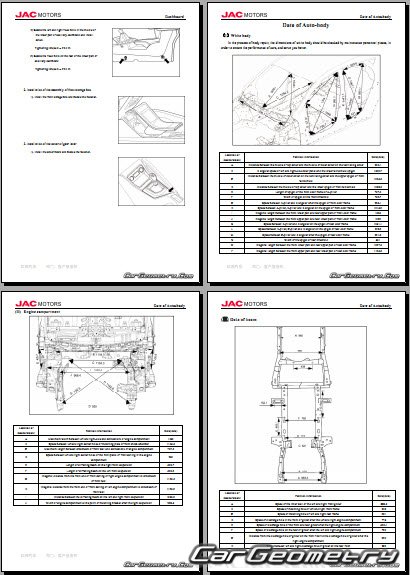

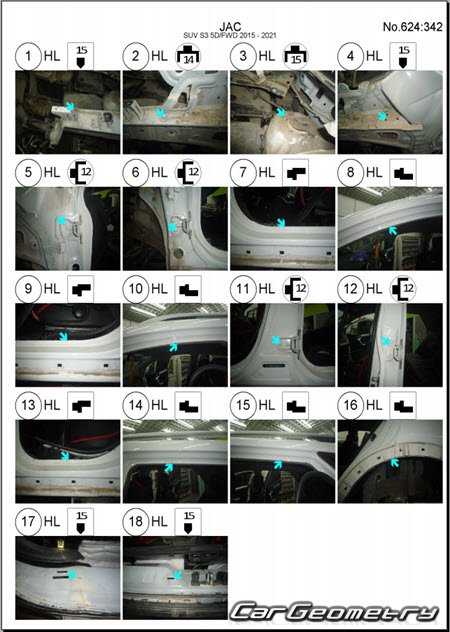

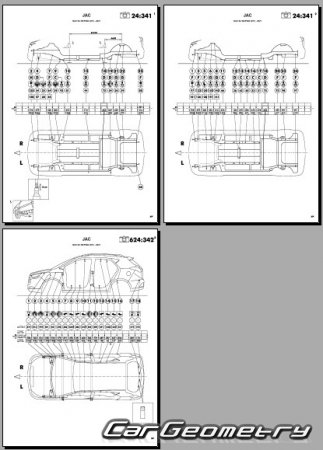

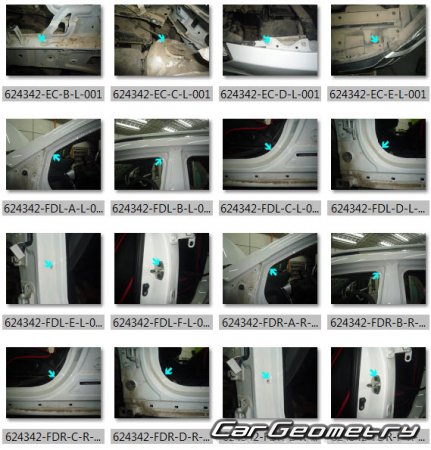

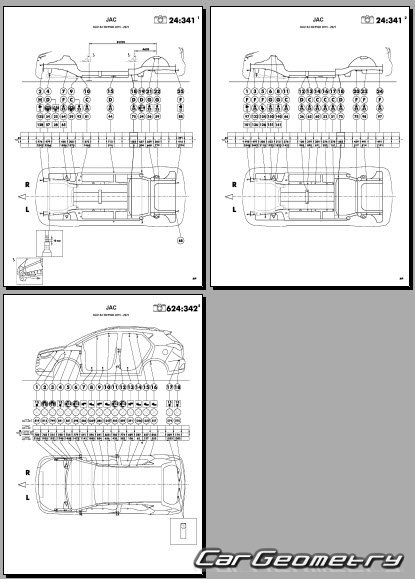

Selection from vehicle measurement database for JAC S3: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

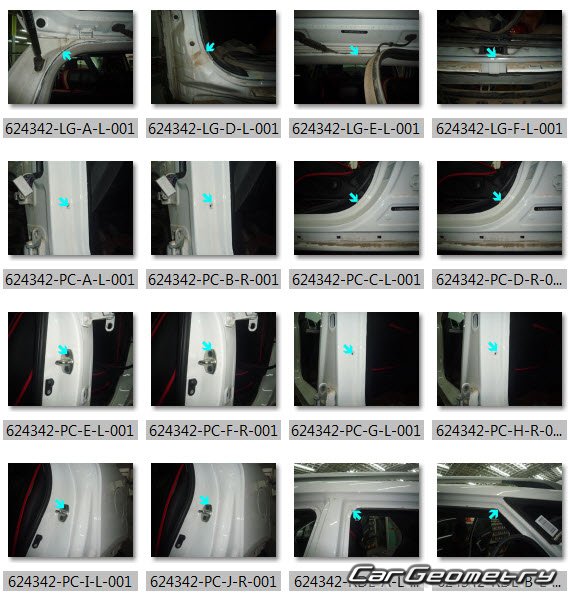

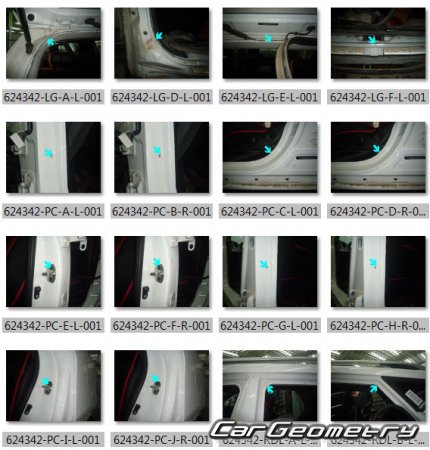

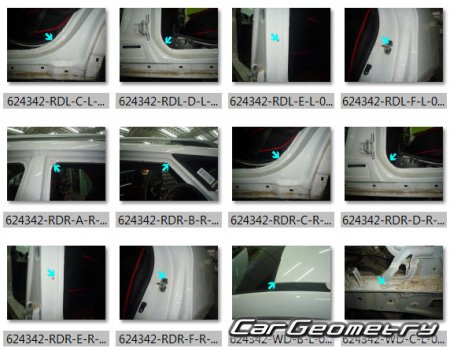

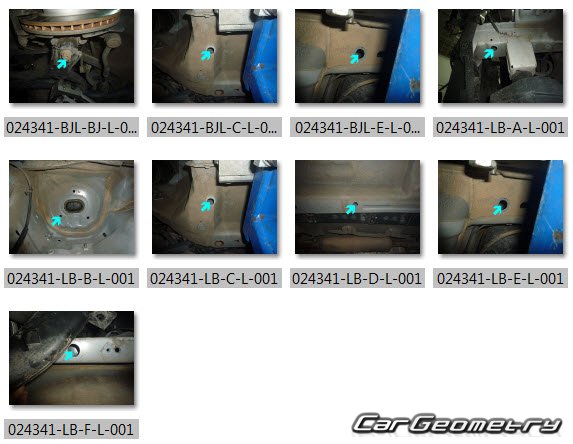

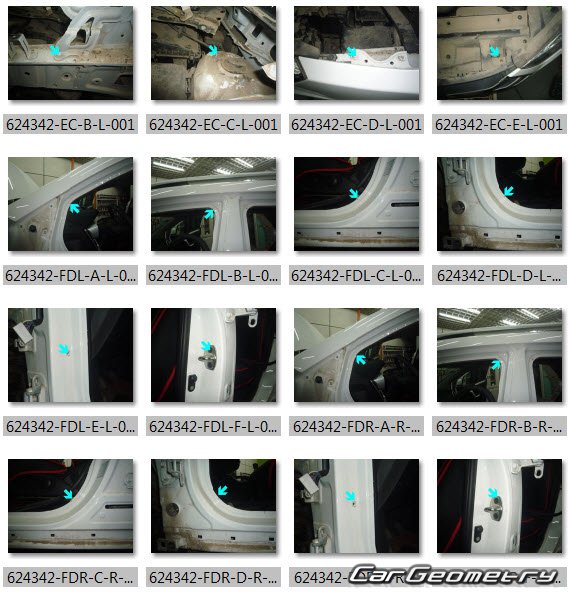

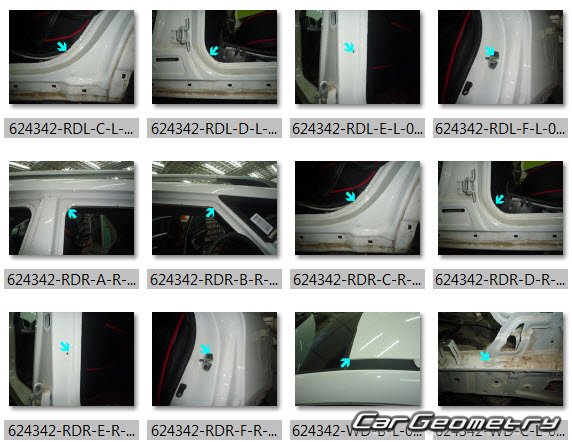

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions JAC S3 2015-2021

Price: $30
