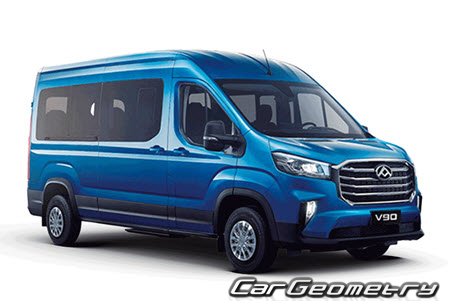

Body dimensions for restoring the body geometry of Maxus Deliver 9 (V90) 2023-2028. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. In various markets, the vehicle has been sold as the SAIC Maxus Deliver 9 and LDV V90 since 2020 (right-hand drive versions).

The Maxus Deliver 9 is an eight-seat commercial minivan/passenger van widely used for urban transportation and logistics due to its spaciousness and efficiency. It is available in both gasoline and diesel versions, making it a flexible solution for various markets. The vehicle is equipped with modern safety systems, a comfortable interior, and a practical layout, allowing it to transport both passengers and cargo in comfort.

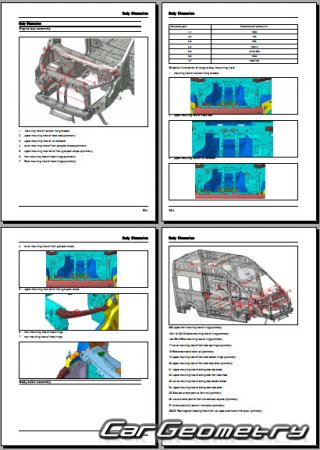

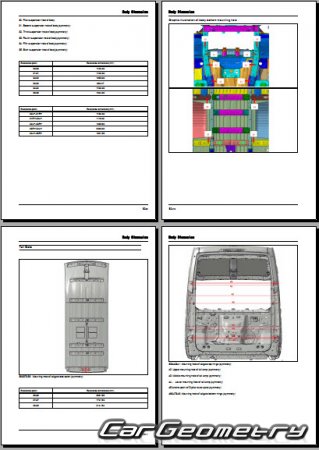

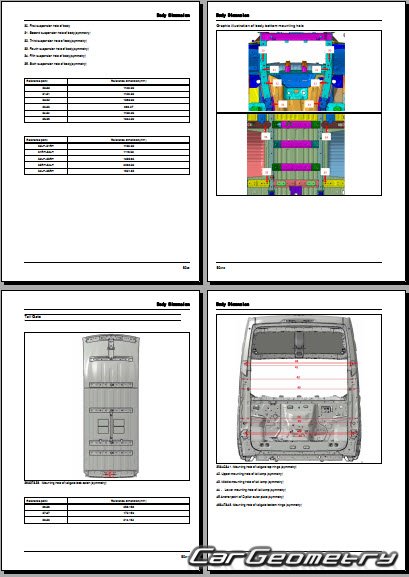

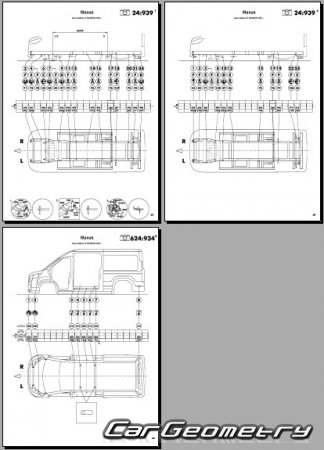

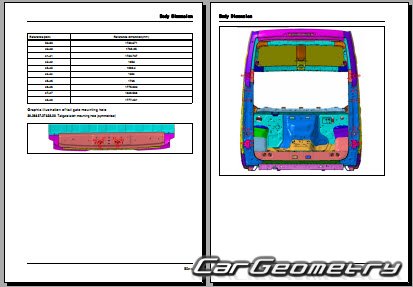

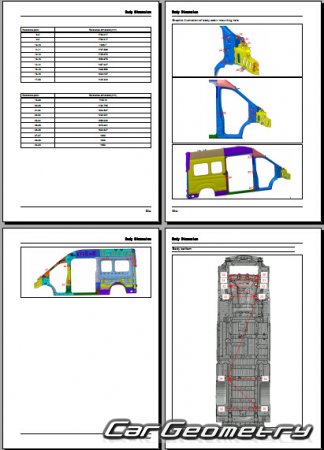

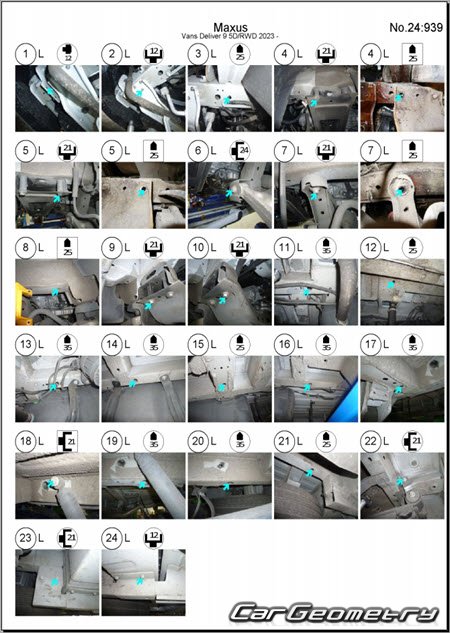

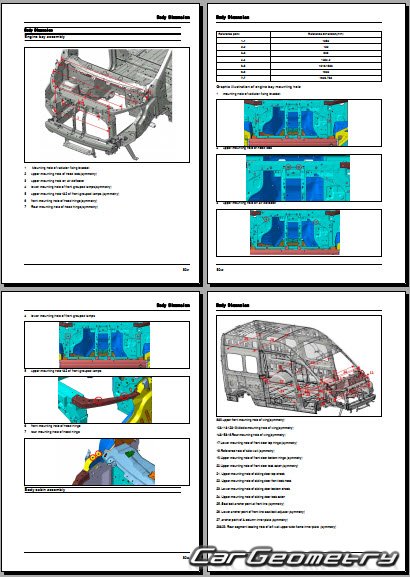

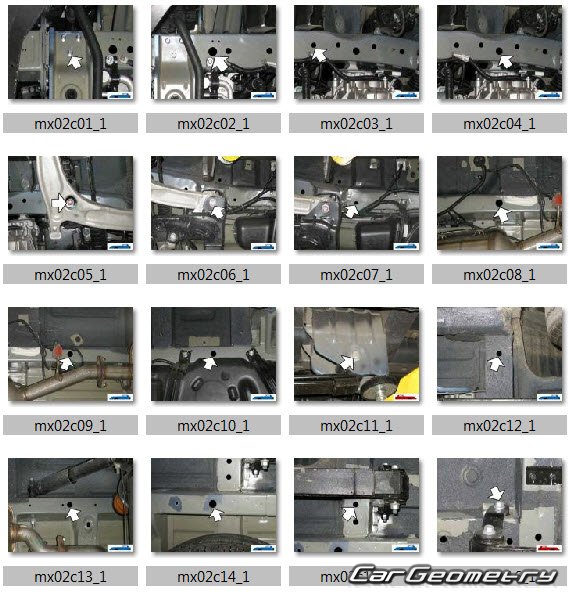

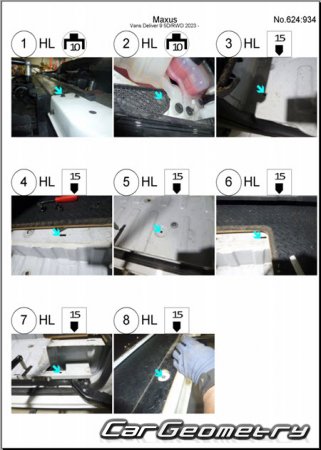

Data from factory documentation for Maxus V90: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

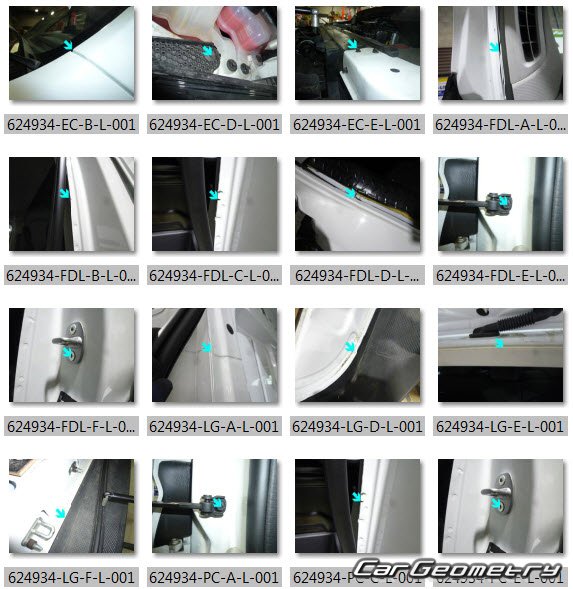

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Maxus Deliver 9 (V90) 2023-2028

Price: $36
