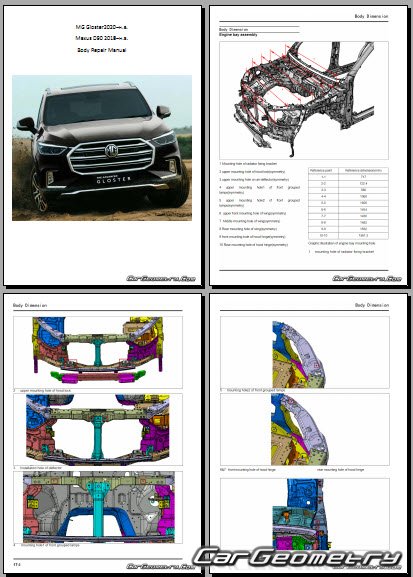

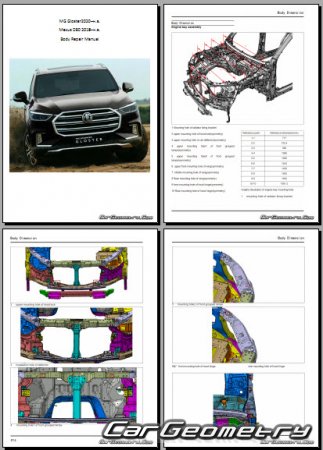

Body dimensions for restoring the body geometry of MG Gloster 2020–2026. These data are used to check the body geometry, followed by straightening damaged parts of MG Gloster. The manual can also be used for body repair of Maxus D90 - the original model for the Chinese market from the SAIC Motor brand.

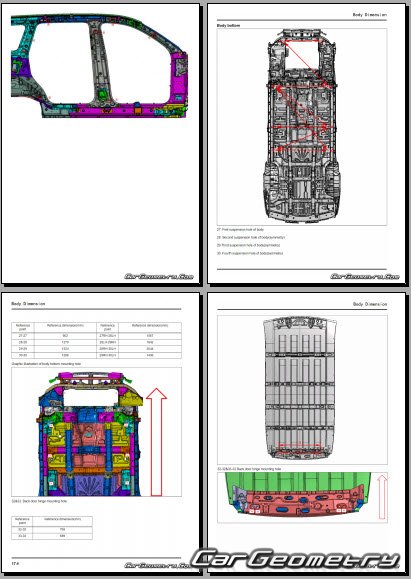

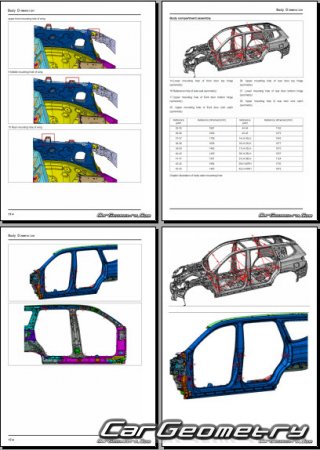

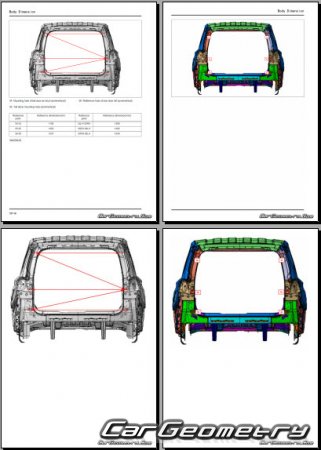

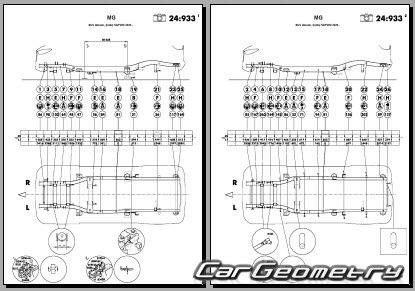

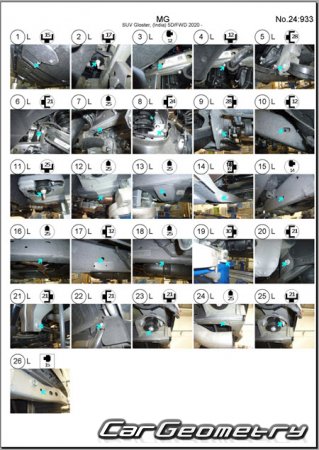

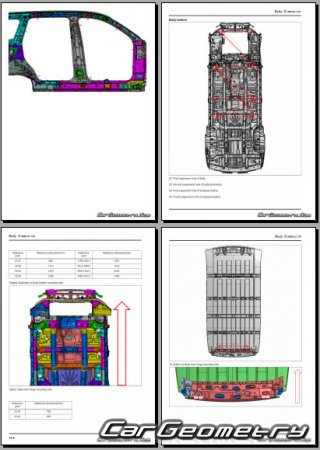

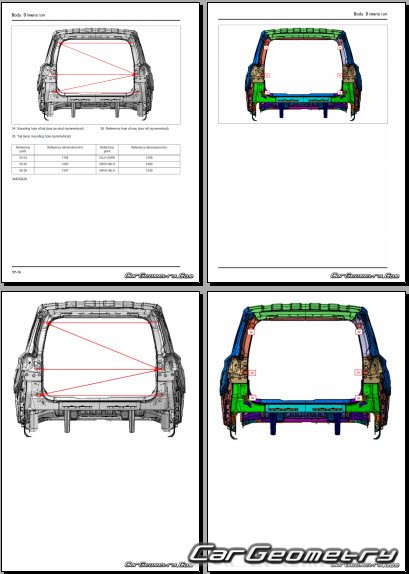

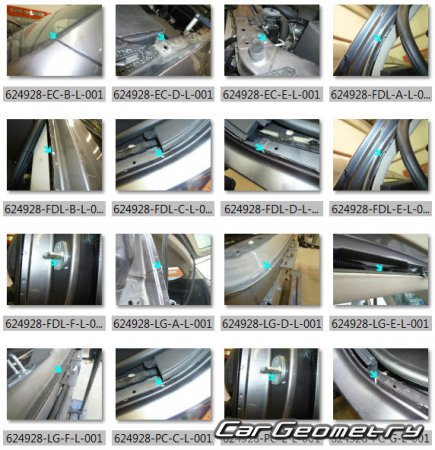

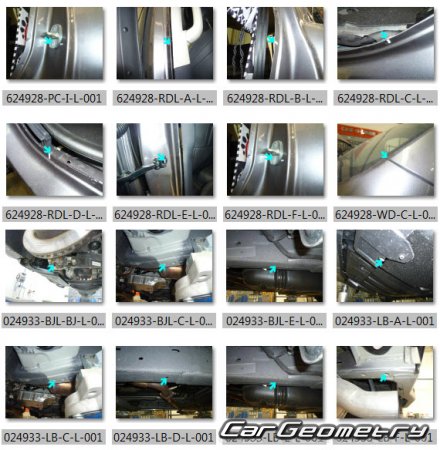

Selection from factory documentation and vehicle measurement database for MG Gloster: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

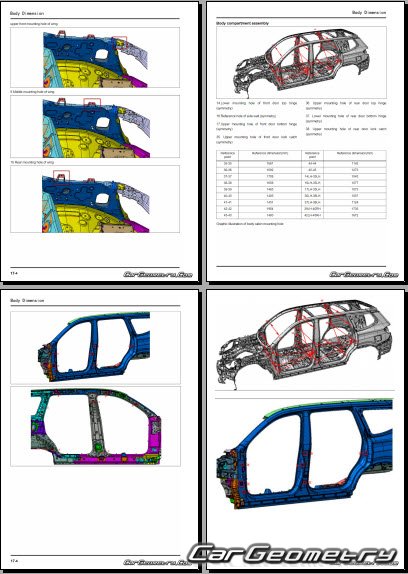

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions MG Gloster 2020–2026

Price: $30
