Body dimensions for restoring the body geometry of Maxus EV80 2019-2026. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. In various markets, the car is sold as SAIC Maxus EV80 and LDV EV80 since 2019.

The Maxus EV80 is a fully electric 3.5-tonne van designed for urban freight transport, featuring a 92 kW (125 hp) engine and a 56 kWh LFP battery. It offers a range of up to 190 km (112 mi) according to the WLTP cycle (or 154 km (93 mi) under "normal" load) and can be charged using either AC (up to 7.2 kW) or a fast-charging station (DC).

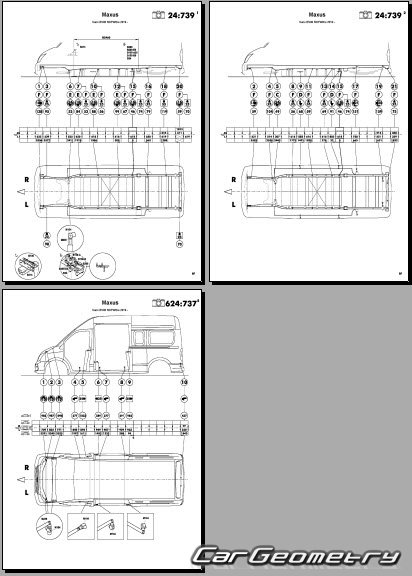

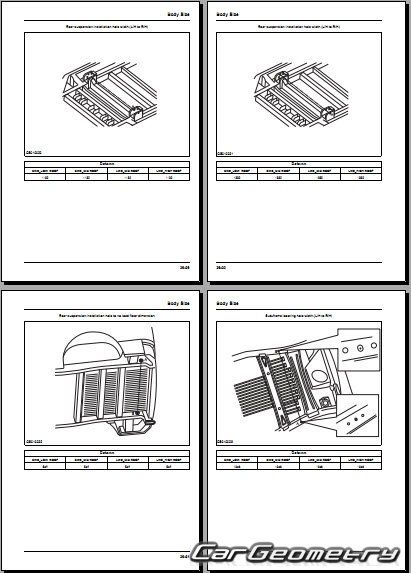

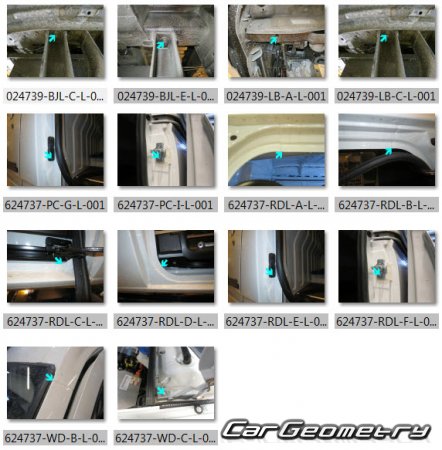

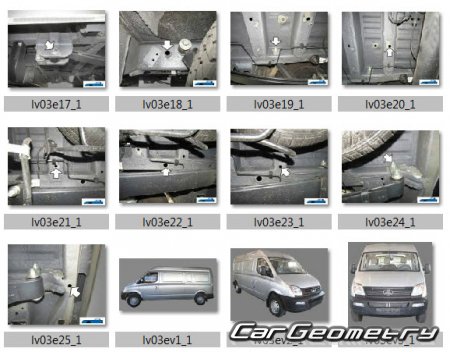

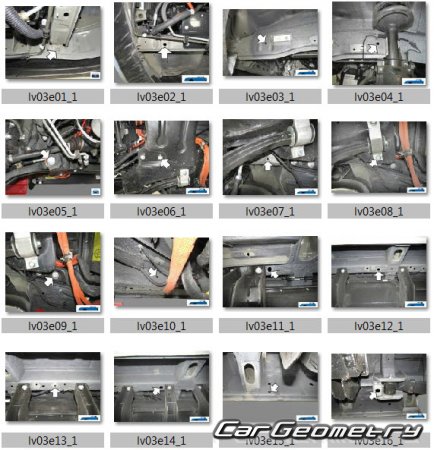

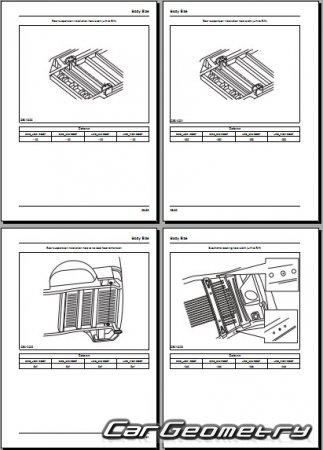

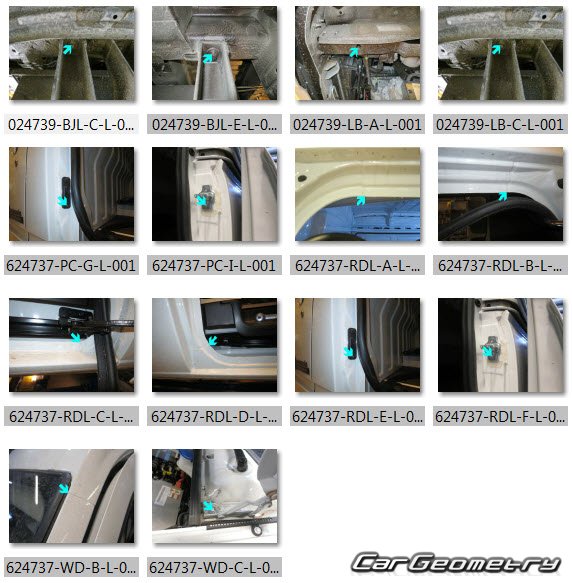

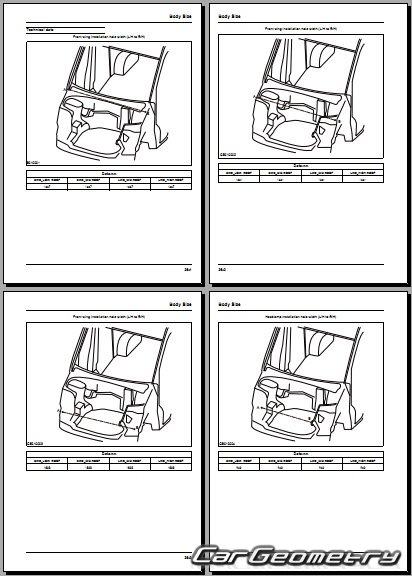

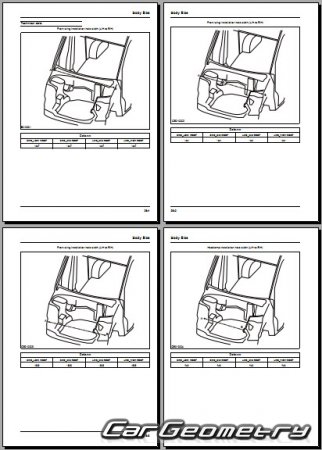

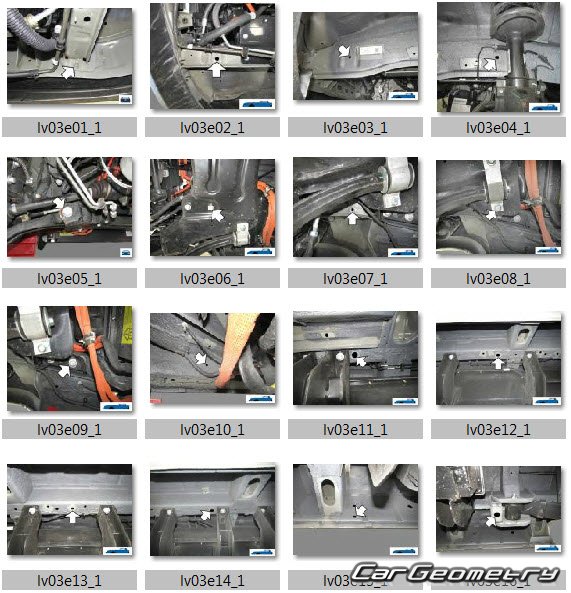

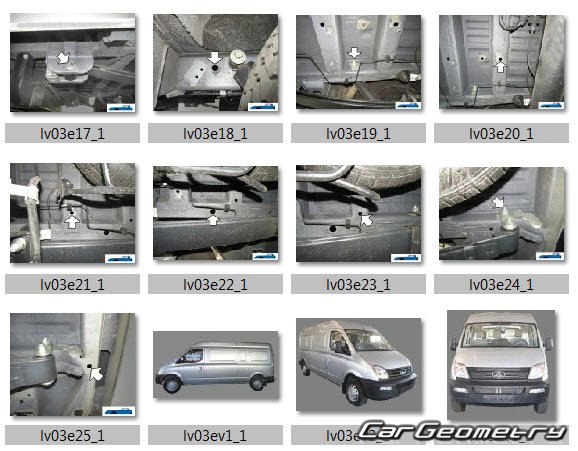

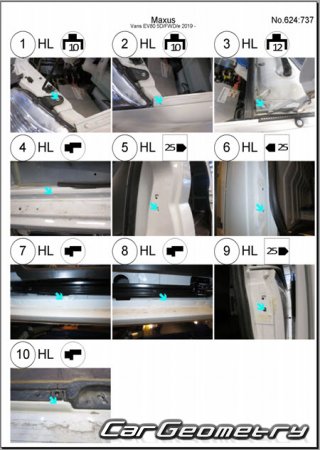

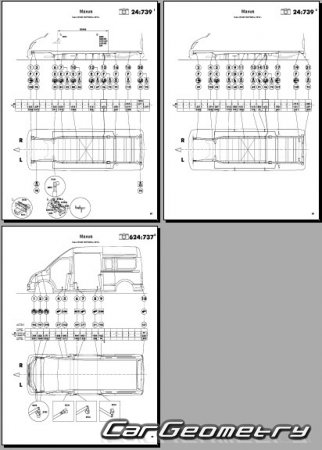

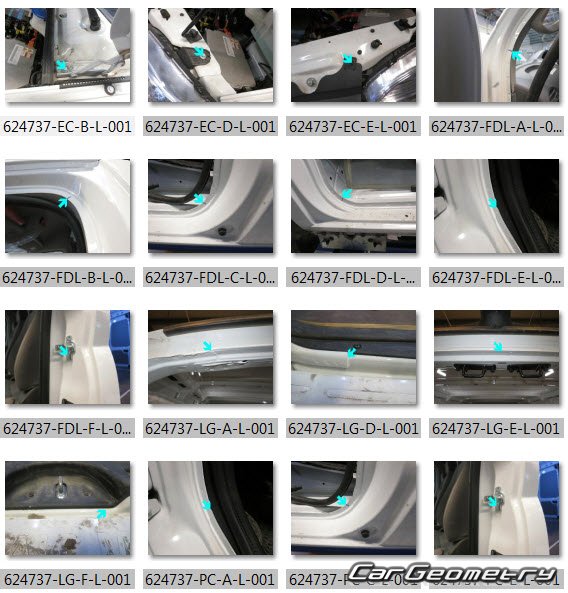

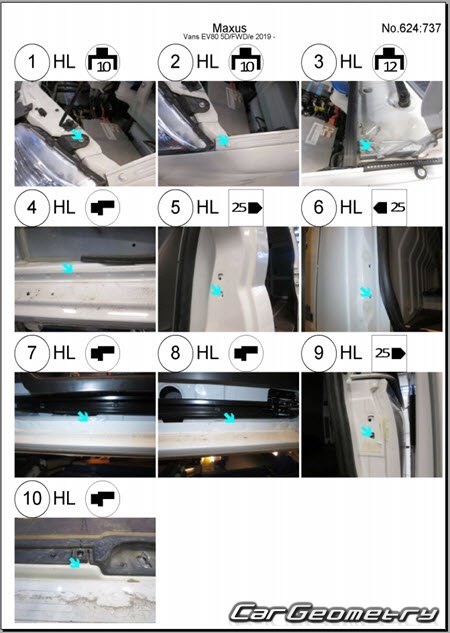

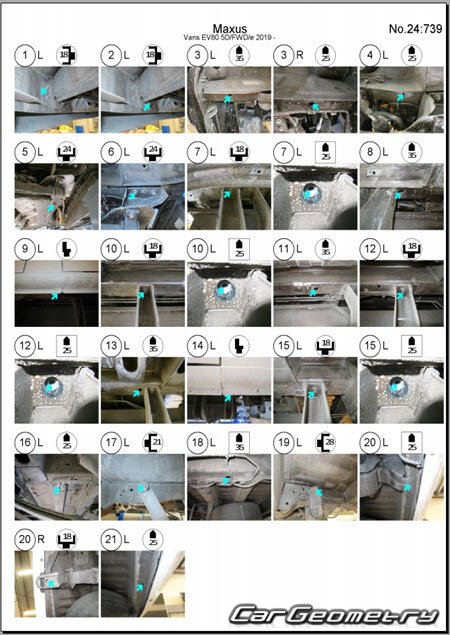

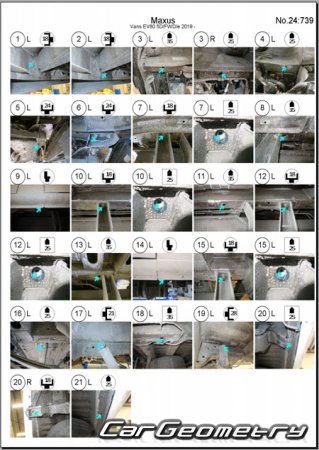

Data from factory documentation for Maxus EV80 2019-2026: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

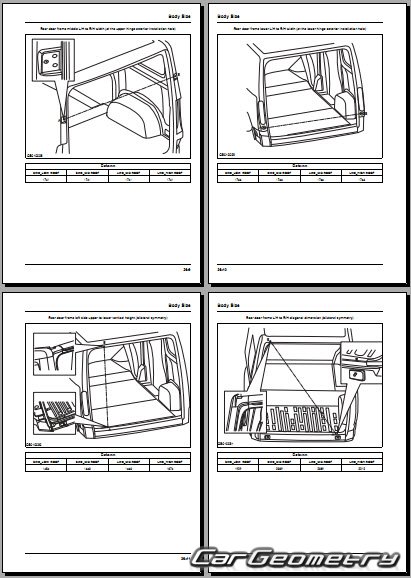

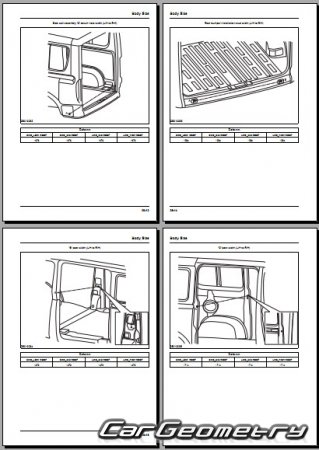

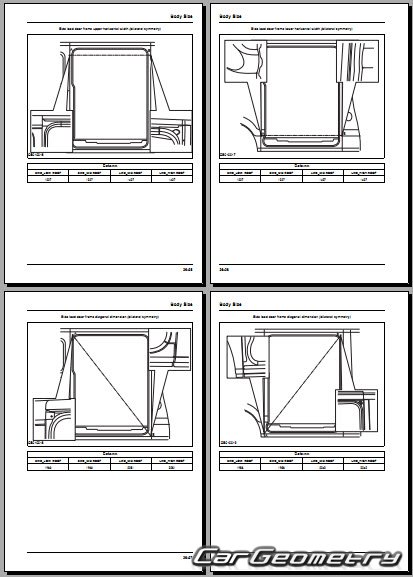

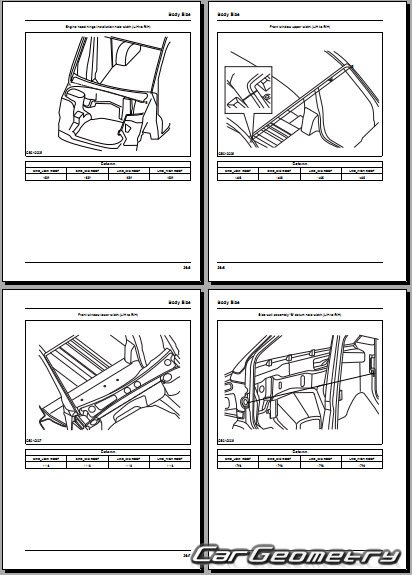

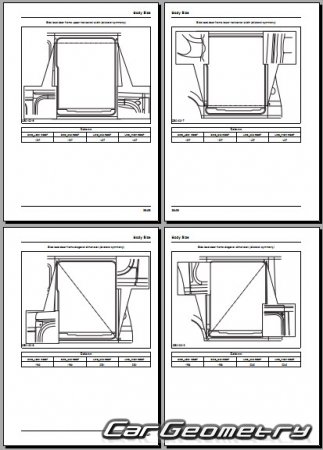

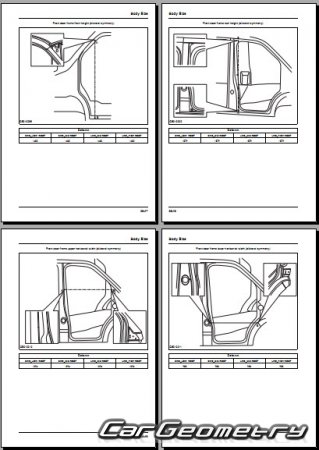

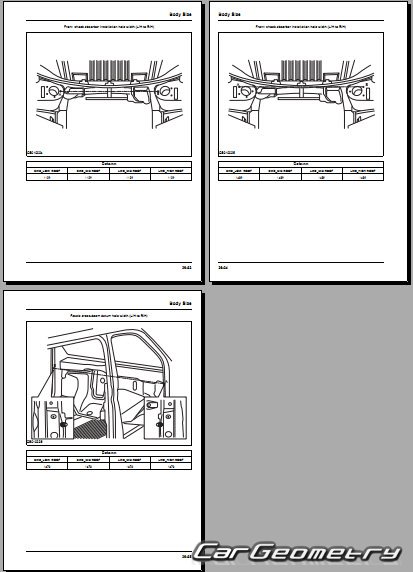

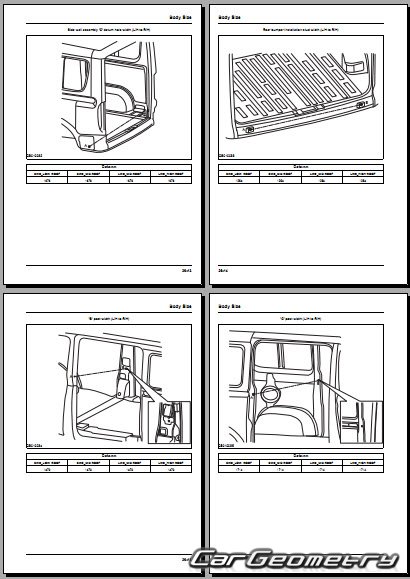

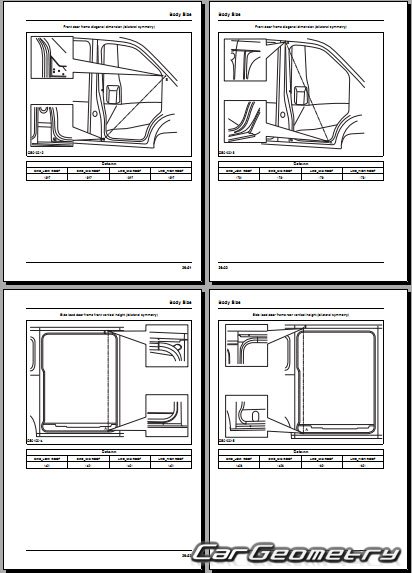

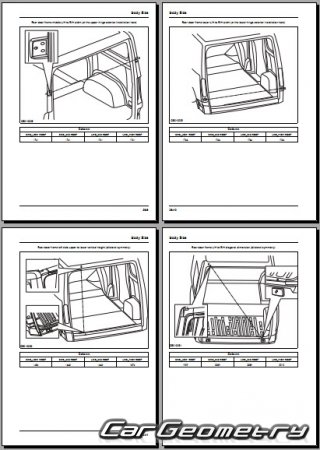

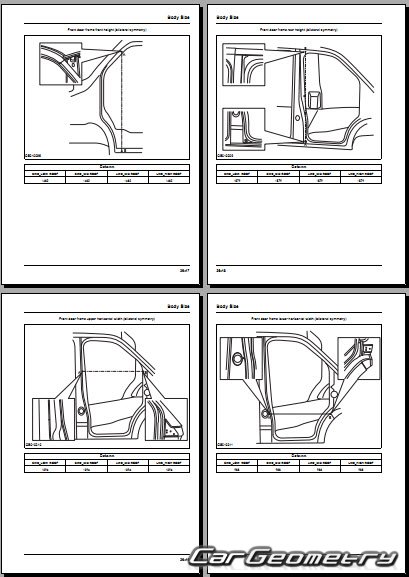

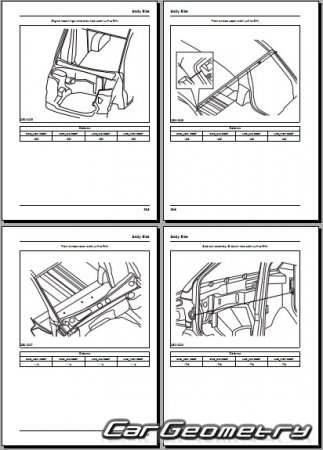

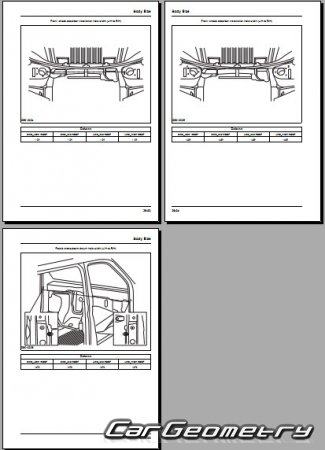

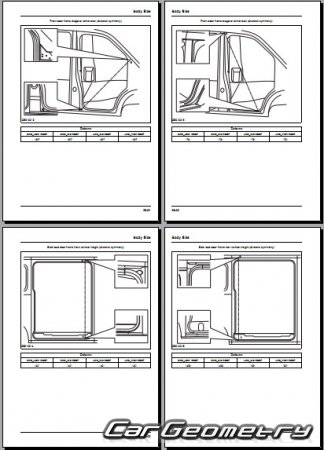

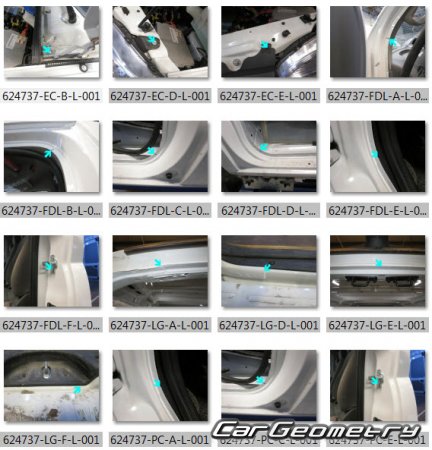

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Maxus EV80 2019-2026

Price: $36
