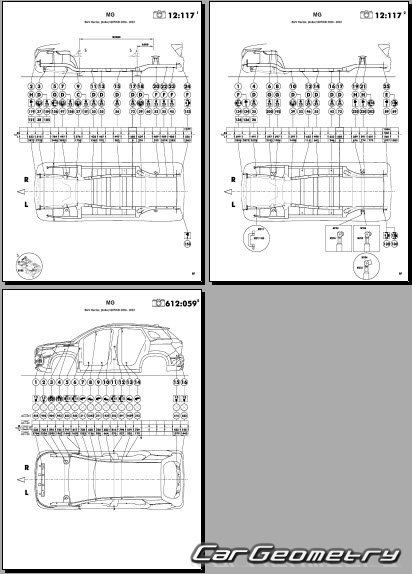

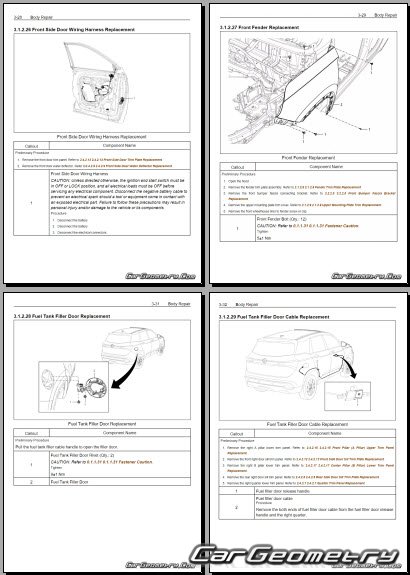

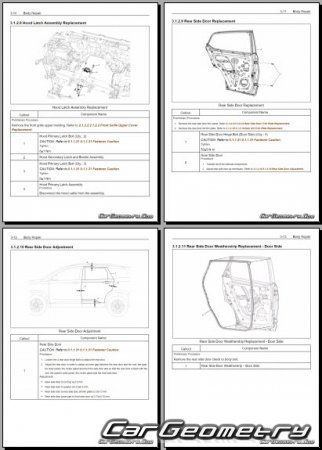

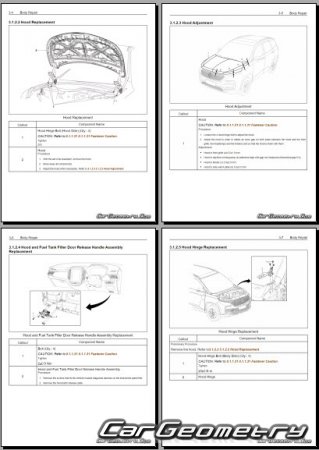

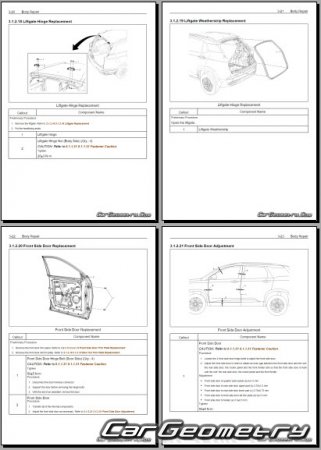

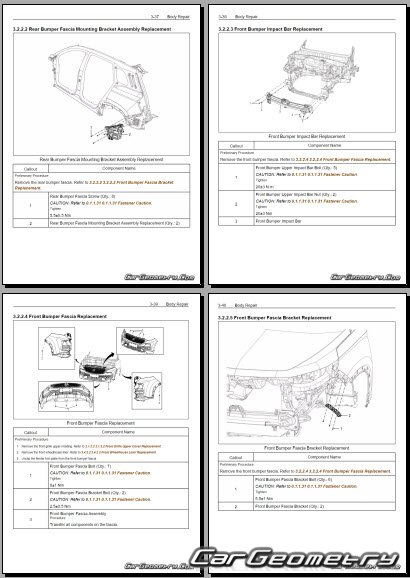

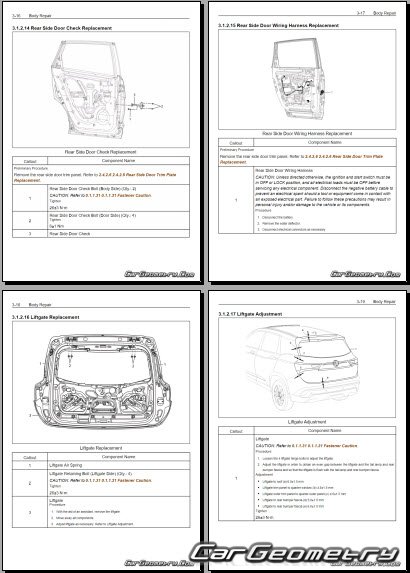

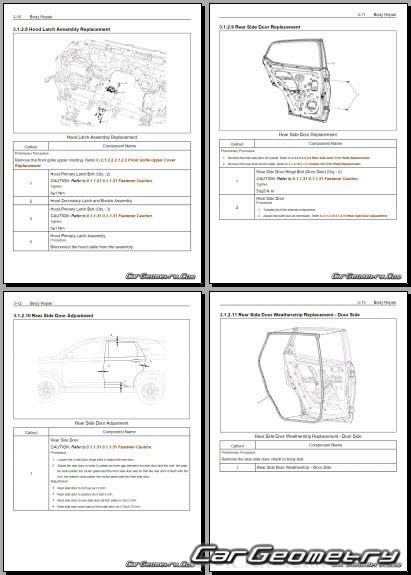

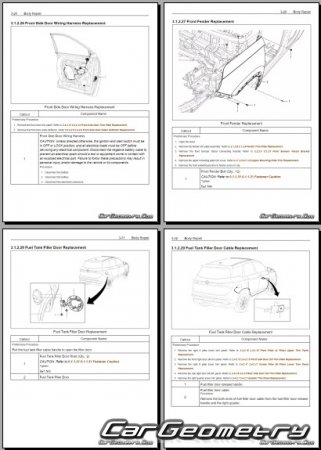

The factory manual provides the body dimensions for the MG Hector 2020-2023, including descriptions of replacement procedures for various body components and the body dimensions and control points for the MG Hector body geometry. The MG Hector model is a global SAIC-GM Wuling platform, sold under different brands with minimal changes: Baojun 530 (China), Wuling Almaz (Indonesia), Chevrolet Captiva (South America, Thailand), MG Hector (India).

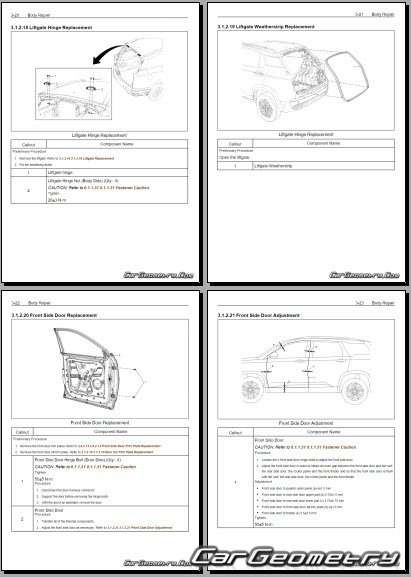

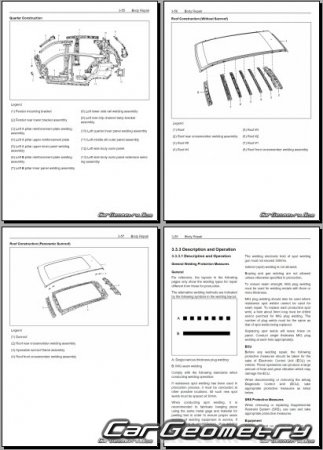

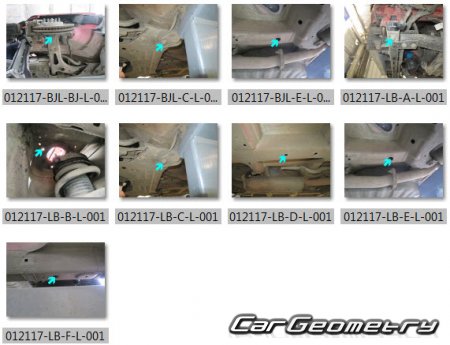

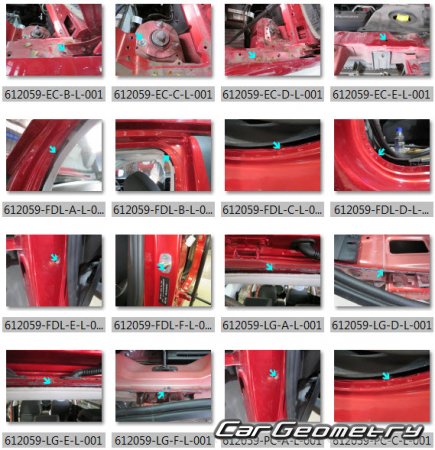

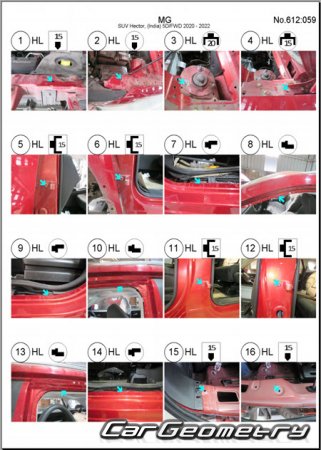

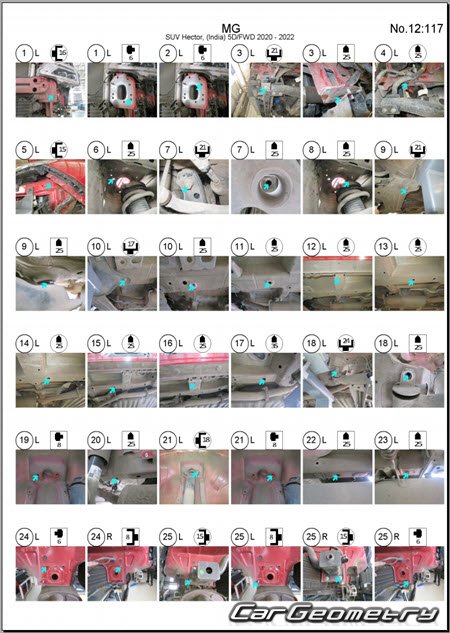

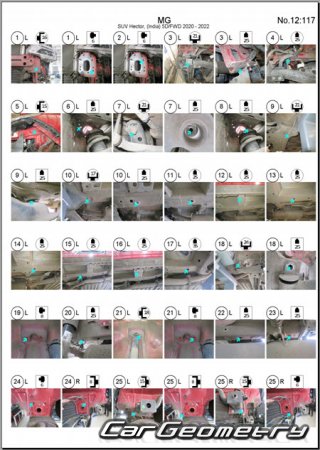

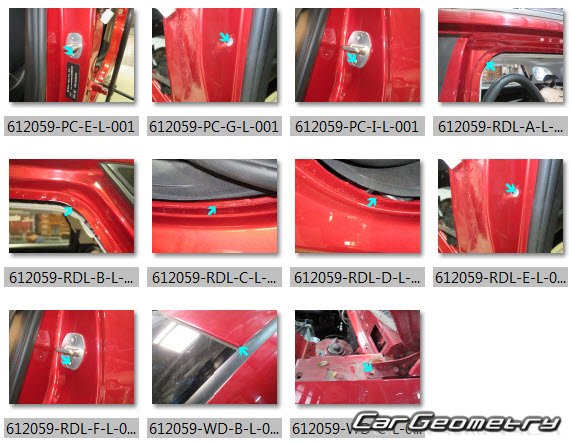

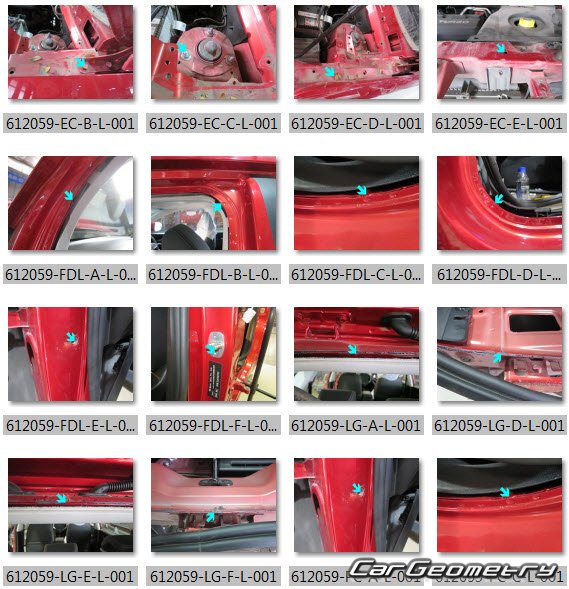

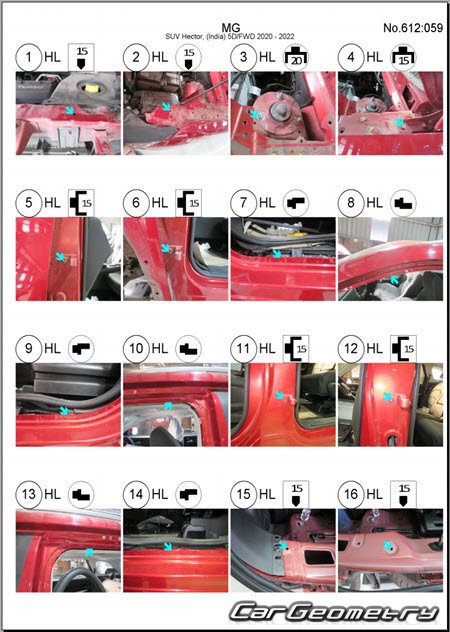

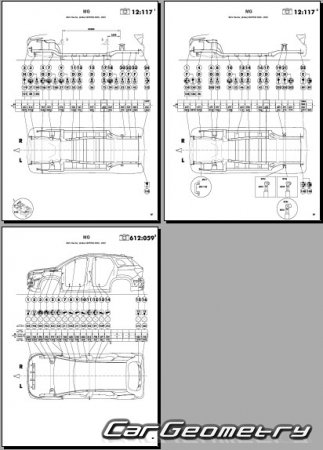

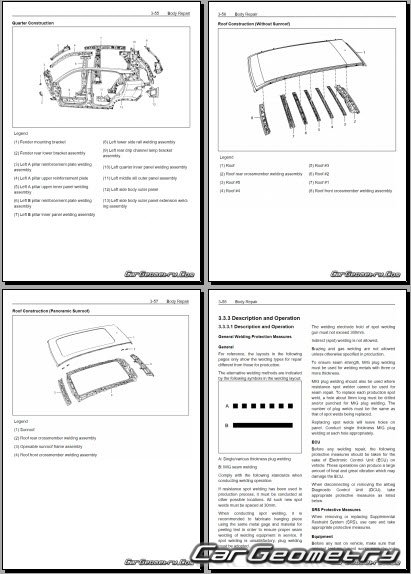

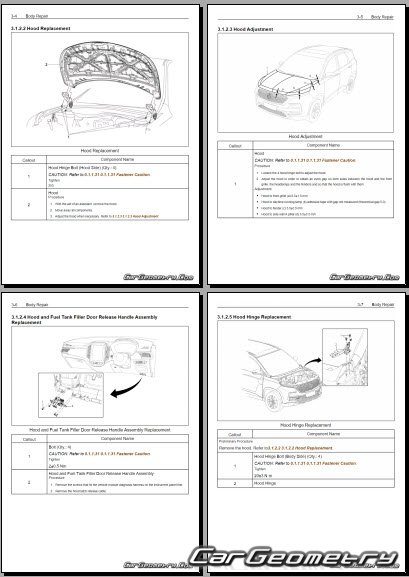

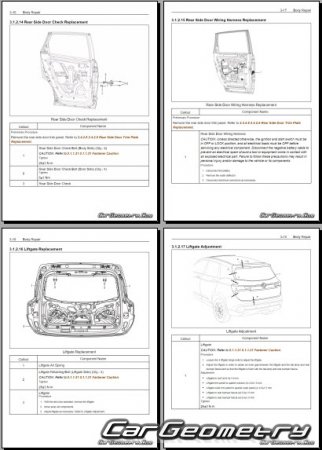

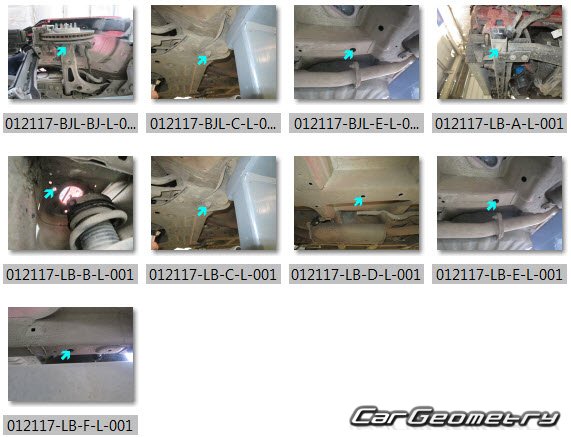

The information included in the manual consists of body dimensions, control points, sectional images of body elements, applicable materials, recommendations for welding types, methods, and materials, locations and materials for applying seals, sound insulation, and anti-corrosion sealants, areas and directions for cutting body elements for subsequent installation of new parts, interior material types, and decoding of markings.

MG Hector 2020-2023 Collision Repair Manual is available in English and contains a wealth of useful and necessary information for individuals involved in self-performed body repairs and for owners of body repair companies working on MG Hector vehicles.

Download Factory manual for body repair and body dimensions
MG Hector 2020-2023

Price: $30
