Nissan X-Trail e-POWER (T33) 2023-2027 Body Repair Manual

The factory manual contains body dimensions for the Nissan X-Trail e-POWER (T33) 2023-2027 Body Repair Manual, including descriptions for replacing various body elements of the T33, as well as body dimensions and control points for the body geometry of the Nissan X-Trail.

The provided information includes body dimensions, control points, sectional images of body elements, materials used, recommendations for applicable welding types, methods, materials, and locations, areas and materials for applying seam sealants, soundproofing, and anti-corrosion coatings, cutting areas and directions for installing new body elements, interior material types, and their designations and decoding.

Nissan X-Trail e-POWER (T33) 2023-2027 Body Repair Manual is available in English and contains a vast amount of extremely useful and necessary information for those involved in self-body repairs and for owners of body repair businesses working on Nissan X-Trail e-POWER vehicles.

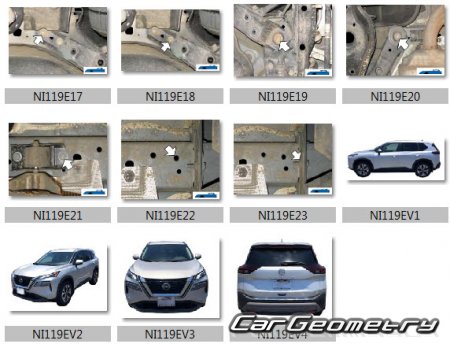

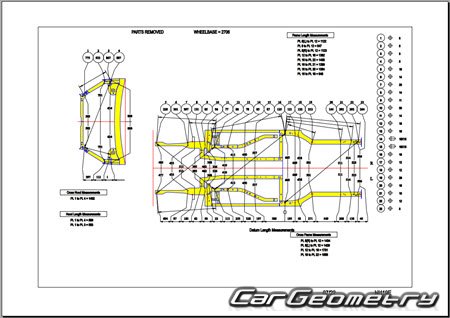

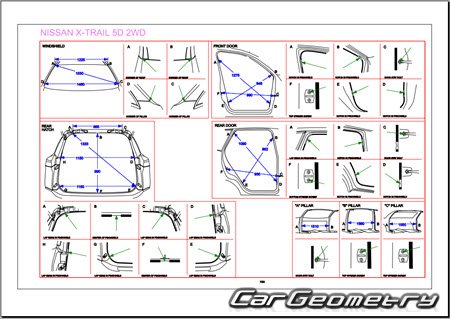

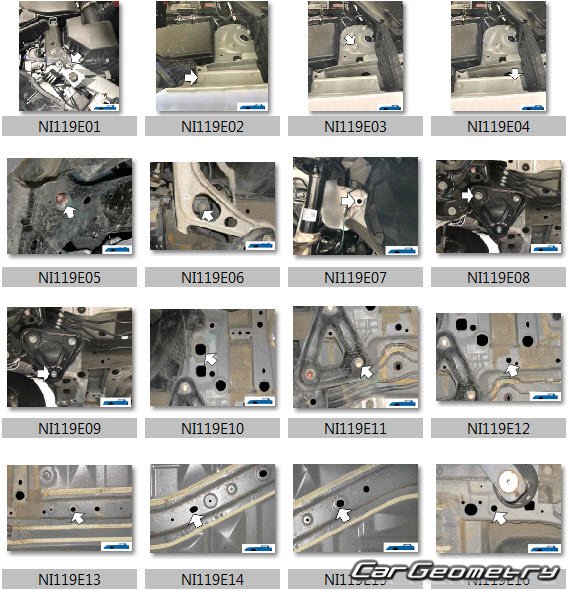

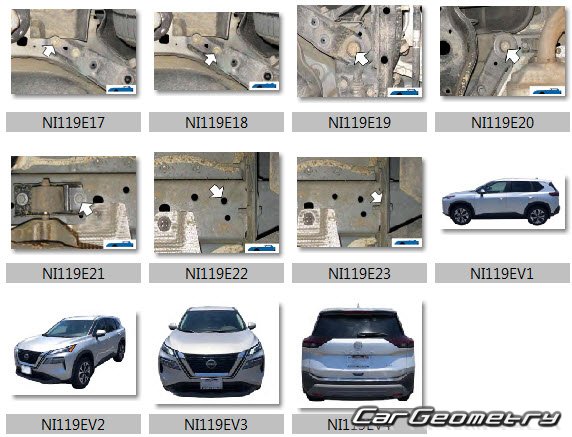

Data sample from the archive
