Body dimensions for restoring the body geometry of Nissan Latio (N17) 2012-2016 vehicles are available in the factory documentation. These dimensions are crucial for conducting a thorough body geometry check and subsequent straightening of damaged parts for the Nissan Latio with right-hand drive, specifically designed for the Japanese market.

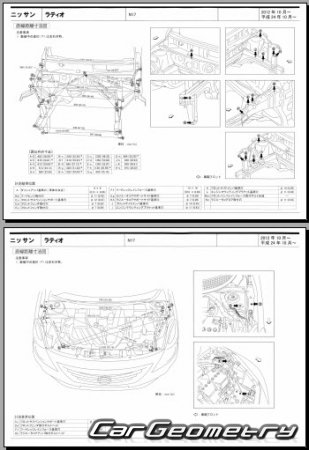

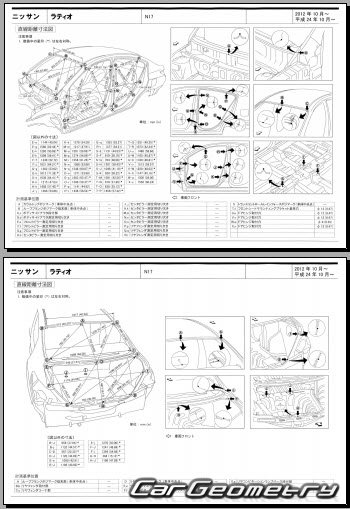

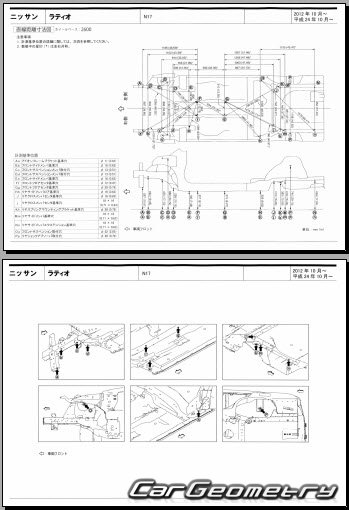

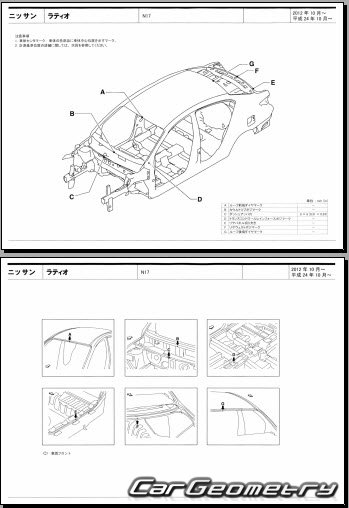

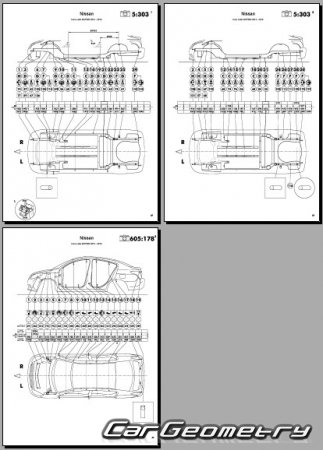

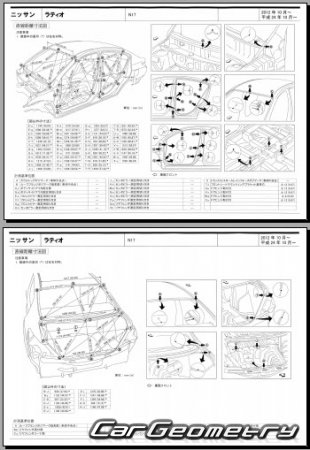

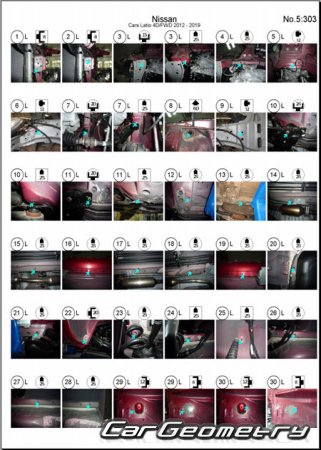

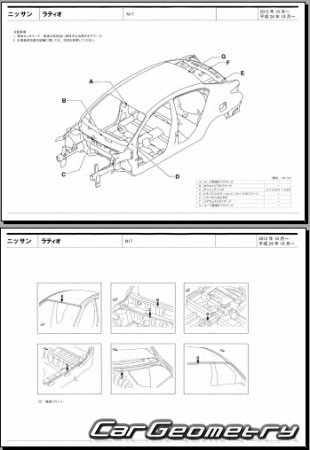

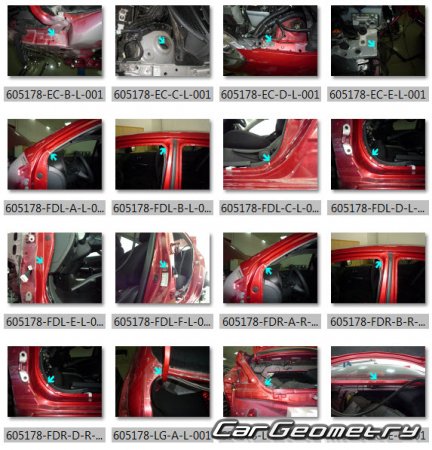

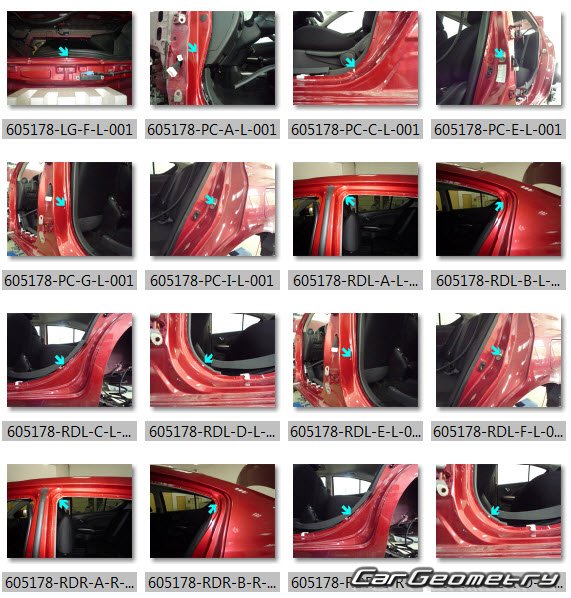

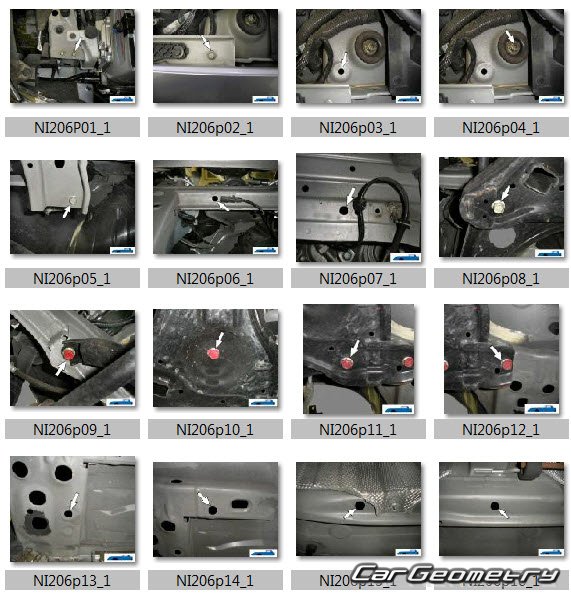

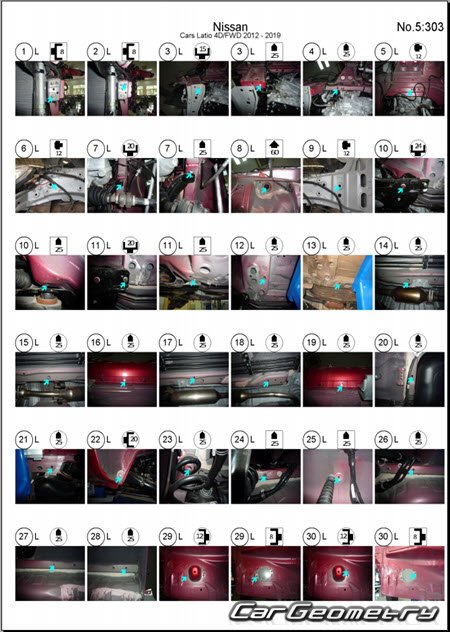

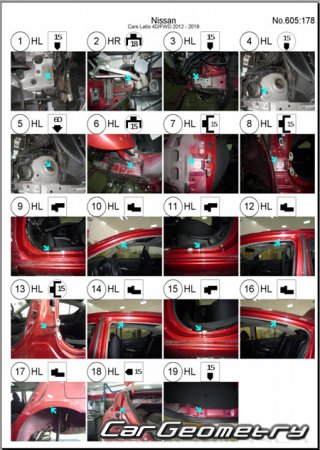

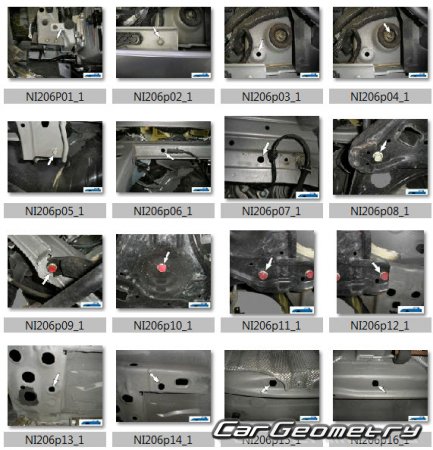

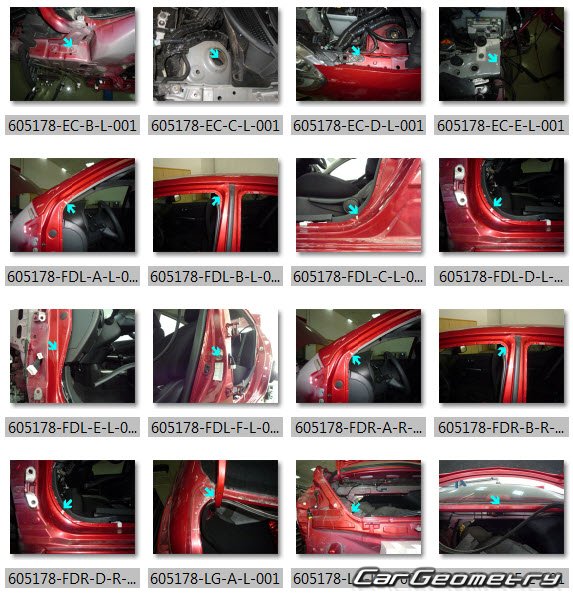

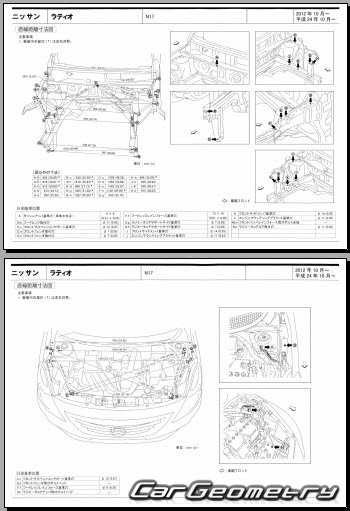

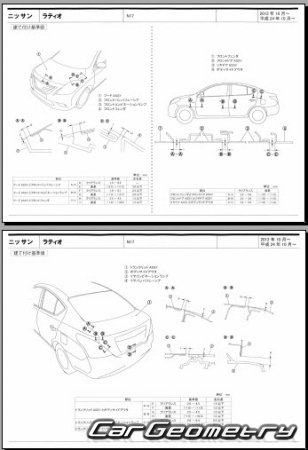

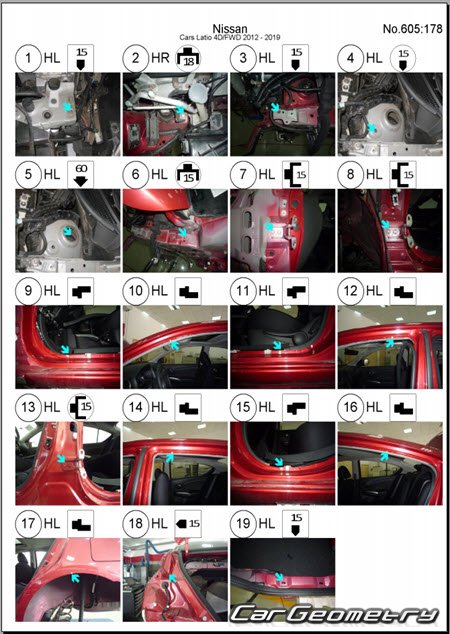

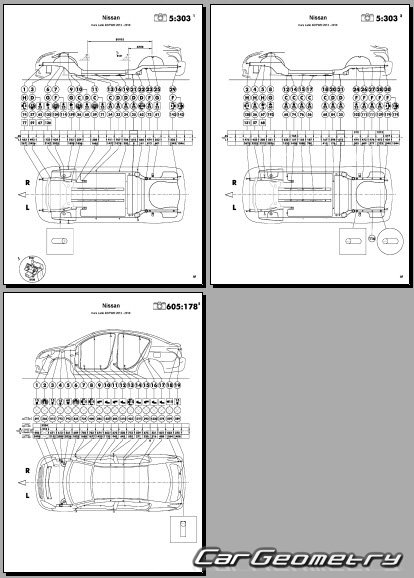

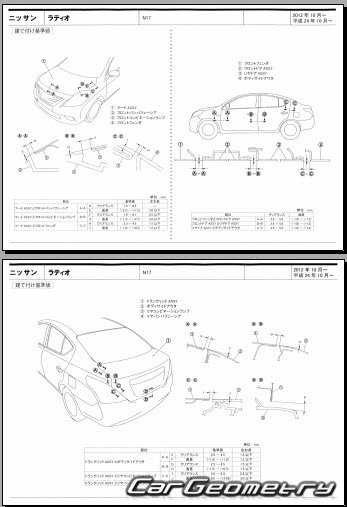

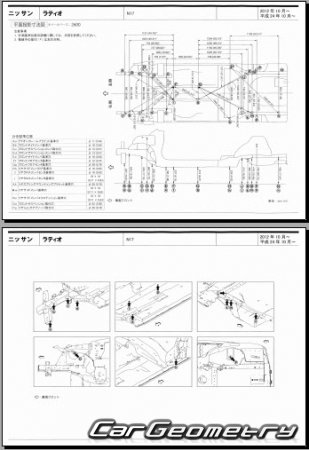

Selection from factory documentation (Japanese) for Nissan Latio 2012-2016: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

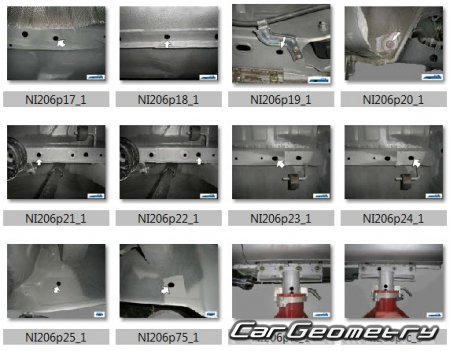

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions
Nissan Latio (N17) 2012-2016 (RH Japanese market)

Price: $36
