Nissan Armada & Patrol (Y63) 2024-2030 Body Repair Manual

The Body Repair Manual for Nissan Armada & Patrol (Y63) 2024-2030 provides detailed information and instructions for repairing and restoring the body of the vehicle. It includes comprehensive body dimensions, control points, and geometric specifications specific to the Nissan Armada model from 2024 to 2030. In the Middle East, Australia and other regions, the car is sold as the Nissan Patrol Y63.

This manual is a valuable resource for body repair technicians and owners involved in the repair process. It covers a wide range of topics, including the replacement of various body components, recommended welding methods and materials, application of sealants and corrosion protection, and cutting procedures for the installation of new body parts.

By following the guidance and measurements provided in this manual, technicians can ensure accurate repairs, maintain the vehicle's structural integrity, and restore the Nissan Armada & Patrol (Y63) to its original condition.

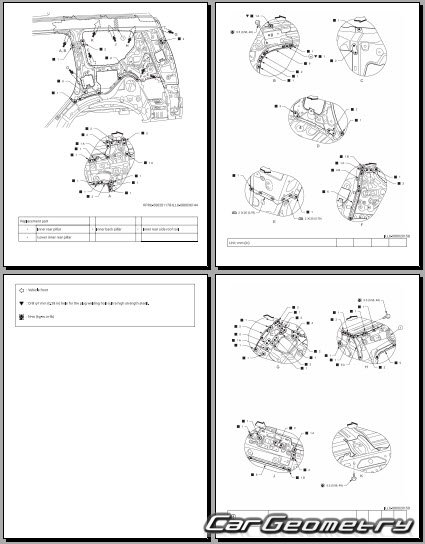

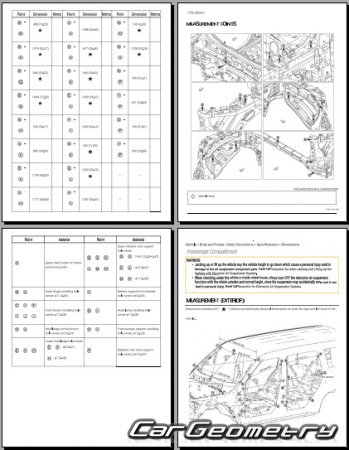

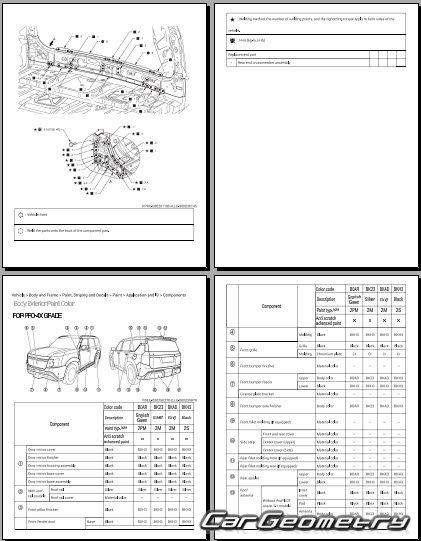

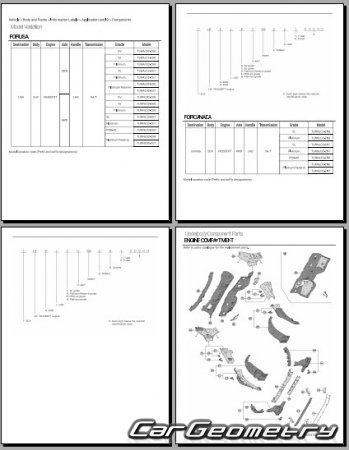

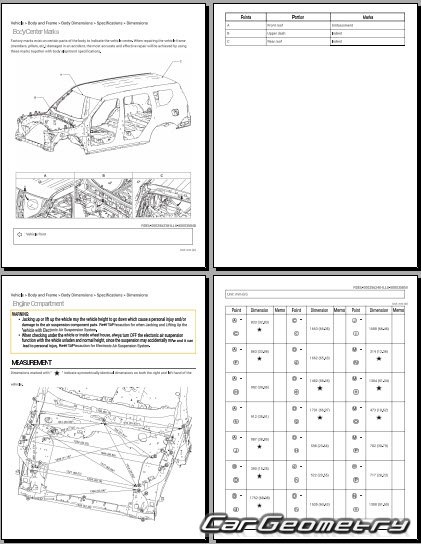

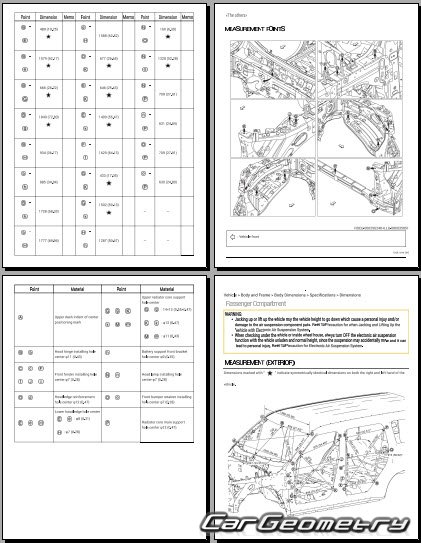

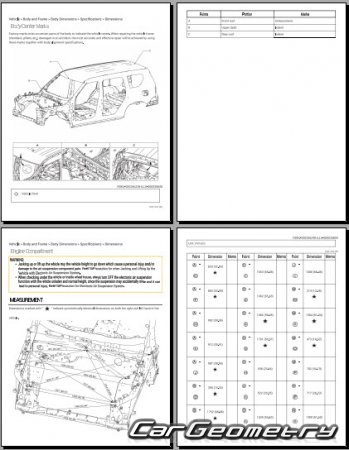

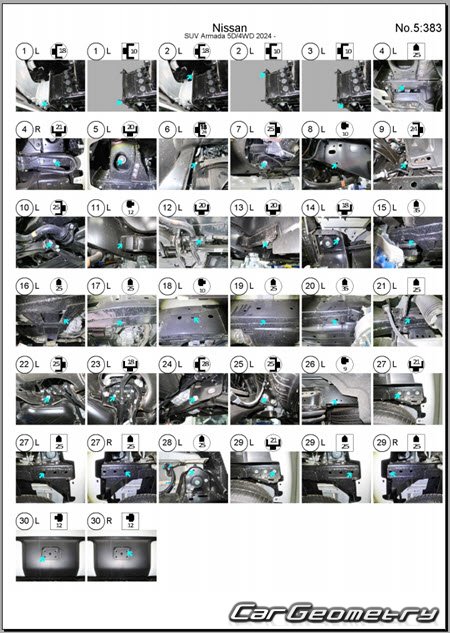

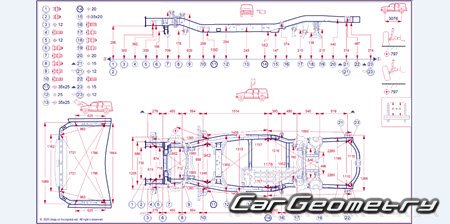

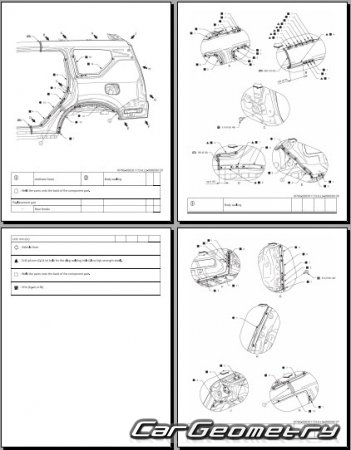

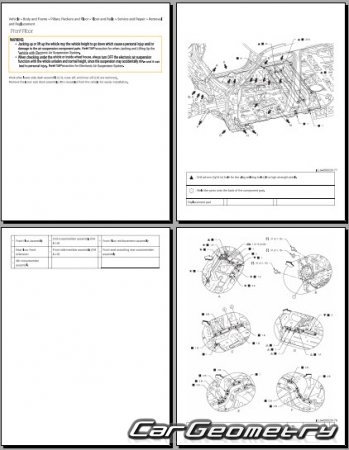

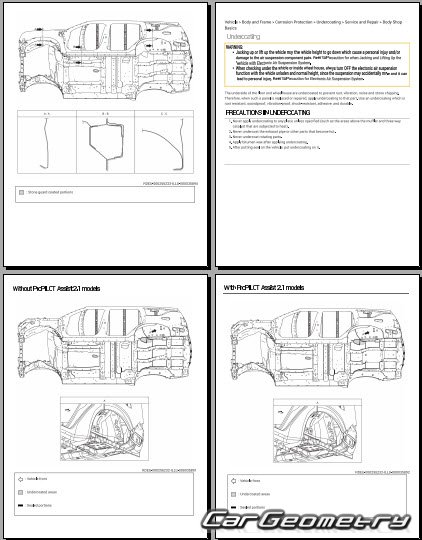

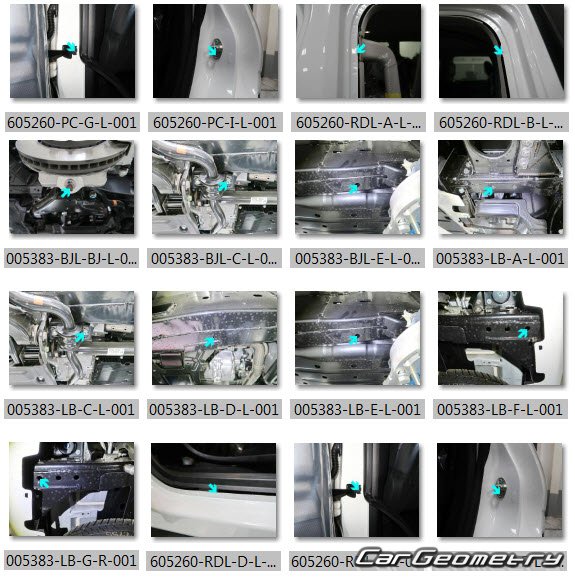

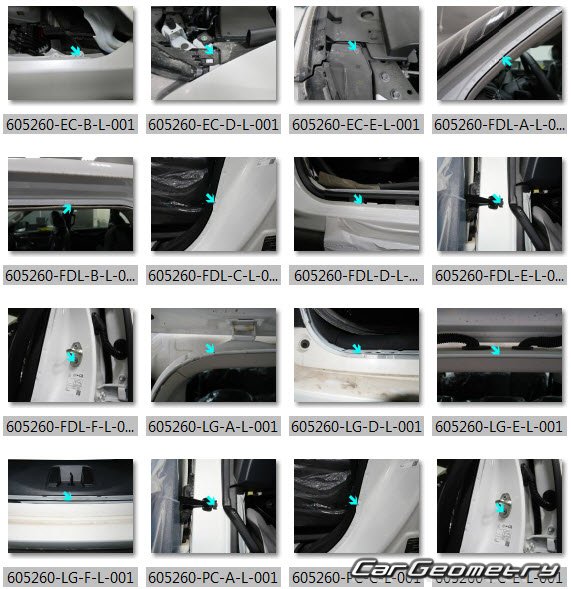

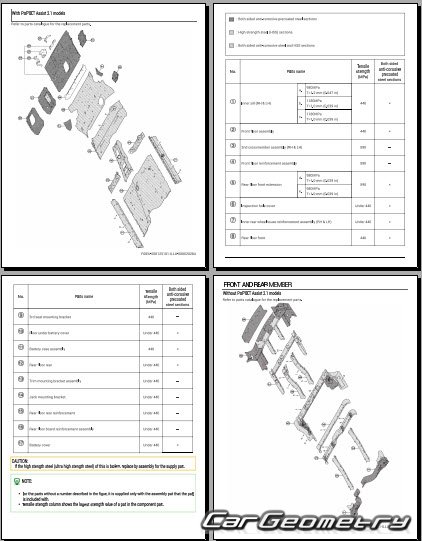

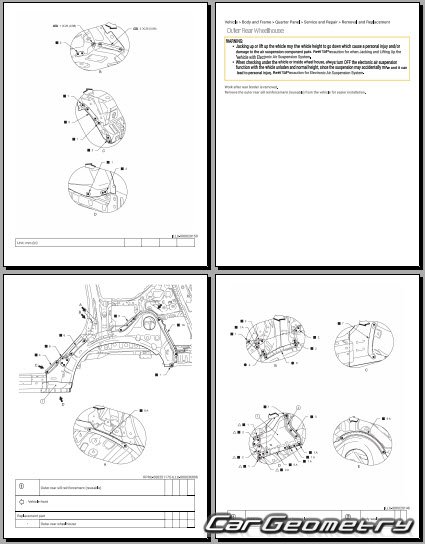

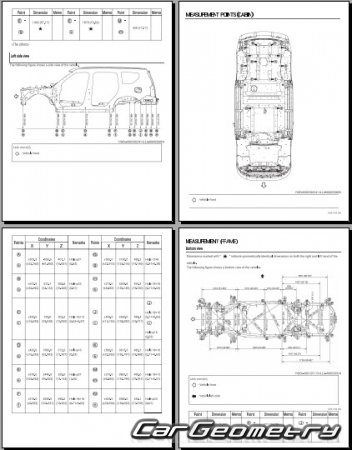

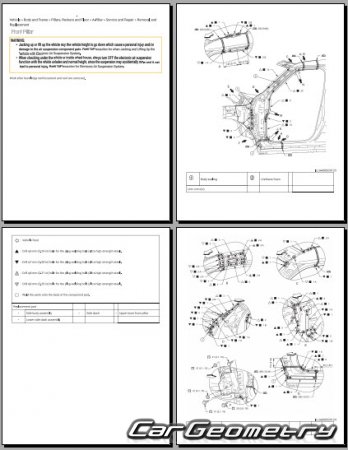

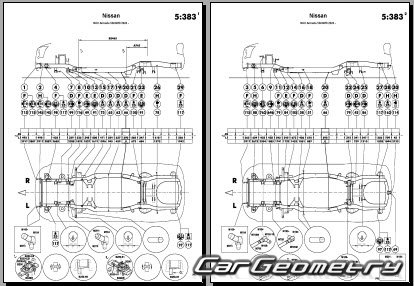

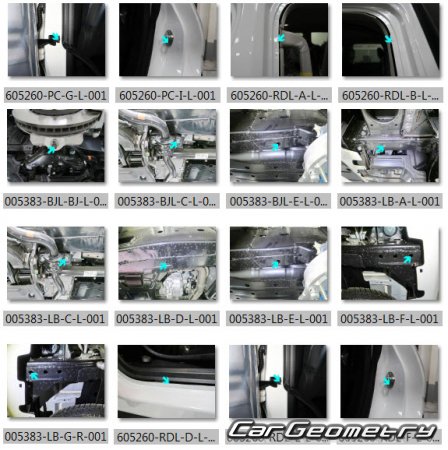

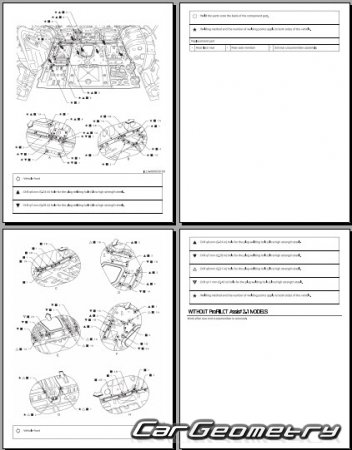

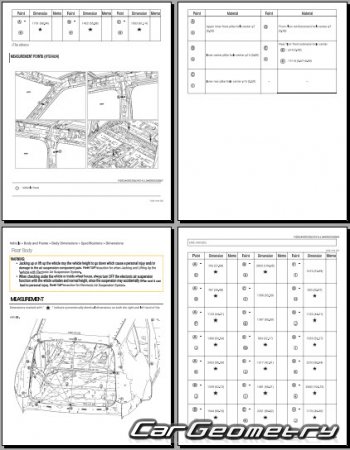

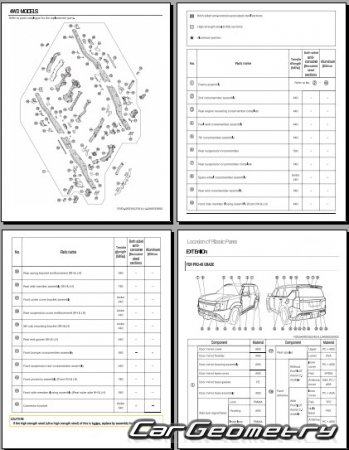

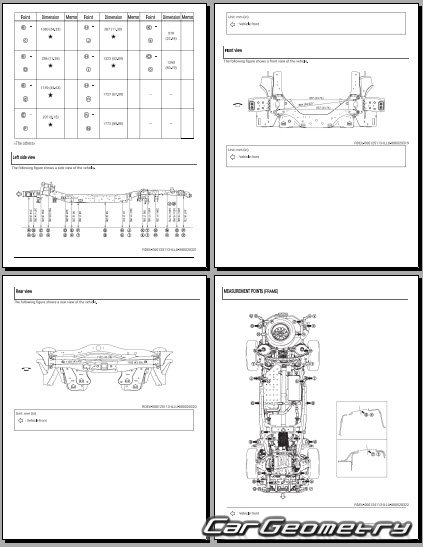

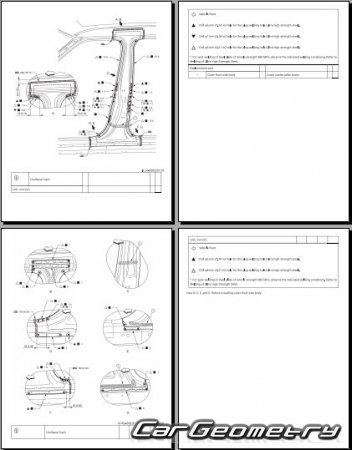

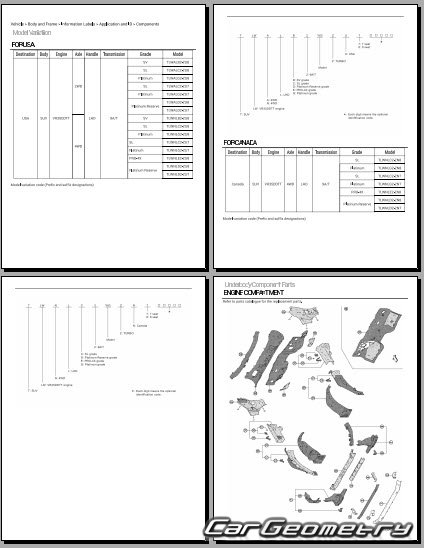

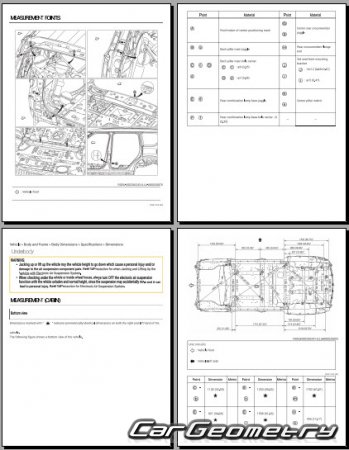

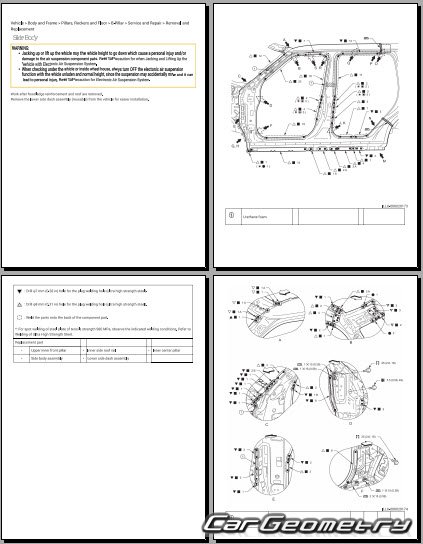

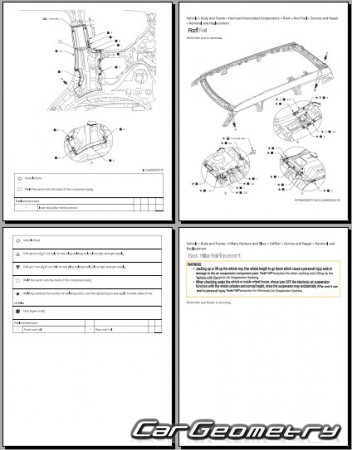

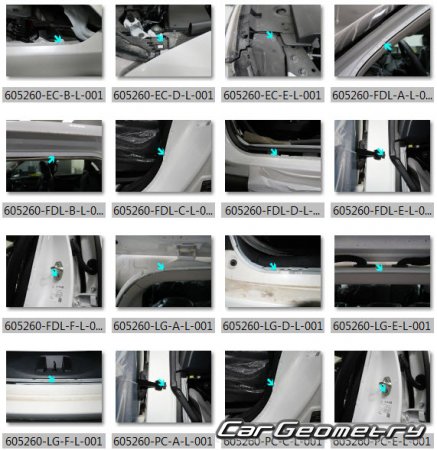

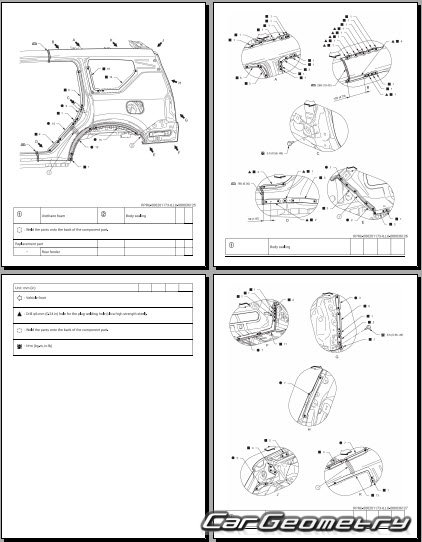

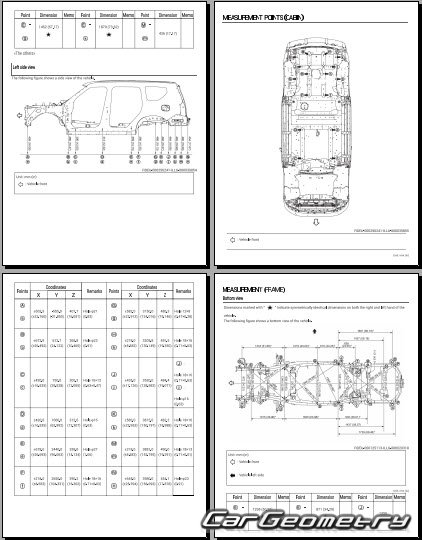

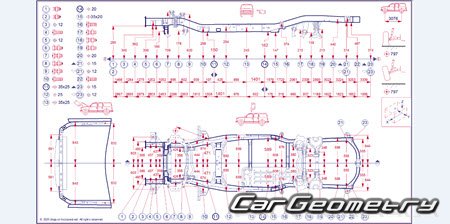

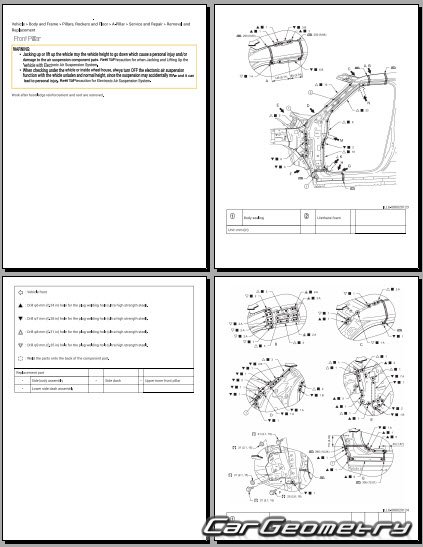

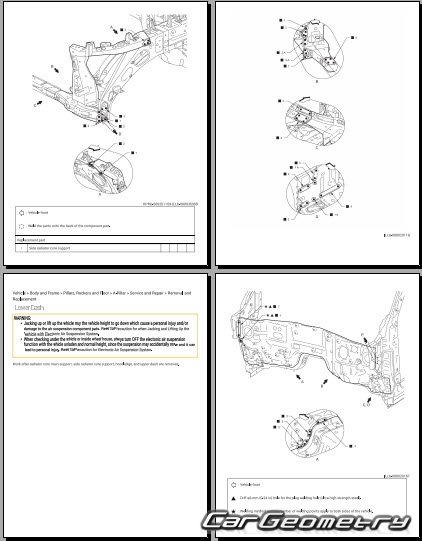

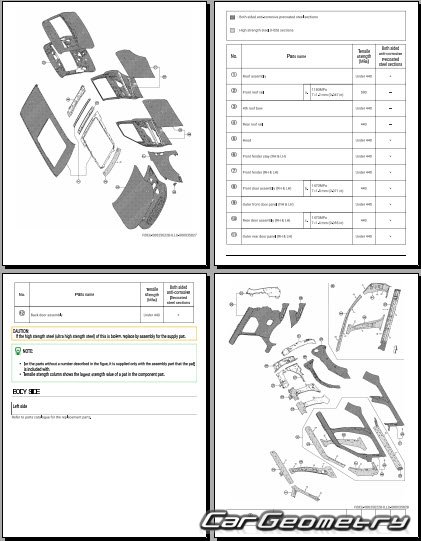

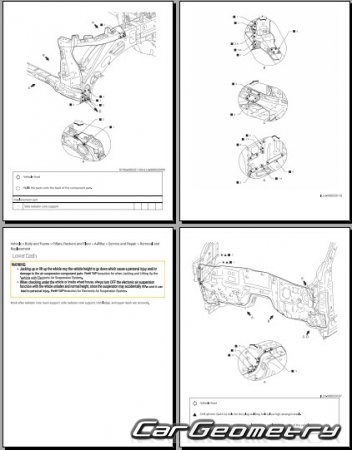

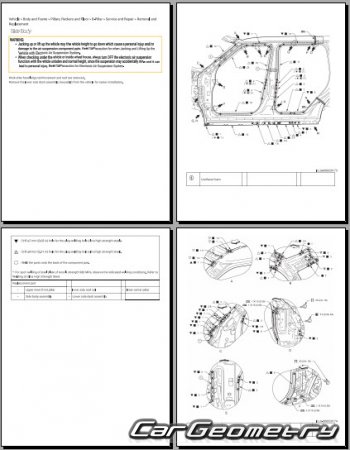

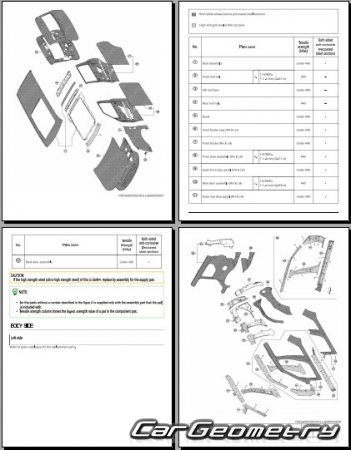

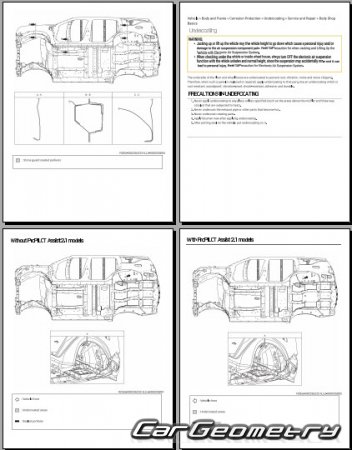

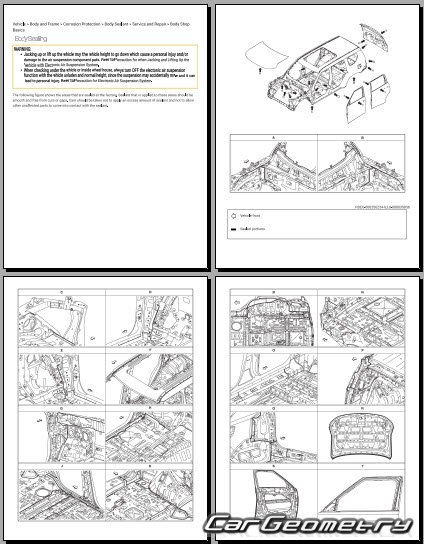

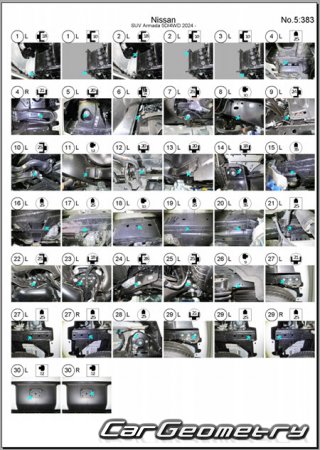

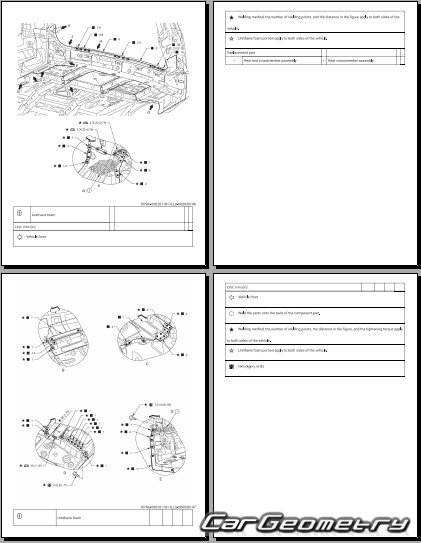

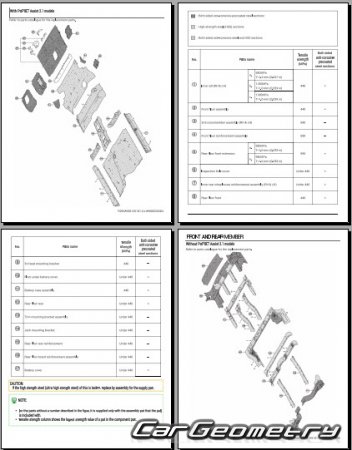

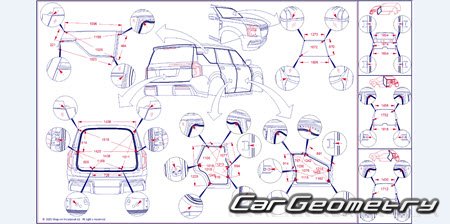

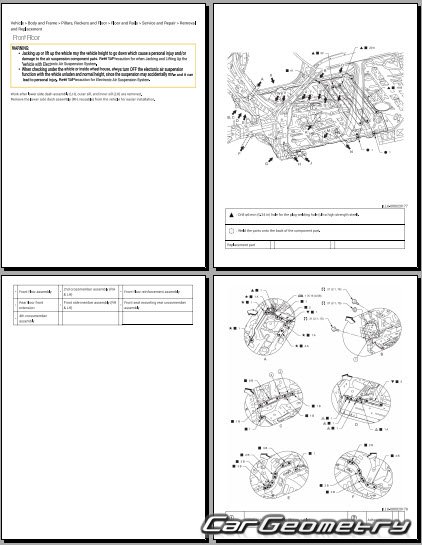

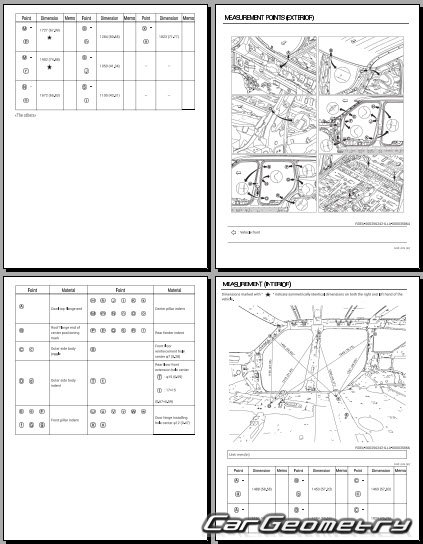

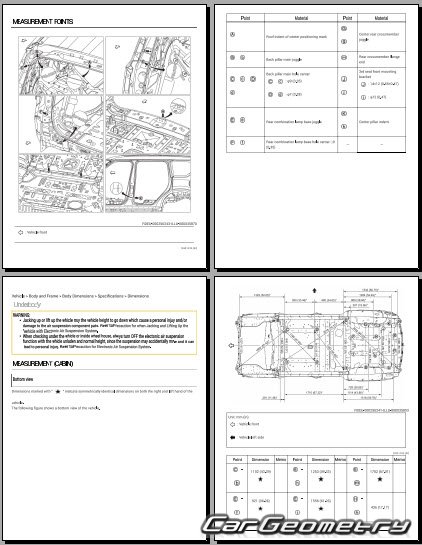

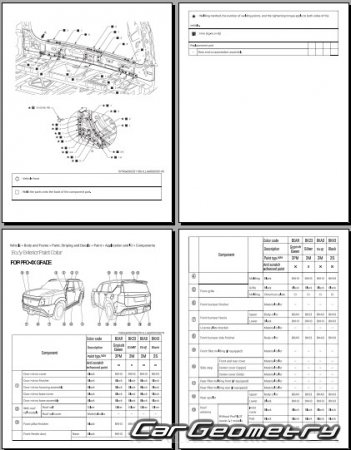

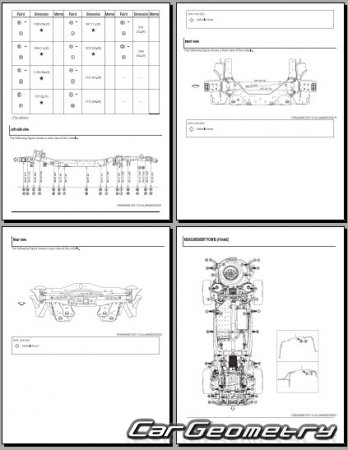

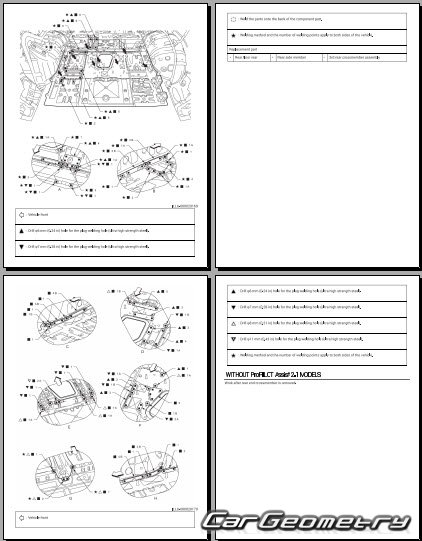

Data sample from the archive
