Body dimensions for restoring the body geometry of Opel Insignia 2008–2015. With the help of this information, you can check the geometry of the damaged body, as well as carry out restoration work on the straightening of cars. This manual can be used to repair the body of the Buick Regal 2011-2015.

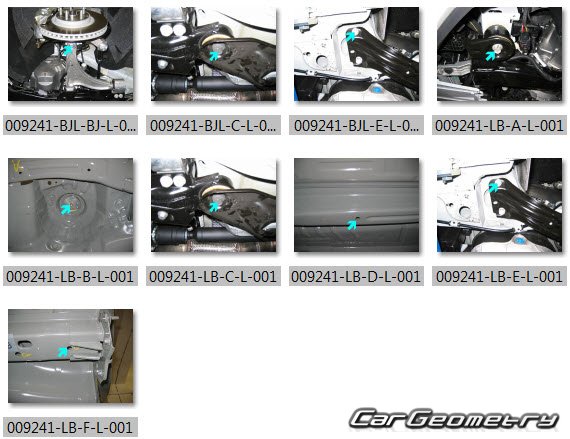

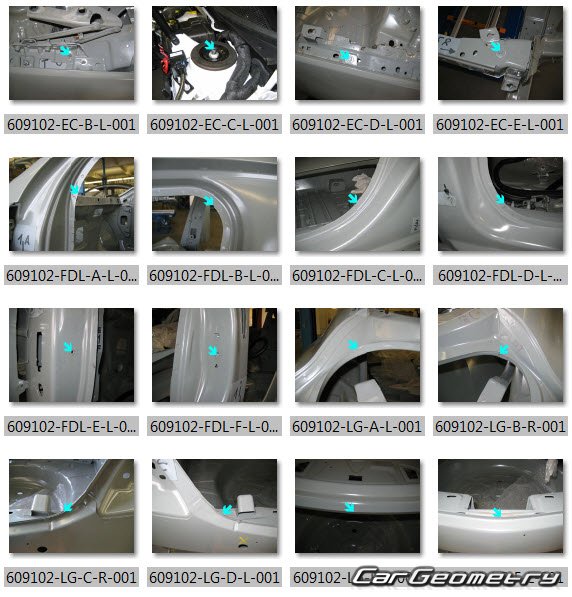

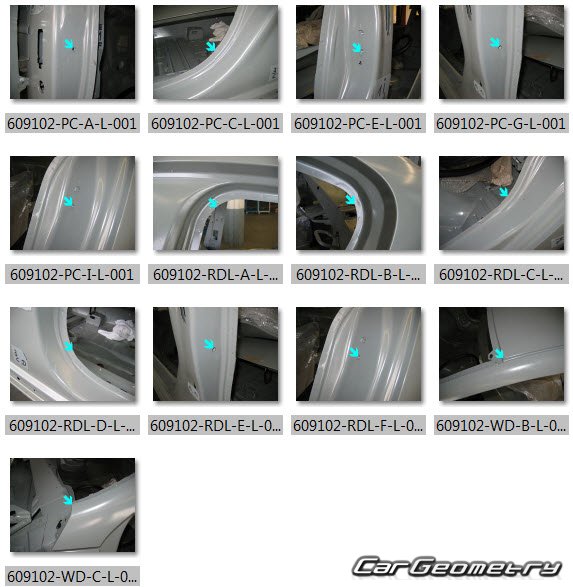

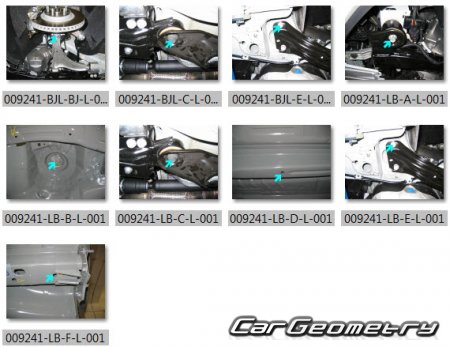

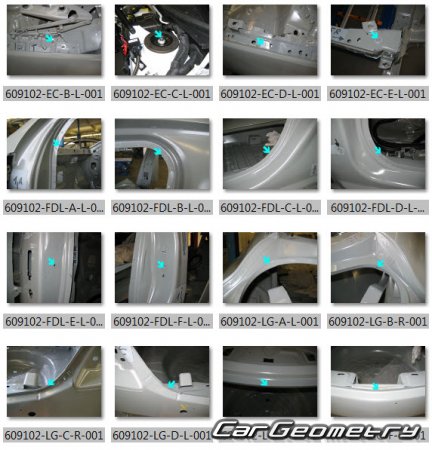

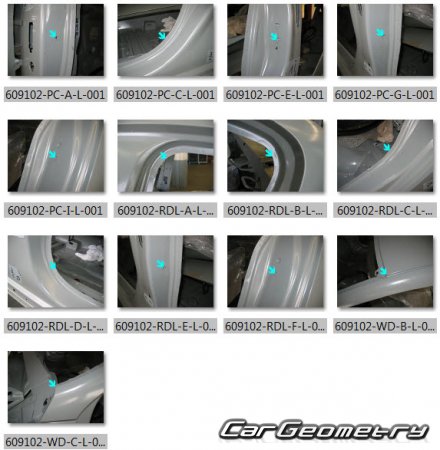

Selection from factory documentation and vehicle measurement database for Opel Insignia 2008–2015 Saloon: body dimensions and geometry measurement points (chassis diagrams, upper body datasheet, underbody datasheet).

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions Opel Insignia 2008–2015 Saloon

Price: $30
