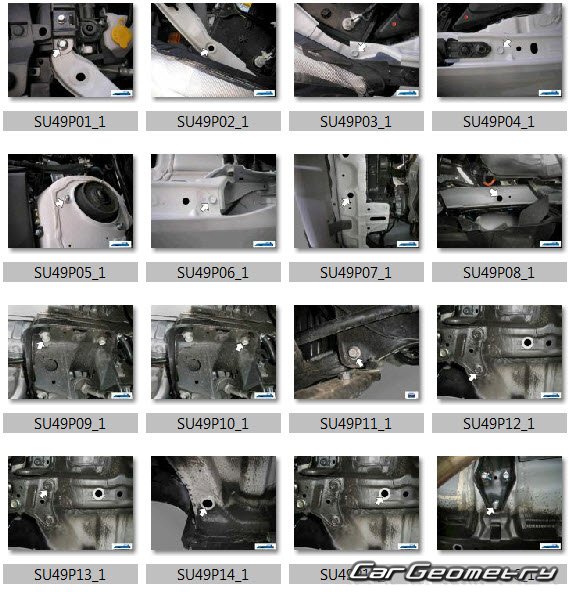

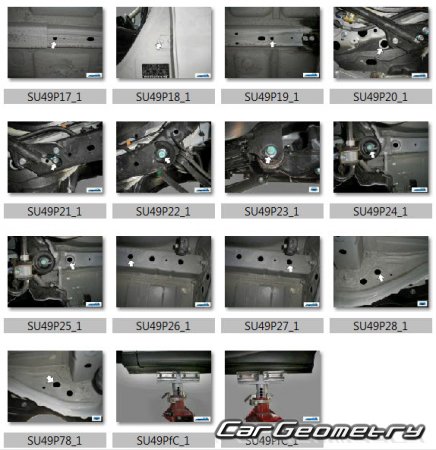

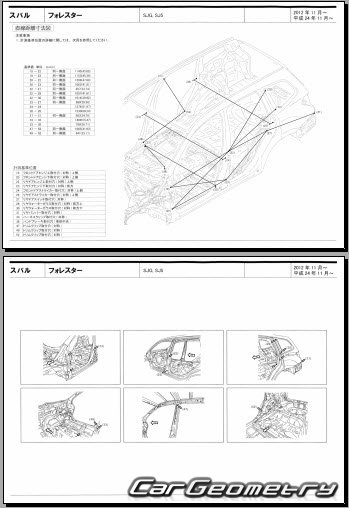

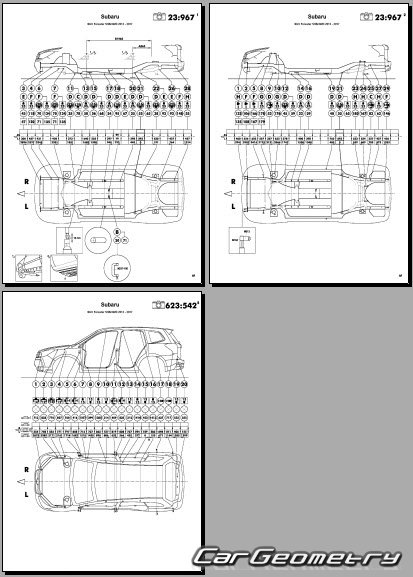

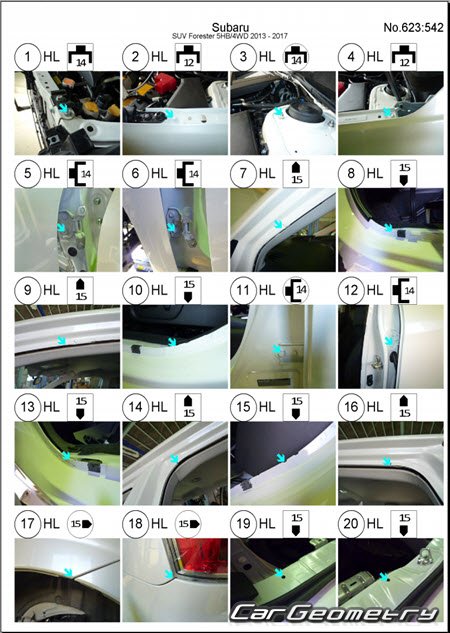

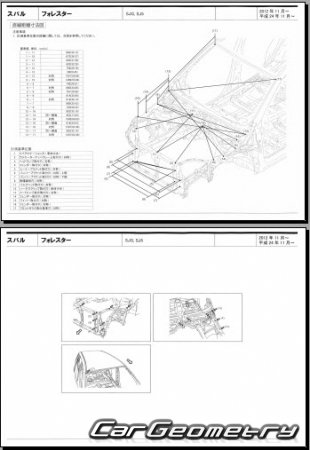

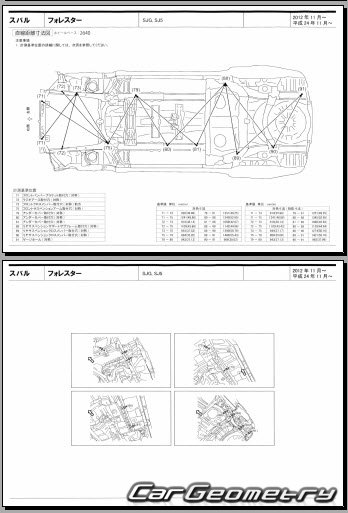

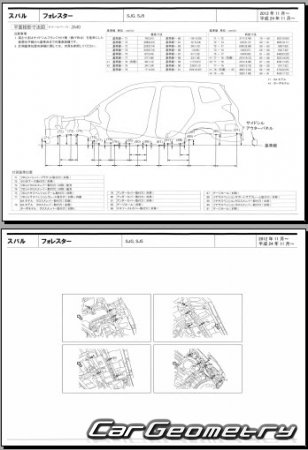

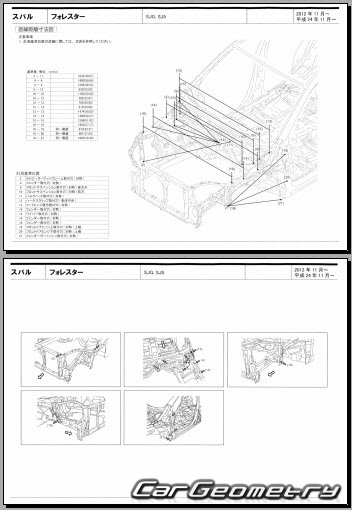

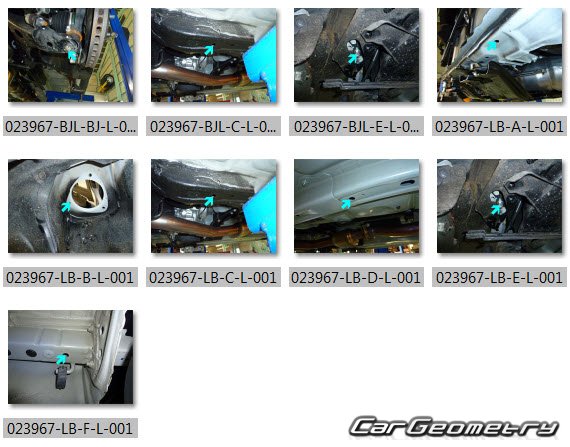

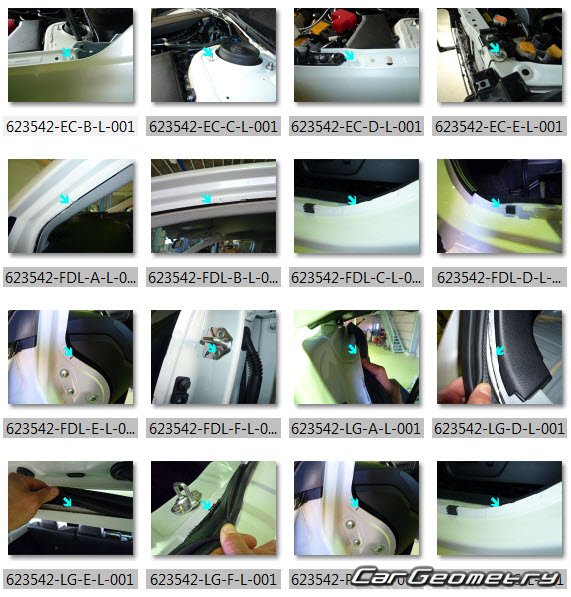

Body dimensions for restoring the body geometry of Subaru Forester (SJG SJ5) 2012-2018 are available. These data are used to verify the body geometry and perform the necessary straightening of damaged parts for Subaru Forester right-hand drive vehicles intended for the Japanese market.

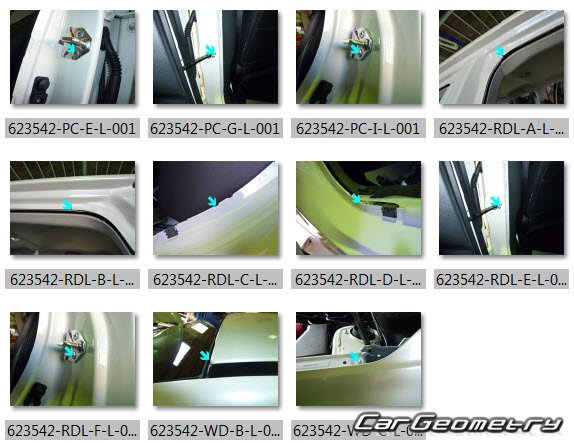

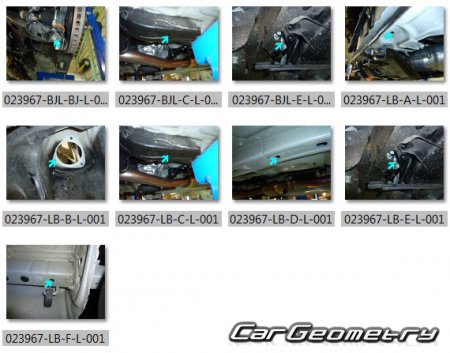

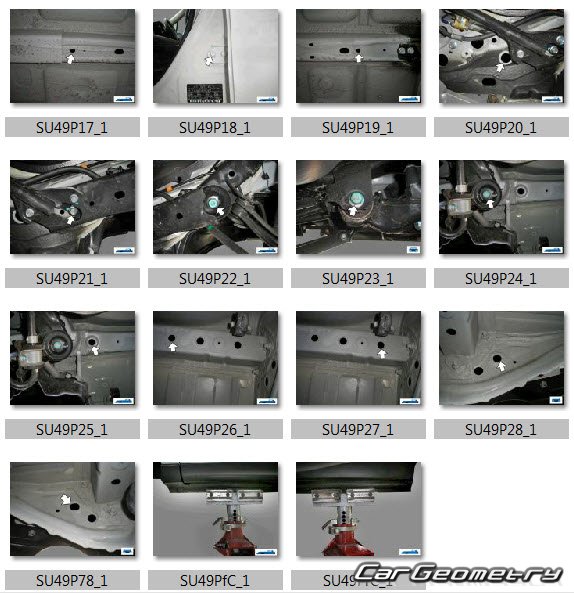

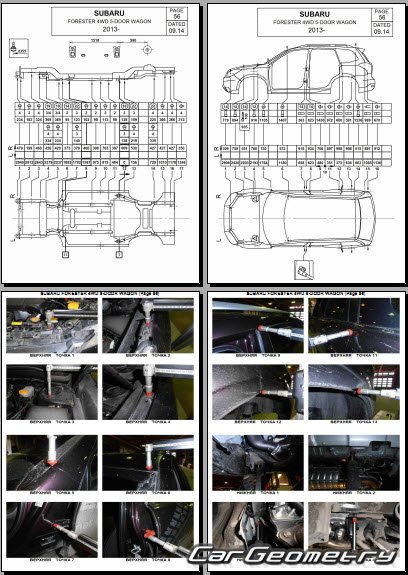

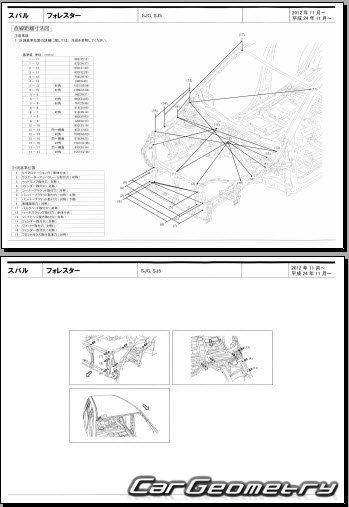

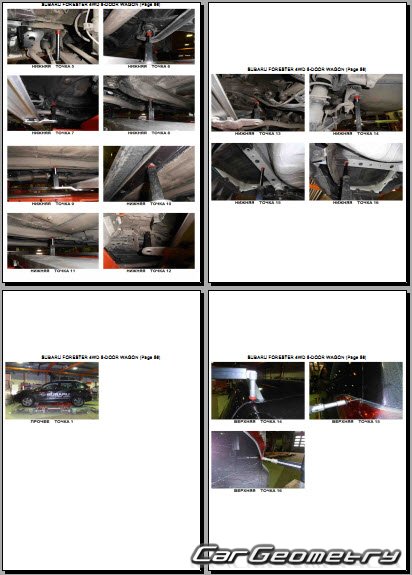

The information includes body dimensions, stand dimensions, and control points for the body geometry of Subaru Forester 2012-2018 with right-hand drive. Please note that the available documentation and measurements are in Japanese.

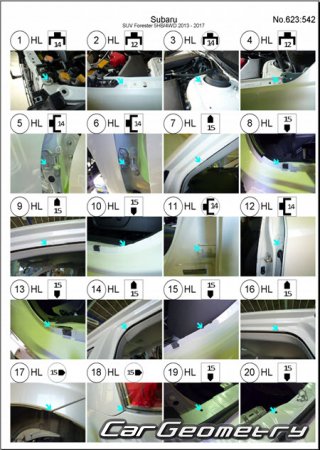

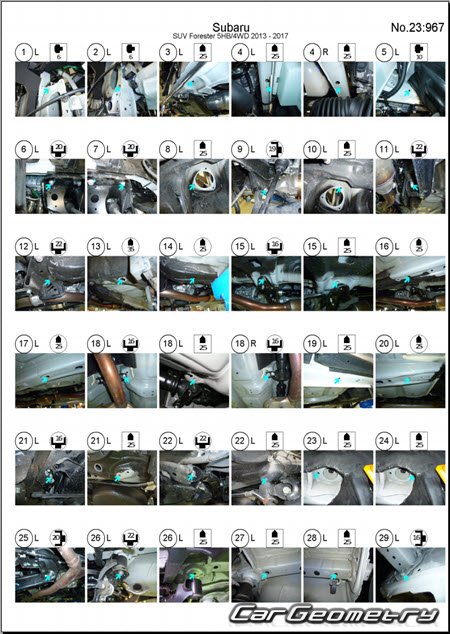

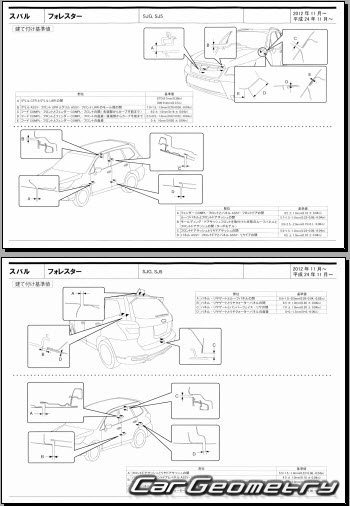

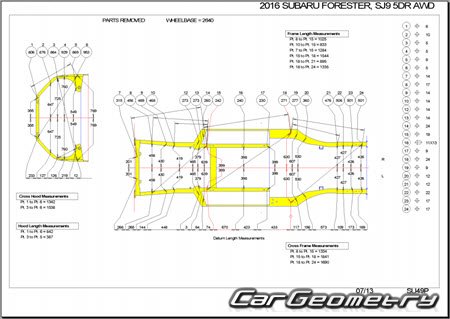

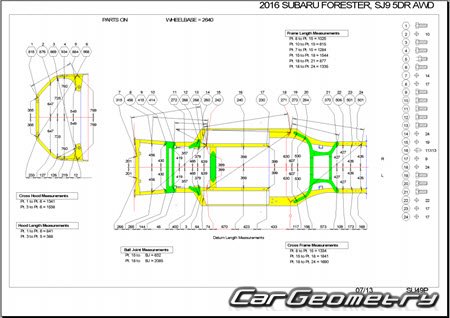

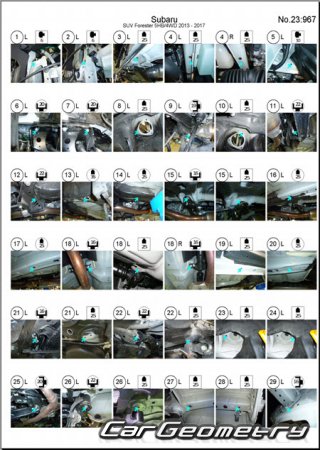

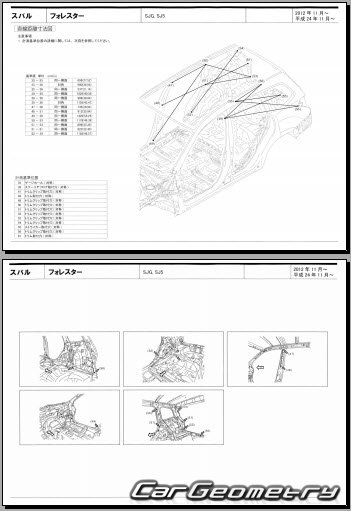

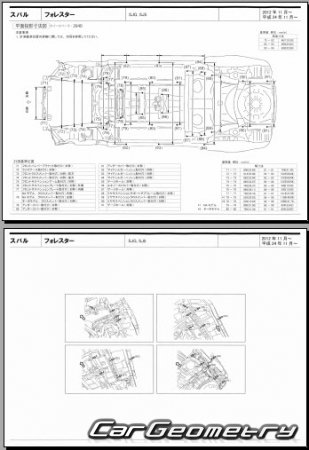

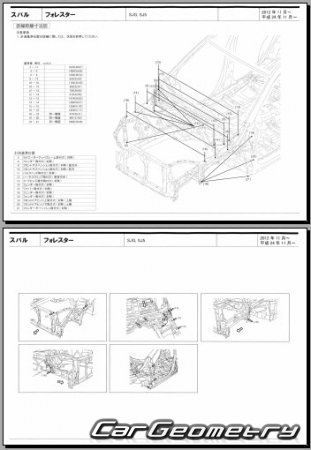

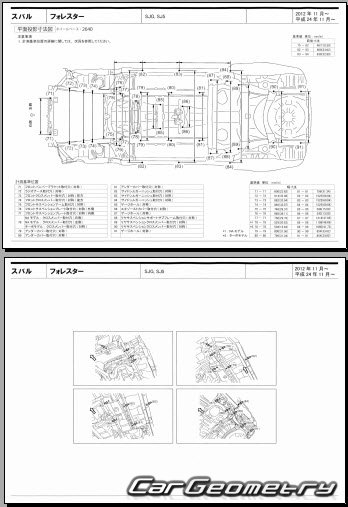

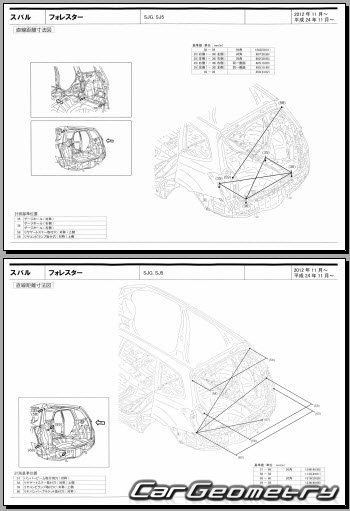

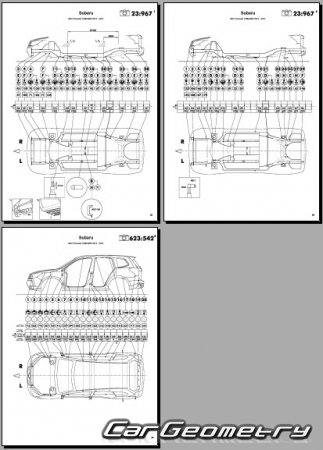

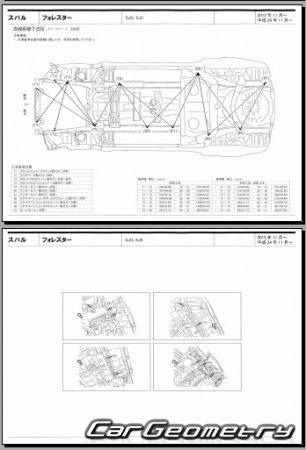

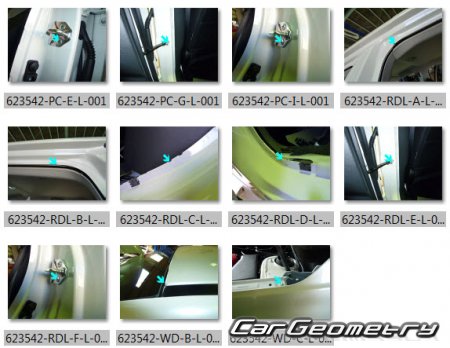

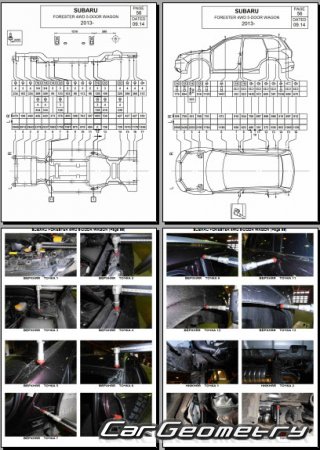

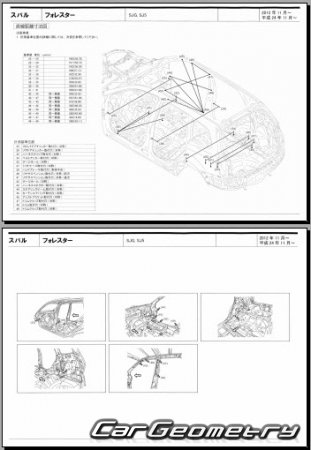

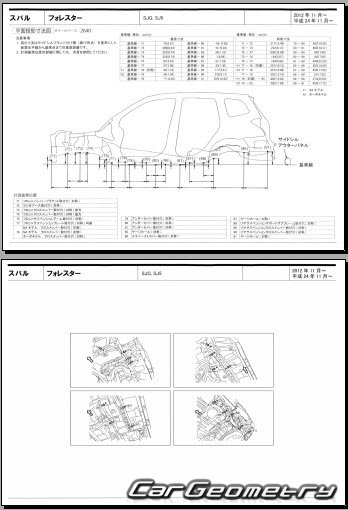

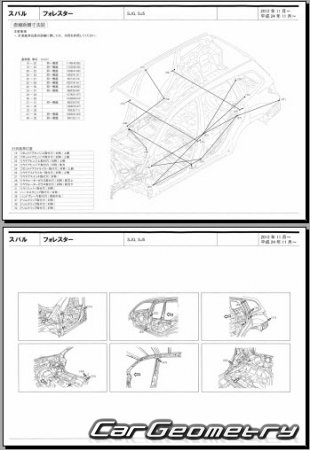

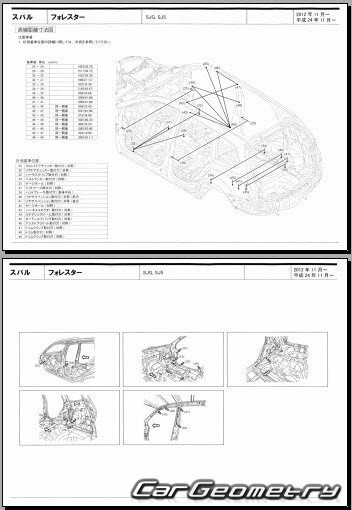

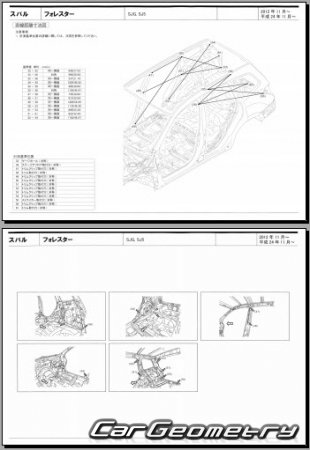

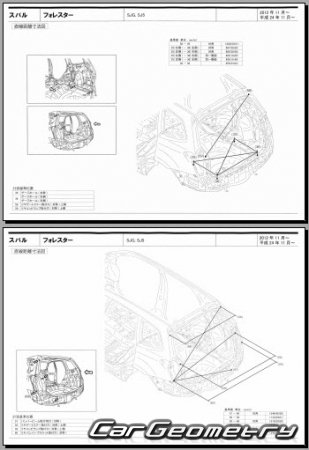

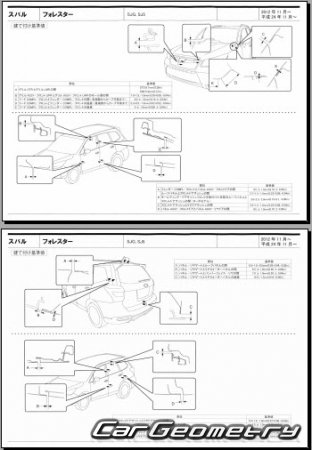

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions

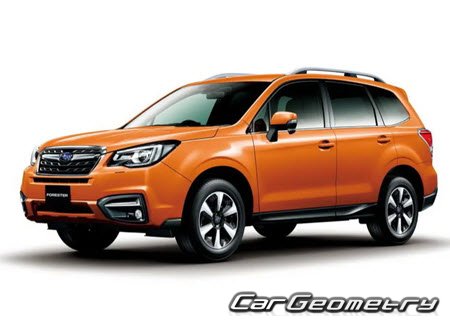

Subaru Forester (SJG SJ5) 2012-2018

Price: $36
