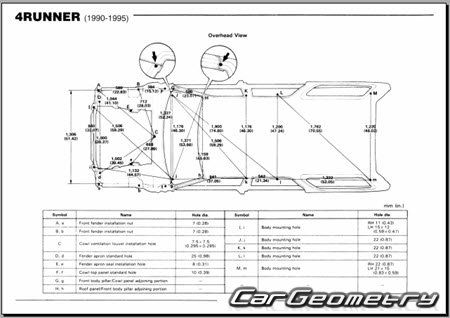

Body dimensions for restoring the body geometry of Toyota 4Runner (RN120, RN130, VZN120, VZN130) 1990–1995 are used to verify the body geometry and facilitate the subsequent repair of damaged parts. These measurements are specifically applicable to the left-hand drive versions of Toyota 4Runner.

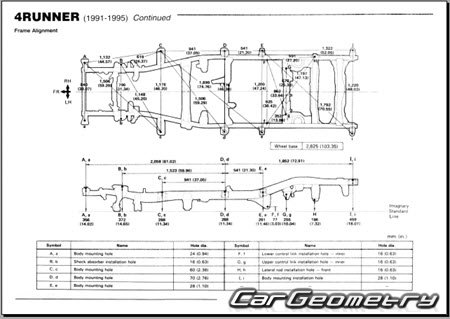

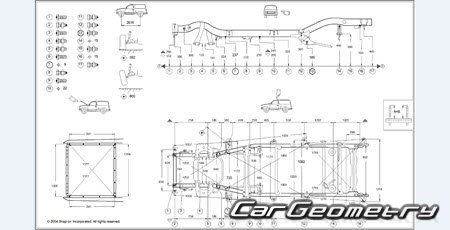

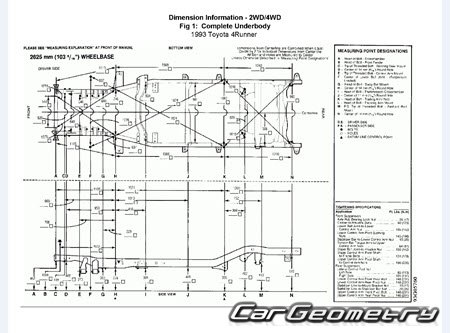

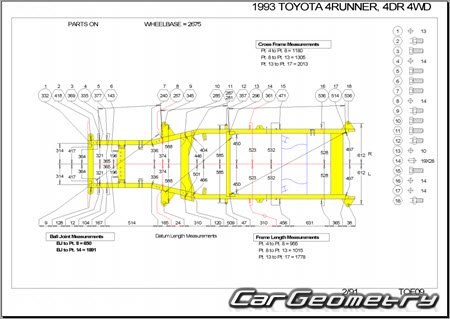

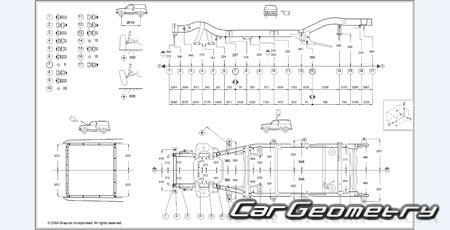

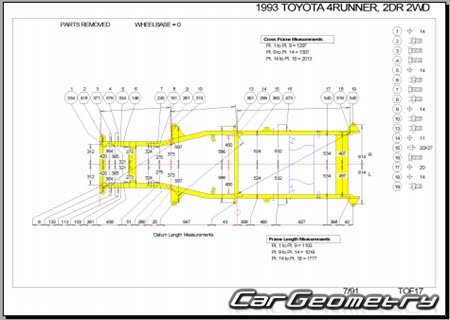

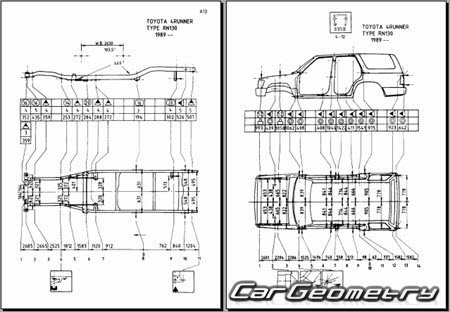

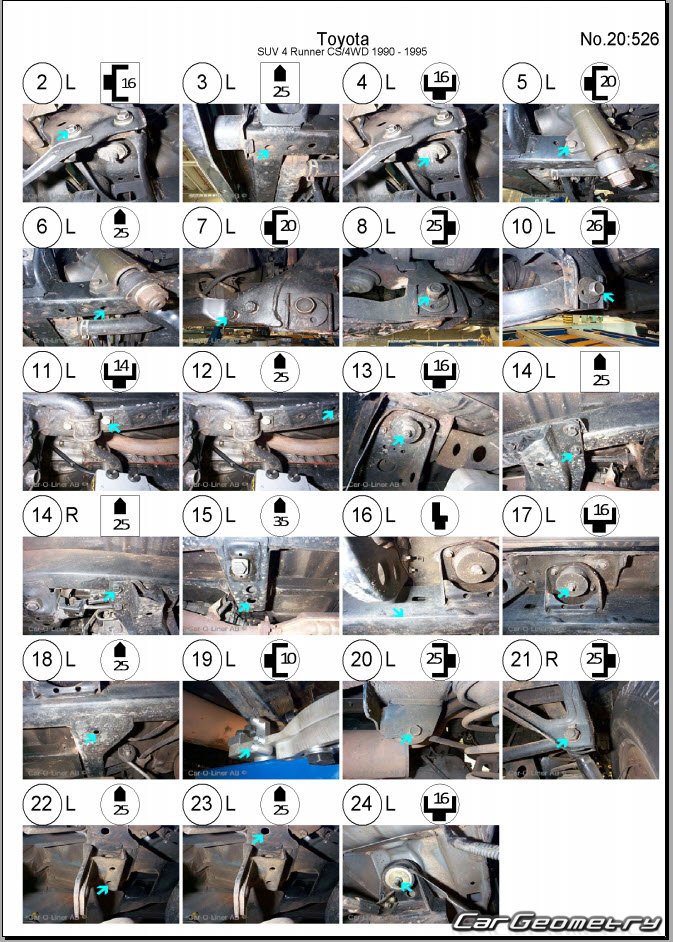

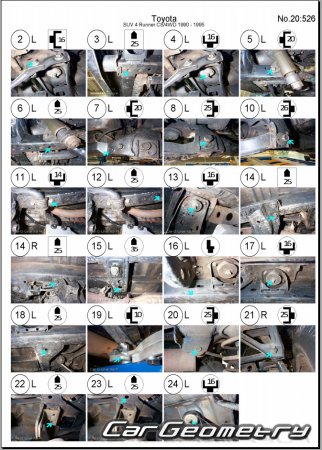

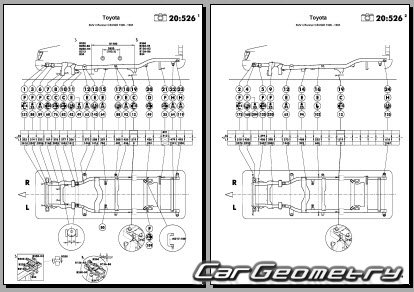

A selection of information is available from the factory documentation and vehicle measurement database in English for the Toyota 4Runner 1990–1995 with left-hand drive, including body dimensions and control points (chassis diagrams, upper body datasheet, underbody datasheet).

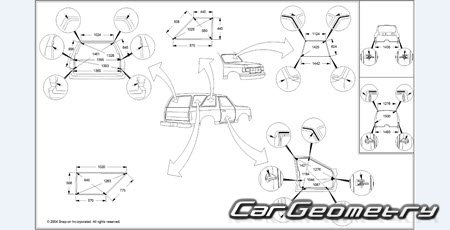

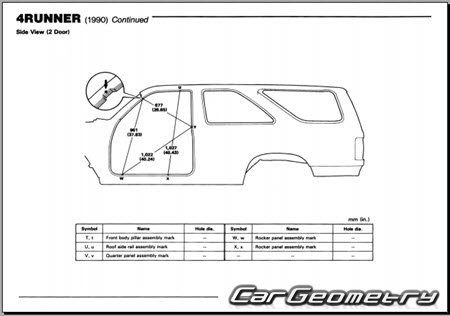

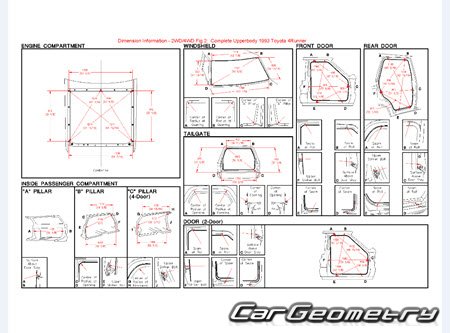

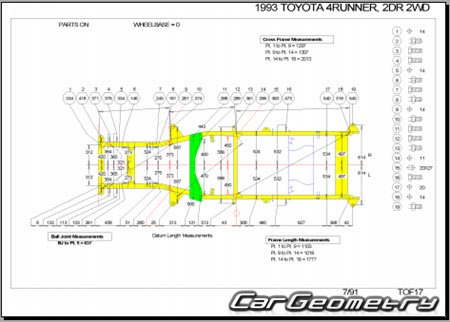

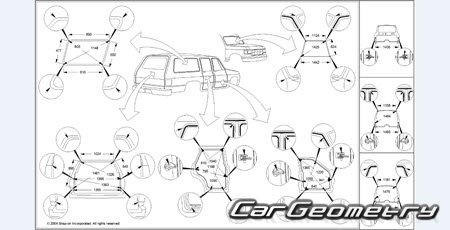

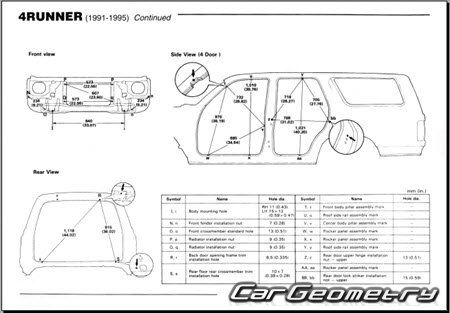

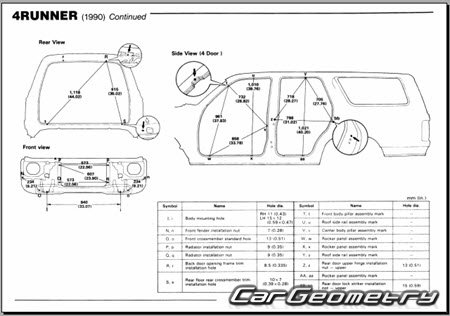

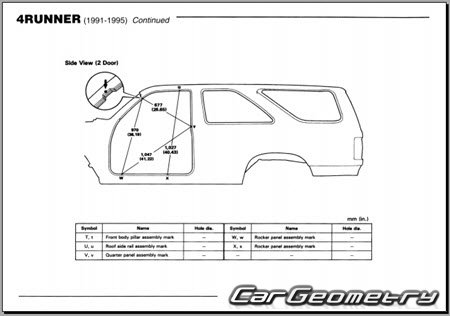

Upperbody dimensions include pillar widths for inside passenger compartment, door, windshield and rear window. Choice of Edge-of-hole or center-of-hole dimensions, widths measured from centerline and individual datum lengths for underbody information, diagonal measurements, deck lid measurements for more extensive and complete collision repairs.

Download vehicle dimensions
Toyota 4Runner (N120 N130) 1990–1995

Price: $20
