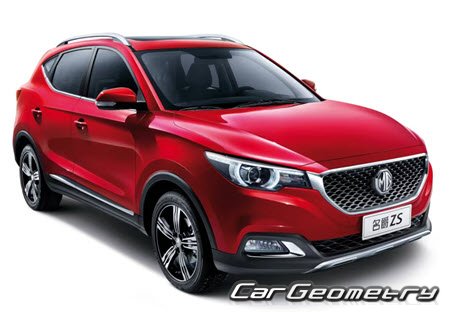

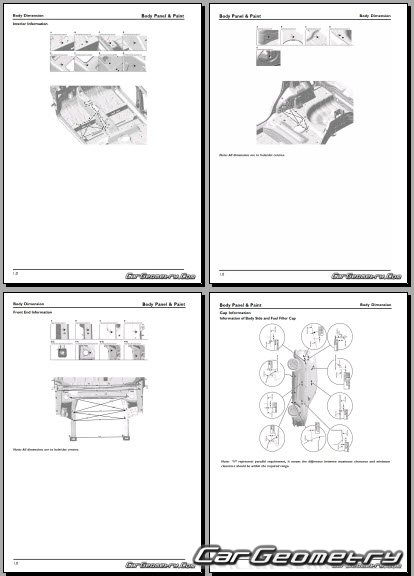

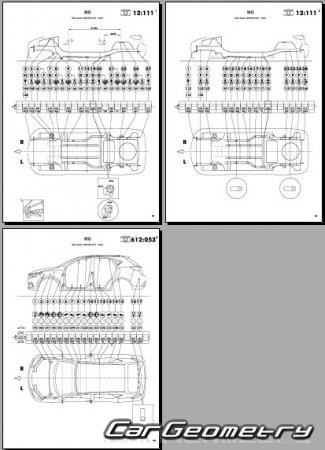

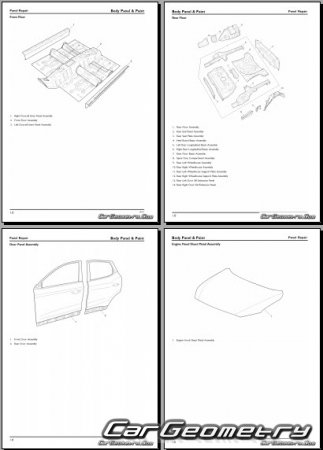

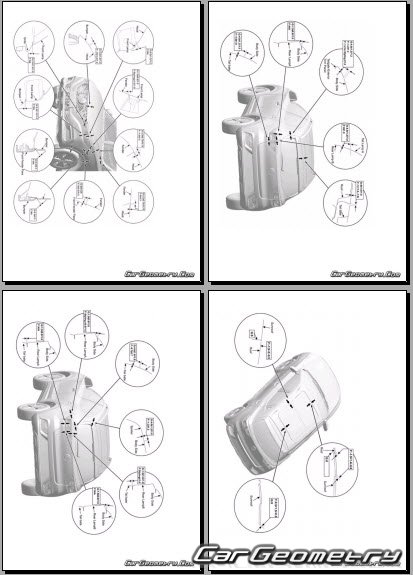

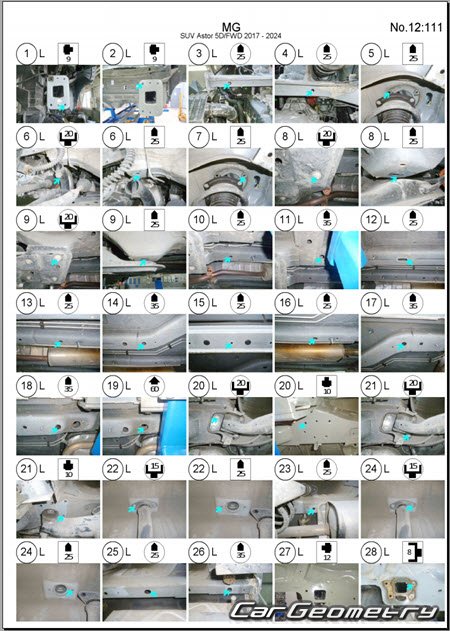

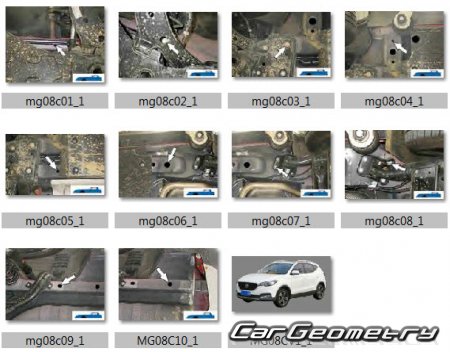

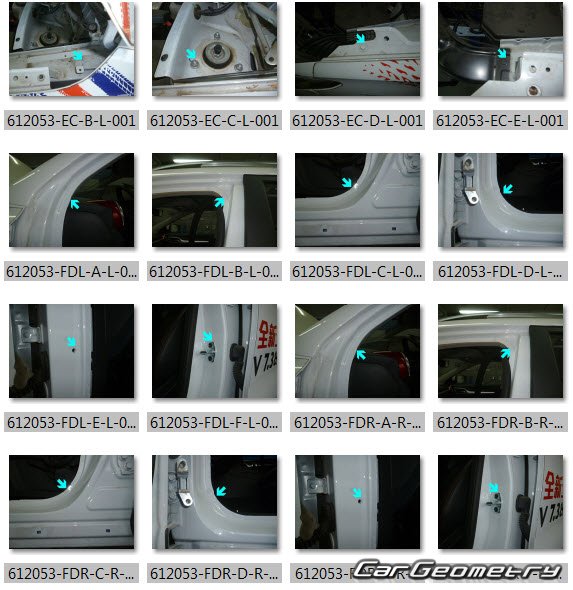

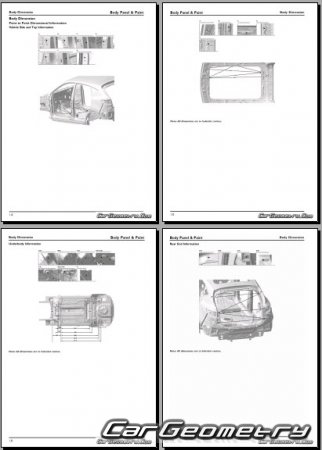

The factory manual provides the body dimensions for the MG Astor & ZS 2017–2024, including descriptions of replacement procedures for various body components and the body dimensions and control points for the MG ZS body geometry. MG ZS is the main platform, the car is sold under this name in most countries of the world (China, Europe, Australia), and since 2021 sales have begun in India under the name MG Astor.

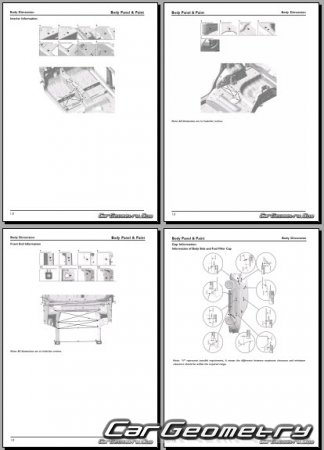

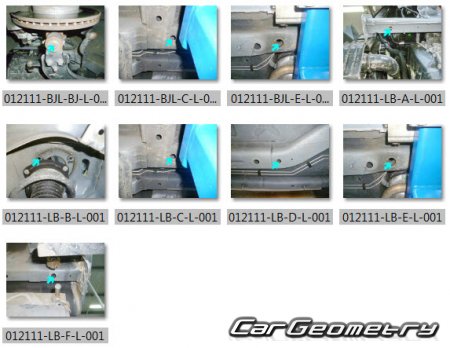

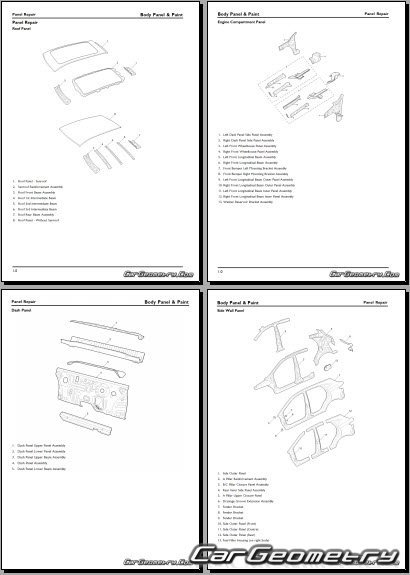

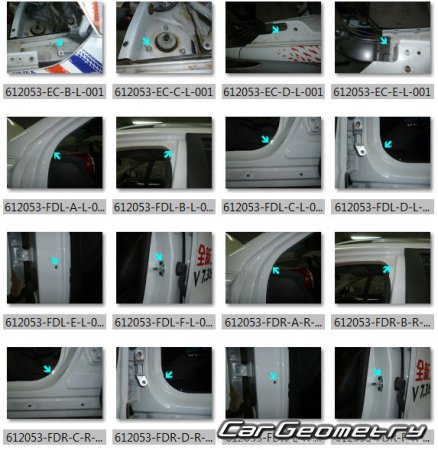

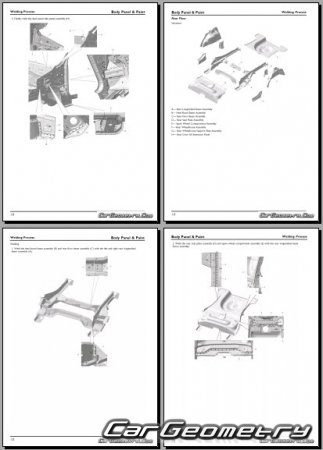

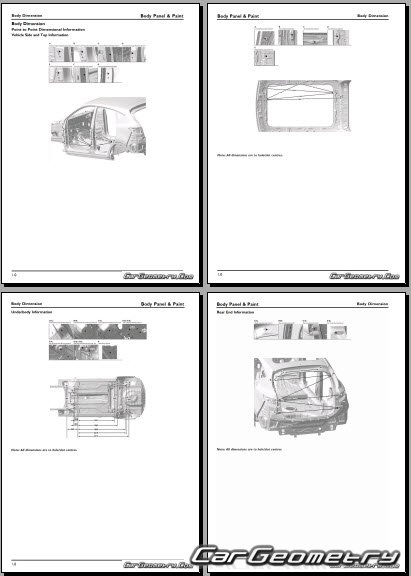

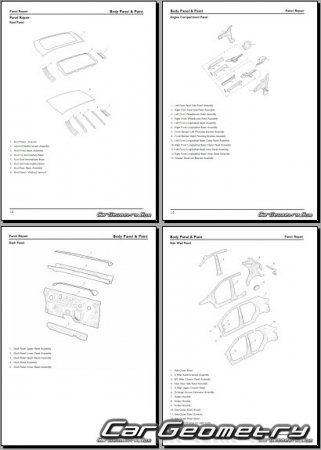

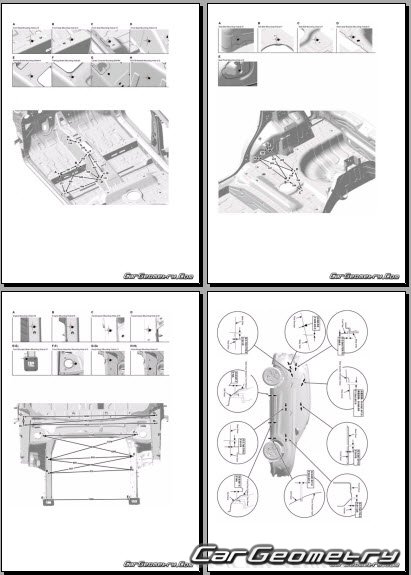

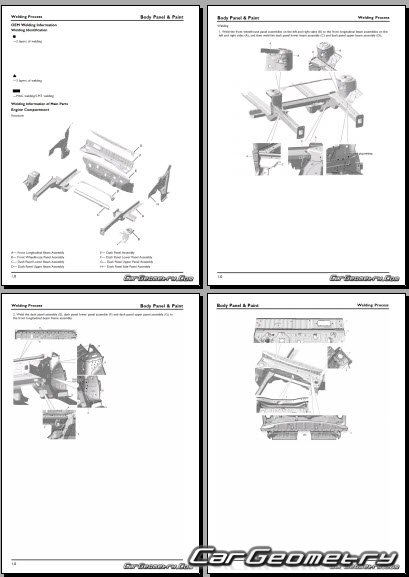

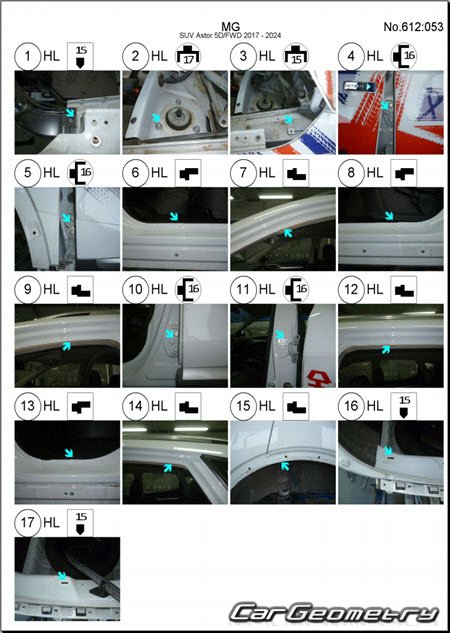

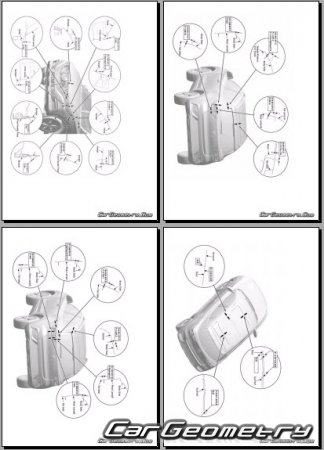

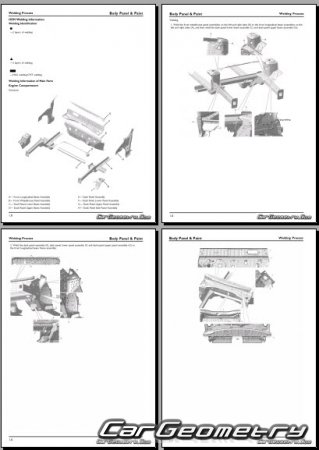

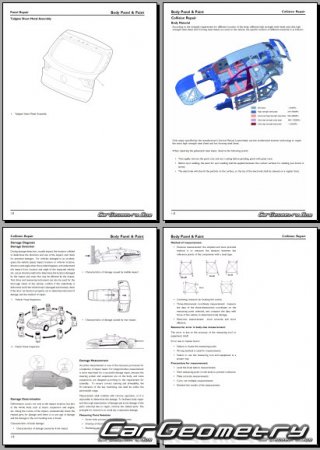

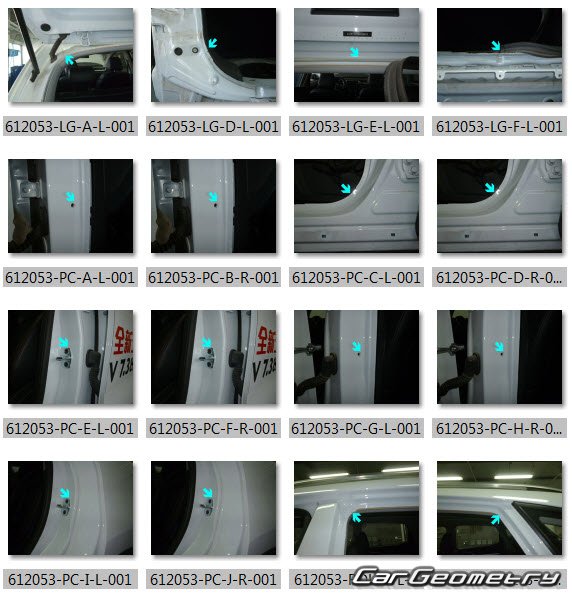

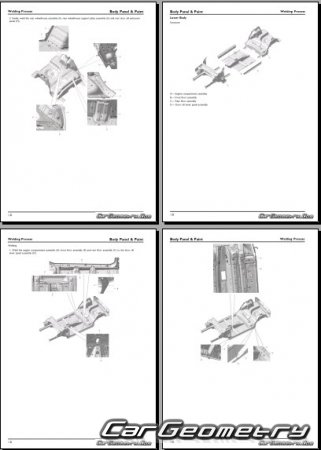

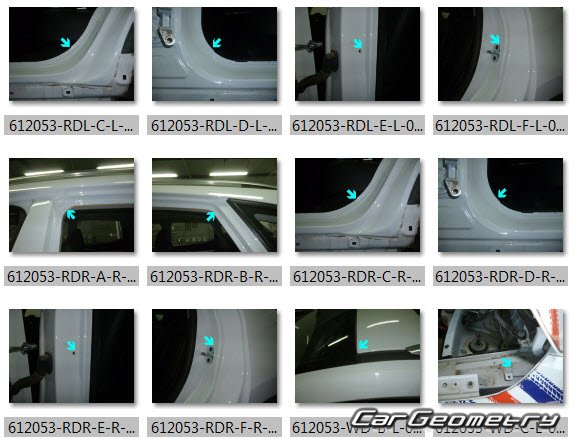

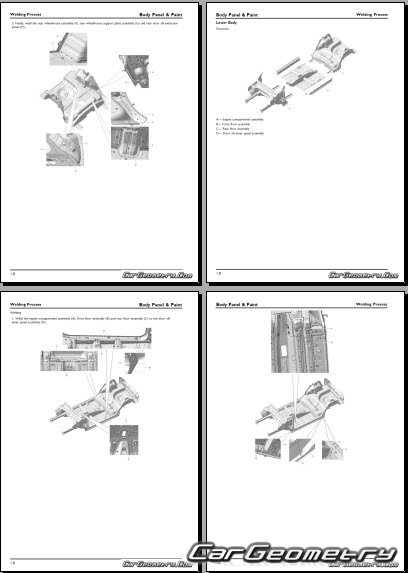

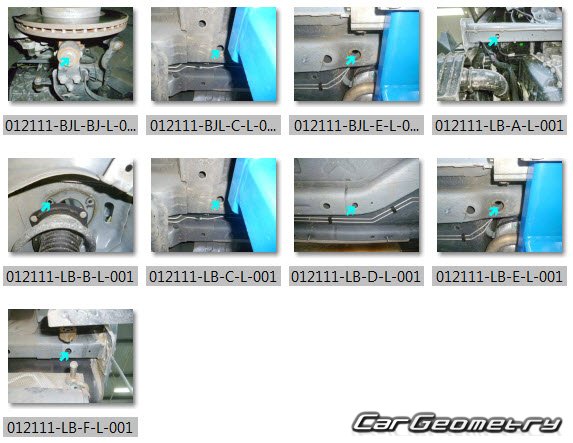

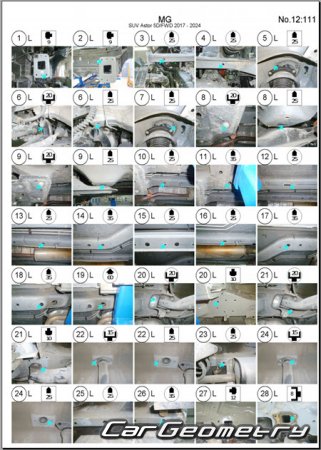

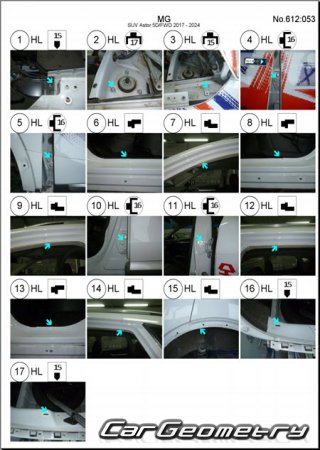

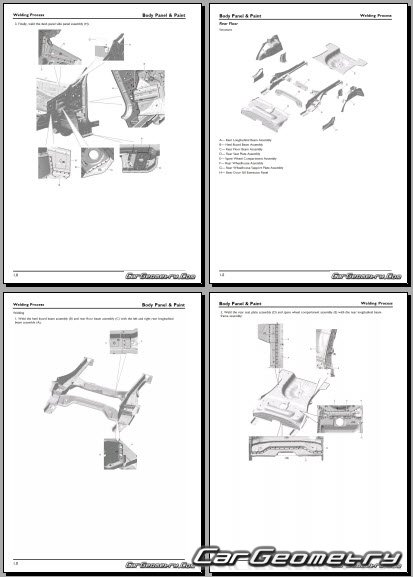

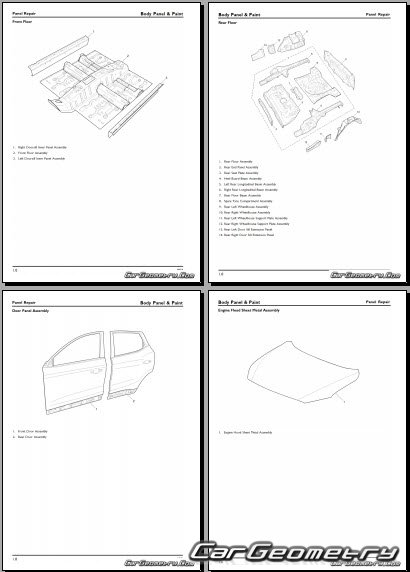

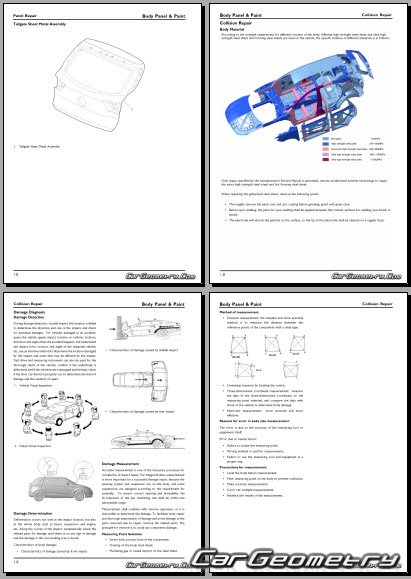

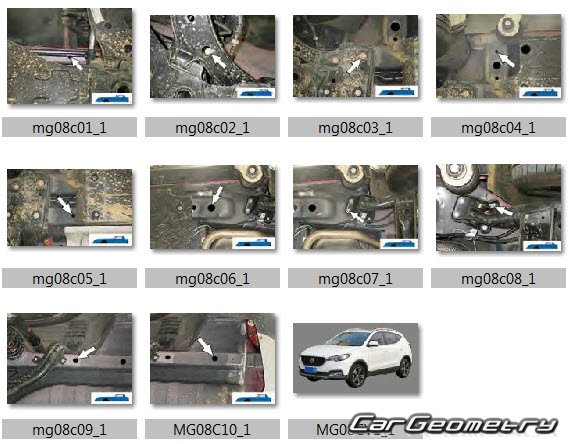

The information included in the manual consists of body dimensions, control points, sectional images of body elements, applicable materials, recommendations for welding types, methods, and materials, locations and materials for applying seals, sound insulation, and anti-corrosion sealants, areas and directions for cutting body elements for subsequent installation of new parts, interior material types, and decoding of markings.

MG Astor & ZS 2017–2024 Collision Repair Manual is available in English and contains a wealth of useful and necessary information for individuals involved in self-performed body repairs and for owners of body repair companies working on MG Astor & ZS vehicles.

Download Factory manual for body repair and body dimensions
MG Astor & ZS 2017–2024

Price: $30
